Description

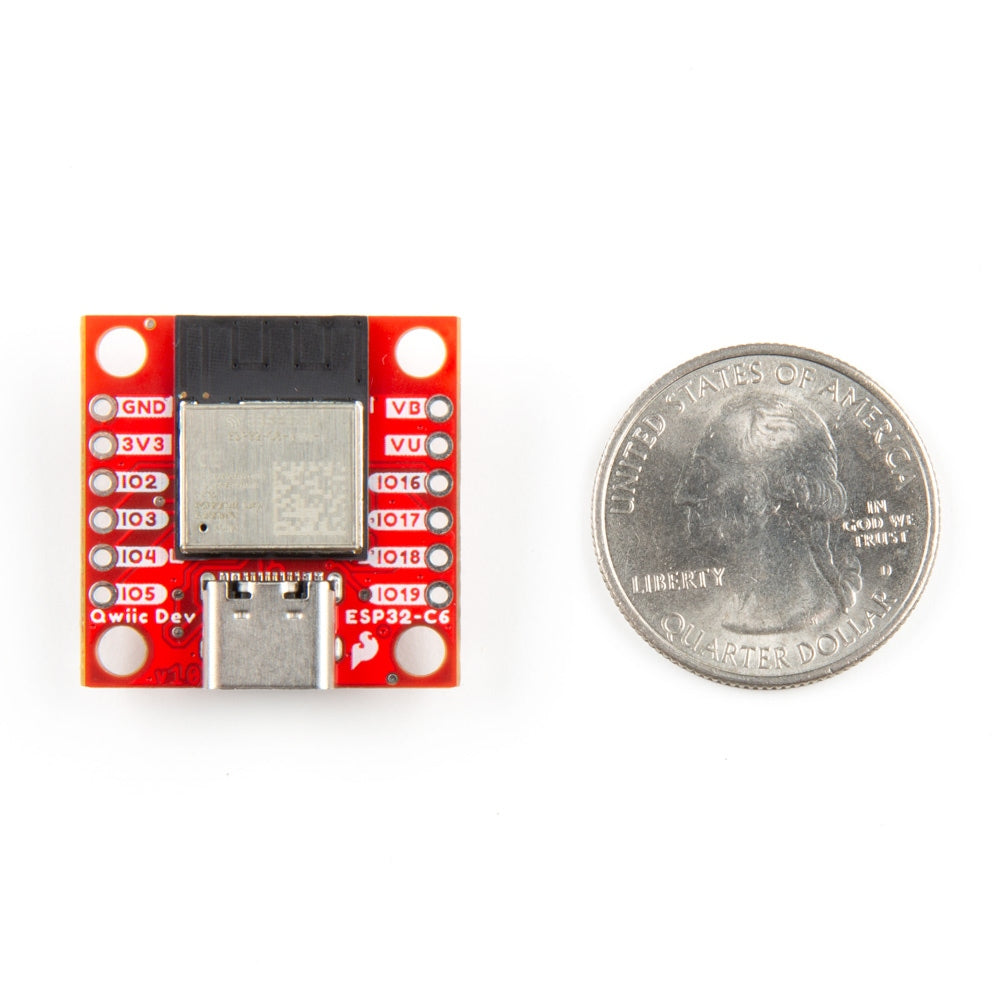

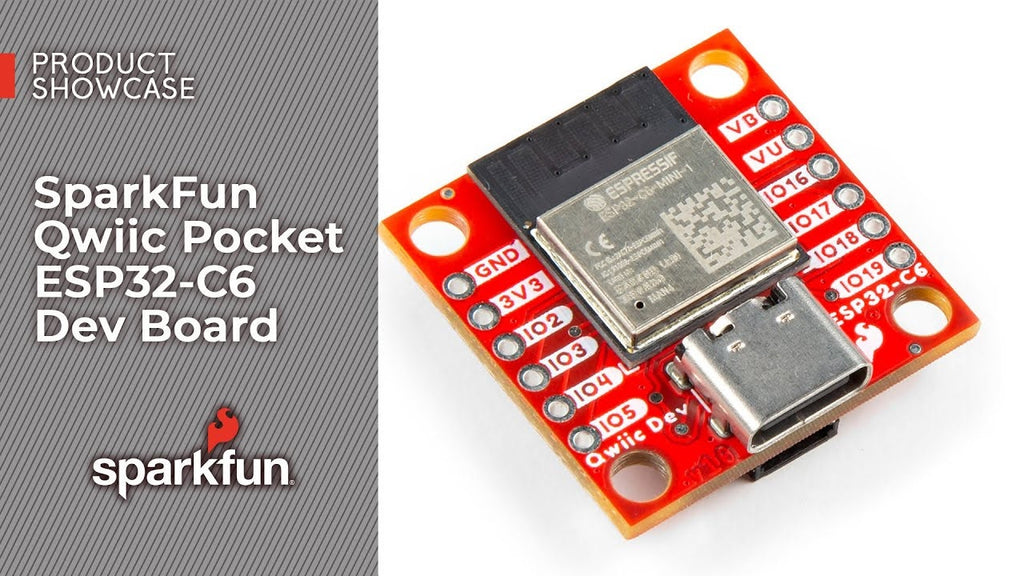

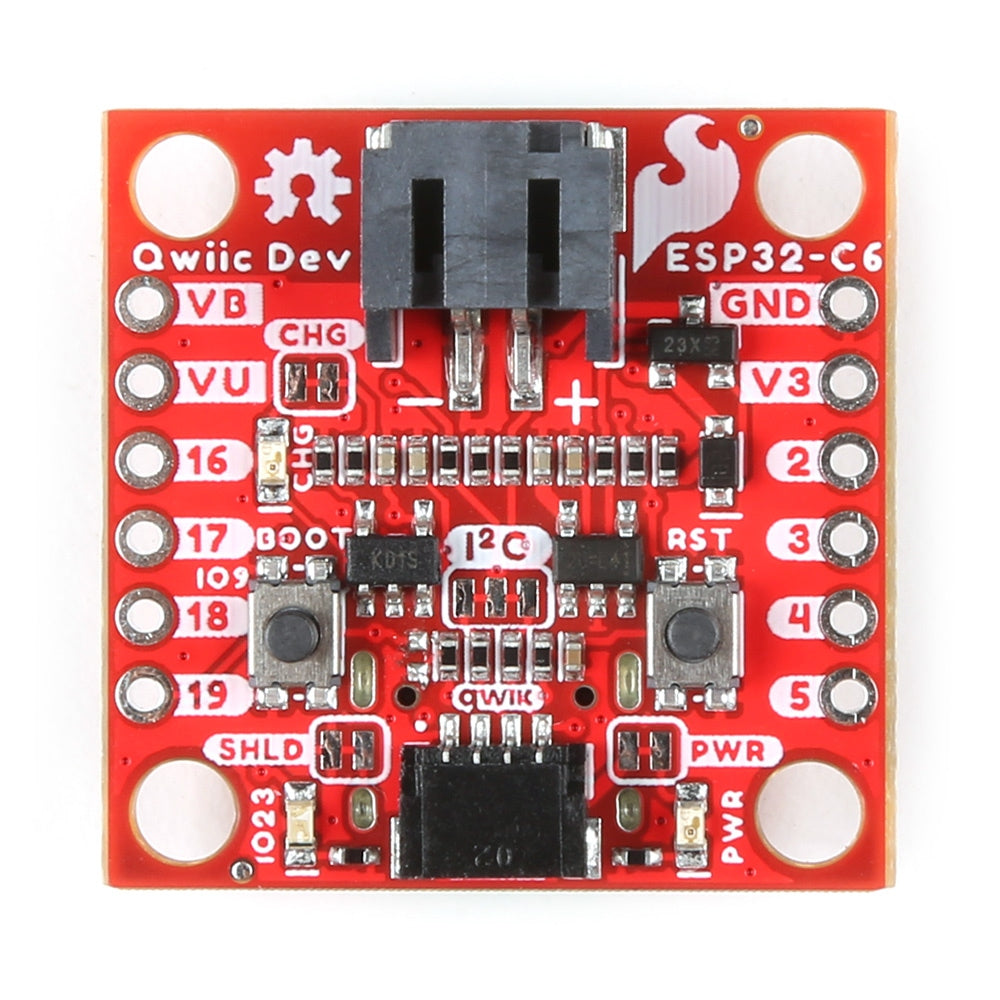

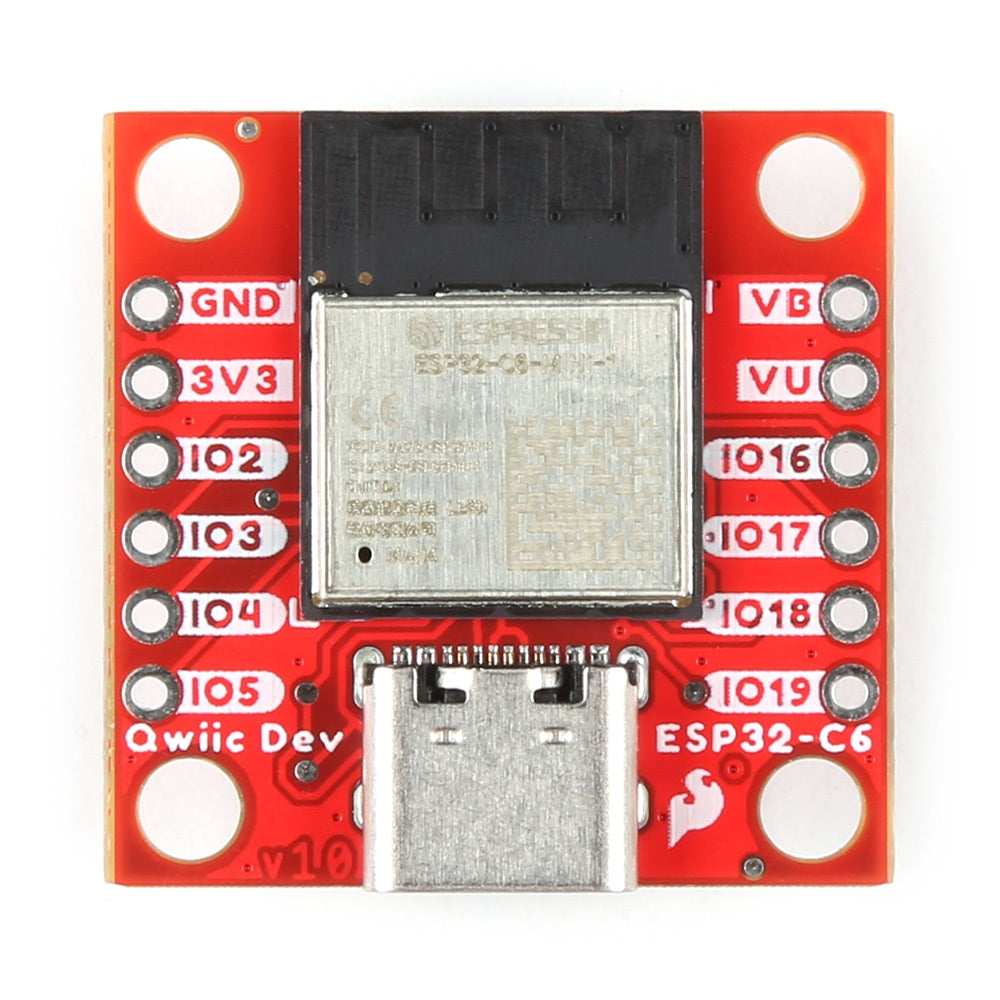

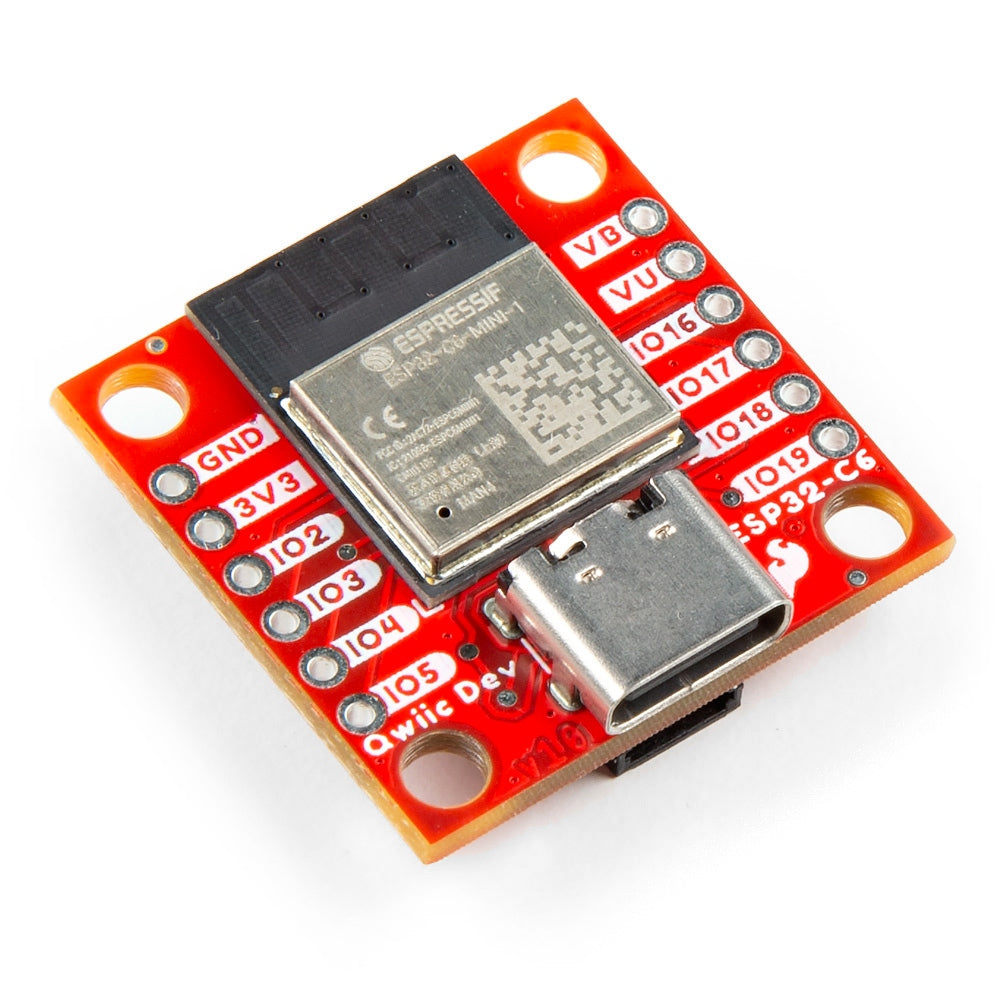

The SparkFun ESP32-C6 Pocket Dev Board is built around a RISC-V single-core processor with 4 MB flash memory in a 1"x1" Qwiic Standard Footprint!
Features & Specs
- ESP32-C6 MINI-1 Module:
- 32-bit RISC-V Single-Core Microprocessor
- 23 Multifunctional GPIO
- Most peripherals available on any GPIO pin.
- Up to 7 12-bit ADC Channels
- Up to 2 UART Channels (with flow control)
- USB Serial
- One Low Power UART Channel
- One I2C Channel
- One Low Power I2C Channel
- LED PWM
- One I2S Channel
- 4 MB Flash
- 2.4 GHz WiFi 6
- Bluetooth® 5 LE
- Zigbee & Thread (802.15.4)
- PCB Antenna
- Matter-compatible
- Qwiic Form-Factor:
- Dimensions: 1" x 1"
- Four Mounting Holes
- 8 PTH pins
- USB-C Connector
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- MCP73831 Battery Charger
- Charge Rate: 213mA@3.3V
- LEDs:
-
PWR- Red Power LED -
CHG- Yellow Battery Charging Indicator -
STAT- Blue Status LED - Buttons:
BOOTRESET
Features & Specs
- ESP32-C6 MINI-1 Module:
- 32-bit RISC-V Single-Core Microprocessor
- 23 Multifunctional GPIO
- Most peripherals available on any GPIO pin.
- Up to 7 12-bit ADC Channels
- Up to 2 UART Channels (with flow control)
- USB Serial
- One Low Power UART Channel
- One I2C Channel
- One Low Power I2C Channel
- LED PWM
- One I2S Channel
- 4 MB Flash
- 2.4 GHz WiFi 6
- Bluetooth® 5 LE
- Zigbee & Thread (802.15.4)
- PCB Antenna
- Matter-compatible
- Qwiic Form-Factor:
- Dimensions: 1" x 1"
- Four Mounting Holes
- 8 PTH pins
- USB-C Connector
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- MCP73831 Battery Charger
- Charge Rate: 213mA@3.3V
- LEDs:
-
PWR- Red Power LED -
CHG- Yellow Battery Charging Indicator -
STAT- Blue Status LED - Buttons:
BOOTRESET
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Fritzing Part
- Hookup Guide
- Datasheet (ESP32-C6-MINI-1)
- Technical Reference Manual (ESP32-C6)
- Qwiic Info Page
- GitHub Hardware Repo
