Description

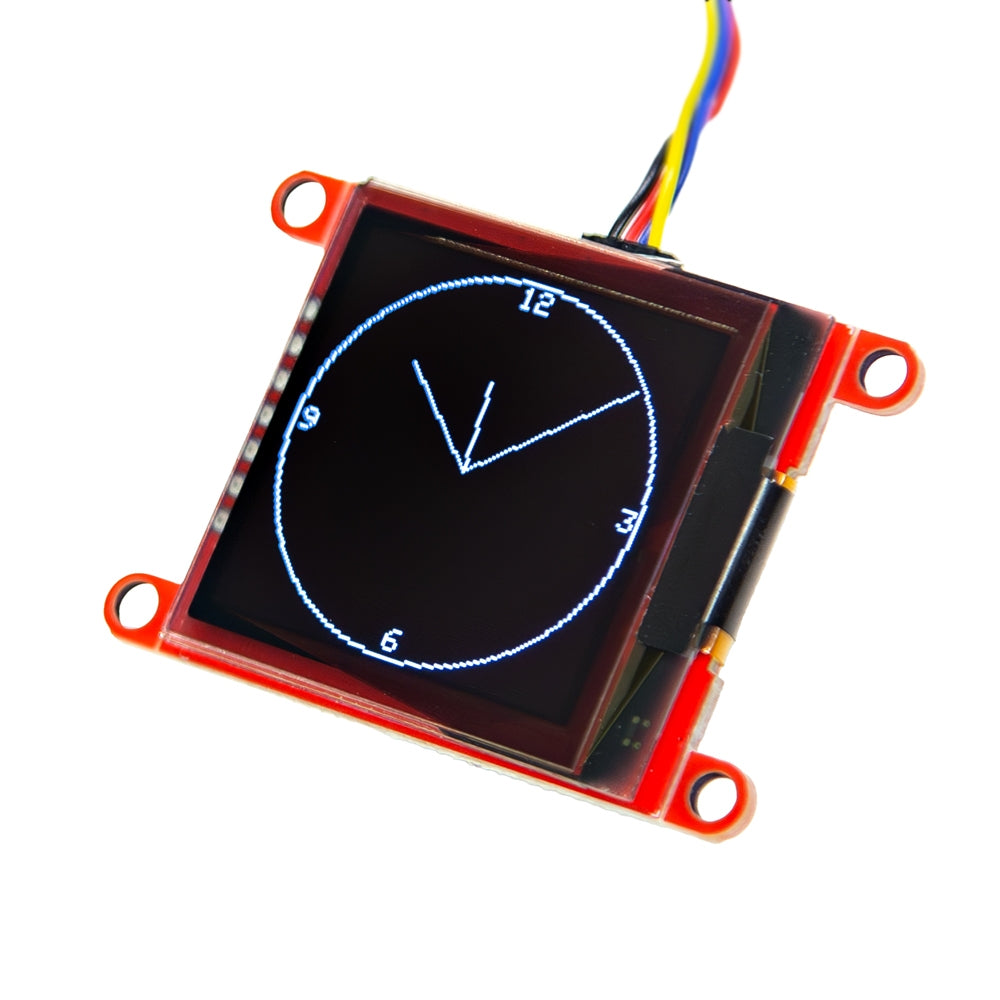

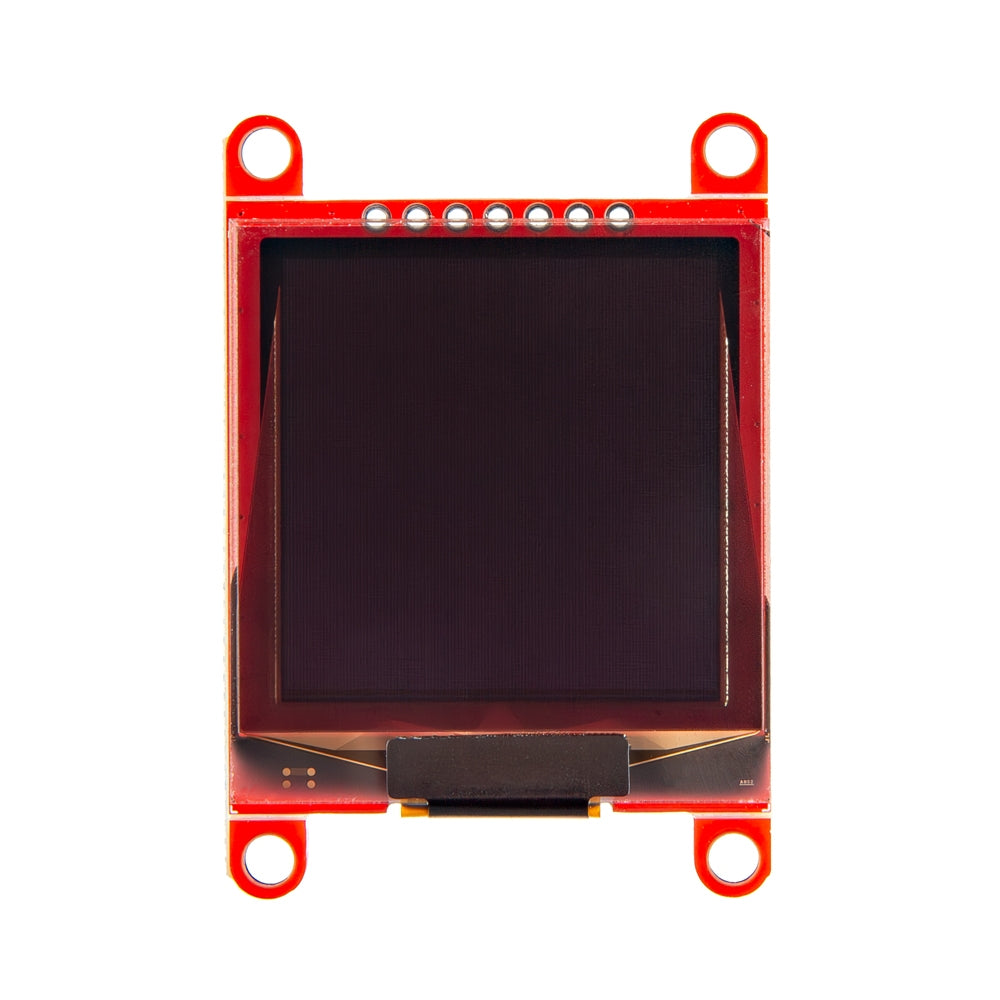

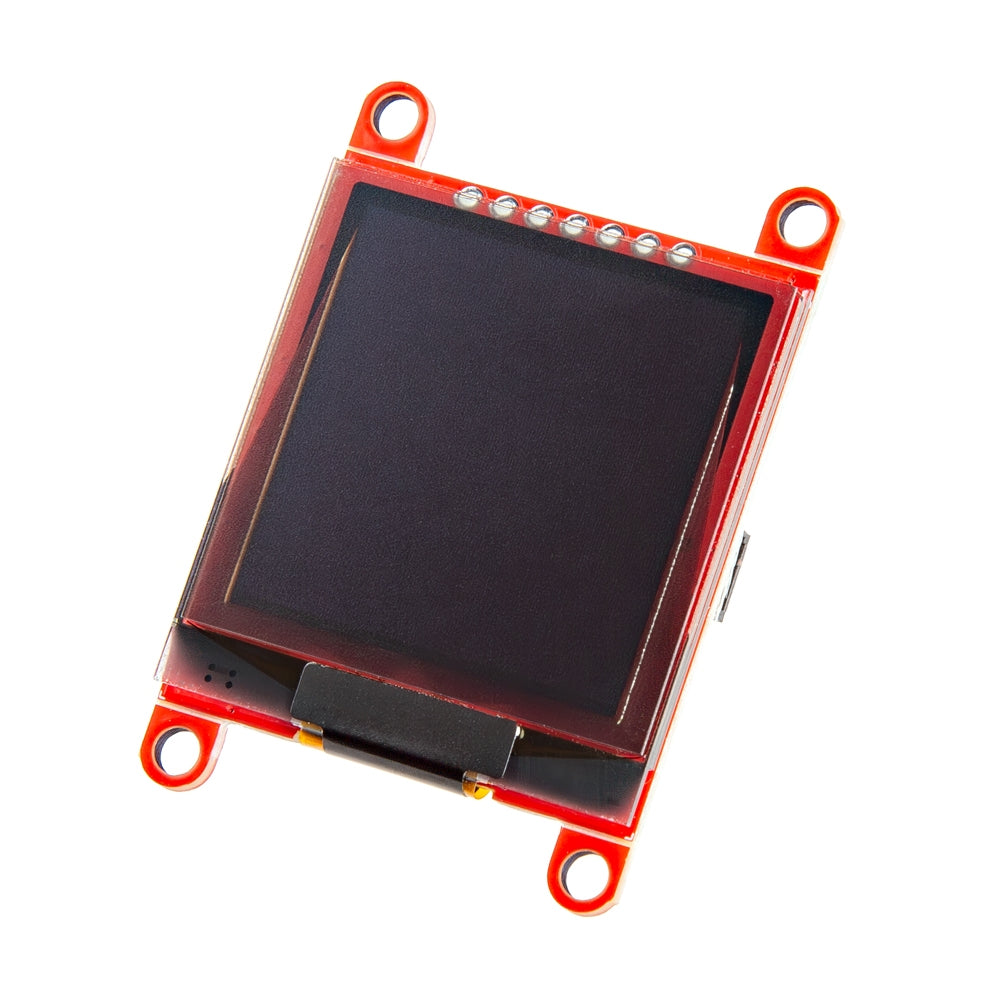

Add a crisp, high-contrast user interface to your project with this compact 1.5-inch OLED display, featuring effortless Qwiic integration and low power consumption.
Features & Specs

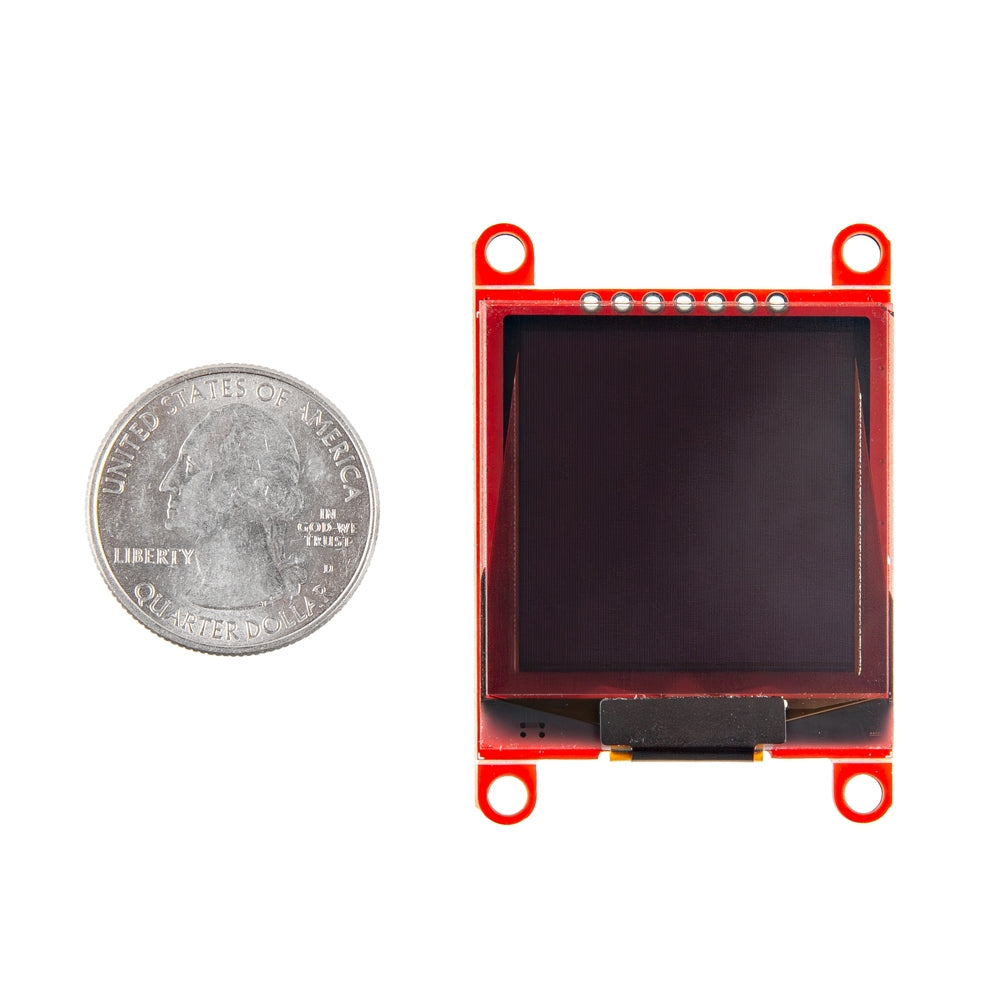

- 1.5" square 128x128 pixel display
- Display: WEO128128HWAP3N00000
- Monochrome White on Black
- Display Area: 26.86mm x 28.86mm
- Display Driver: CH1120

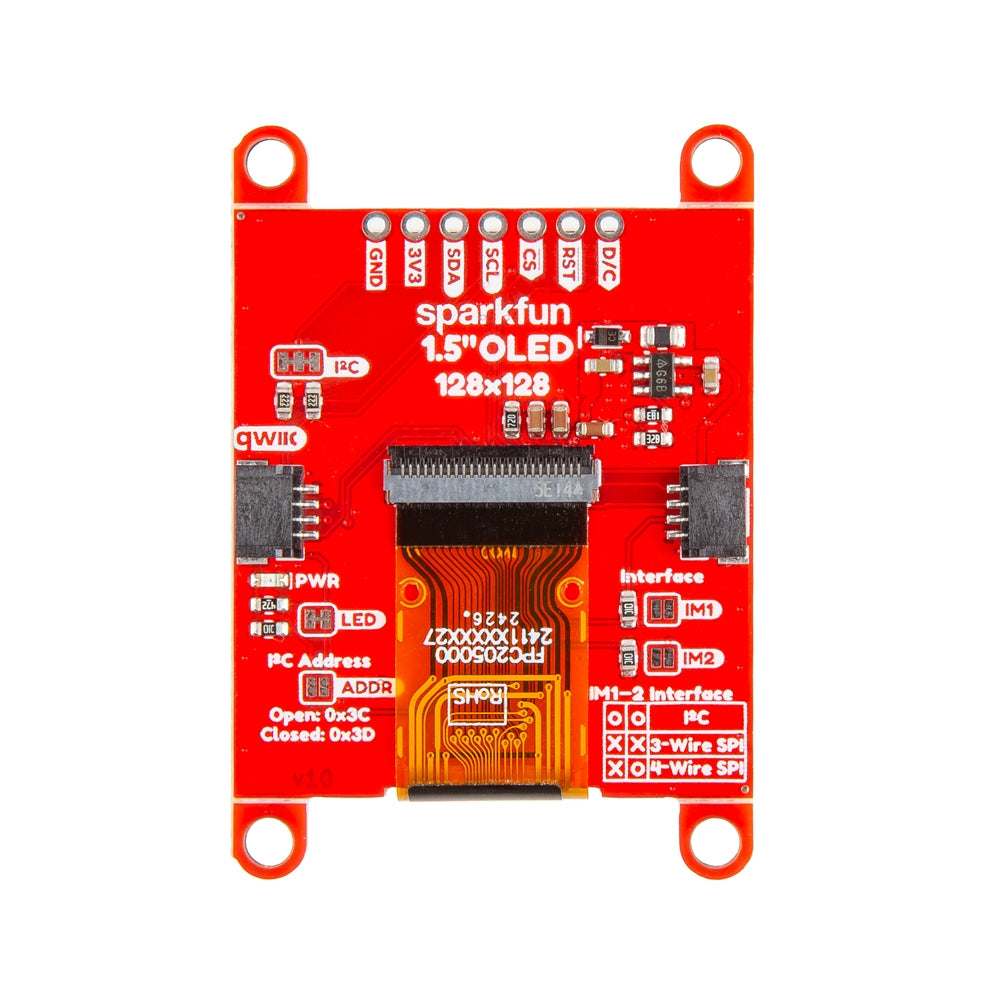

- I2C Interface (Default)
- Addresses: Ox3C (Default) 0x3D
- SPI Interface (Alternate)
- 3.3V Logic Only
- 0.1"-spaced PTH Header
- Red Power LED

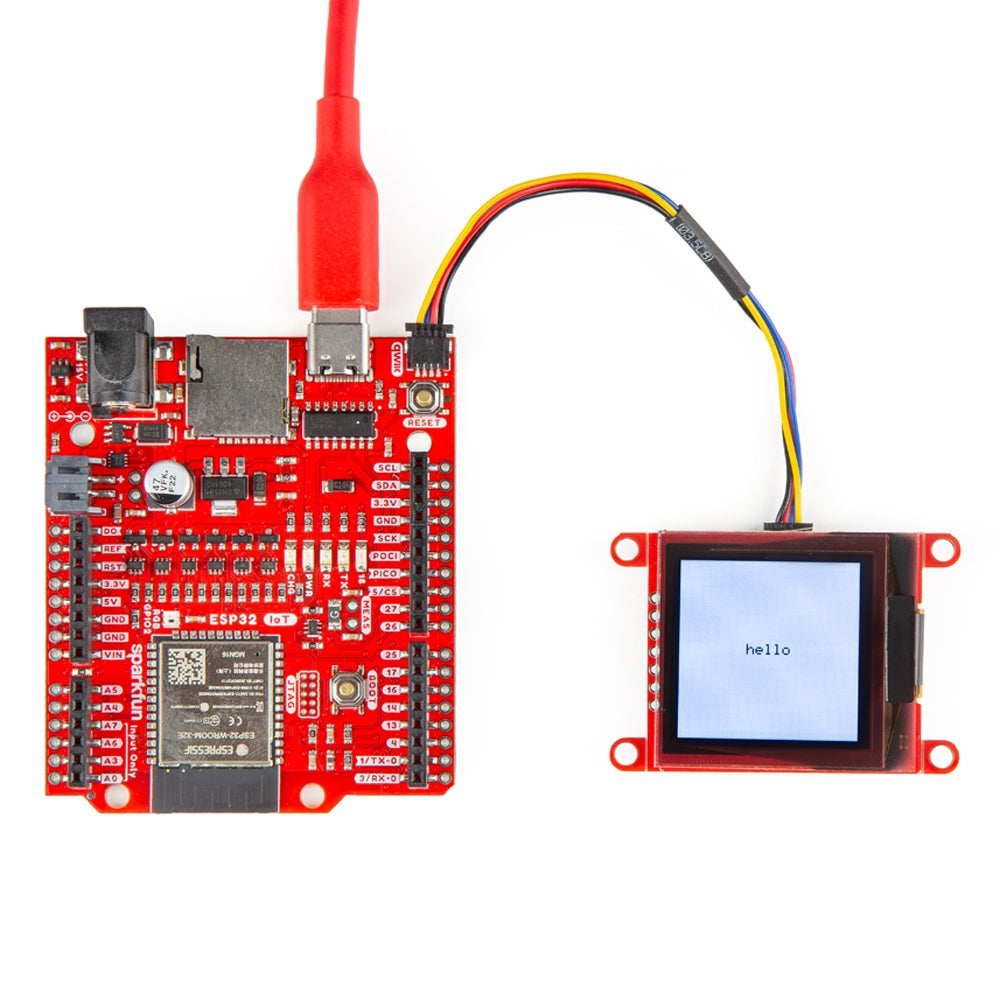

- 2x Qwiic Connectors
Features & Specs
- 1.5" square 128x128 pixel display
- Display: WEO128128HWAP3N00000
- Monochrome White on Black
- Display Area: 26.86mm x 28.86mm
- Display Driver: CH1120
- I2C Interface (Default)
- Addresses: Ox3C (Default) 0x3D
- SPI Interface (Alternate)
- 3.3V Logic Only
- 0.1"-spaced PTH Header
- Red Power LED
- 2x Qwiic Connectors
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4111.1 |
| 3-5 | ₹ 4069.15 |
| 5-10 | ₹ 3985.25 |
| 10+ | ₹ 3901.35 |
Bulk discount will be automatically applied during checkout based on quantity.
