Description

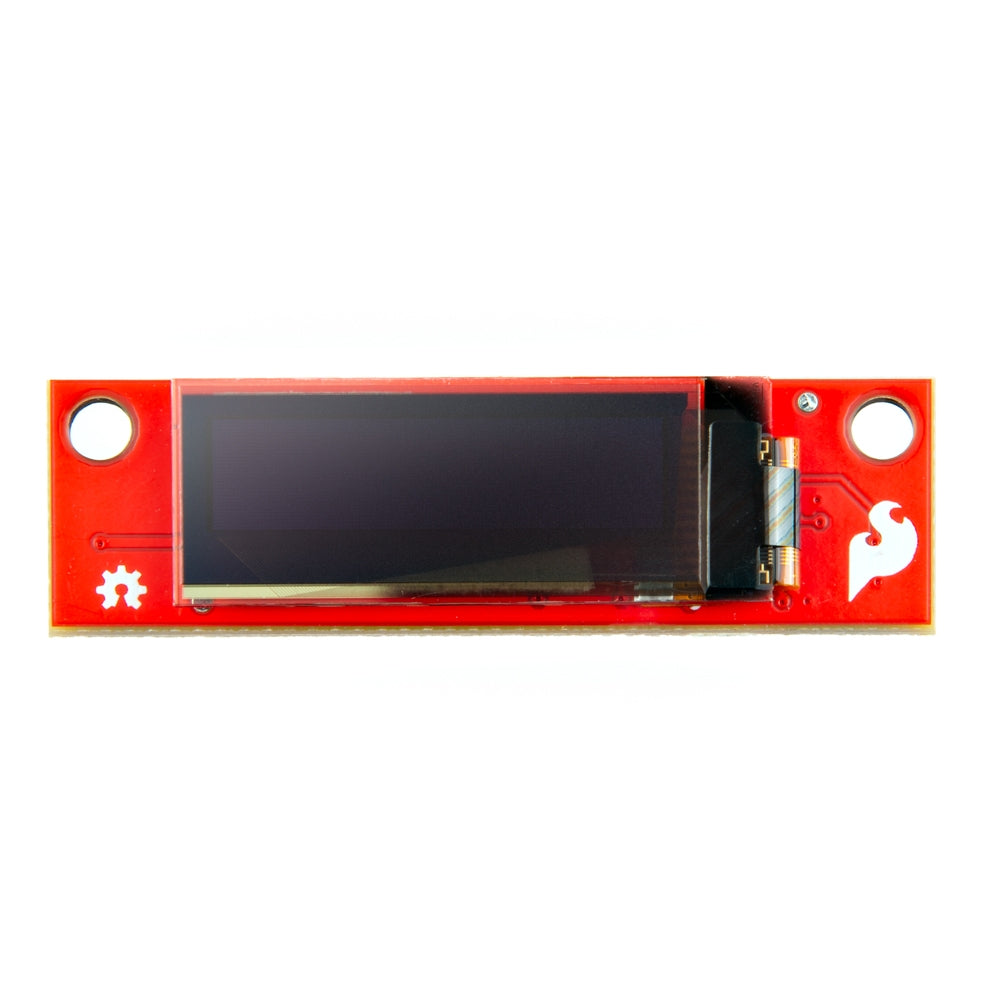

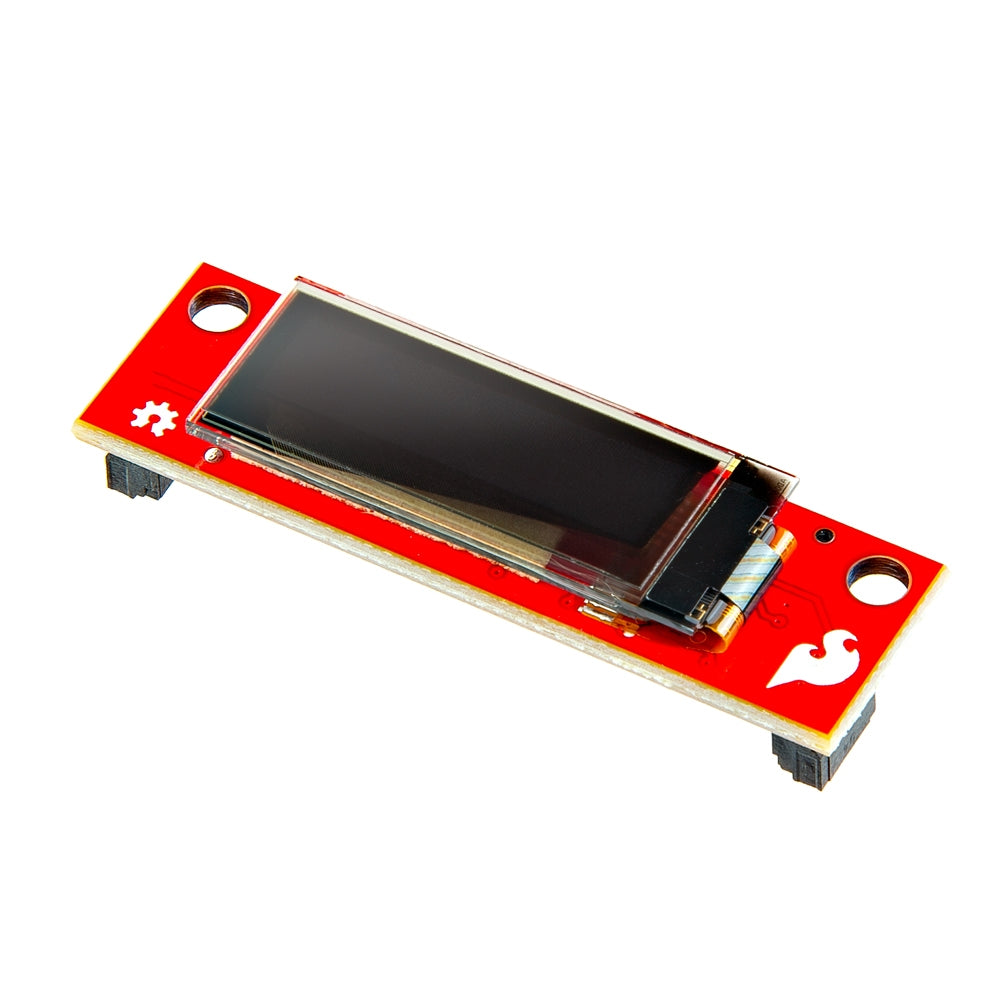

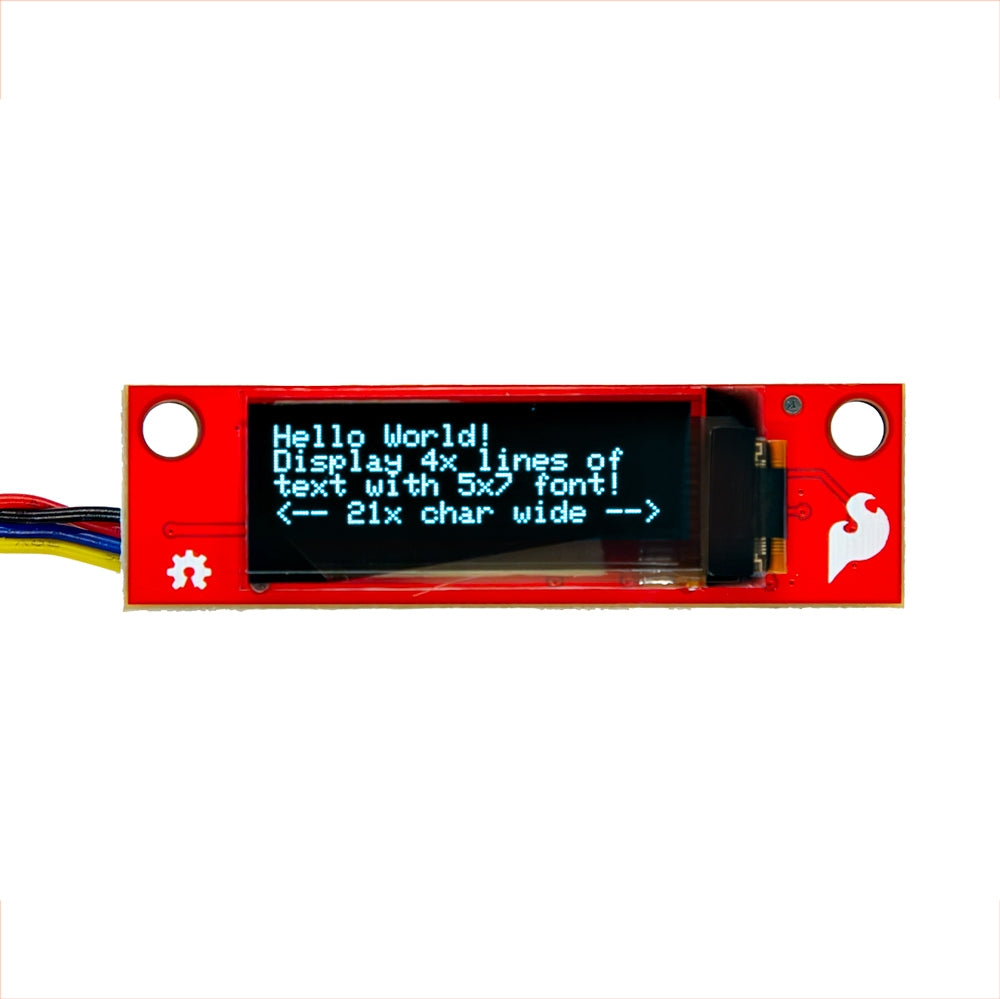

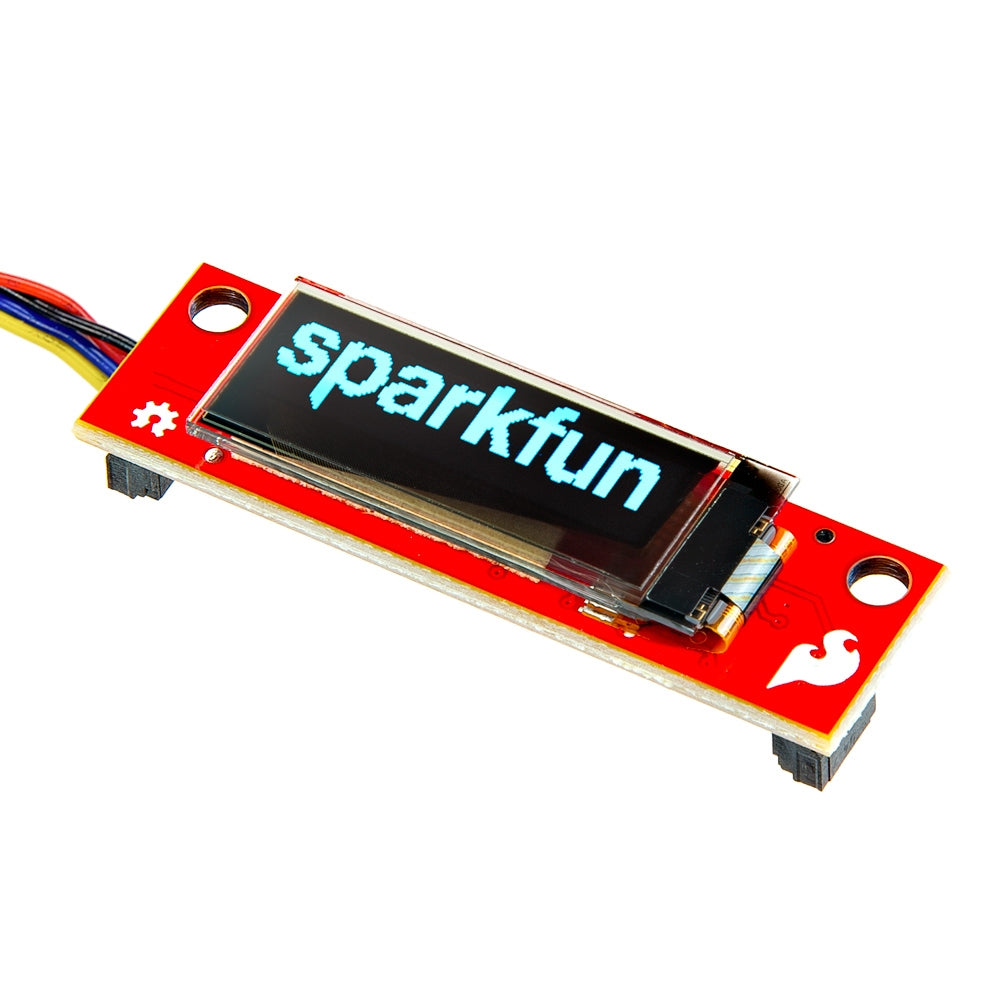

The SparkFun Qwiic OLED Display can display up to four lines of text and features 128x32 pixels in a compact 0.91-inch display. (diagonal) frame.
Features & Specs
- Operating Voltage: 3.3V via Qwiic Connector
- Display IC: SSD1306
- Screen Size 128px x 32px
- Monochrome Blue-on-Black
- Communication Protocols: I2C
- I2C Address: 0x3C
- 2x Qwiic Vertical Connectors
- Built-in I2C 4.7kΩ Pull-Up Resistors
- I2C Jumpers for Pull-Up Resistors

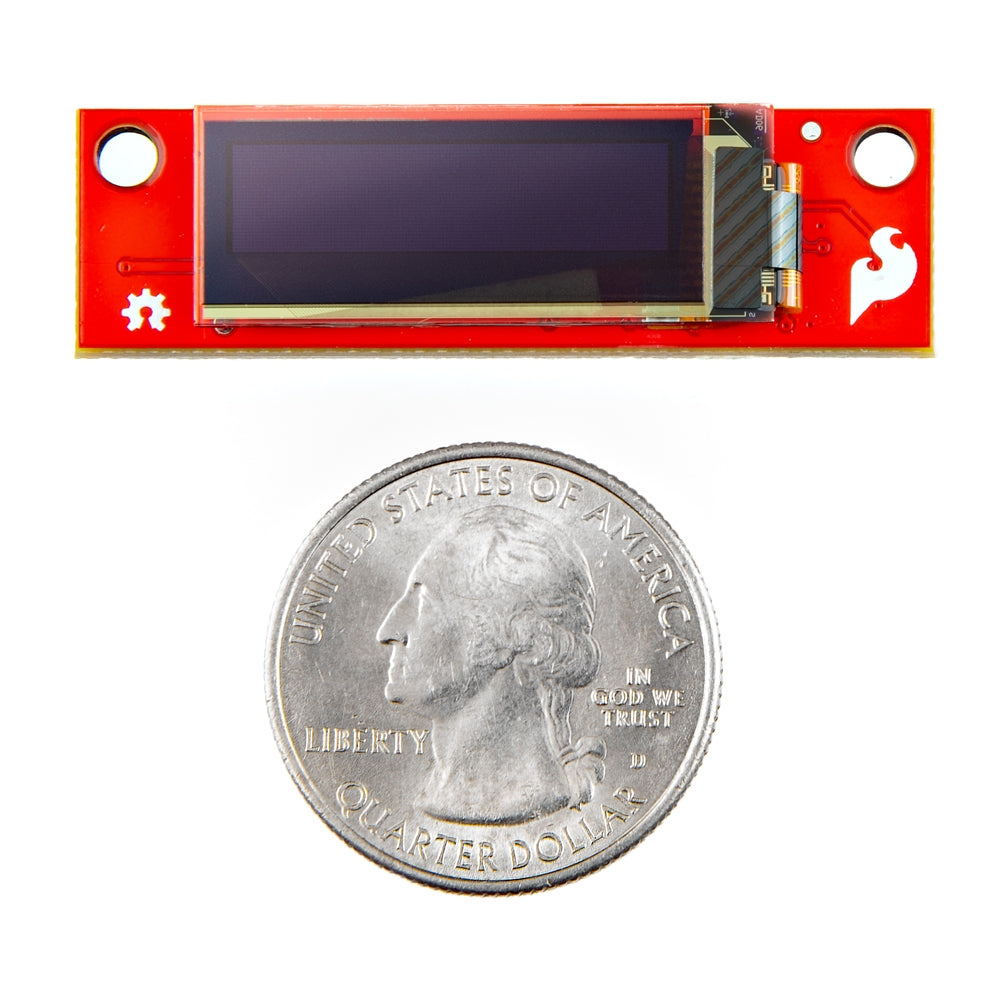

- Board Dimensions: 1.75in. x 0.50in. (44.45mm x 12.7mm)
- Weight: 3.25g

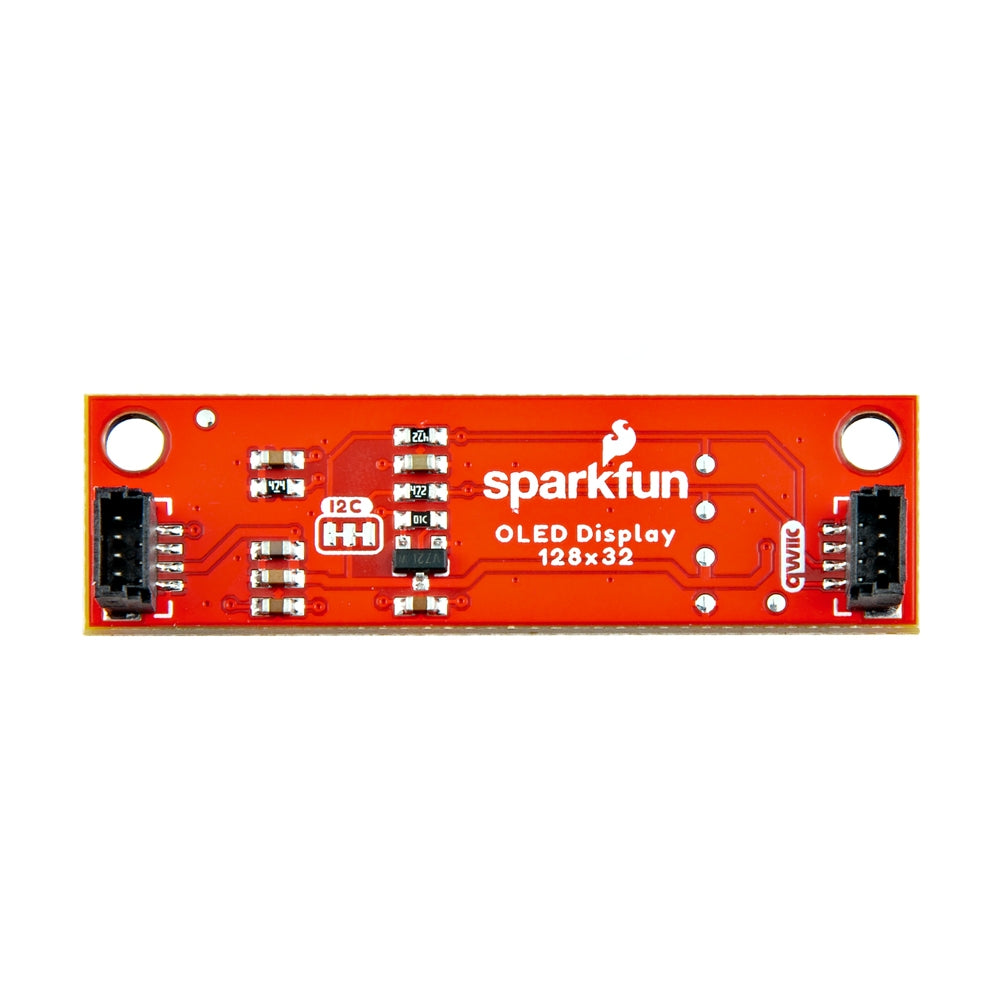

Revision Change: For V1.1, we switched the horizontal Qwiic connectors to vertical. We also moved it to the back so that you can easily mount the board and keep the wires inside the enclosure. The vertical Qwiic connectors allows for a smaller board. The two mounting holes have also been moved to one side of the board.
Features & Specs
- Operating Voltage: 3.3V via Qwiic Connector
- Display IC: SSD1306
- Screen Size 128px x 32px
- Monochrome Blue-on-Black
- Communication Protocols: I2C
- I2C Address: 0x3C
- 2x Qwiic Vertical Connectors
- Built-in I2C 4.7kΩ Pull-Up Resistors
- I2C Jumpers for Pull-Up Resistors
- Board Dimensions: 1.75in. x 0.50in. (44.45mm x 12.7mm)
- Weight: 3.25g
Revision Change: For V1.1, we switched the horizontal Qwiic connectors to vertical. We also moved it to the back so that you can easily mount the board and keep the wires inside the enclosure. The vertical Qwiic connectors allows for a smaller board. The two mounting holes have also been moved to one side of the board.
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
