Description

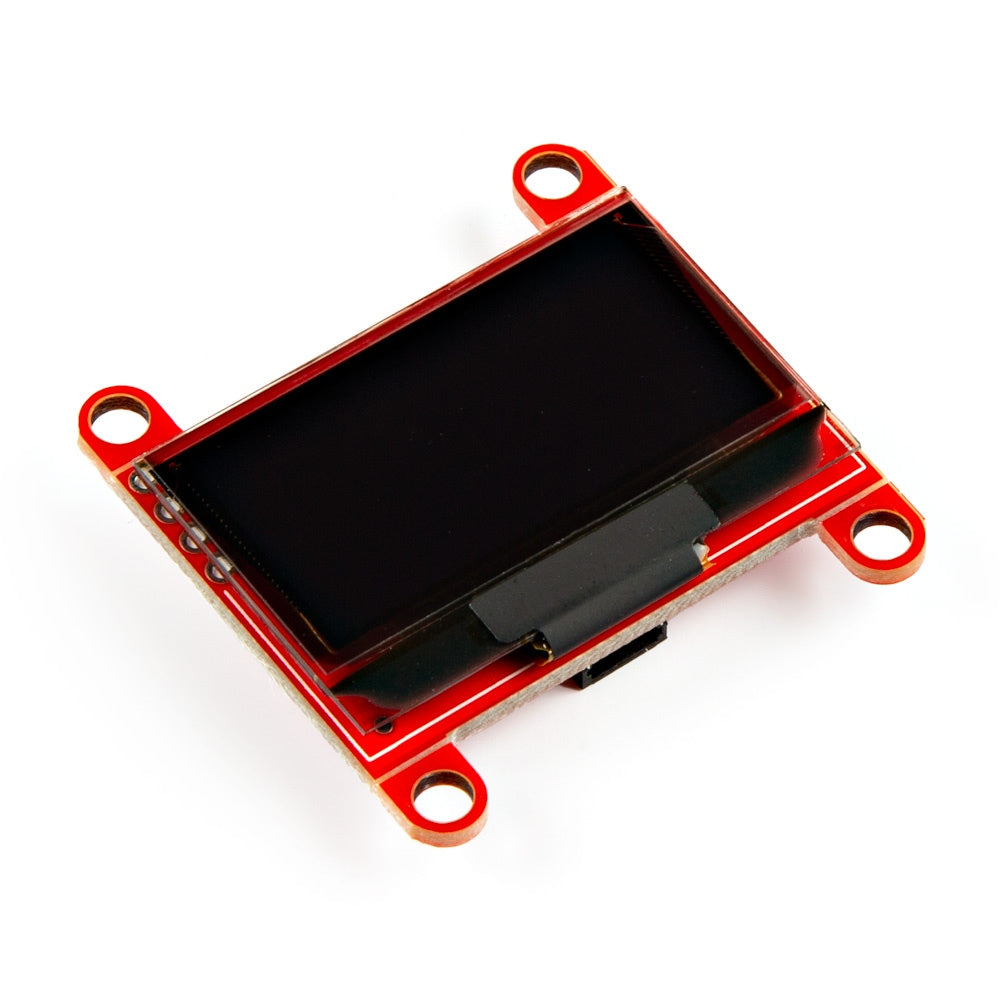

The SparkFun Qwiic OLED is a crisp 1.3-inch, 128x64 monochrome display that easily adds a screen to your project using the Qwiic system, no soldering required.
Features & Specs
- Number of Pixels: 128 x 64

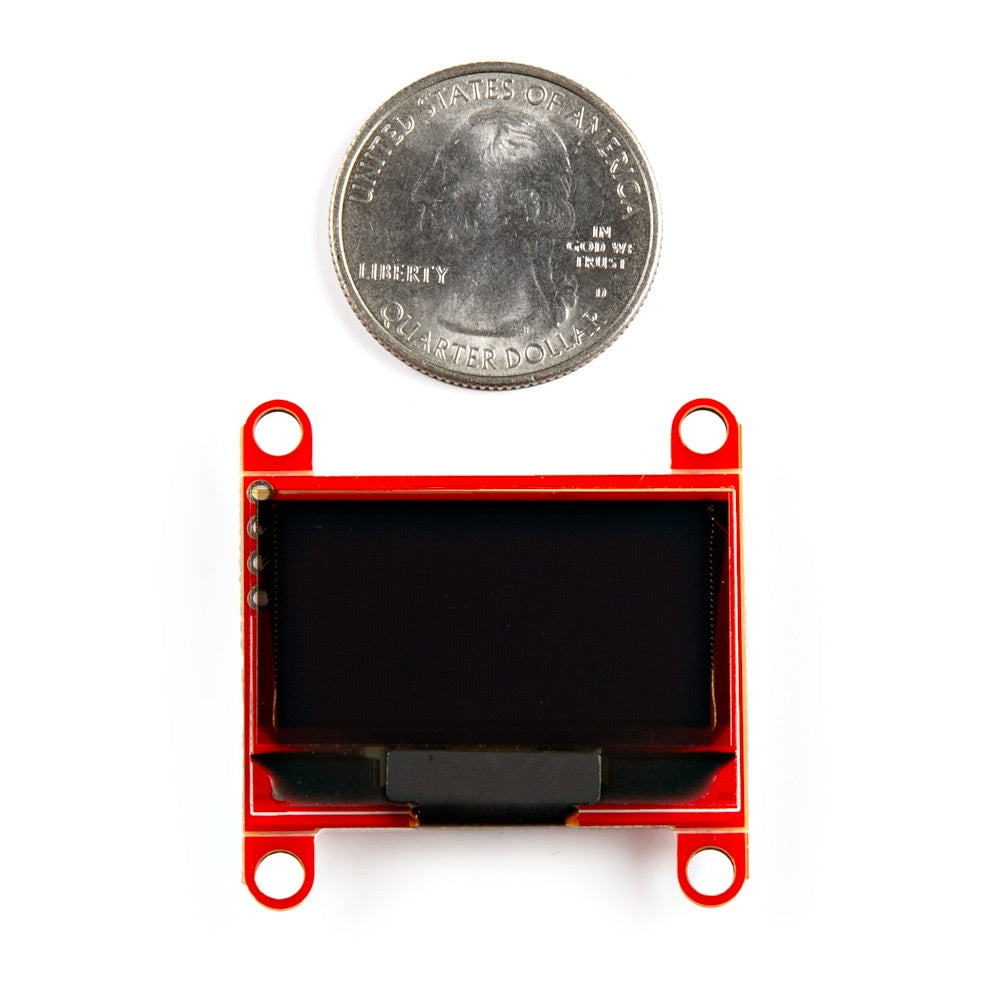

- Panel Size: 34.5 x 23.0 x 1.4 (mm)
- Active Area: 29.42 x 14.7 (mm)
- I2C Address: 0x3D (default), 0x3C (selectable)
- 2x Horizontal Qwiic Connectors
- Supply Voltage: 3.0-3.3V
Features & Specs
- Number of Pixels: 128 x 64
- Panel Size: 34.5 x 23.0 x 1.4 (mm)
- Active Area: 29.42 x 14.7 (mm)
- I2C Address: 0x3D (default), 0x3C (selectable)
- 2x Horizontal Qwiic Connectors
- Supply Voltage: 3.0-3.3V
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Datasheet
- Hookup Guide
- Qwiic Info Page
- Libraries:
- GitHub Repo
