Description

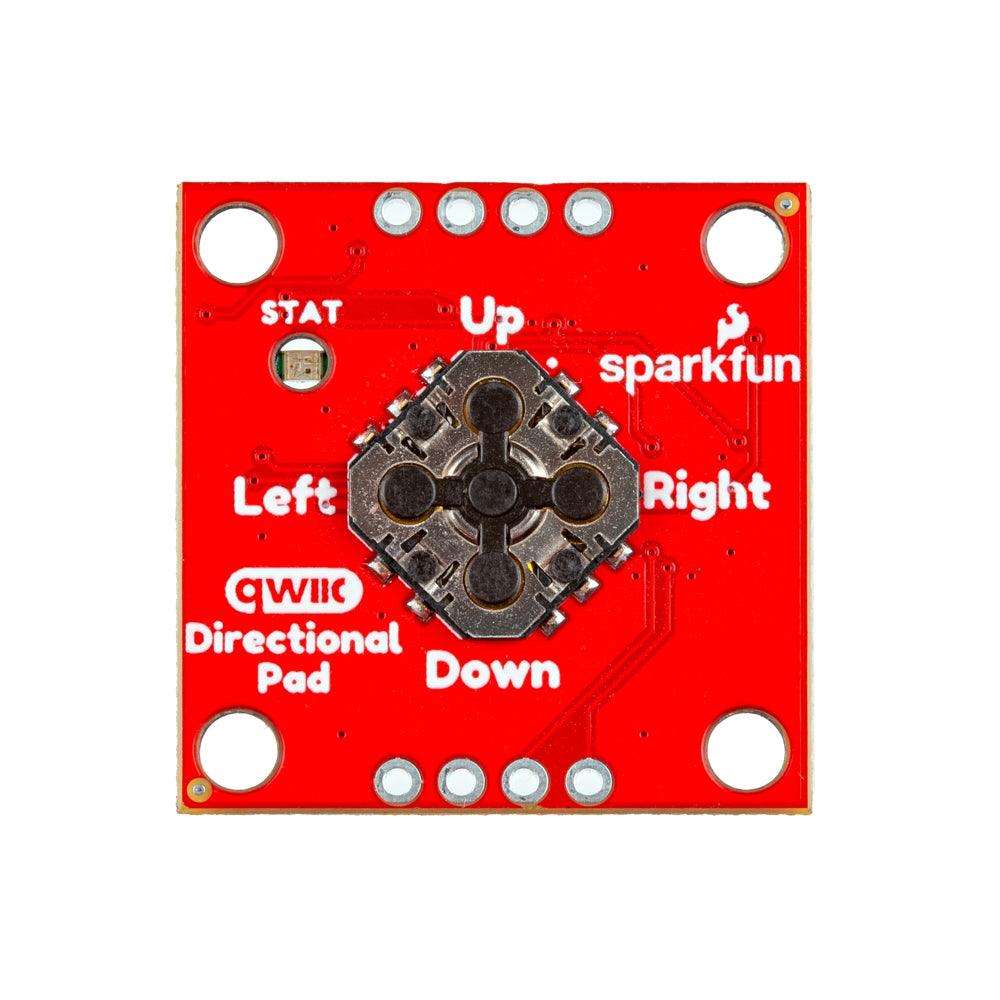

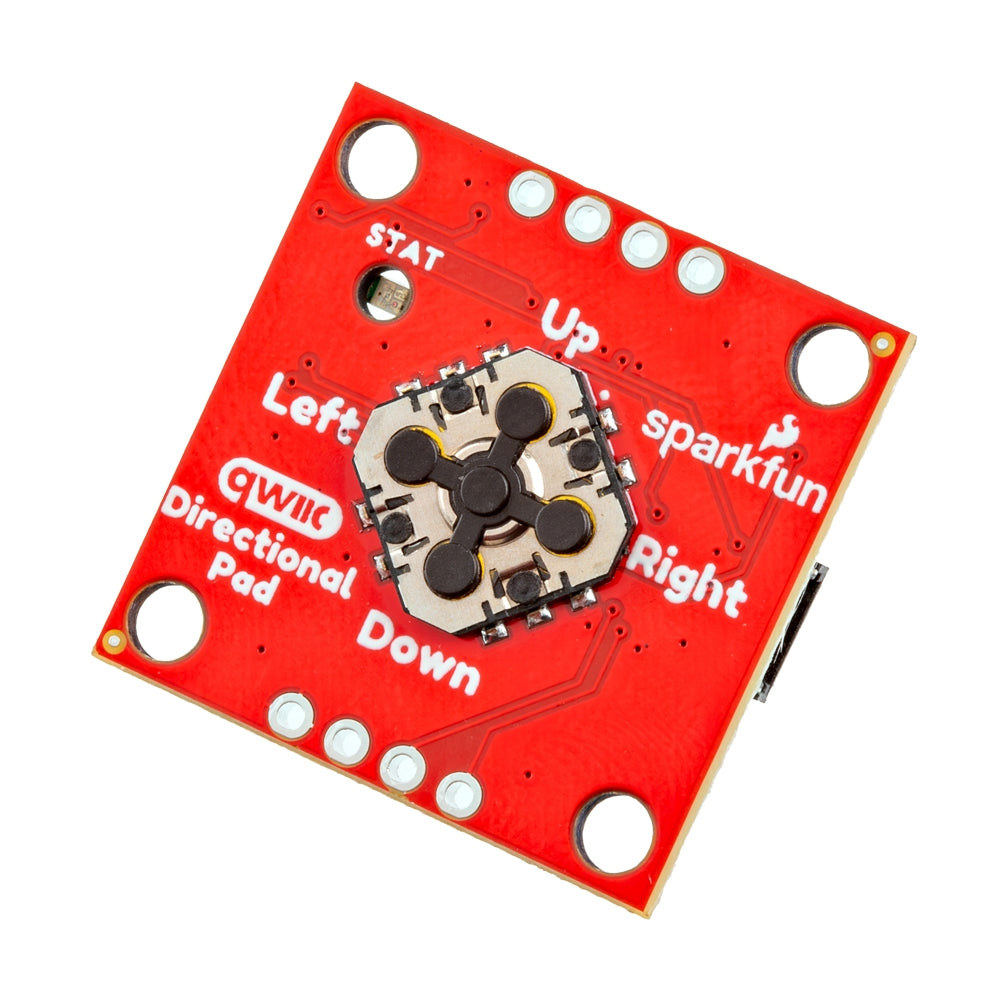

The SparkFun Qwiic Directional Pad adds a 5-way directional pad to your I2C bus!
Features & Specs
- Input voltage: 3.3V
- Directional pad
- PCA9554 8-bit I2C I/O expander
- 2x Horizontal Qwiic connectors
- 2.2kΩ I2C pull-up resistors

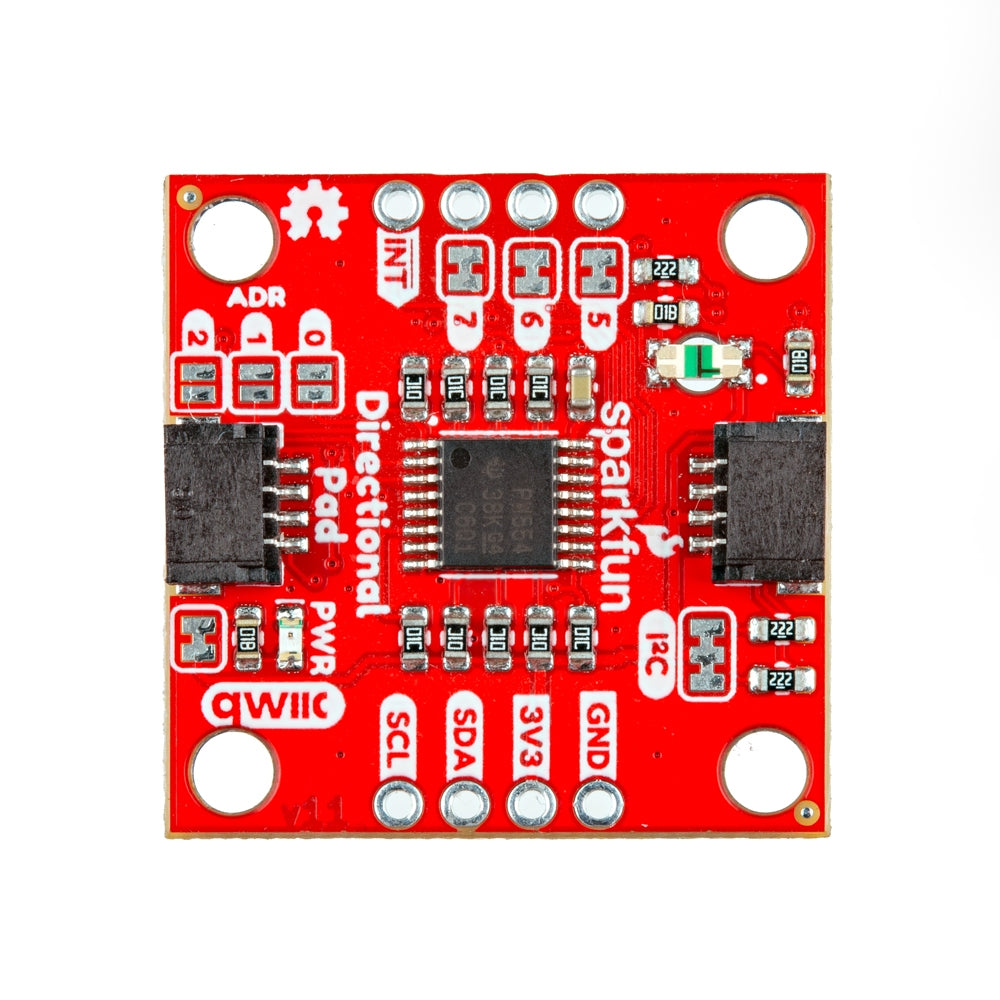

- Breakout PTHs
- GND: Ground
- 3V3: 3.3V
- SDA: I2C Data
- SCL: I2C Clock
- INT: Interrupt, active low
- 5: GPIO5
- 6: GPIO6
- 7: GPIO7
- LEDs
- RGB non-addressable status
- Red power
- Jumpers
- Power LED: PWR
- GPIO7/Red LED: 7
- GPIO6/Green LED: 6
- GPIO5/Blue LED: 5
- I2C pull-up resistors: I2C
- I2C selectable address (ADR2, ADR1, ADR0)0x20 (Default): 000
- 0x21: 001
- 0x22: 010
- 0x23: 011
- 0x24: 100
- 0x25: 101
- 0x26: 110
- 0x27: 111

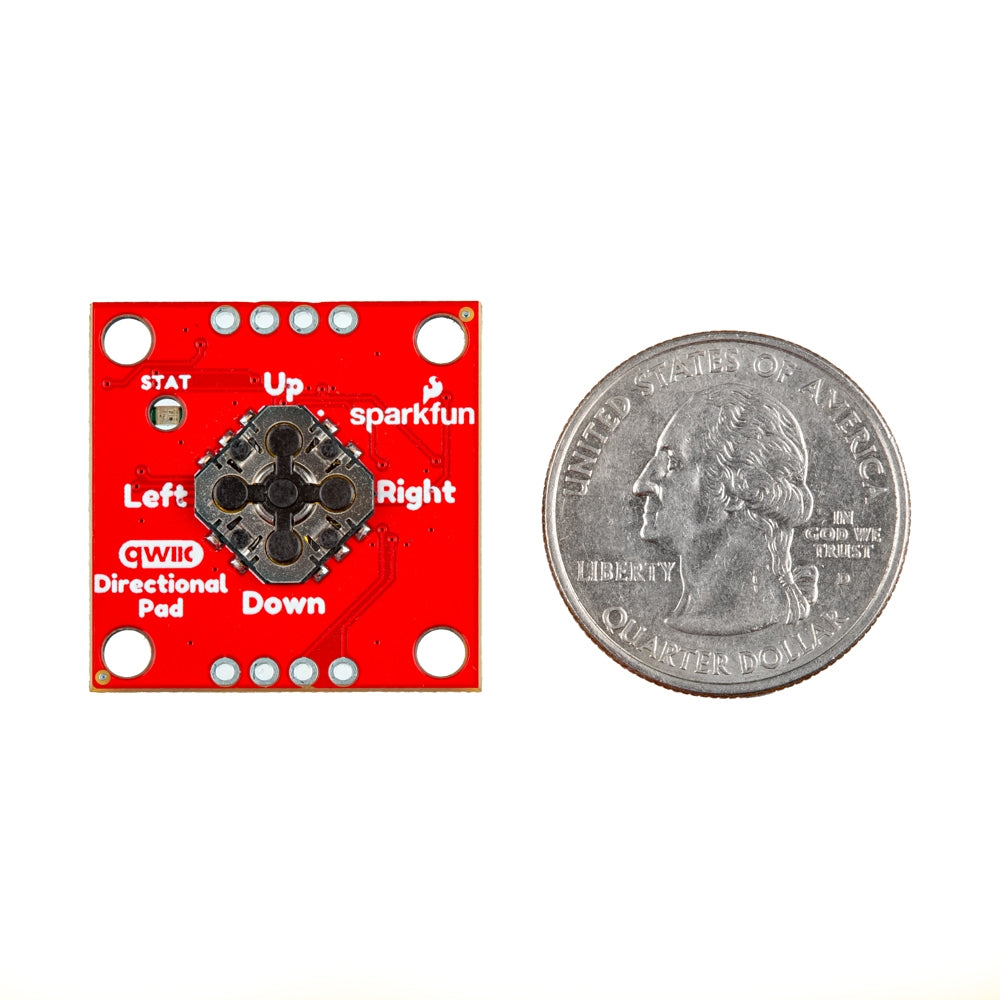

- Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 2.60g
Features & Specs
- Input voltage: 3.3V
- Directional pad
- PCA9554 8-bit I2C I/O expander
- 2x Horizontal Qwiic connectors
- 2.2kΩ I2C pull-up resistors
- Breakout PTHs
- GND: Ground
- 3V3: 3.3V
- SDA: I2C Data
- SCL: I2C Clock
- INT: Interrupt, active low
- 5: GPIO5
- 6: GPIO6
- 7: GPIO7
- LEDs
- RGB non-addressable status
- Red power
- Jumpers
- Power LED: PWR
- GPIO7/Red LED: 7
- GPIO6/Green LED: 6
- GPIO5/Blue LED: 5
- I2C pull-up resistors: I2C
- I2C selectable address (ADR2, ADR1, ADR0)0x20 (Default): 000
- 0x21: 001
- 0x22: 010
- 0x23: 011
- 0x24: 100
- 0x25: 101
- 0x26: 110
- 0x27: 111
- Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 2.60g
Documentation
- Schematic
- KiCad Files
- 3D Model
- Board Dimensions
- Hookup Guide
- Datasheets
- Arduino Library
- Arduino Example Code
- Qwiic Info Page
- GitHub Hardware Repo
