Description

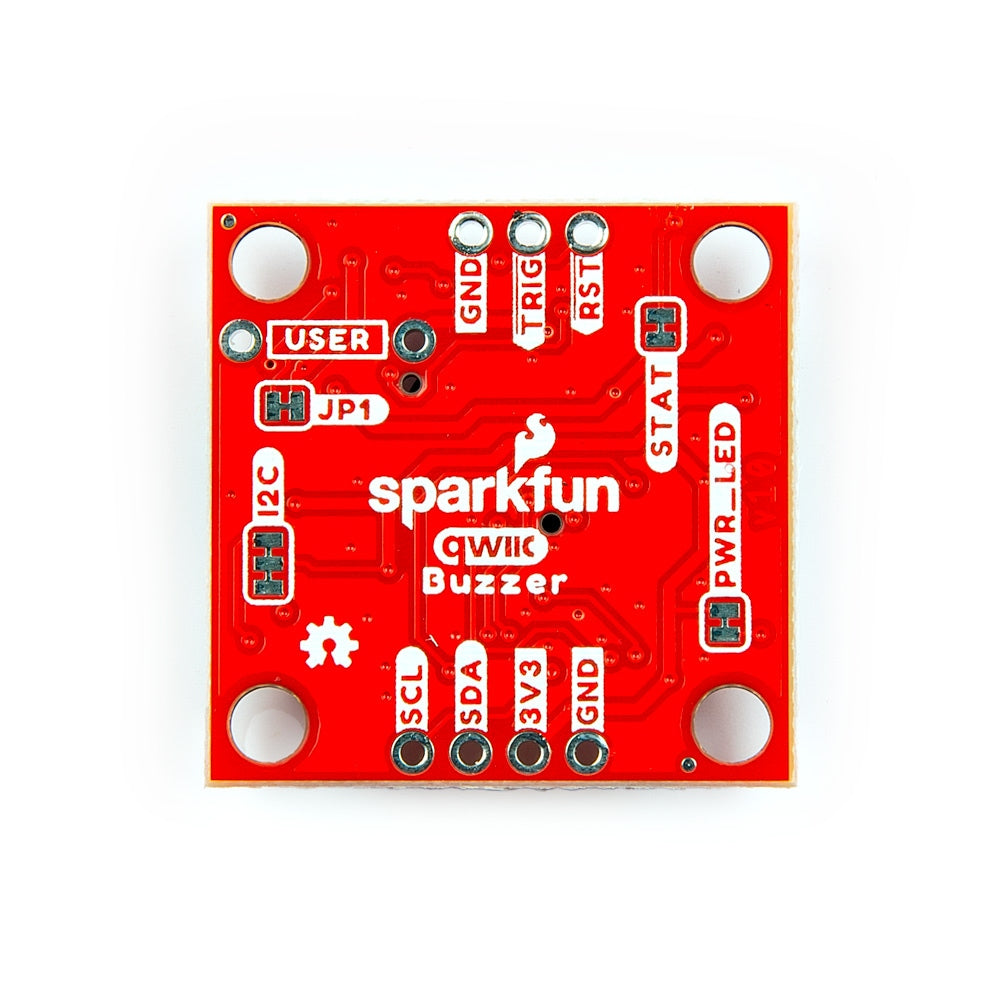

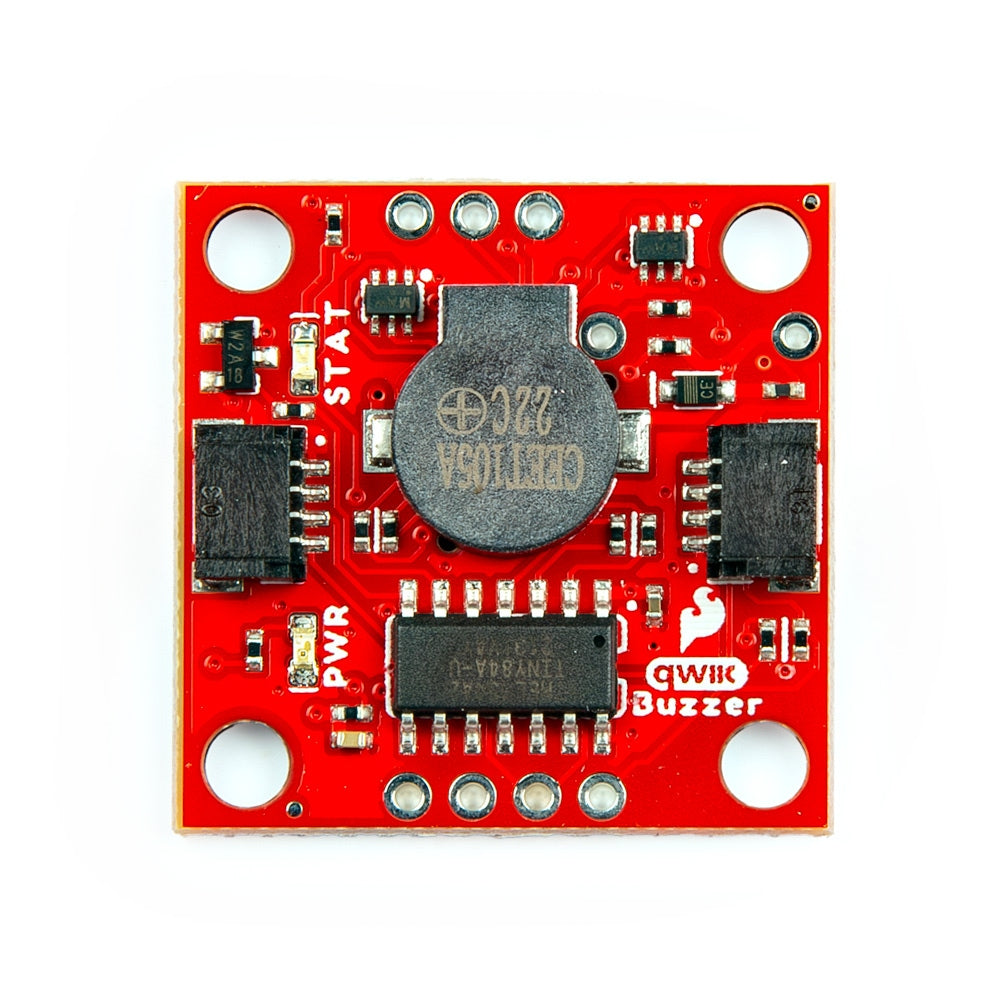

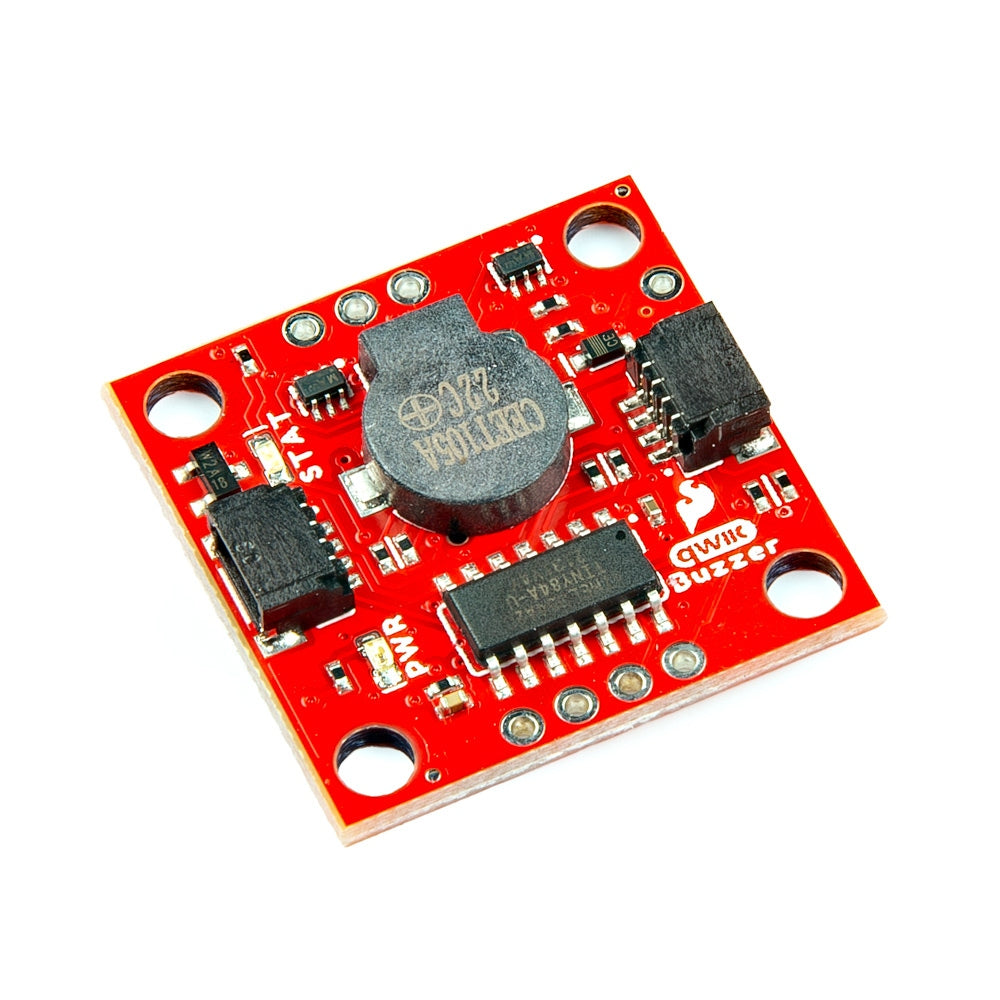

The SparkFun Qwiic Buzzer adds simple beeps and buzzes to your projects via I2C. Make some noises to alert you when something interesting happens.
Features & Specs
- Recommended Input Voltage: 3.3V
- ATtiny84 Pre-programmed with Custom Firmware
- 2x Qwiic Connectors
- I2C Controlled Buzzer
- Default I2C Address: 0x34 (Default)
- Built-in I2C 2.2kΩ Pull-Up Resistors
- LED
- Power (PWR)
- Status (STAT)
- Jumpers
- I2C Pull-Up Resistors
- STAT
- PWR
- JP1

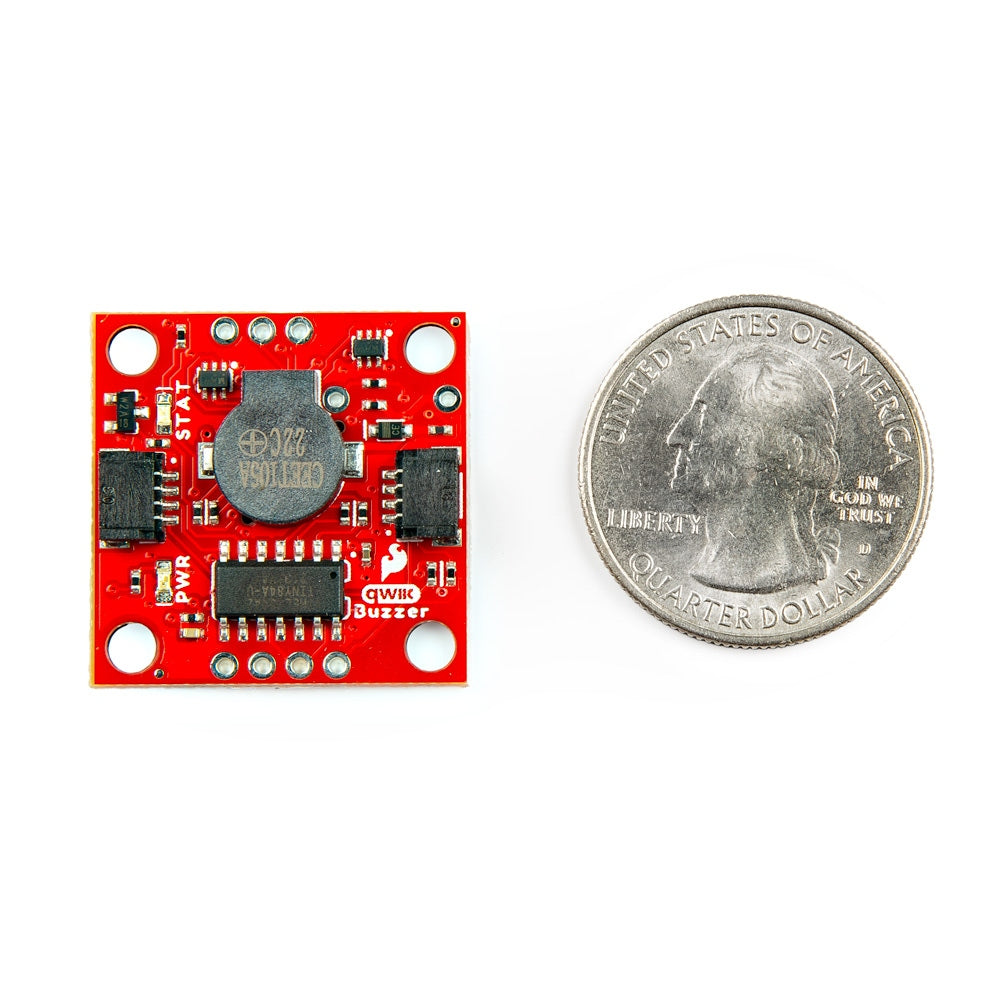

- Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 2.85g
Features & Specs
- Recommended Input Voltage: 3.3V
- ATtiny84 Pre-programmed with Custom Firmware
- 2x Qwiic Connectors
- I2C Controlled Buzzer
- Default I2C Address: 0x34 (Default)
- Built-in I2C 2.2kΩ Pull-Up Resistors
- LED
- Power (PWR)
- Status (STAT)
- Jumpers
- I2C Pull-Up Resistors
- STAT
- PWR
- JP1
- Board Dimensions: 1.0in. x 1.0in. (25.4mm x 25.4mm)
- Weight: 2.85g
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Datasheet
- ATtiny84
- CBT-09427-SMT-TR Magnetic Buzzer
- Hookup Guide
- Qwiic Info Page
- Arduino Library
- ReadtheDocs: Qwiic Buzzer
- Qwiic Buzzer Python Package
- GitHub Hardware Repo
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
