Description

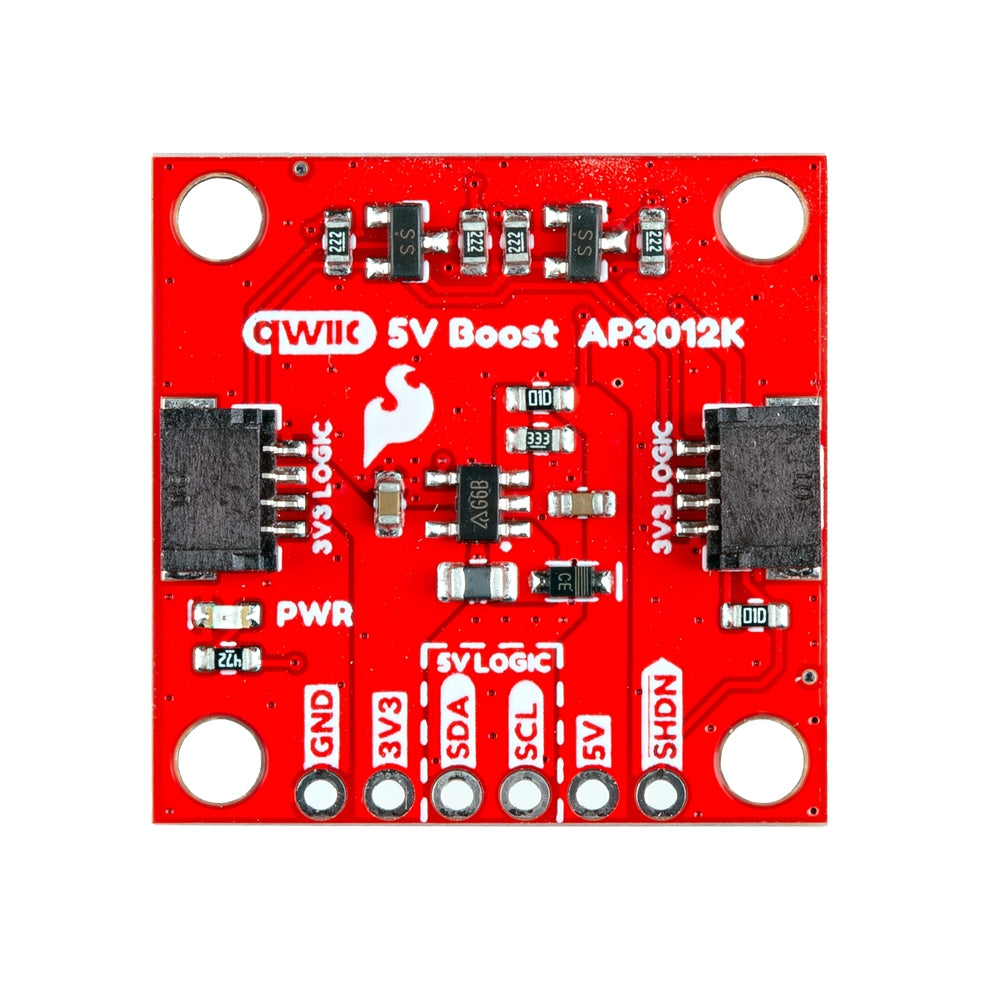

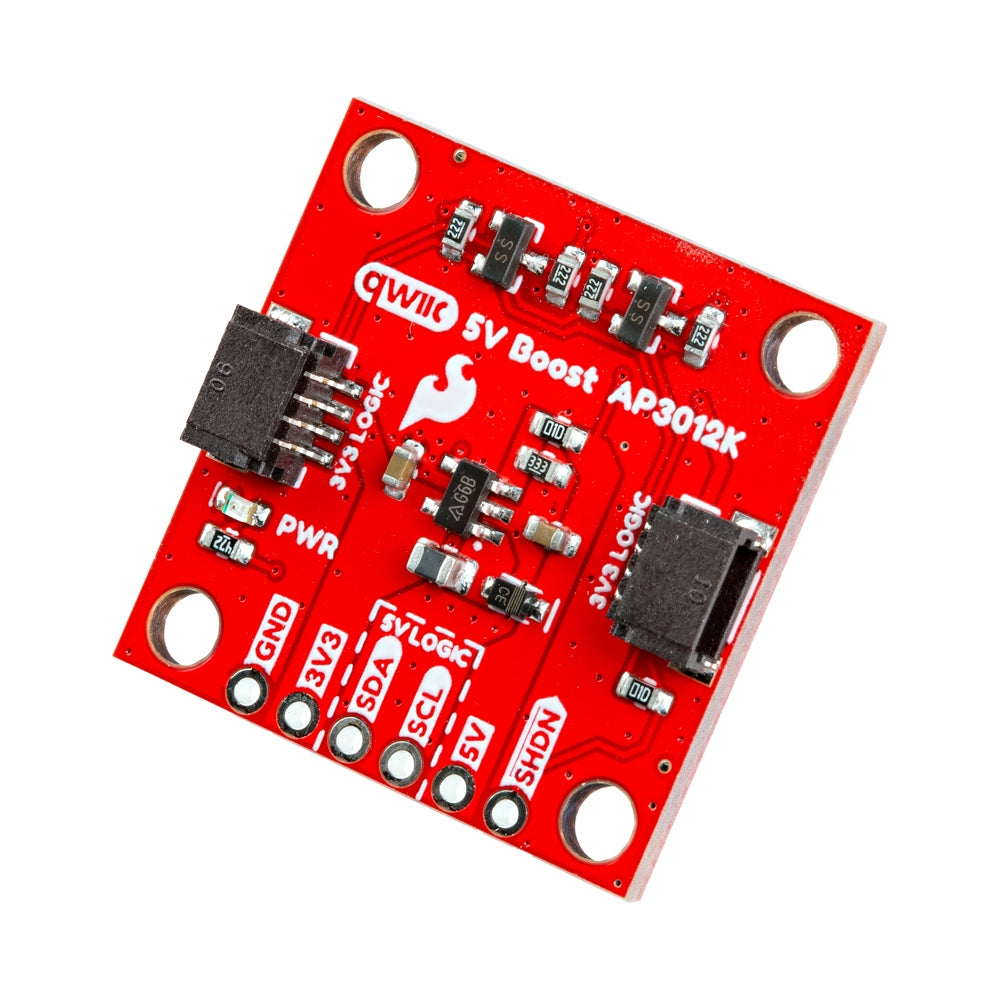

Bridge 5V I2C devices to your 3.3V Qwiic system with the SparkFun Qwiic 5V Boost, providing boosted power and selectable logic levels for seamless integration.
Features & Specs
- AP3012 5V boost converter
- 5V TTL signal converters (x2)
- Qwiic connectors (x2)
- PTH pins
- GND: The common ground or the 0V reference
- 3V3: 3.3V power input to the AP3012
- SDA/SCL: TTL signals for I2C bus
- 5V: Boosted 5V power output from the AP3012
- SHDN: Control signal for AP3012 boost converter

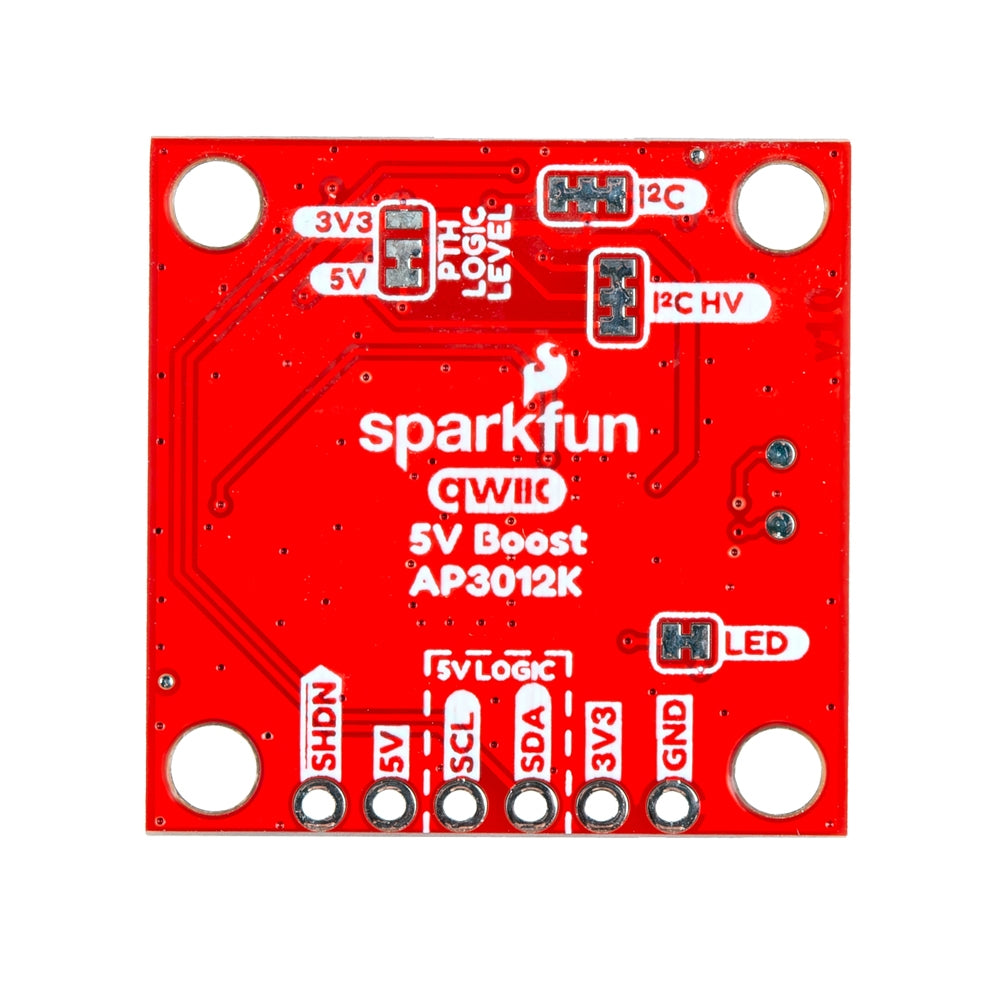

- Jumpers
- I2C: Pull-up resistors on Qwiic connector
- I2C HV: Pull-up resistors on PTH pins
- 3V3/5V: Logic-Level of PTH pins
- LED: Red PWR LED

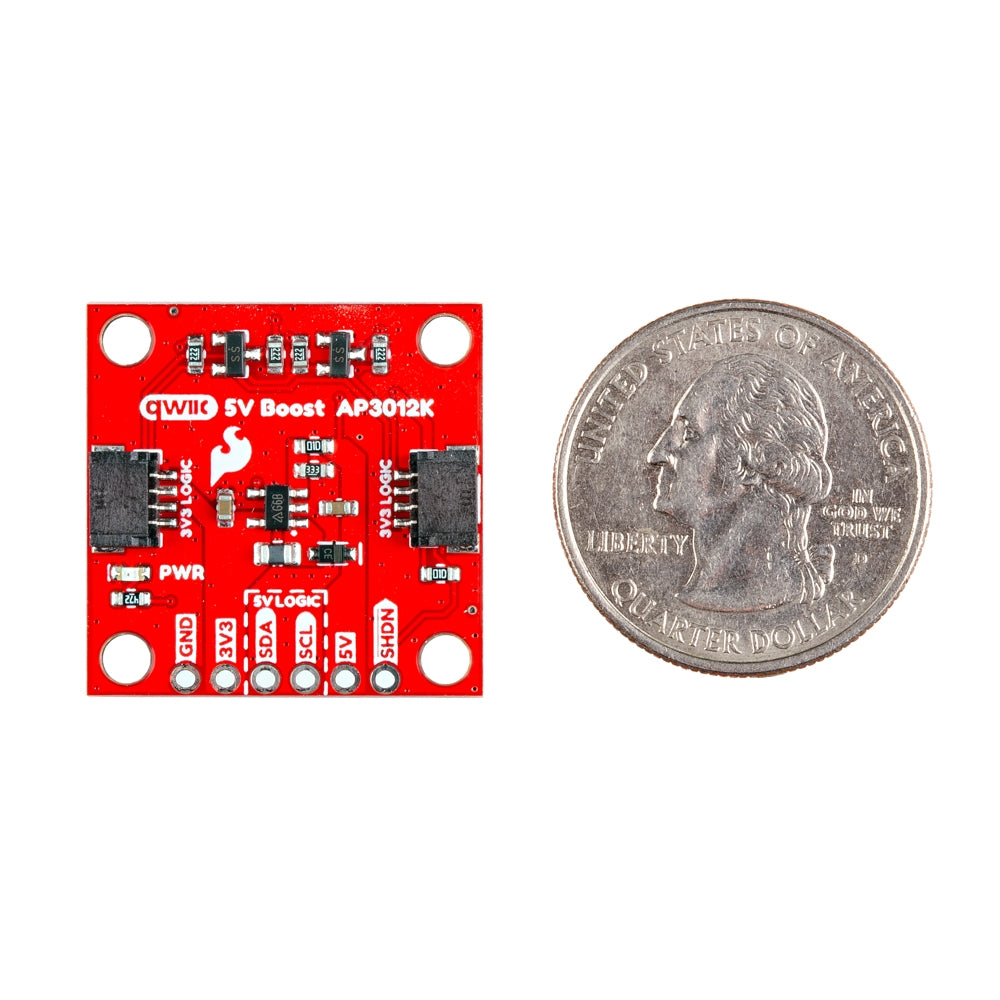

- Dimensions: 1.00in. x 1.00in. (24.50mm x 24.50mm)
- Weight: 0.082oz (2.35g)
Features & Specs
- AP3012 5V boost converter
- 5V TTL signal converters (x2)
- Qwiic connectors (x2)
- PTH pins
- GND: The common ground or the 0V reference
- 3V3: 3.3V power input to the AP3012
- SDA/SCL: TTL signals for I2C bus
- 5V: Boosted 5V power output from the AP3012
- SHDN: Control signal for AP3012 boost converter
- Jumpers
- I2C: Pull-up resistors on Qwiic connector
- I2C HV: Pull-up resistors on PTH pins
- 3V3/5V: Logic-Level of PTH pins
- LED: Red PWR LED
- Dimensions: 1.00in. x 1.00in. (24.50mm x 24.50mm)
- Weight: 0.082oz (2.35g)
Documentation
- Schematic
- KiCad Files
- Hookup Guide
- Board Dimensions
- STEP File
- Datasheet (AP3012K)
- Manufacturer's Product Page
- Qwiic Info Page
- GitHub Hardware Repository
