Description

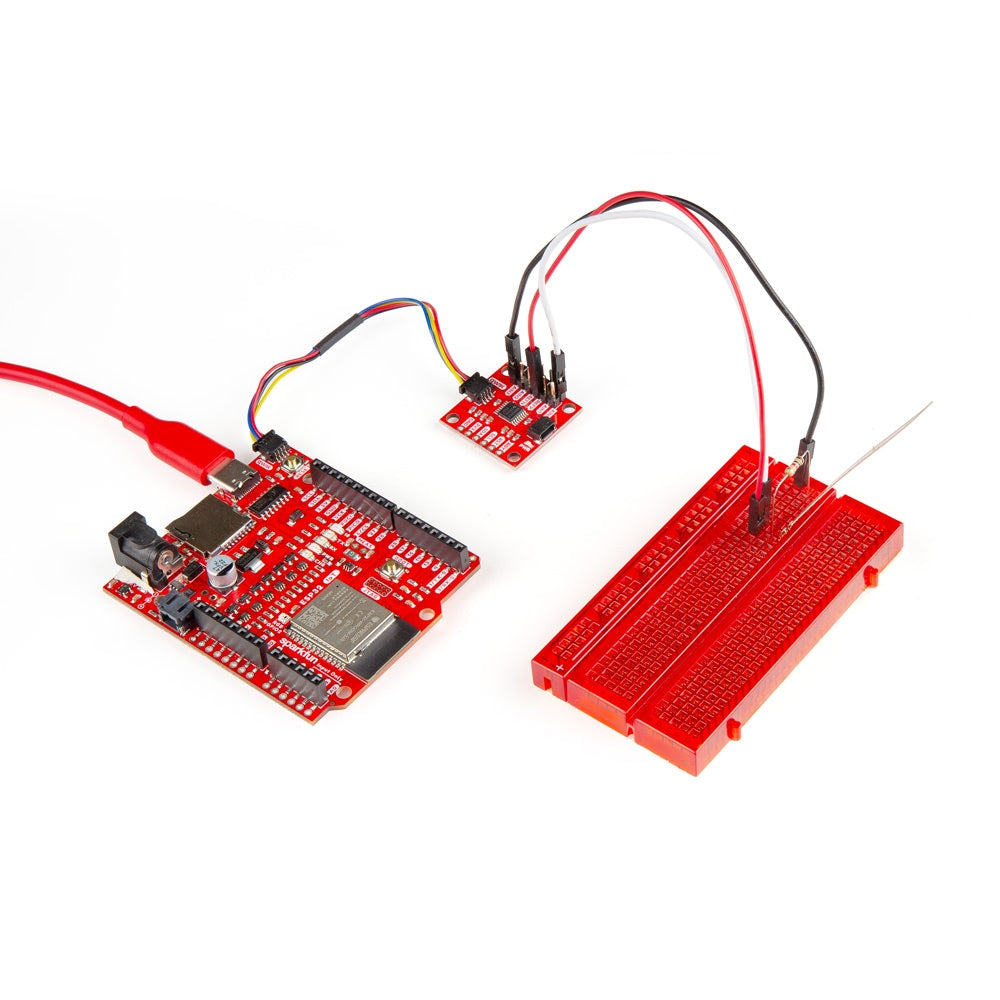

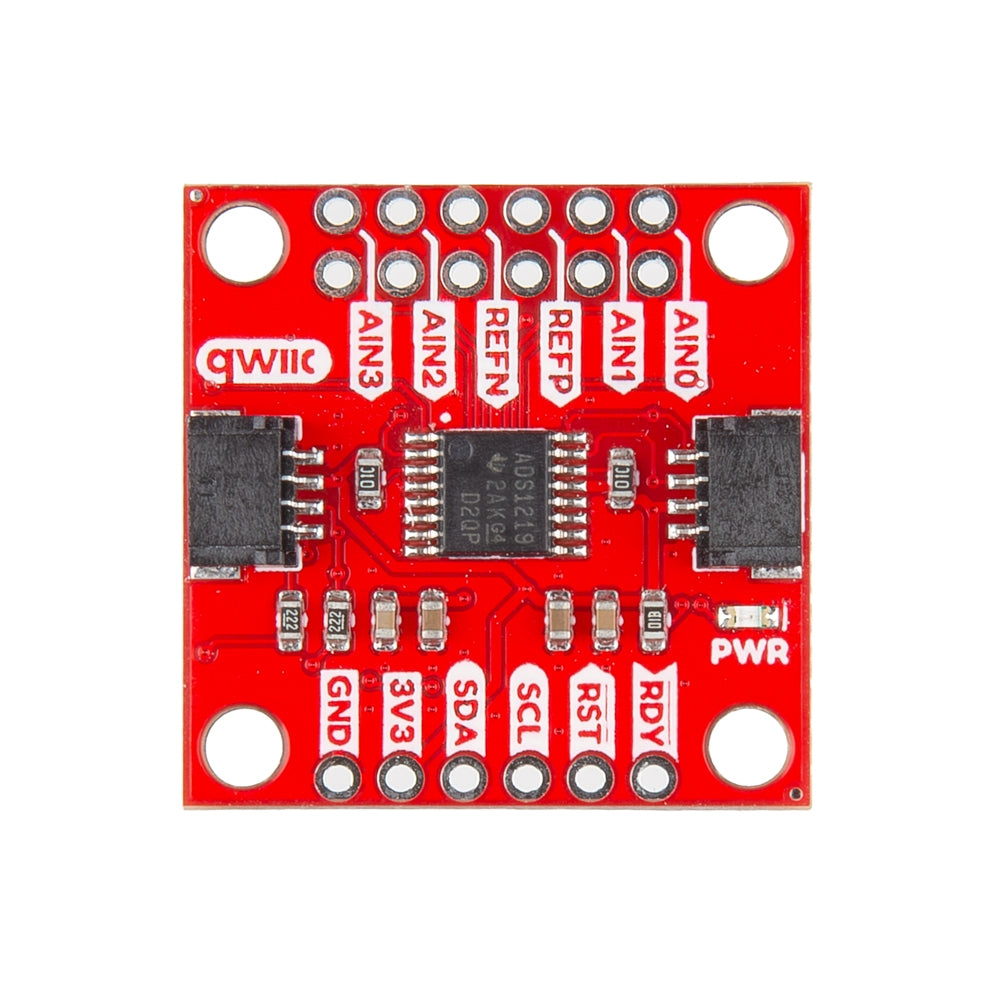

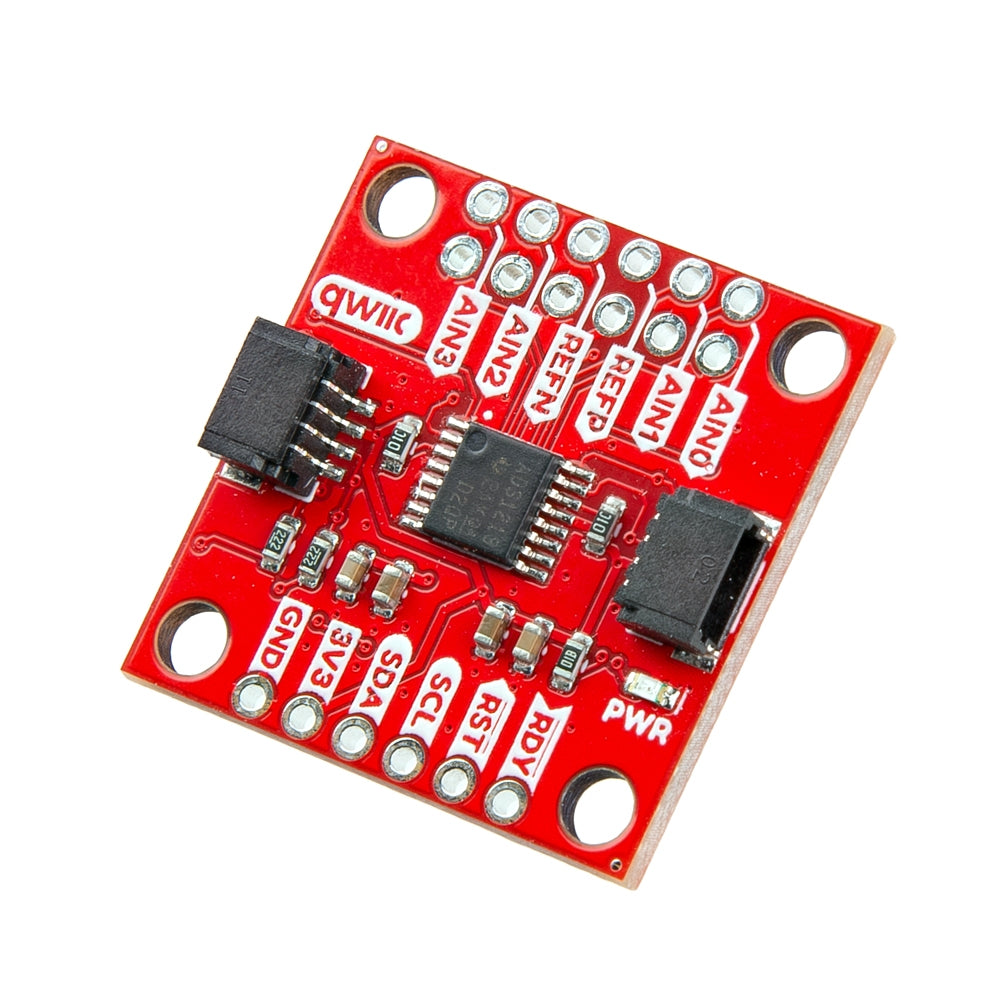

The SparkFun ADS1219 Qwiic 24-Bit ADC adds four channels of high-precision, 24-bit analog input to your project over I2C, featuring programmable gain and up to 16 unique addresses.
Features & Specs
- ADS1219
- Operating Voltage (VDD): 2.3V - 5.5V
- (Note: When powering with a Qwiic cable, the operating voltage is 3.3V only)
- Operating Temperature: -40°C to 125°C
- Operation Modes: Single-Shot, Continuous-Conversion, and Power-Down
- Analog Inputs:
- Four single-ended
- Can be configured as one or two differential inputs
- Separate reference voltage inputs
- VDDA (AVDD) can also be configured via the jumper and breakout pad
- Resolution:
- 24-bit maximum, 20-bit effective
- LSB size (gain x1): 244.14nV
- LSB size (gain x4): 61.04nV
- Sample Rate: 20 Hz to 1 kHz
- Combined Current Consumption (Typical): 8μA - 410μA
- 50Hz and 60Hz noise rejection
- Configurable input multiplexer
- Operating Voltage (VDD): 2.3V - 5.5V

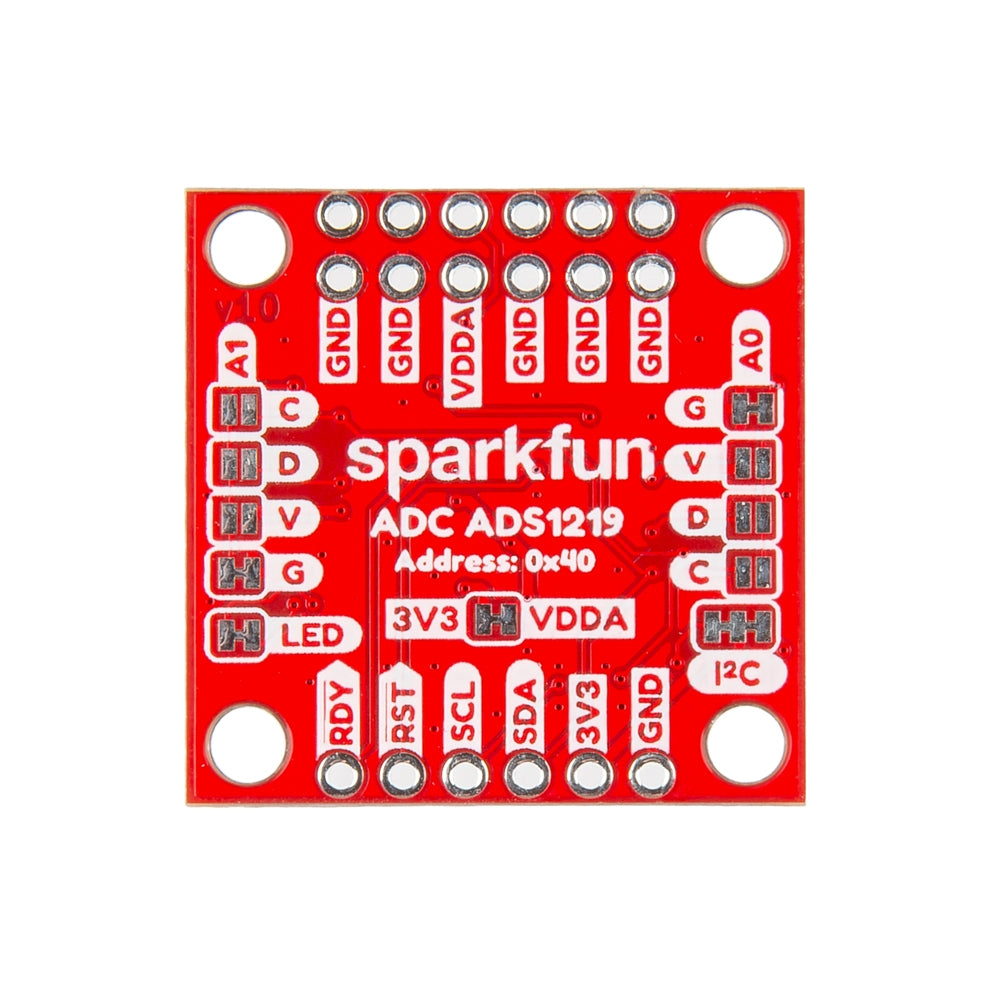

- Sixteen configurable I2C addresses:
- 0x40 - 0x4F
- Default: 0x40
- 2x Qwiic connection ports
- Power LED (configurable)

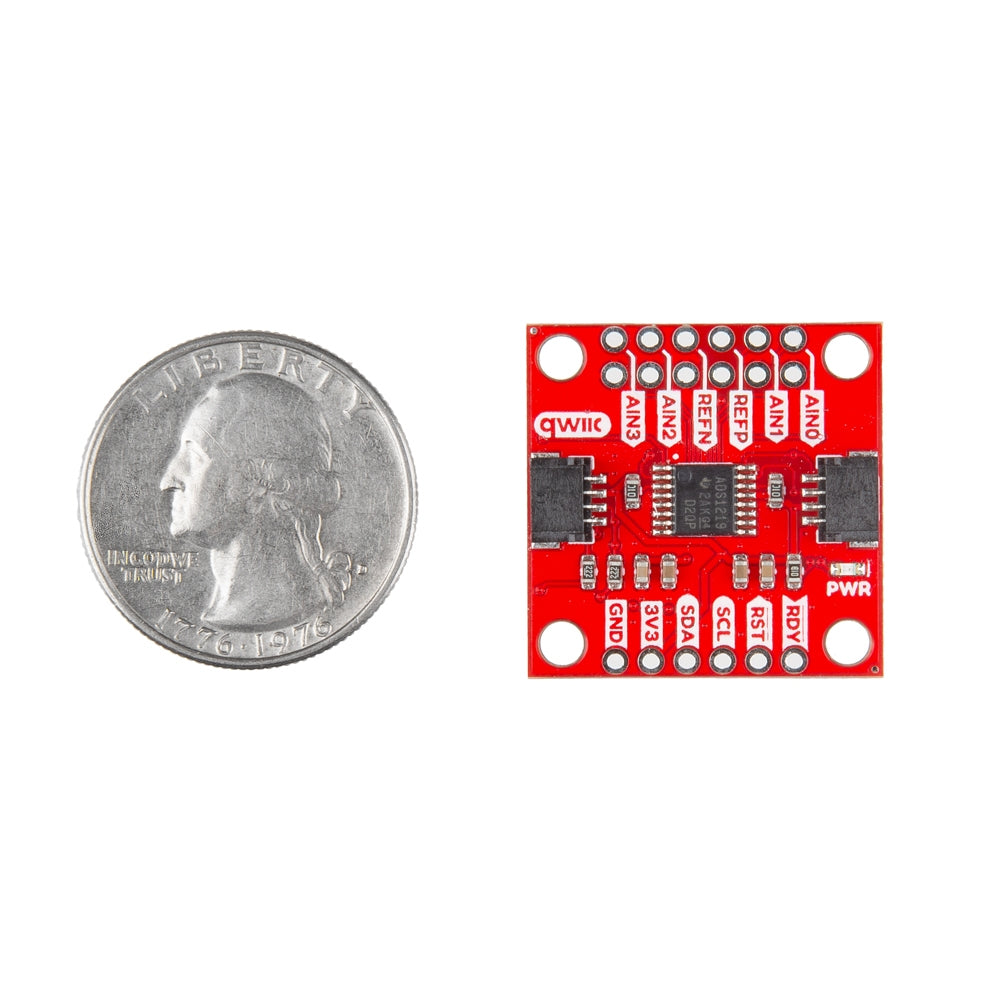

- Dimensions: 1" x 1"
Features & Specs
- ADS1219
- Operating Voltage (VDD): 2.3V - 5.5V
- (Note: When powering with a Qwiic cable, the operating voltage is 3.3V only)
- Operating Temperature: -40°C to 125°C
- Operation Modes: Single-Shot, Continuous-Conversion, and Power-Down
- Analog Inputs:
- Four single-ended
- Can be configured as one or two differential inputs
- Separate reference voltage inputs
- VDDA (AVDD) can also be configured via the jumper and breakout pad
- Resolution:
- 24-bit maximum, 20-bit effective
- LSB size (gain x1): 244.14nV
- LSB size (gain x4): 61.04nV
- Sample Rate: 20 Hz to 1 kHz
- Combined Current Consumption (Typical): 8μA - 410μA
- 50Hz and 60Hz noise rejection
- Configurable input multiplexer
- Operating Voltage (VDD): 2.3V - 5.5V
- Sixteen configurable I2C addresses:
- 0x40 - 0x4F
- Default: 0x40
- 2x Qwiic connection ports
- Power LED (configurable)
- Dimensions: 1" x 1"
