Description

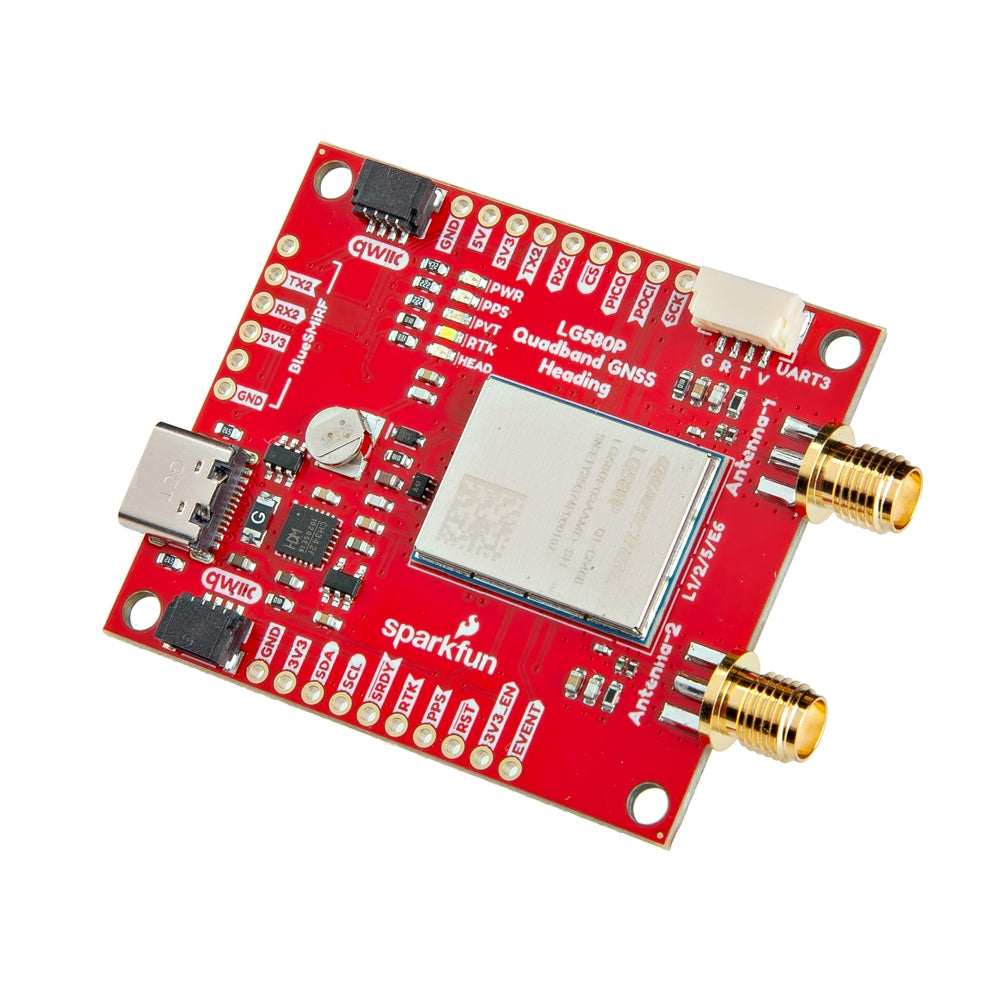

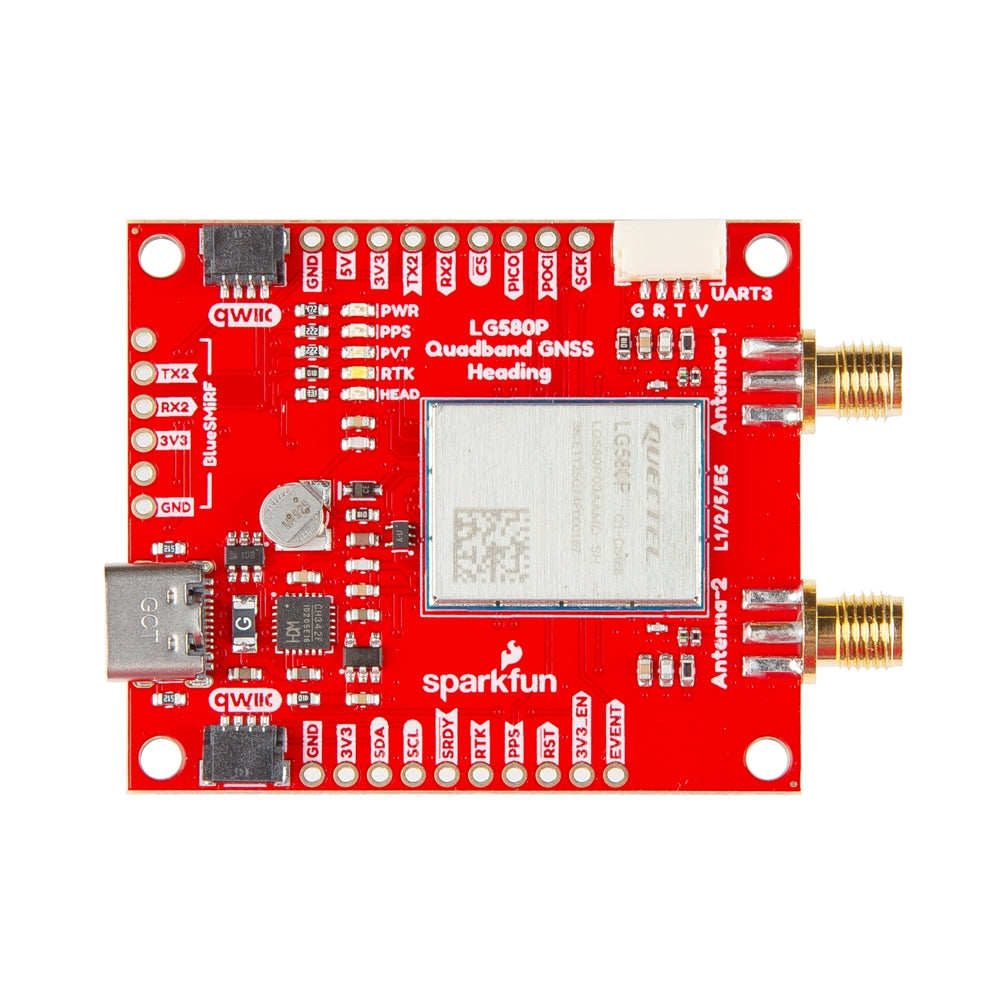

The SparkFun LG580P Breakout is a quad-band GNSS RTK board that delivers centimeter-level positioning accuracy and instantaneous heading for advanced navigation and robotics applications.
Features & Specs
SparkFun Quadband GNSS RTK with Heading Breakout - LG580P Features:
- Quectel LG580P quad-band, GNSS module
- Concurrent signal reception: 5 + QZSS
- L1, L2, L5, E6 frequency bands
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- SDCM (Russia)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- KASS (Korea)
- ASECNA (Africa)
- SouthPAN (Aus/NZ)
- Concurrent signal reception: 5 + QZSS
- Breakout board:

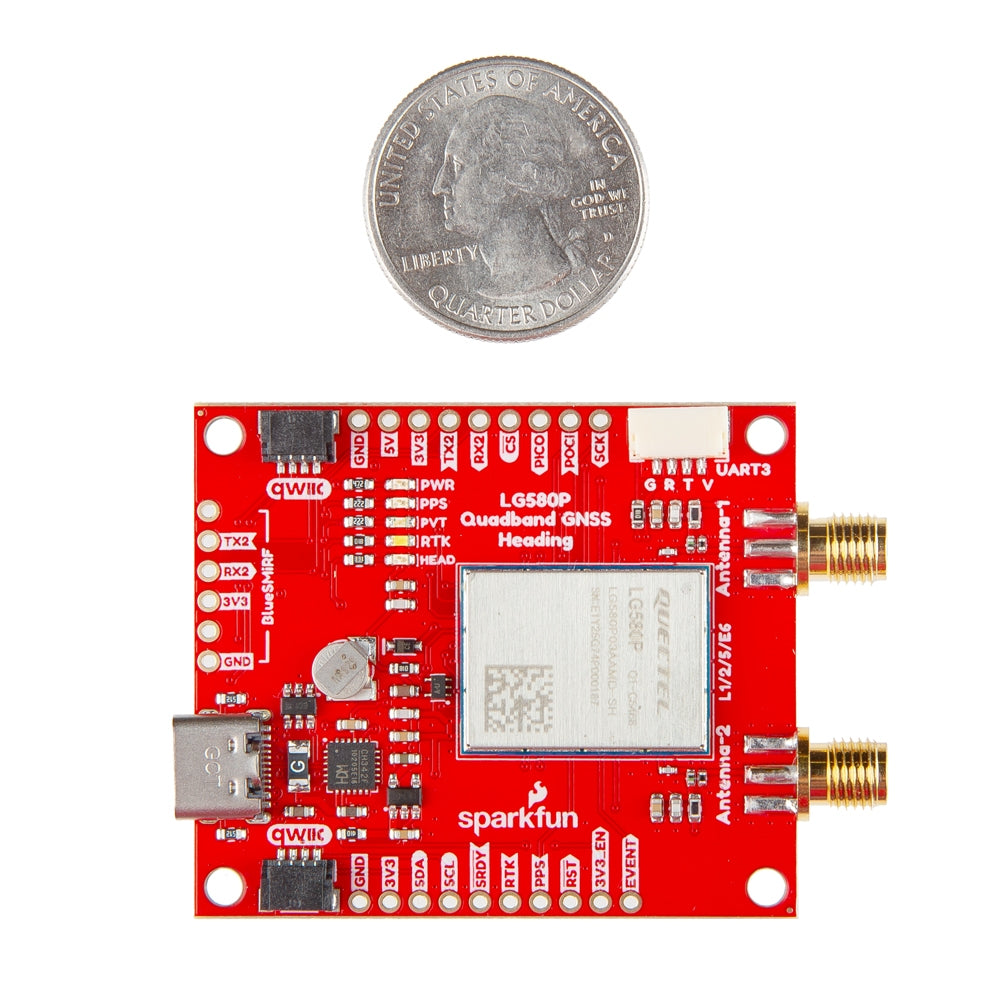

- Dimensions: 1.70" x 1.80" (43.2mm x 45.7mm)
- Four mounting holes:
- 4-40 screw compatible
- Connections:
- 25 PTH Pins
- 4-pin JST Qwiic connector* (x2)
- UART interfaces (x3)
- USB-C connector
- 6 PTH pins (BlueSMiRF/Serial-to-UART)
- 4-pin locking JST connector
- LEDs:
- PWR - Red 3.3V power indicator
- PPS - Yellow Pulse-Per-Second indicator
- RTK - White RTK correction indicator
- HEAD - Green heading status indicator
- PVT - Blue PVT status indicator
- Backup battery
LG580P General Features:
- High-precision RTK, and Heading GNSS module
- Electrical Characteristics:
- Supply Voltage: 3.0–3.6V
- Current Consumption:
- Normal Operation:
- 98mA (323.4mW) (Acquisition)
- 116mA (382.8mW) (Tracking)
- Power Saving Mode:
- 18μA (59.4μmW) (Backup Mode)
- Normal Operation:
- GNSS Frequency bands:
- GPS: L1 C/A, L5, L2C
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6
- BDS: B1I, B1C, B2a, B2b, B2I, B3I
- QZSS: L1 C/A, L5, L2C, L6
- NavIC: L5
- SBAS: L1
- L-band PPP*:
- PPP: B2b
- QZSS: L6
- Galileo HAS: E6*
- Tracking Channels: 1040
- Horizontal Position Accuracy:
- Autonomous: 1m
- RTK: 0.8cm + 1ppm
- Vertical Accuracy:
- Autonomous: 1.5m
- RTK: 1.5cm + 1ppm
- Heading Accuracy: 0.1°
- Velocity Accuracy Without Aid: 0.03m/s
- Accuracy of 1PPS Signal: 5ns
- RTK Convergence Time: 5s
- Time to First Fix (without AGNSS):
- Cold Start: 28s
- Warm Start: 28s
- Hot Start: 1.8s
- Sensitivity:
- Acquisition: -145dBm
- Tracking: -160dBm
- Reacquisition: -155dBm
- Dynamic Performance:
- Maximum Altitude: 10000m
- Maximum Velocity: 490m/s
- Maximum Acceleration: 4g
- Update Rate:
- Default: 10Hz
- Max: 20Hz
- Antenna Interface:
- External active antenna
- Power Supply: External
- Interfaces
- UART (x3)
- Baud Rate: 9600–3000000bps
- Default: 460800bps
- Protocol: NMEA 0183/RTCM 3.x/QGC
- SPI* (x1)
- I2C* (x1)
- CAN* (x1)
- UART (x3)
- Operating temperature: -40°C to +85°C
- Footprint: 21mm × 16mm × 2.7mm
- Weight: 1.4g
*: Feature is still under development
Features & Specs
SparkFun Quadband GNSS RTK with Heading Breakout - LG580P Features:
- Quectel LG580P quad-band, GNSS module
- Concurrent signal reception: 5 + QZSS
- L1, L2, L5, E6 frequency bands
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- SDCM (Russia)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- KASS (Korea)
- ASECNA (Africa)
- SouthPAN (Aus/NZ)
- Concurrent signal reception: 5 + QZSS
- Breakout board:
- Dimensions: 1.70" x 1.80" (43.2mm x 45.7mm)
- Four mounting holes:
- 4-40 screw compatible
- Connections:
- 25 PTH Pins
- 4-pin JST Qwiic connector* (x2)
- UART interfaces (x3)
- USB-C connector
- 6 PTH pins (BlueSMiRF/Serial-to-UART)
- 4-pin locking JST connector
- LEDs:
- PWR - Red 3.3V power indicator
- PPS - Yellow Pulse-Per-Second indicator
- RTK - White RTK correction indicator
- HEAD - Green heading status indicator
- PVT - Blue PVT status indicator
- Backup battery
LG580P General Features:
- High-precision RTK, and Heading GNSS module
- Electrical Characteristics:
- Supply Voltage: 3.0–3.6V
- Current Consumption:
- Normal Operation:
- 98mA (323.4mW) (Acquisition)
- 116mA (382.8mW) (Tracking)
- Power Saving Mode:
- 18μA (59.4μmW) (Backup Mode)
- Normal Operation:
- GNSS Frequency bands:
- GPS: L1 C/A, L5, L2C
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6
- BDS: B1I, B1C, B2a, B2b, B2I, B3I
- QZSS: L1 C/A, L5, L2C, L6
- NavIC: L5
- SBAS: L1
- L-band PPP*:
- PPP: B2b
- QZSS: L6
- Galileo HAS: E6*
- Tracking Channels: 1040
- Horizontal Position Accuracy:
- Autonomous: 1m
- RTK: 0.8cm + 1ppm
- Vertical Accuracy:
- Autonomous: 1.5m
- RTK: 1.5cm + 1ppm
- Heading Accuracy: 0.1°
- Velocity Accuracy Without Aid: 0.03m/s
- Accuracy of 1PPS Signal: 5ns
- RTK Convergence Time: 5s
- Time to First Fix (without AGNSS):
- Cold Start: 28s
- Warm Start: 28s
- Hot Start: 1.8s
- Sensitivity:
- Acquisition: -145dBm
- Tracking: -160dBm
- Reacquisition: -155dBm
- Dynamic Performance:
- Maximum Altitude: 10000m
- Maximum Velocity: 490m/s
- Maximum Acceleration: 4g
- Update Rate:
- Default: 10Hz
- Max: 20Hz
- Antenna Interface:
- External active antenna
- Power Supply: External
- Interfaces
- UART (x3)
- Baud Rate: 9600–3000000bps
- Default: 460800bps
- Protocol: NMEA 0183/RTCM 3.x/QGC
- SPI* (x1)
- I2C* (x1)
- CAN* (x1)
- UART (x3)
- Operating temperature: -40°C to +85°C
- Footprint: 21mm × 16mm × 2.7mm
- Weight: 1.4g
*: Feature is still under development
