Description

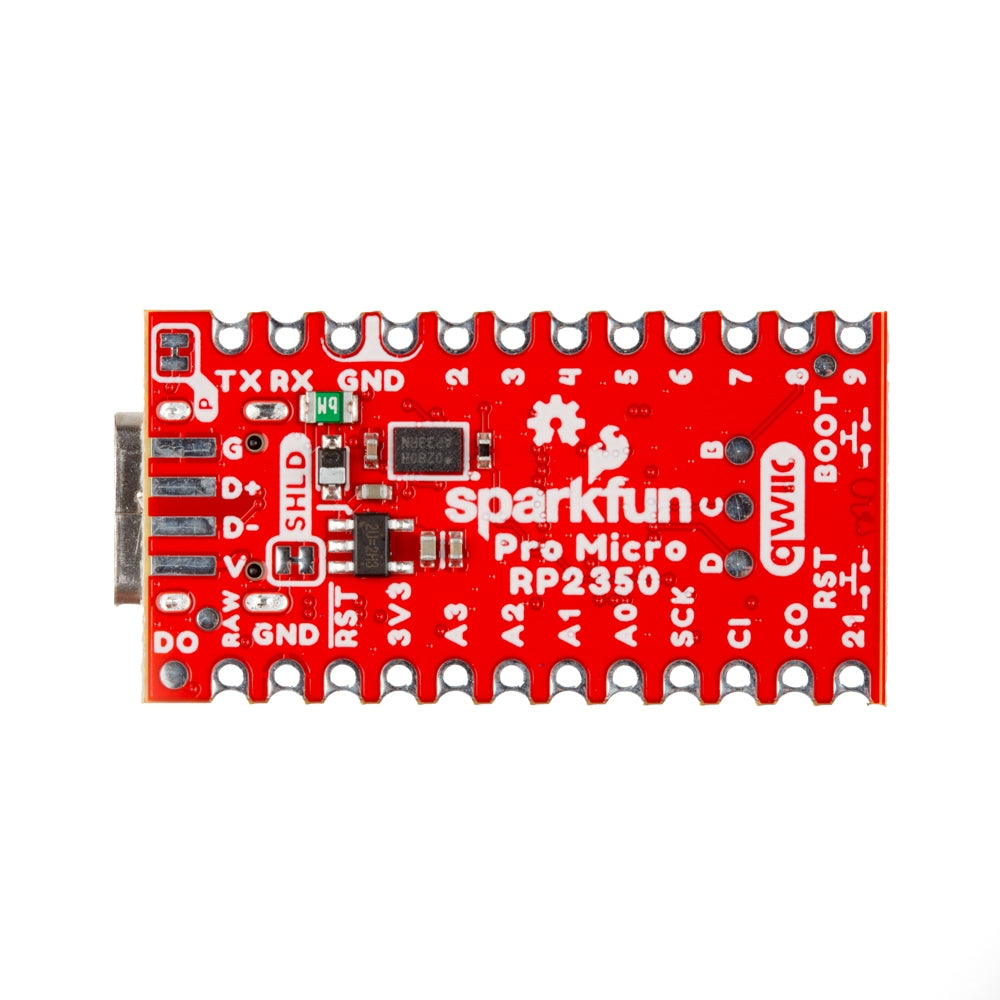

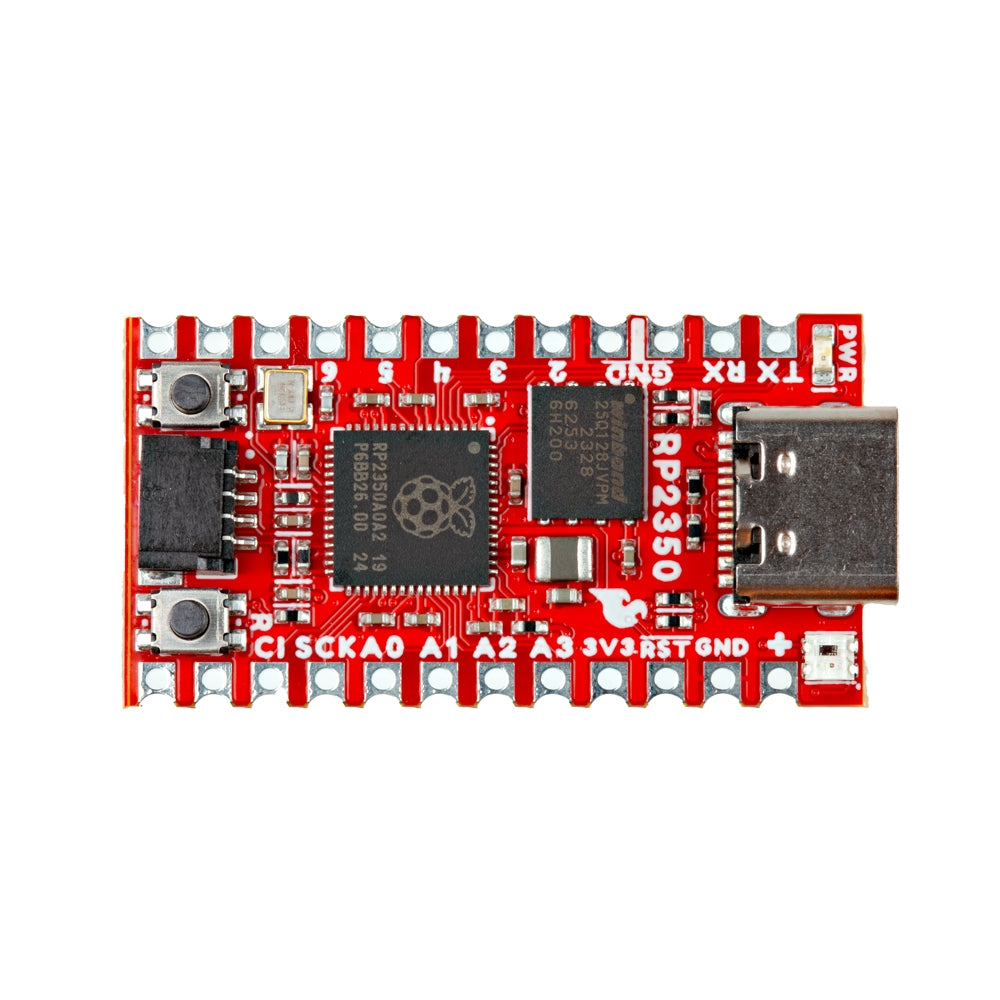

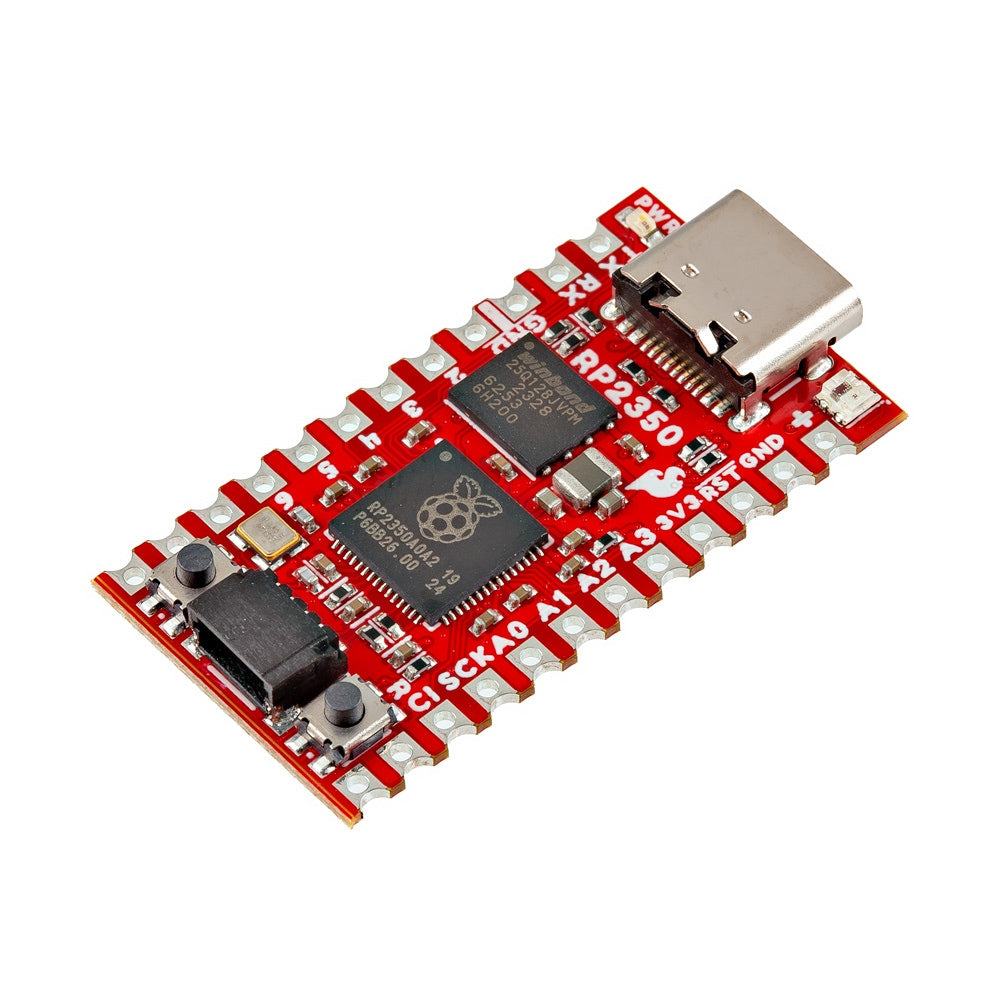

The SparkFun RP2350 Pro Micro packs the RP2350's selectable Arm/RISC-V cores into a compact board with a USB-C port, Qwiic connector, and castellated pads for ultimate project flexibility.
Features & Specs
RP2350 Features
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
SparkFun Pro Micro - RP2350 Features
- RP2350 Microcontroller
- 8MB PSRAM
- 16MB Flash
- Supply Voltage
- USB: 5V
- RAW: 5.3V MAX
- Pro Micro Pinout
- 2x UART
- 1x SPI
- 10x GPIO (4 used for UART1 and UART0)
- 4x Analog
- USB-C Connector
- USB 1.1 Host/Device Support

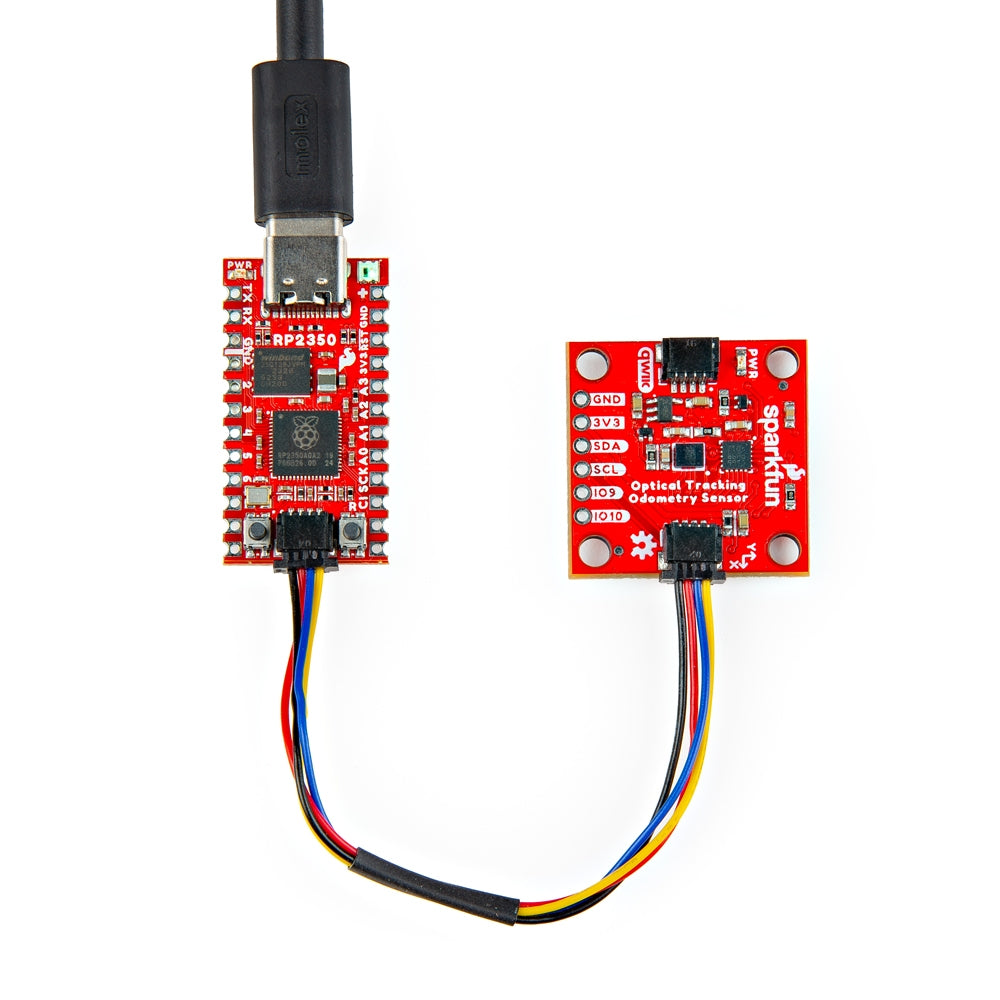

- Qwiic Connector
- Buttons
- Reset
- Boot
- LEDs
- WS2812 Addressable RGB LED
- Red Power LED

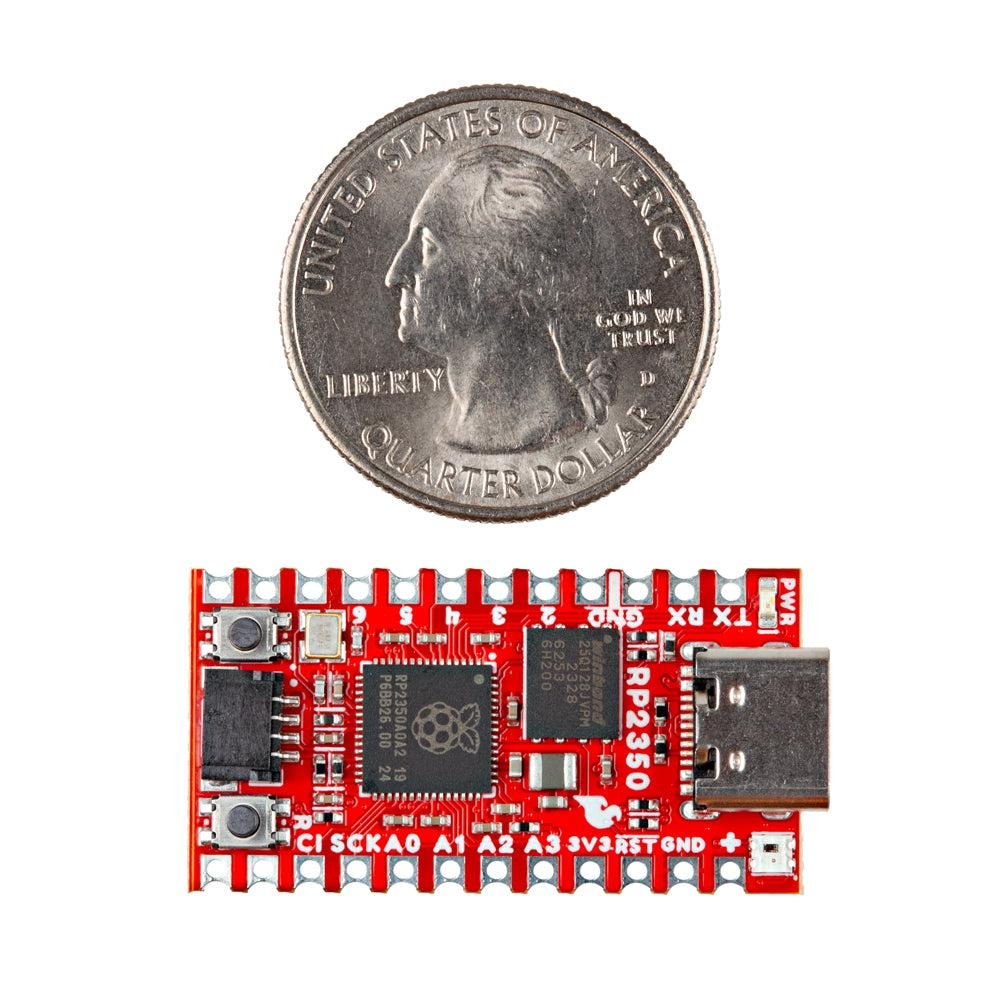

- Dimensions: 1.3in x 0.7in (33.02mm x 17.78mm)
Features & Specs
RP2350 Features
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
SparkFun Pro Micro - RP2350 Features
- RP2350 Microcontroller
- 8MB PSRAM
- 16MB Flash
- Supply Voltage
- USB: 5V
- RAW: 5.3V MAX
- Pro Micro Pinout
- 2x UART
- 1x SPI
- 10x GPIO (4 used for UART1 and UART0)
- 4x Analog
- USB-C Connector
- USB 1.1 Host/Device Support
- Qwiic Connector
- Buttons
- Reset
- Boot
- LEDs
- WS2812 Addressable RGB LED
- Red Power LED
- Dimensions: 1.3in x 0.7in (33.02mm x 17.78mm)
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- SparkFun Pico SDK Library
- Arduino Pico Arduino Core
- Datasheets
- Raspberry Pi RP2350 Documents
- MicroPython for Beginners
- Qwiic Info Page
- GitHub Repository
