Description

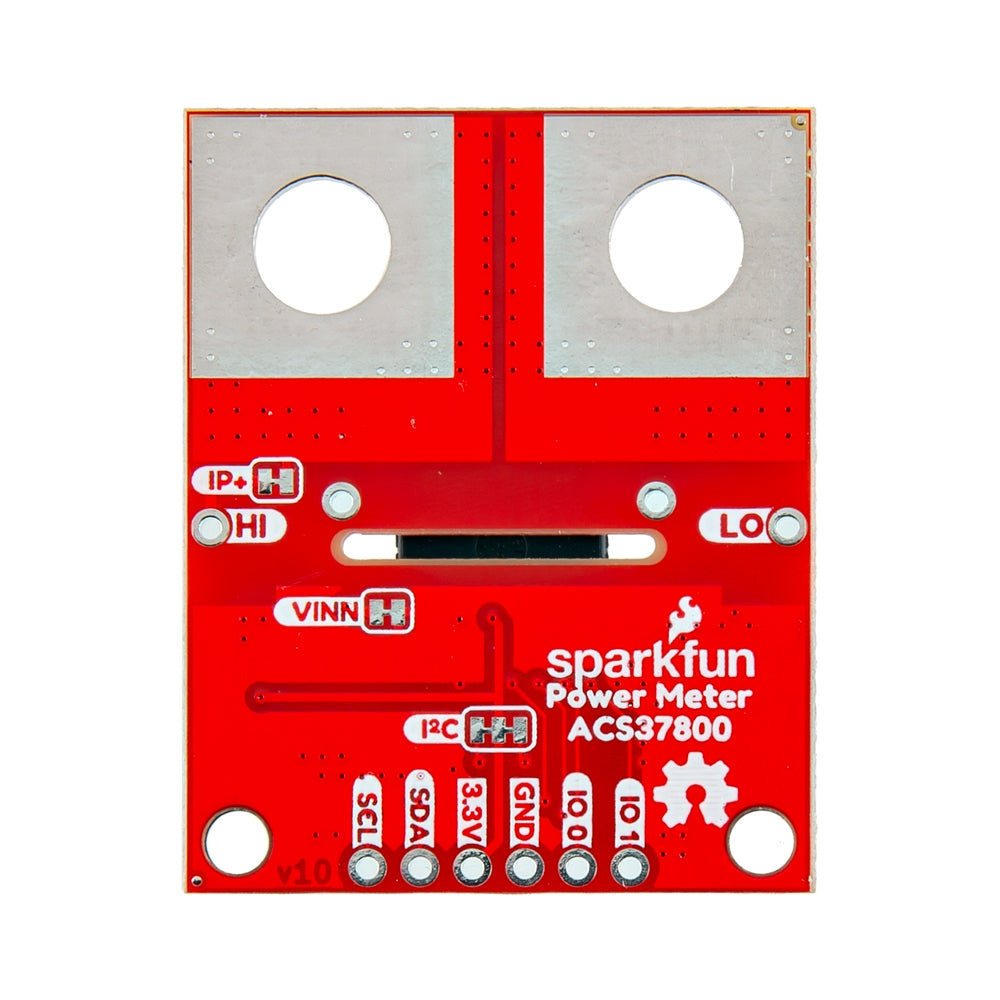

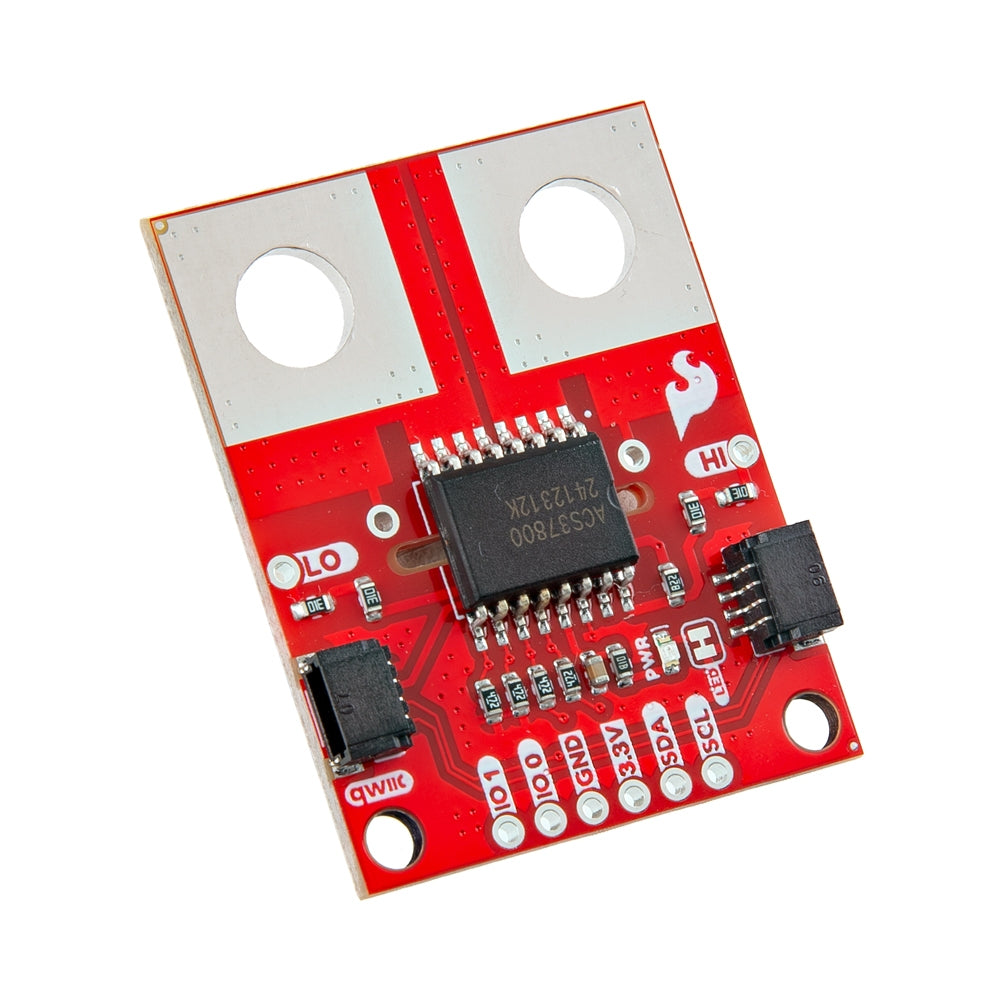

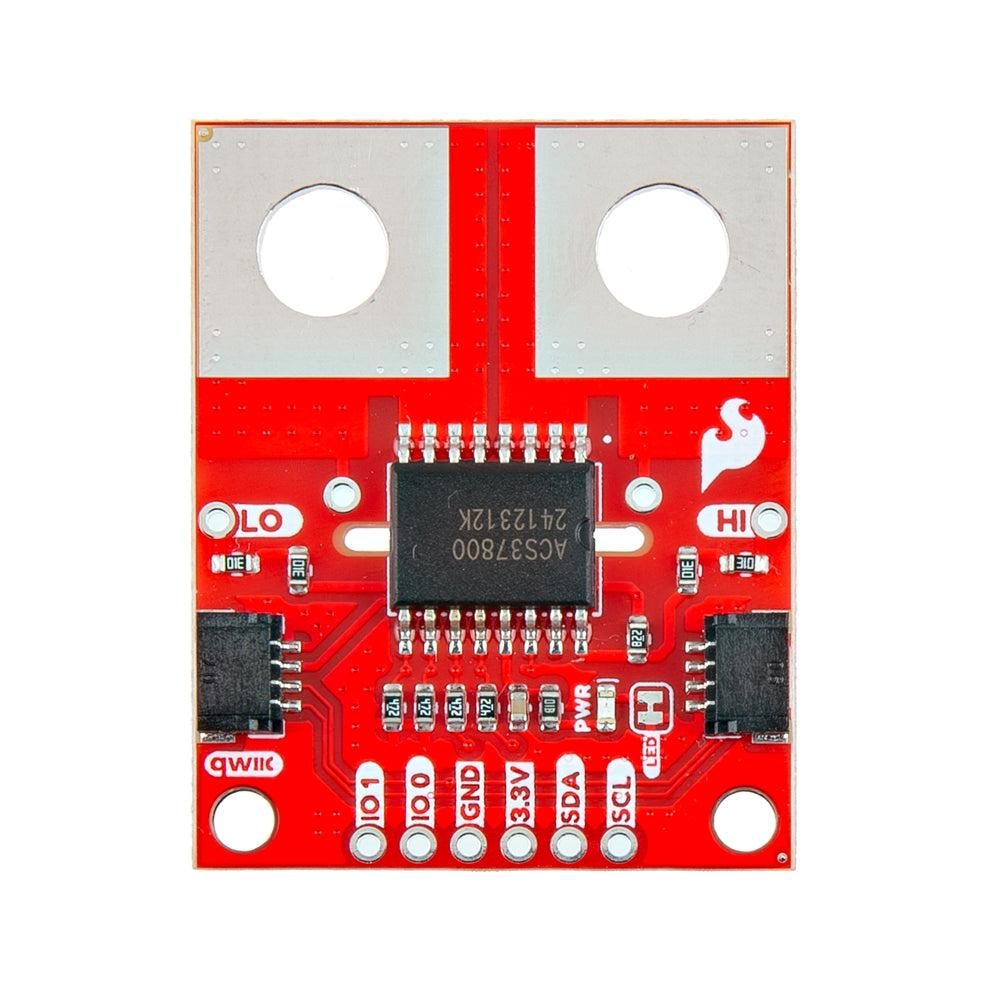

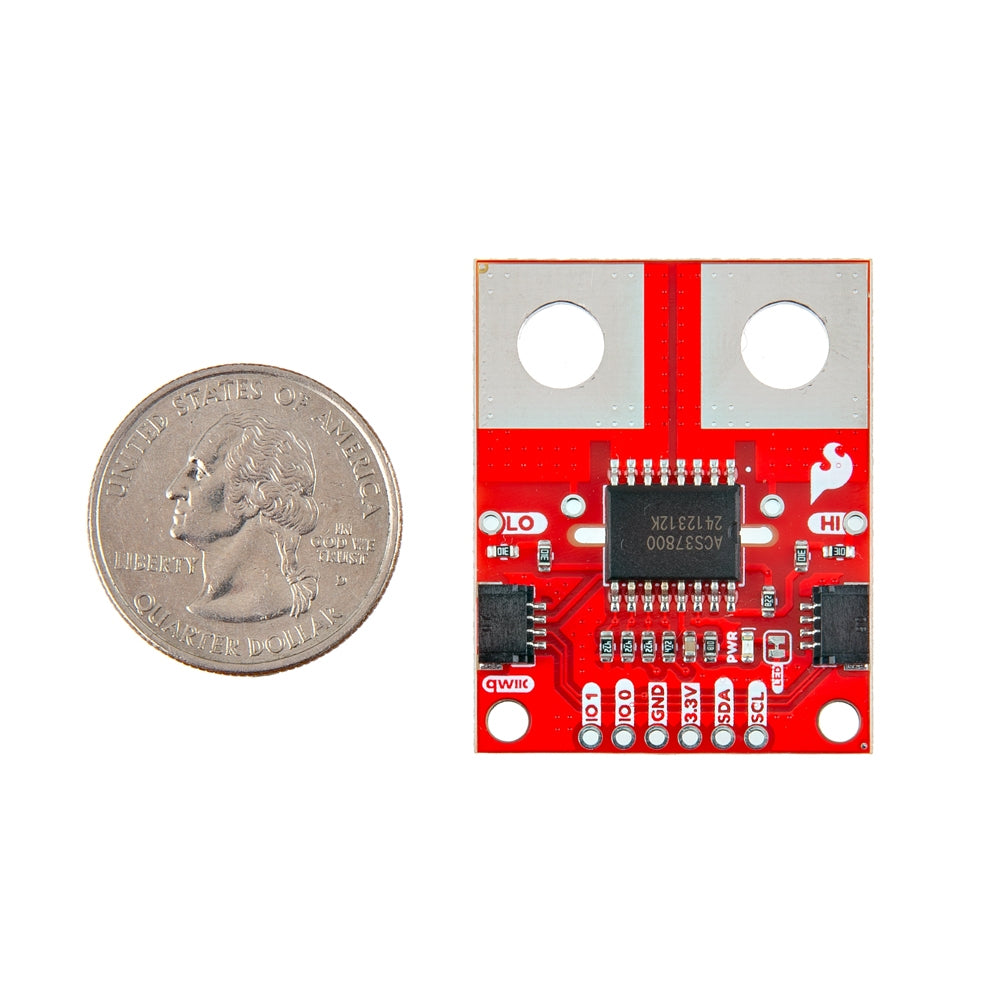

Monitor up to 60VDC and 30A with this Qwiic-enabled ACS37800 power meter board for simultaneous voltage, current, and power tracking via I2C.
Features & Specs
- Allegro MicroSystems ACS37800
- UL 60950-1 (ed. 2) and UL 62368-1 (ed. 1) certified
- Reinforced isolation up to 517 VRMS
- 0.85 mΩ primary conductor resistance for low power loss
- Compatible with floating and non-floating GND
- 1 kHz bandwidth
- Current sensing range up to +/- 30 A
- Default I2C address: 0x60
- I2C address can be changed and stored in EEPROM
- Voltage channel RMS noise: +/-0.3mV
- Current channel RMS noise: +/-0.1A
- Voltage channel total output error: +/-1% (-40°C to 125°C)
- Current channel total output error: +/-2% (25°C to 125°C)
- Current channel total output error: +/-2.7% (-40°C to 25°C)
- Two 0.25” (6mm) through-holes for high current connections
Features & Specs
- Allegro MicroSystems ACS37800
- UL 60950-1 (ed. 2) and UL 62368-1 (ed. 1) certified
- Reinforced isolation up to 517 VRMS
- 0.85 mΩ primary conductor resistance for low power loss
- Compatible with floating and non-floating GND
- 1 kHz bandwidth
- Current sensing range up to +/- 30 A
- Default I2C address: 0x60
- I2C address can be changed and stored in EEPROM
- Voltage channel RMS noise: +/-0.3mV
- Current channel RMS noise: +/-0.1A
- Voltage channel total output error: +/-1% (-40°C to 125°C)
- Current channel total output error: +/-2% (25°C to 125°C)
- Current channel total output error: +/-2.7% (-40°C to 25°C)
- Two 0.25” (6mm) through-holes for high current connections
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Datasheet (ACS37800)
- SparkFun Arduino Library
- GitHub Hardware Repo
