Description
Features & Specs

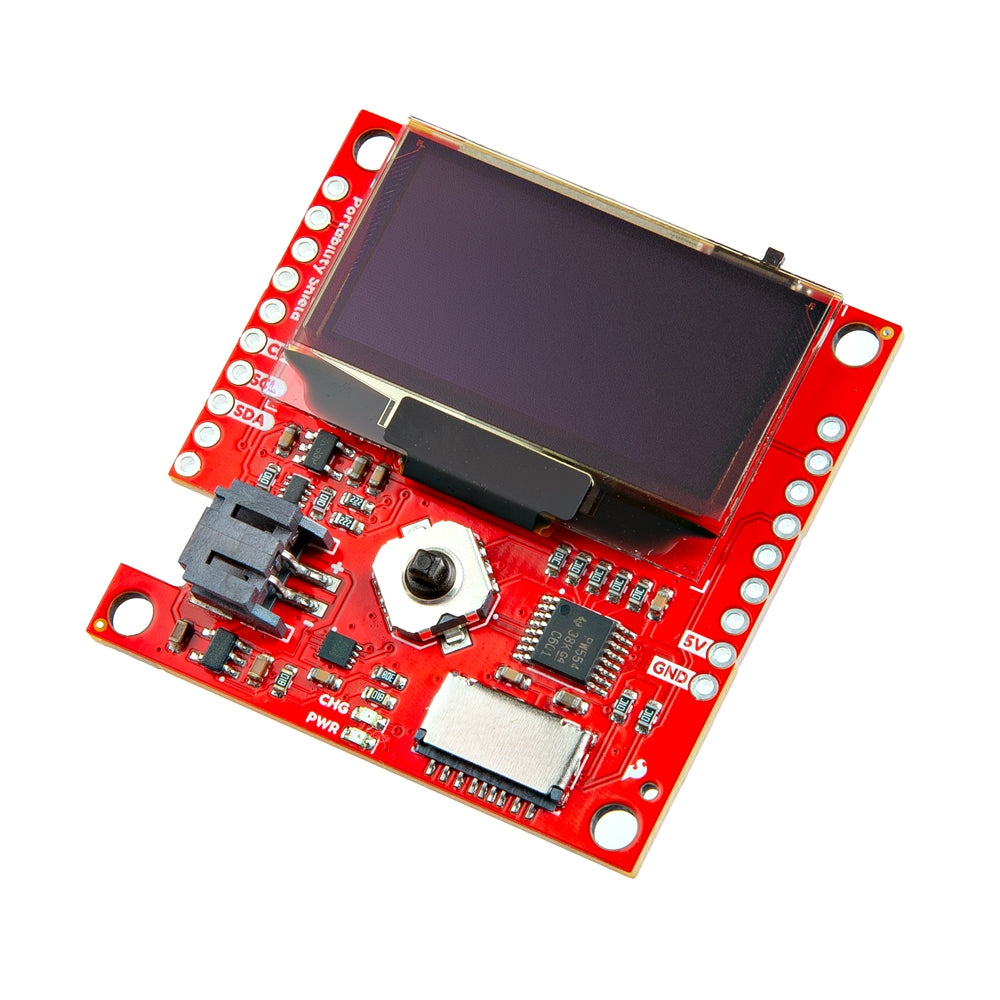

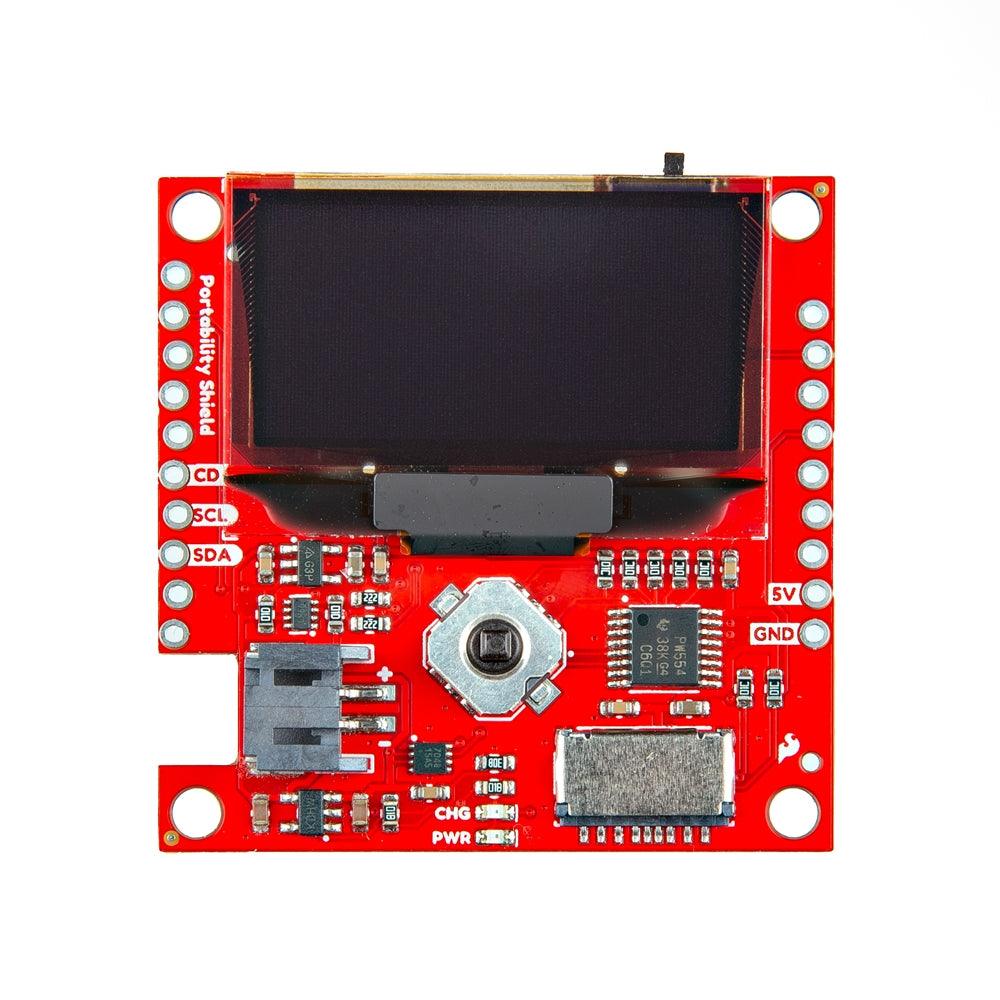

- 1.3in. OLED Display
- 7-bit Unshifted Address: 0x3D (default), 0x3C
- Input Voltage
- 5V via LiPo or VIN
- Power Switch: ON/OFF
- Five-Way D-Pad Navigation
- MCP73831T Single Cell LiPo Charge IC
- Charge Rate Set to ~500mA
- MAX17048 Fuel Gauge
- 7-bit Unshifted Address: 0x36
- AP2112K 3.3V Voltage Regulator
- PCA9554 I2C 8 GPIO Expander
- Interfaces with 5-way navigation switch and microSD card detect
- 7-bit Unshifted Address: 0x20
- microSD Socket Friction Fit
- 2.2kΩ Pull-Up Resistors

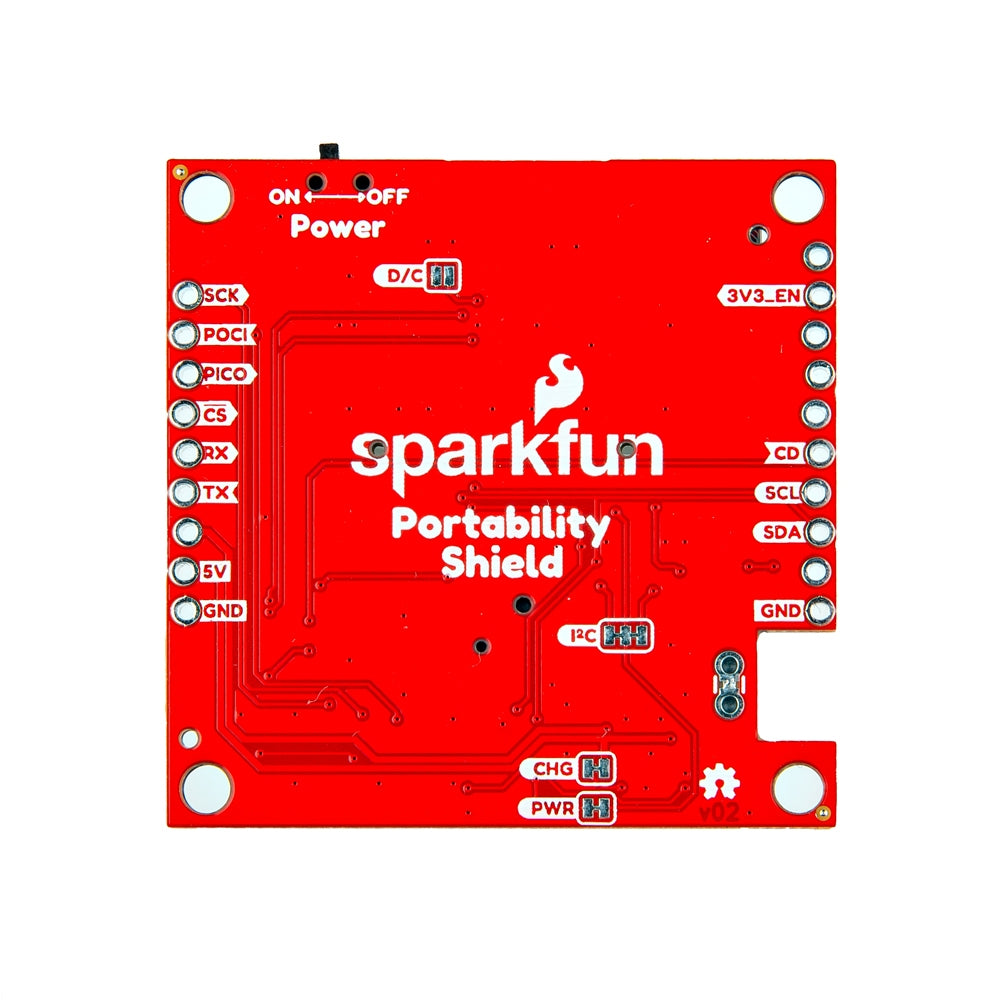

- Jumpers
- D/C - OLED I2C Address
- I2C Pull-Up Resistors
- PWR - Power LED
- CHG - Charge Status LED

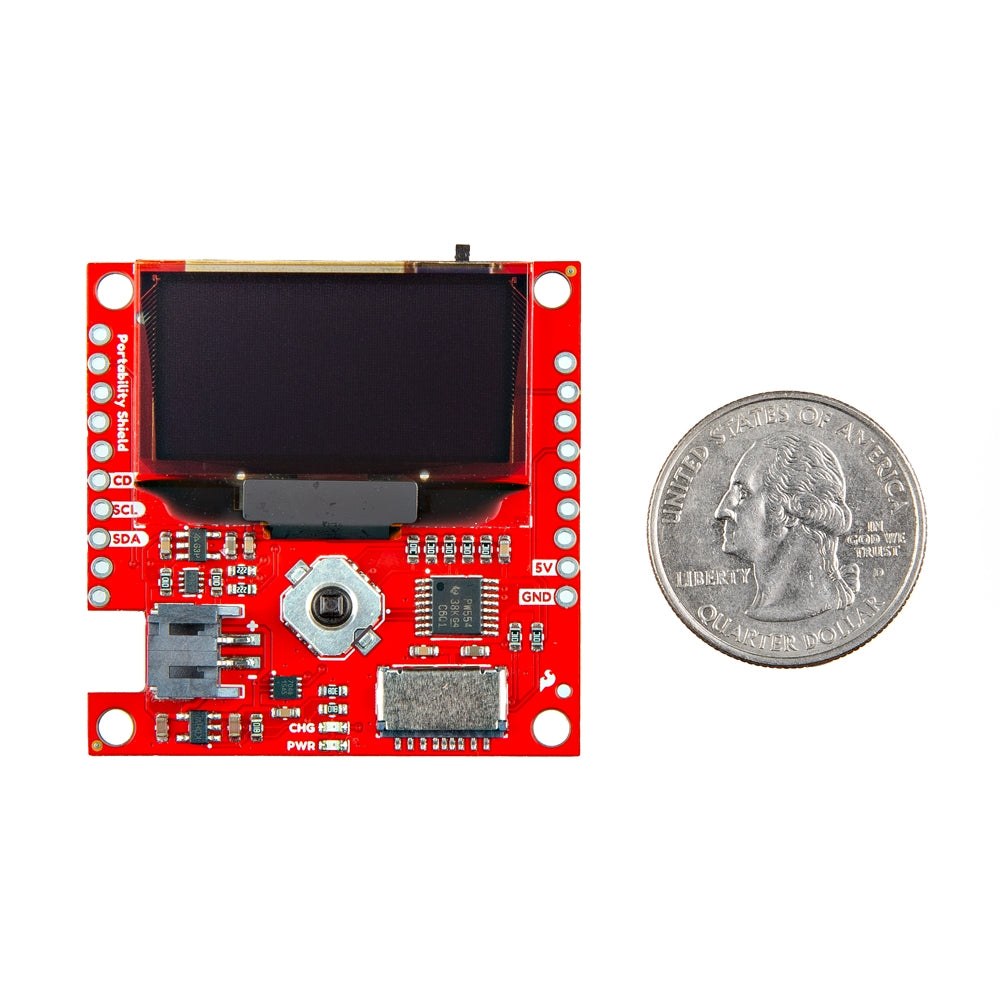

- Board Dimensions
- 43mm x 43mm
Features & Specs
- 1.3in. OLED Display
- 7-bit Unshifted Address: 0x3D (default), 0x3C
- Input Voltage
- 5V via LiPo or VIN
- Power Switch: ON/OFF
- Five-Way D-Pad Navigation
- MCP73831T Single Cell LiPo Charge IC
- Charge Rate Set to ~500mA
- MAX17048 Fuel Gauge
- 7-bit Unshifted Address: 0x36
- AP2112K 3.3V Voltage Regulator
- PCA9554 I2C 8 GPIO Expander
- Interfaces with 5-way navigation switch and microSD card detect
- 7-bit Unshifted Address: 0x20
- microSD Socket Friction Fit
- 2.2kΩ Pull-Up Resistors
- Jumpers
- D/C - OLED I2C Address
- I2C Pull-Up Resistors
- PWR - Power LED
- CHG - Charge Status LED
- Board Dimensions
- 43mm x 43mm
Documentation
