Description

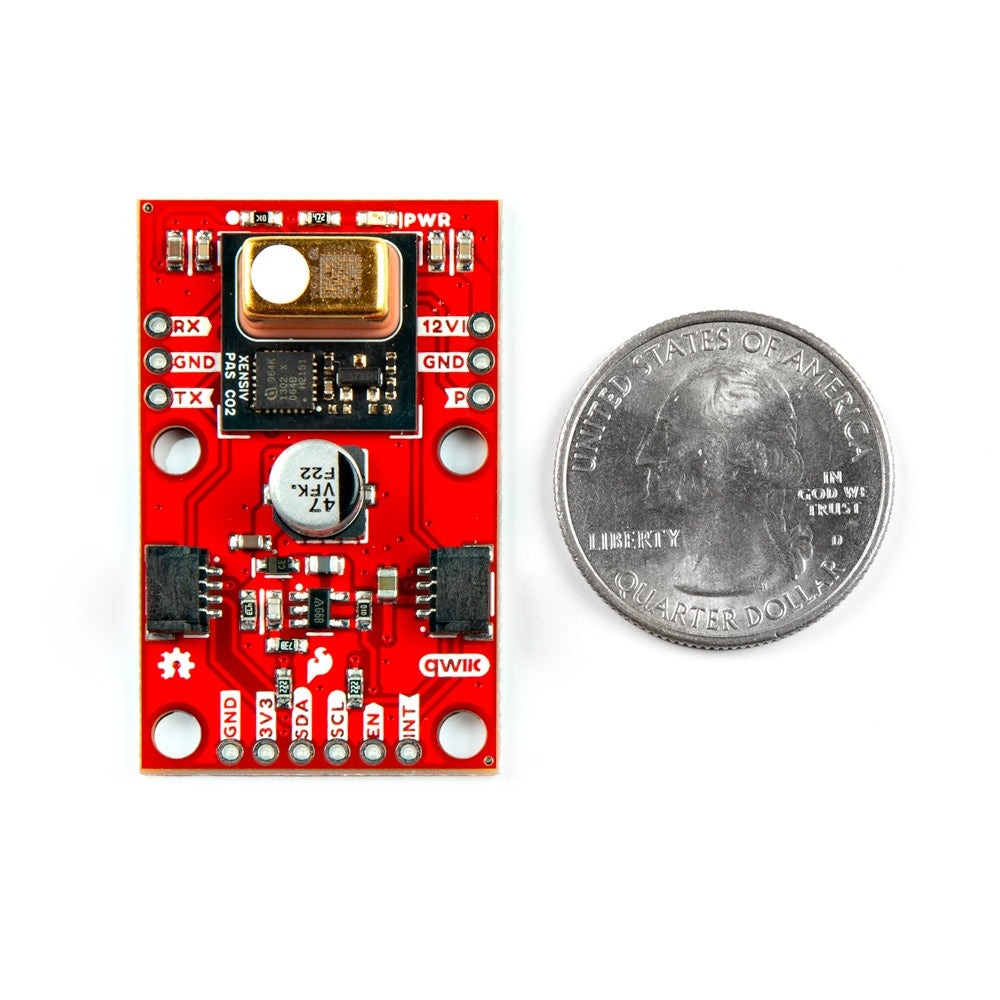

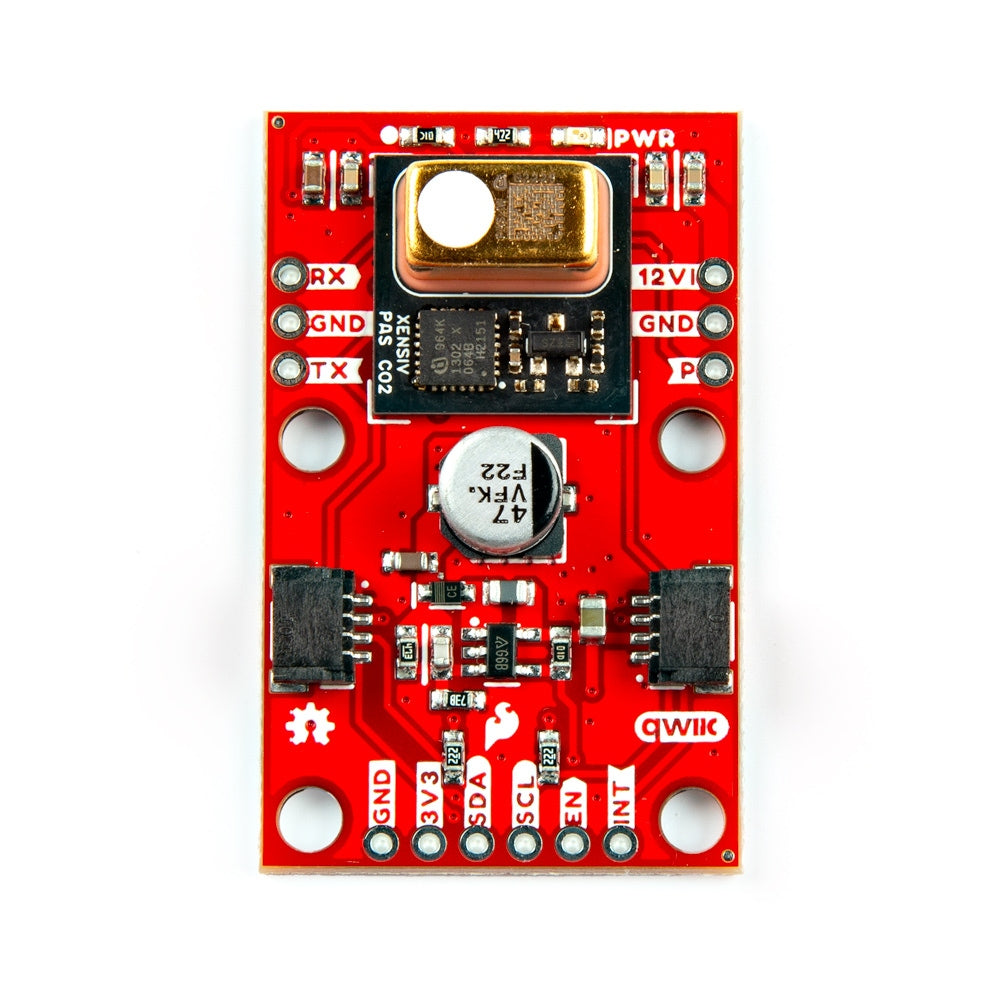

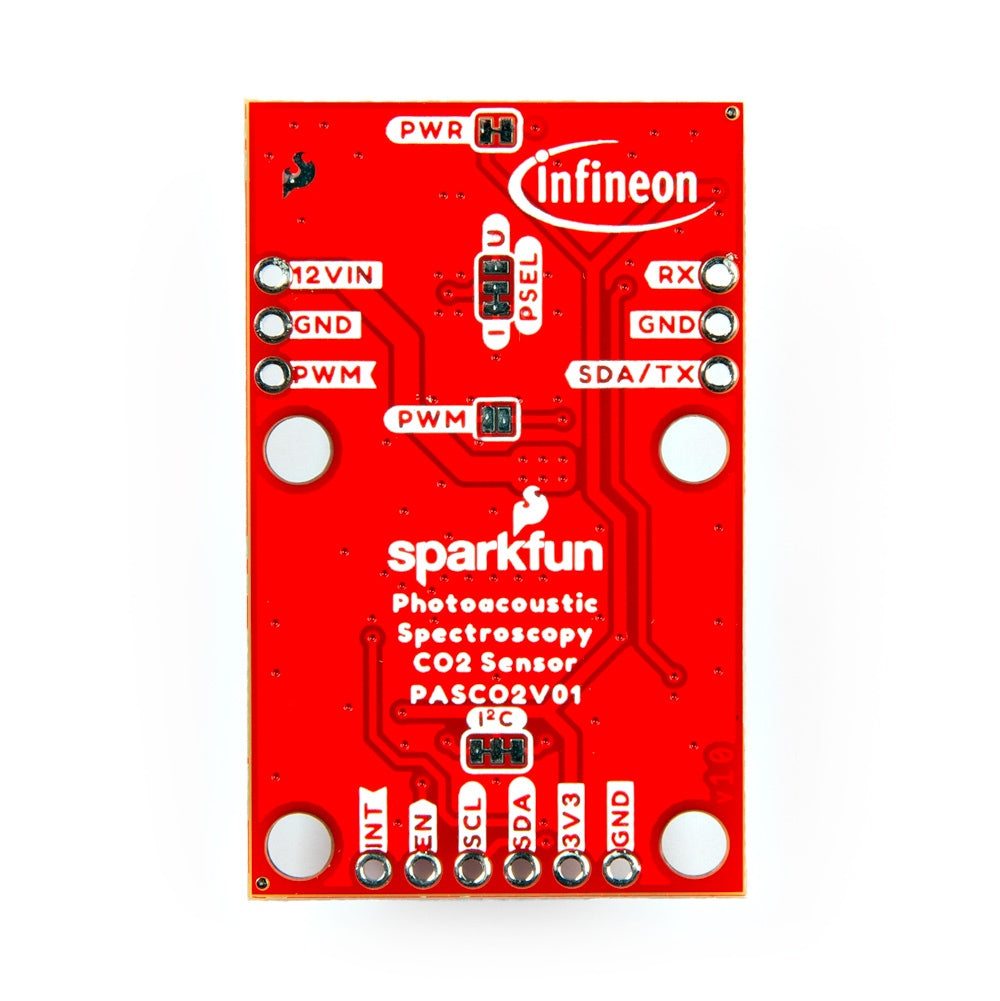

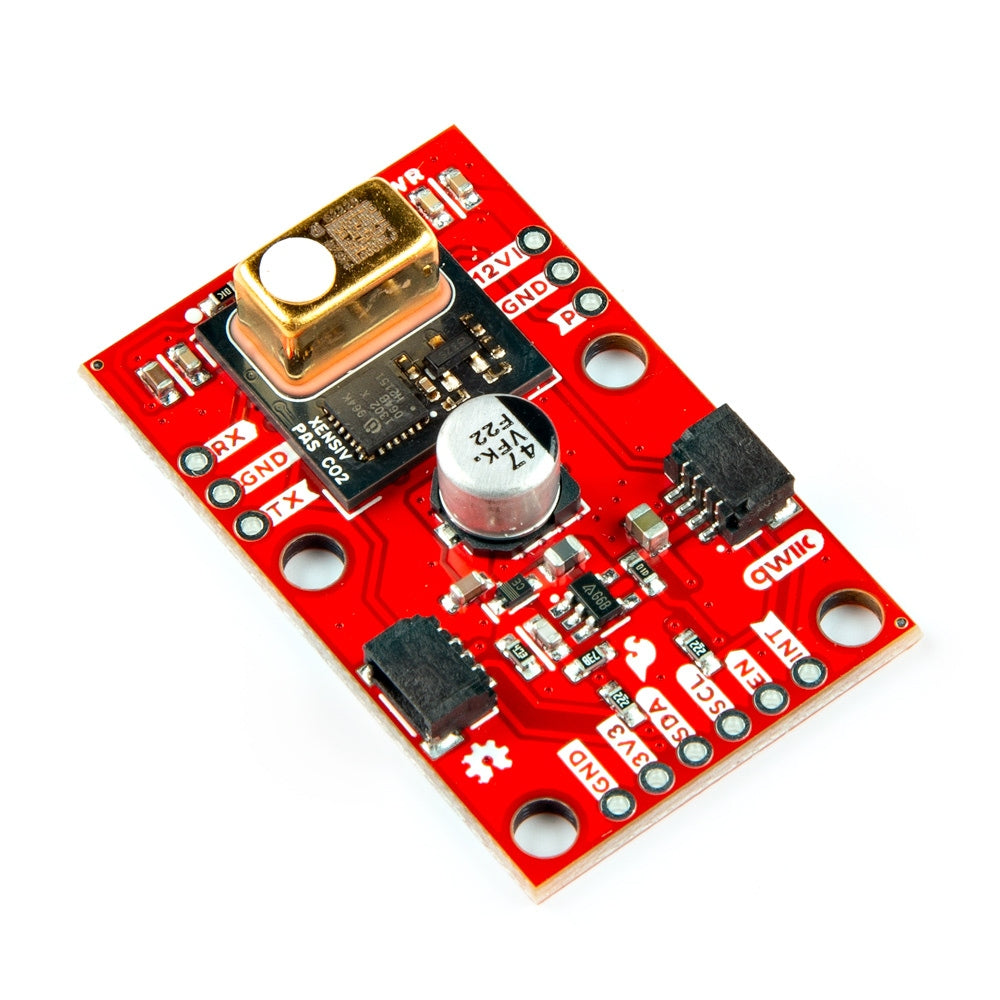

The SparkFun Photoacoustic Spectroscopy CO2 Sensor features the XENSIV™ PAS CO2 sensor package from Infineon©, which provides highly accurate CO2 data.
Features & Specs
- Three Communication Interfaces:
- I2C (Default)
- Address: 0x28
- 2x Qwiic Connectors
- UART
- PWM
- I2C (Default)
- Supply Voltage Ranges:
- VDD3.3: 3.0-3.6V (3.3V Typ.)
- VDD12: 10.8-13.2V (12V Typ.)
- Photoacoustic Spectroscopy Measurement System
- Integrated microcontroller outputs direct ppm measurements
- Three Operating Modes:
- Idle
- Continuous
- Single-Shot
- CO2 Measurement Range: 0-32,000ppm
- Max CO2 Measurement Accuracy: ±(30ppm + 3% of reading)
- Max Accuracy Conditions: Reading between 400ppm & 5,000ppm
- Operating Ambient Temperature Range: 0-50°C
- Operating Relative Humidity Range: 0-85%RH
Features & Specs
- Three Communication Interfaces:
- I2C (Default)
- Address: 0x28
- 2x Qwiic Connectors
- UART
- PWM
- I2C (Default)
- Supply Voltage Ranges:
- VDD3.3: 3.0-3.6V (3.3V Typ.)
- VDD12: 10.8-13.2V (12V Typ.)
- Photoacoustic Spectroscopy Measurement System
- Integrated microcontroller outputs direct ppm measurements
- Three Operating Modes:
- Idle
- Continuous
- Single-Shot
- CO2 Measurement Range: 0-32,000ppm
- Max CO2 Measurement Accuracy: ±(30ppm + 3% of reading)
- Max Accuracy Conditions: Reading between 400ppm & 5,000ppm
- Operating Ambient Temperature Range: 0-50°C
- Operating Relative Humidity Range: 0-85%RH
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Datasheet (PASCO2V01)
- PAS CO2 Design In Guidelines
- PAS CO2 Low Power App Note
- PAS CO2 FCS & ABOC Compensation App Note
- Hookup Guide
- Qwiic Info Page
- XENSIV PAS CO2 Sensor Arduino Library
- GitHub Hardware Repo
