Description

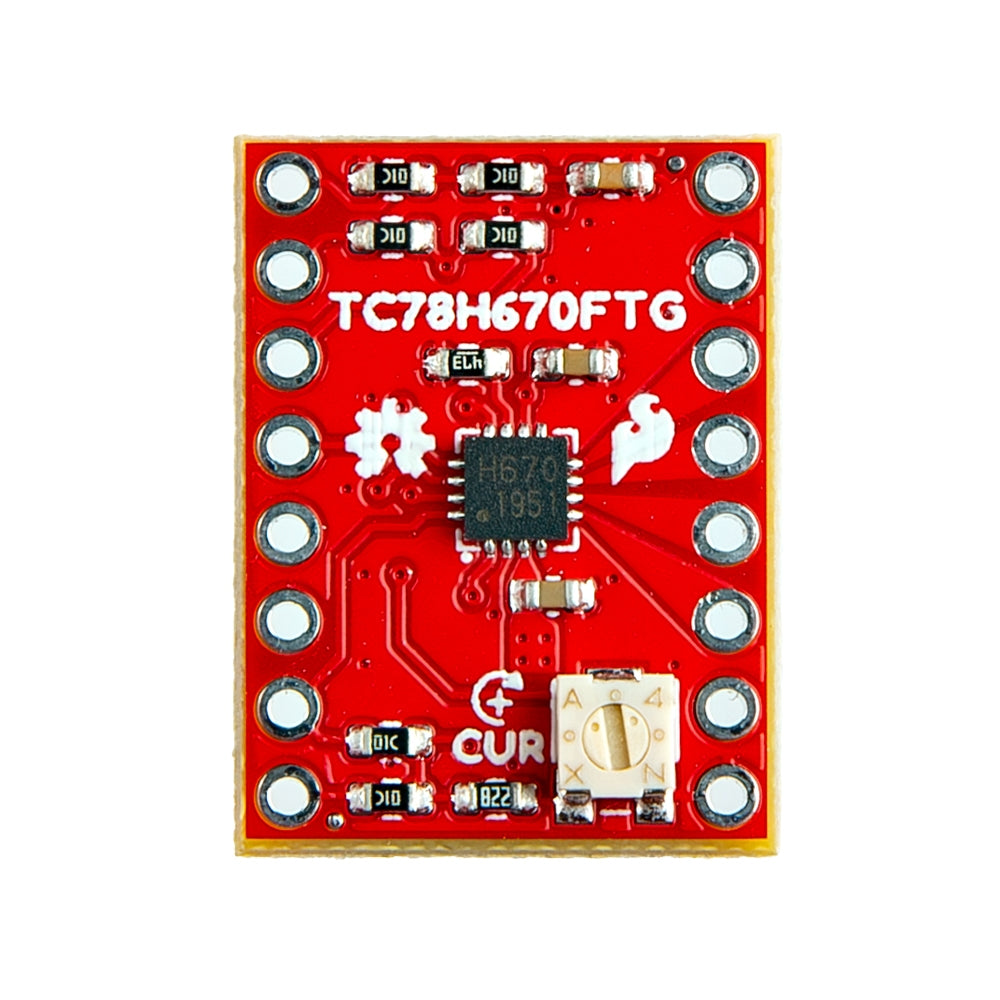

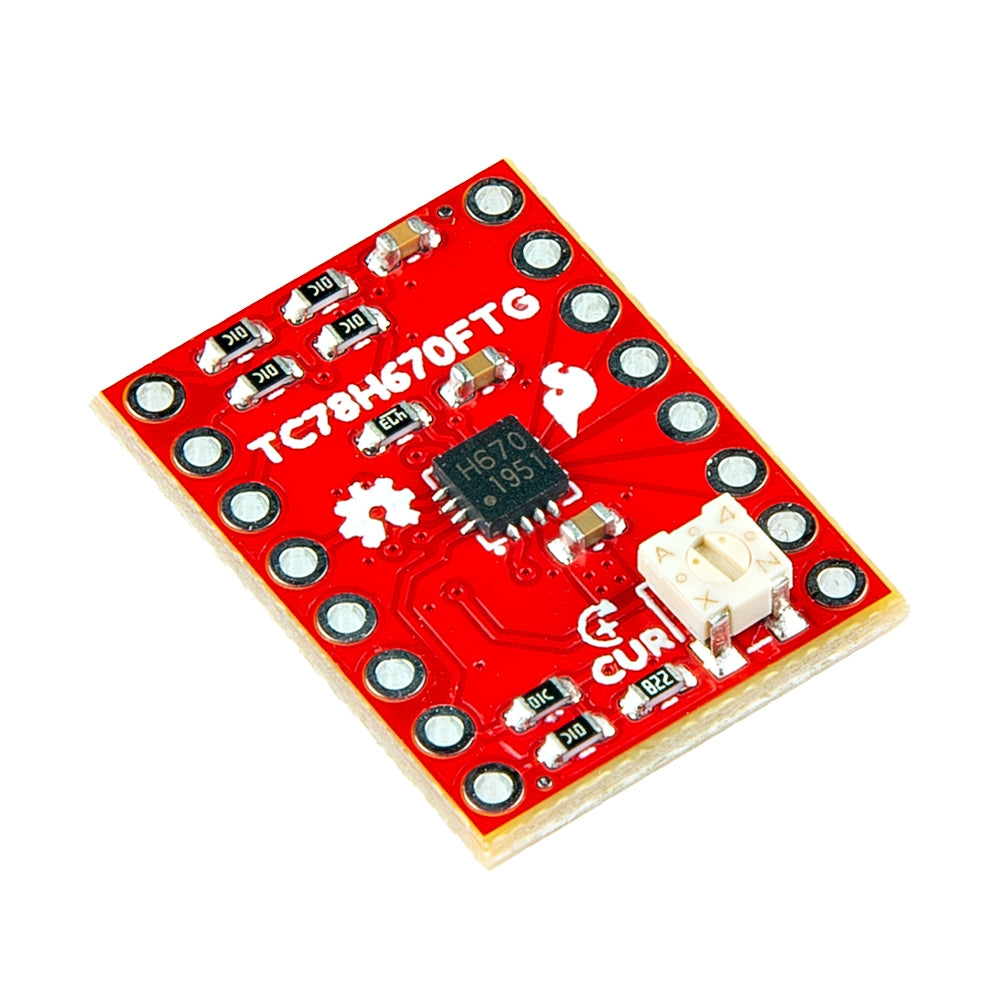

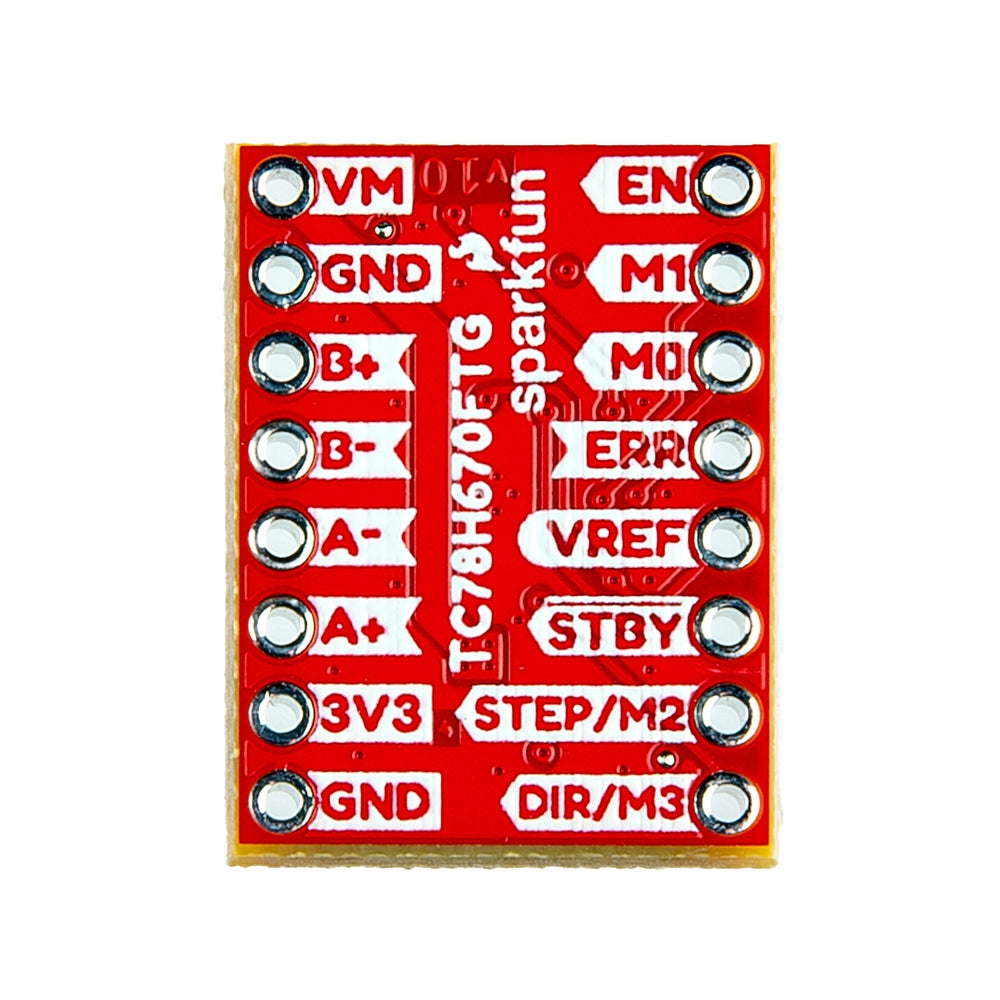

The SparkFun Mini Stepper Motor Driver makes it easy to start developing with the TC78H670FTG bipolar stepper motor driver from Toshiba!
Features & Specs
- Toshiba TC78H670FTG Bipolar Stepping Motor Driver
- Control Protocol:
- Clock-in
- Serial
- Step operation: full, half, quarter, 1/8, 1/16, 1/32, 1/64, 1/128
- Power supply operating voltage: 3.6 V to 16.0 V
- Output current: 2.0 A (max)
- Over current protection from PTC
- Multi error detect functions:
- Thermal shutdown (TSD)
- Over current (ISD)
- Motor load open (OPD)
- Under voltage lockout (UVLO)

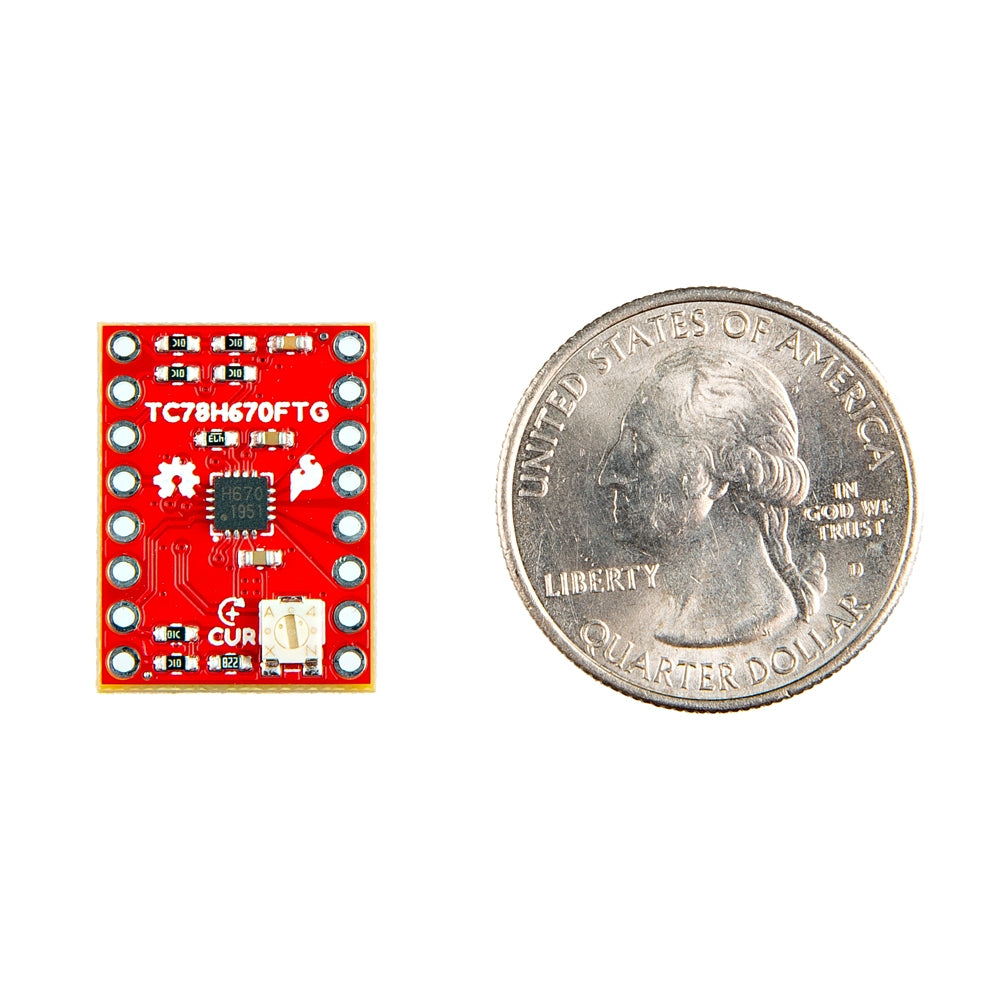

- Board Dimensions: 0.6in. × 0.8in.
Features & Specs
- Toshiba TC78H670FTG Bipolar Stepping Motor Driver
- Control Protocol:
- Clock-in
- Serial
- Step operation: full, half, quarter, 1/8, 1/16, 1/32, 1/64, 1/128
- Power supply operating voltage: 3.6 V to 16.0 V
- Output current: 2.0 A (max)
- Over current protection from PTC
- Multi error detect functions:
- Thermal shutdown (TSD)
- Over current (ISD)
- Motor load open (OPD)
- Under voltage lockout (UVLO)
- Board Dimensions: 0.6in. × 0.8in.
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- Hookup Guide
- Datasheet (TC78H670FTG)
- Arduino Library
- GitHub Hardware Repo
