Description

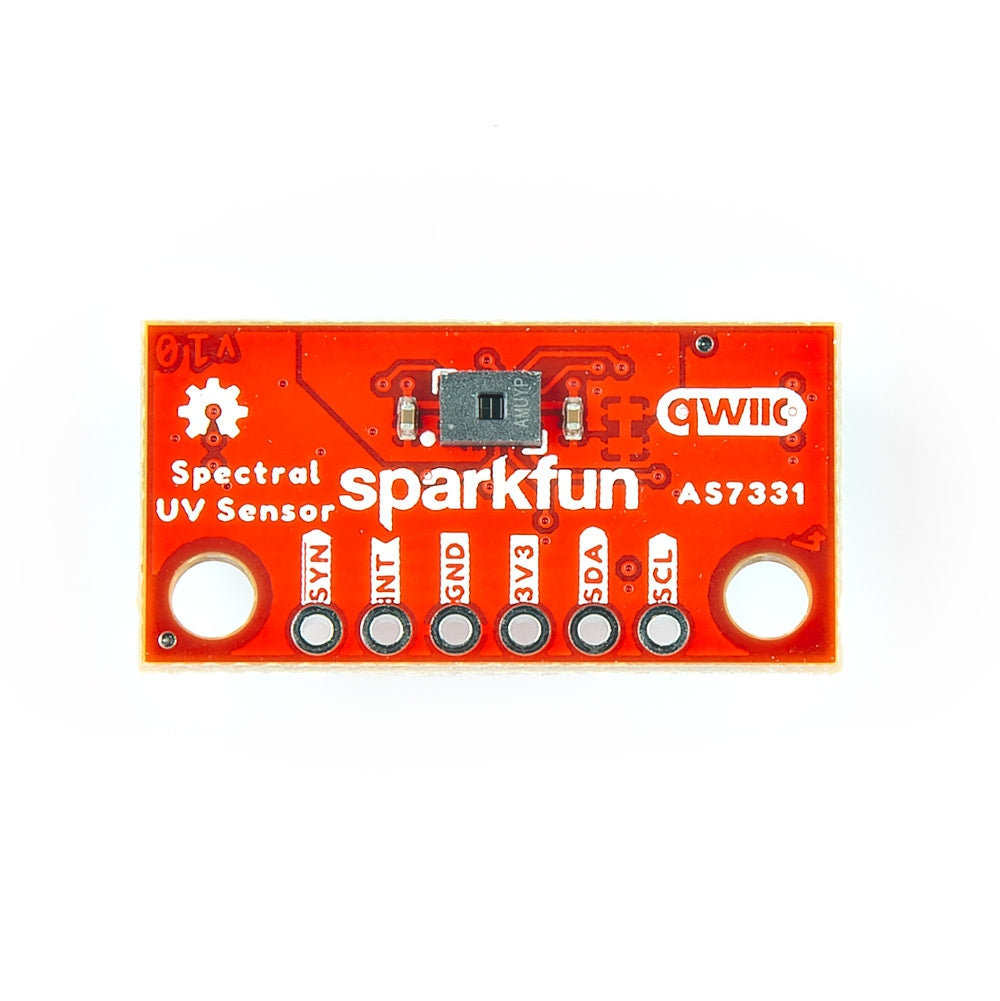

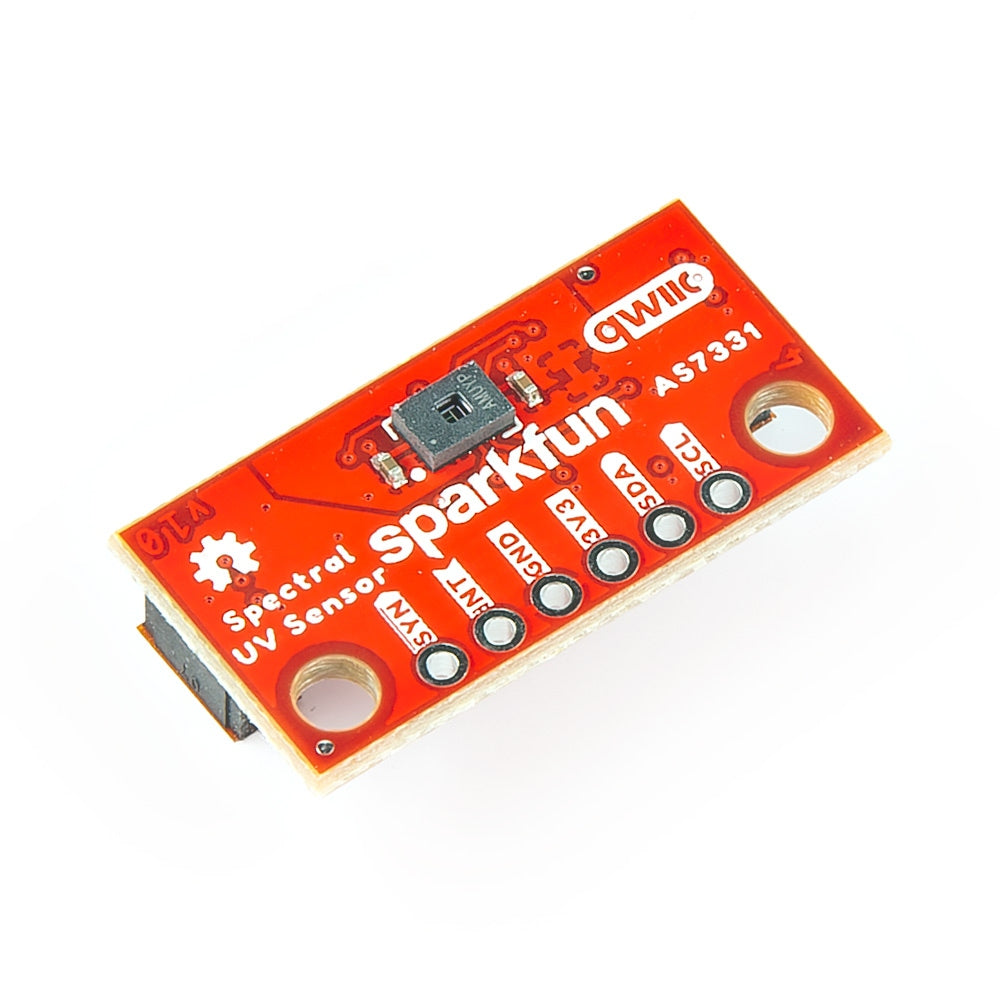

The SparkFun Mini AS7331 Qwiic Spectral UV Sensor measures UV radiation on three channels: UVA, UVB, and UVC, with high sensitivity and accuracy.
Features & Specs
- Operating Voltage: 2.7V-3.6V
- Current Consumption:
- Active Measurement: 1.42mA (Typ.)
- Standby Mode: 970µA
- Power Down Mode: 1µA
- Three UV Channels: UVA, UVB, & UVC
- Each with dedicated photodiode
- Four Operating Modes:
- Single Measurement
- Continuous Measurement
- Synchronized Start Measurement
- Synchronized Start/Stop Measurement
- High Dynamic Range: Up to 3.43E+10 (resolution multiplied by gain range)
- 2x Qwiic Connectors

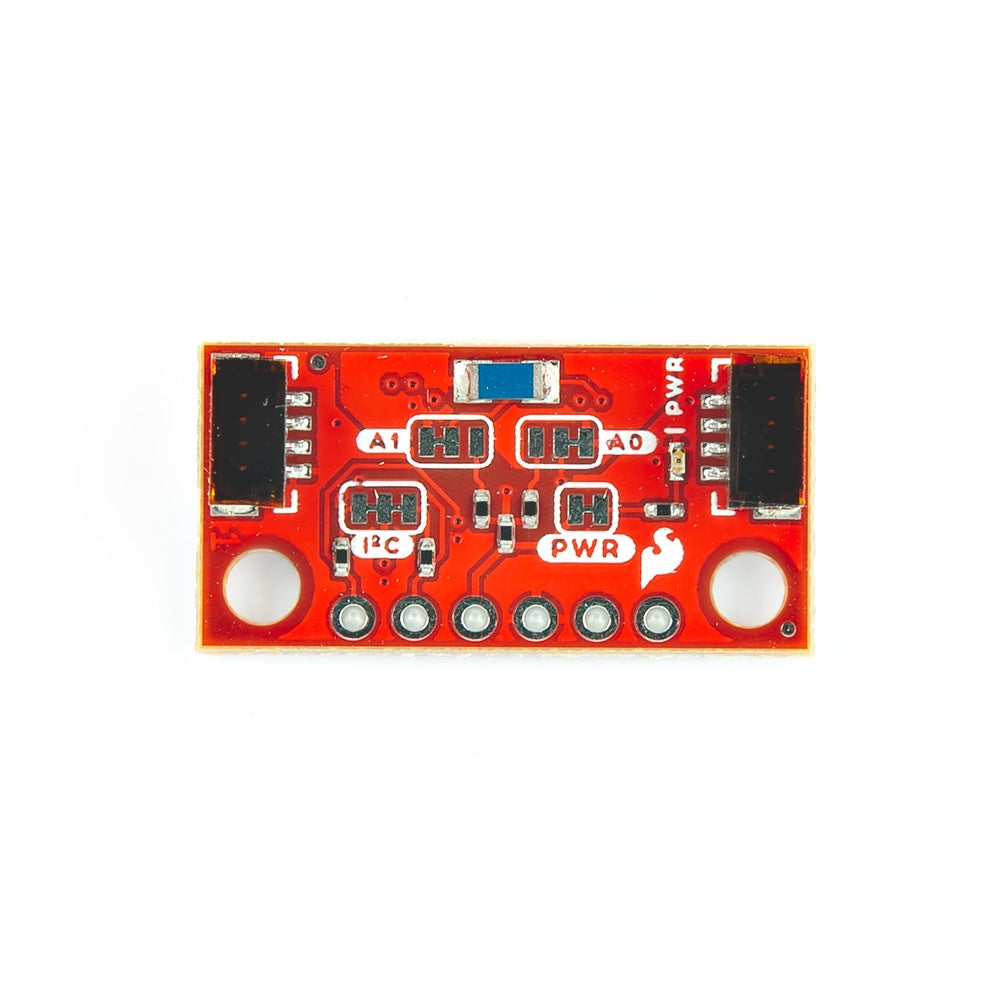

- Four Adjustable I2C Addresses
- Set through A0 & A1 pins
- 0x74 (Default), 0x75, 0x76, & 0x77

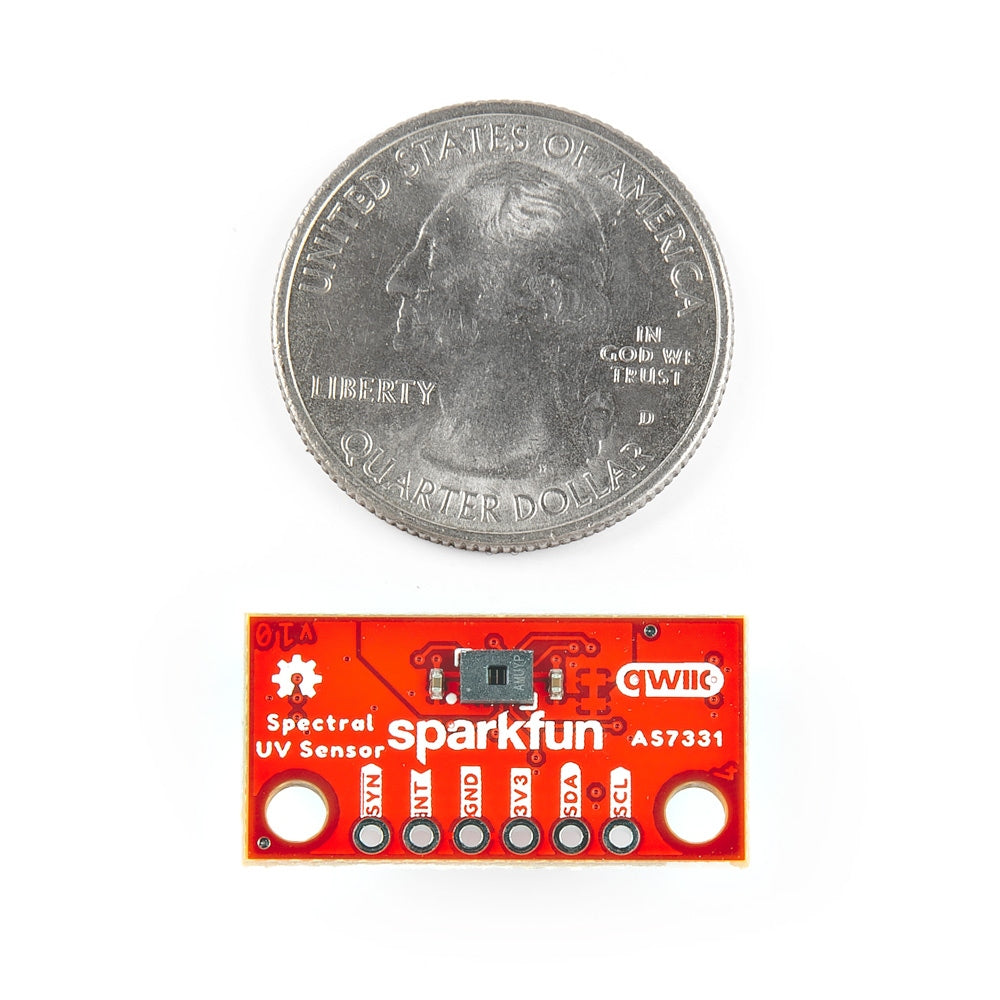

- Qwiic Mini Footprint: 1in. X 0.5in.
Features & Specs
- Operating Voltage: 2.7V-3.6V
- Current Consumption:
- Active Measurement: 1.42mA (Typ.)
- Standby Mode: 970µA
- Power Down Mode: 1µA
- Three UV Channels: UVA, UVB, & UVC
- Each with dedicated photodiode
- Four Operating Modes:
- Single Measurement
- Continuous Measurement
- Synchronized Start Measurement
- Synchronized Start/Stop Measurement
- High Dynamic Range: Up to 3.43E+10 (resolution multiplied by gain range)
- 2x Qwiic Connectors
- Four Adjustable I2C Addresses
- Set through A0 & A1 pins
- 0x74 (Default), 0x75, 0x76, & 0x77
- Qwiic Mini Footprint: 1in. X 0.5in.
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Datasheet (AS7731)
- Qwiic Info Page
- SparkFun AS7331 Arduino Library
- GitHub Hardware Repo
