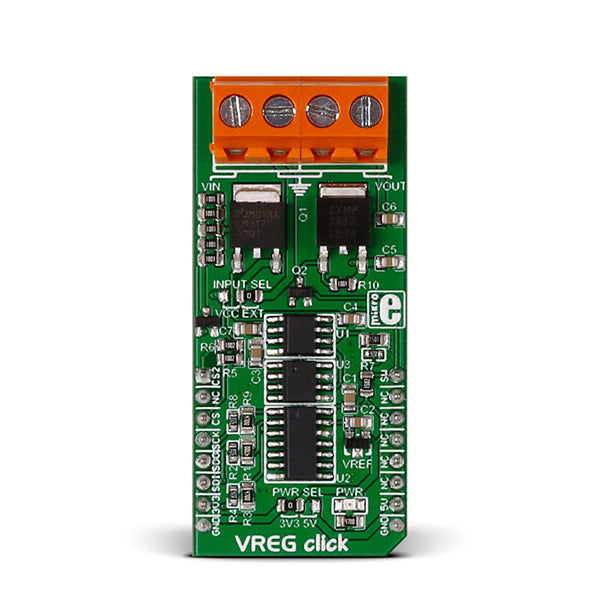

MIKROE VReg Click is a digitally controlled DC Voltage regulator in mikroBUS� form factor. The design is based on the well-known LM317-M circuit, with the addition of a 12-bit DAC, 12-bit ADC, and an Operational Amplifier. Two pairs of screw terminals serve as inputs and outputs.
The LM317-M IC is a reliable regulator with typical line regulation of 0.01% and load regulation of 0.1%. It also has internal short-circuit current limiting and thermal overload protection.
The circuit regulates voltage by turning all input/output difference into heat (effectively dissipating all the excess power). If it gets too hot it may damage the board or cause unexpected behaviour.
Because of that, the board�s operating range is defined by two factors. 1) maximum input voltage and current (should not exceed 20V/0.5A); and 2) maximum wattage arising from current and I/O voltage difference (should not exceed 1W, measured as I x (Input V - Output V).
The board also carries a MOSFET chip to toggle the output on and off.
VReg Click communicates with the target board MCU through the SPI interface (CS, SCK, MISO, MOSI). The board can use either a 3.3V or a 5V power supply.
It is also possible to use the board�s power supply as the Input, by resoldering the onboard INPUT SEL jumper.
Features:
- Interface: SPI
- Compatibility: mikroBUS�
- Dimensions: 57.15 x 25.4mm
- Input Voltage: 3.3V or 5V
