Description

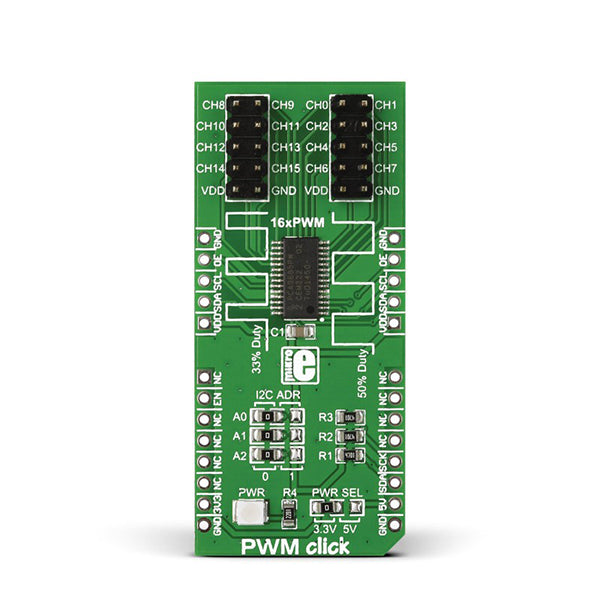

MIKROE PWM Click is a simple solution for controlling 16 PWM outputs through a single I2C interface. You can use it to control anything from a simple LED strip to a complex robot with a multitude of moving parts. The Click board� carries the PCA9685PW IC. The board has an additional set of pins that allow you to connect up to seven PWM clicks together (using three jumpers to specify a different I2C address for each one). This will allow you to get a total of 112 pwm outputs on a single I2C line. PWM Click is designed to use either a 3.3V or 5V power supply.
Features:
- Interface: GPIO, I2C
- Compatibility: mikroBUS�
- Dimensions: 57.15 x 25.4mm
- Input Voltage: 3.3V or 5V
Documents:
Videos
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2479.4 |
| 3-5 | ₹ 2454.1 |
| 5-10 | ₹ 2403.5 |
| 10+ | ₹ 2352.9 |
Bulk discount will be automatically applied during checkout based on quantity.
