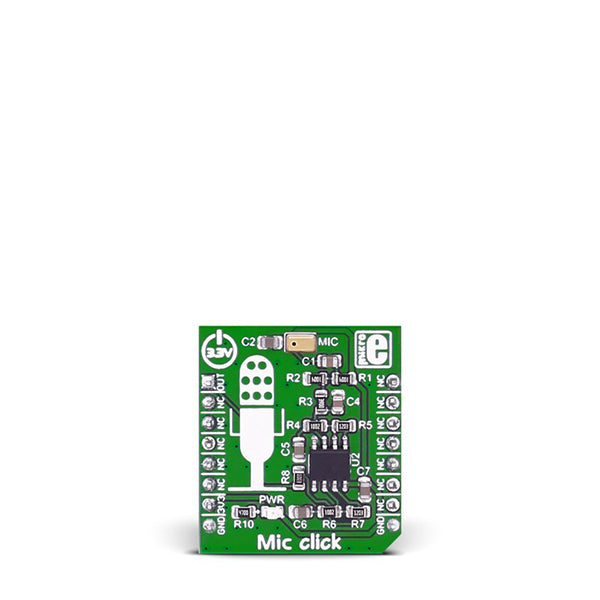

SparkFun MIKROE Mic Click

MIKROE Mic Click carries the SPQ0410HR5H-B surface mount silicon microphone with maximum RF protection. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over the AN pin on the mikroBUS� line.

Mic Clicks contains a silicon microphone, which outputs the signal to the analog pin (AN) on the mikroBUS� line via the op amp.

The SPQ0410HR5H-B is a miniature, high-performance, low power, top port silicon microphone.

Using the SiSonic� MEMS technology, the SPQ0410HR5H-B consists of an acoustic sensor, a low noise input buffer, and an output amplifier.

MaxRF protection prevents RF noise in traces from getting into the mic output.

SPQ0410HR5H-B is an omnidirectional microphone. As the name implies an omnidirectional microphone can hear equally in all directions. So whichever way you hold it, up or down, it will work the same.

Features:

• Interface: Analog
• Compatibility: mikroBUSââ��¢
• Dimensions: 28.6 x 25.4mm
• Input Voltage: 3.3V

Documents:

• Schematic
• SPQ0410HR5H-B Datasheet
• GitHub
