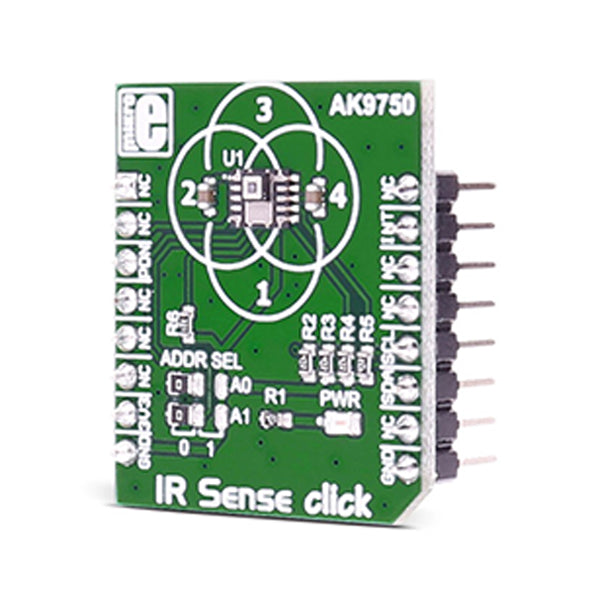

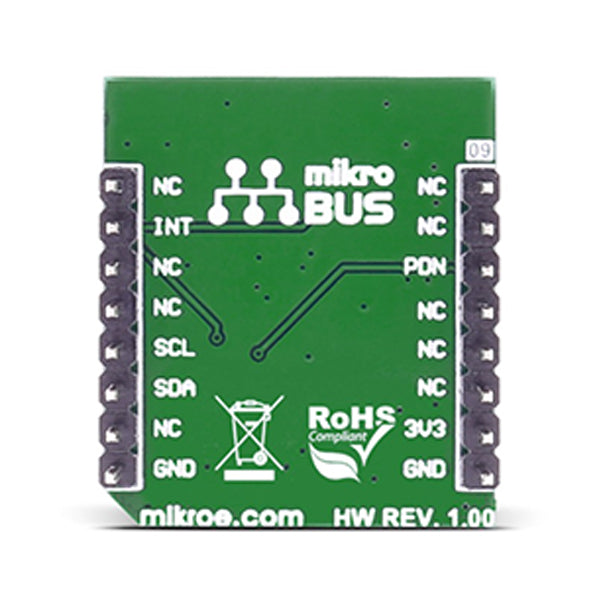

SparkFun MIKROE IR Sense Click

IR Sense Click carries the AK9750 quantum-type IR sensor. The Click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS� line.

IR Sense Click detects the temperature of objects and people in motion. It can also detect a human body that remains still. So, it distinguishes heat regardless of the fact whether or not an object is moving.

AK9750 FEATURES

The AK9750 is an ultra-low power and compact infrared-ray (IR) sensor module. It is composed of four quantum IR sensors and an integrated circuit (IC) for characteristic compensation.

An integral analog-to-digital converter provides 16-bits data outputs. Additional integrated features include a field of view limiter and an optical filter.

Features:

• Interface: I²C
• Compatibility: mikroBUSâ�¢
• Dimensions: 28.6 x 25.4mm
• Input Voltage: 3.3V

Documents:

• Schematic
• AK9750 Datasheet
• mikroSDK
• GitHub
