Description

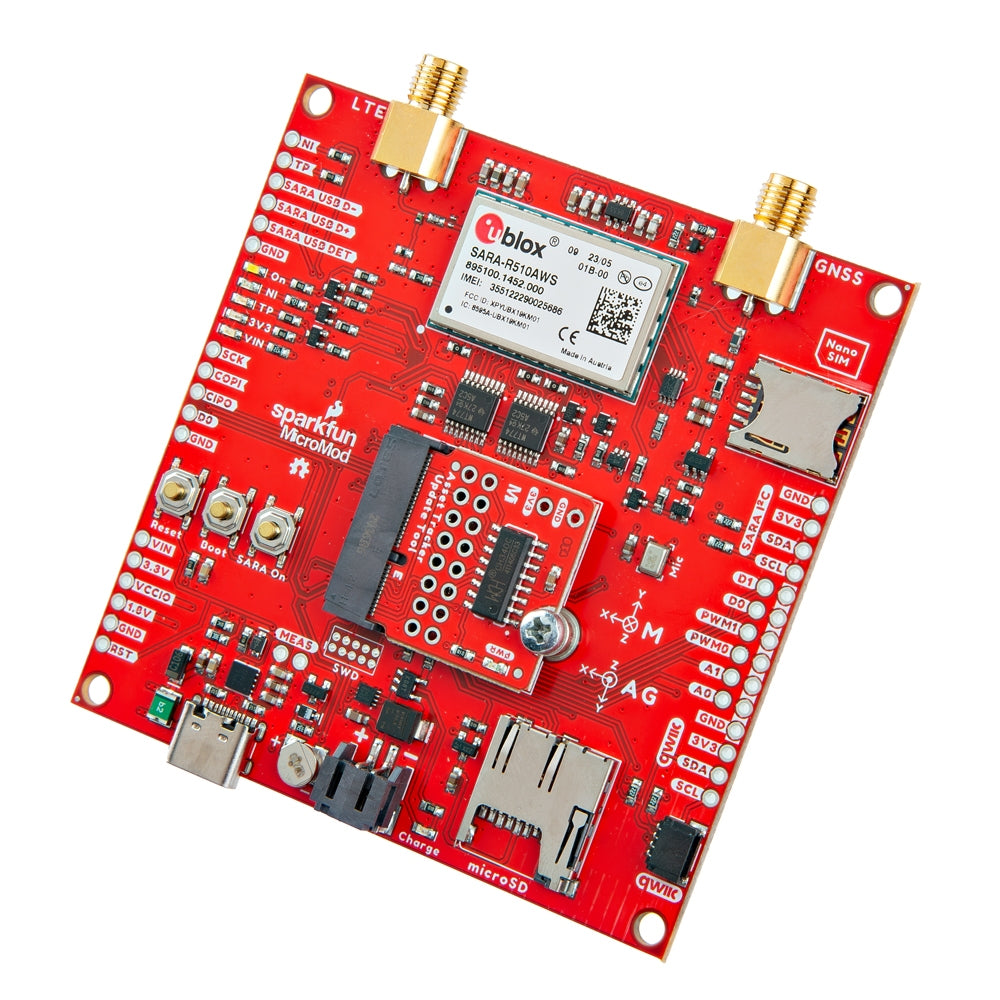

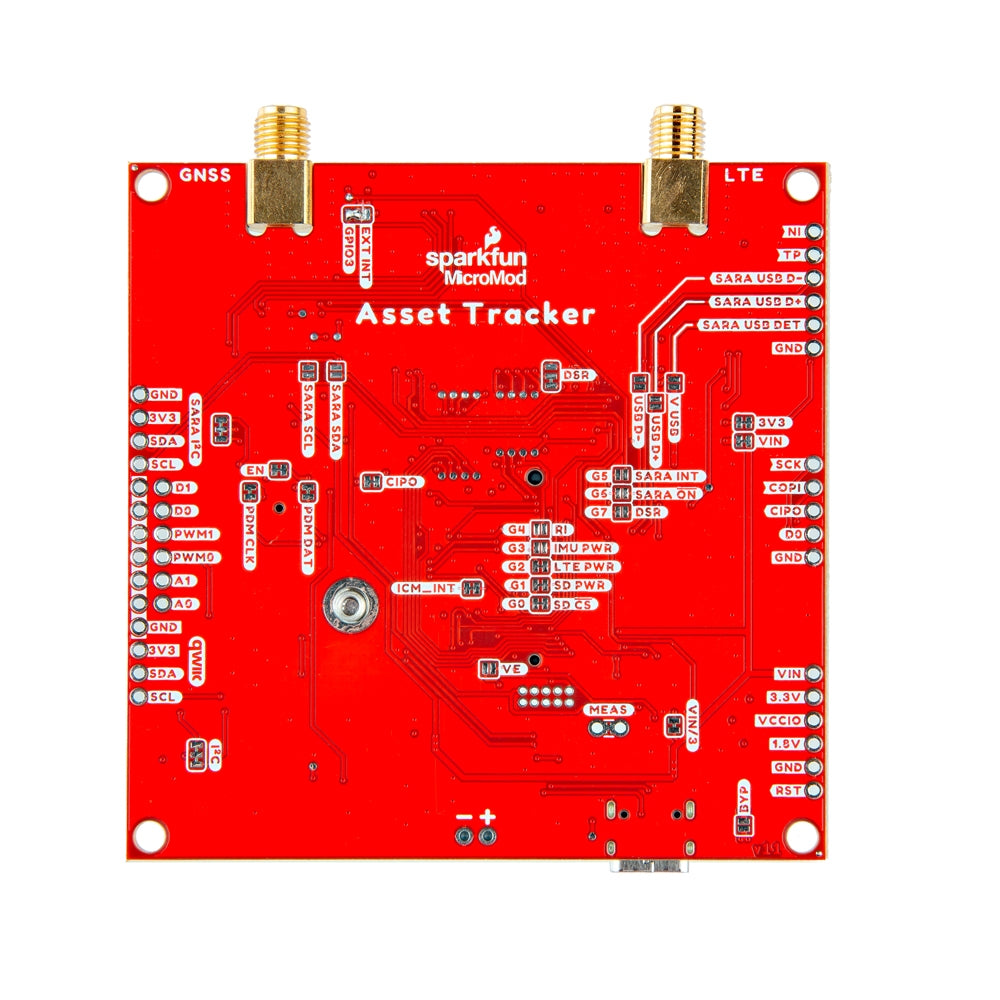

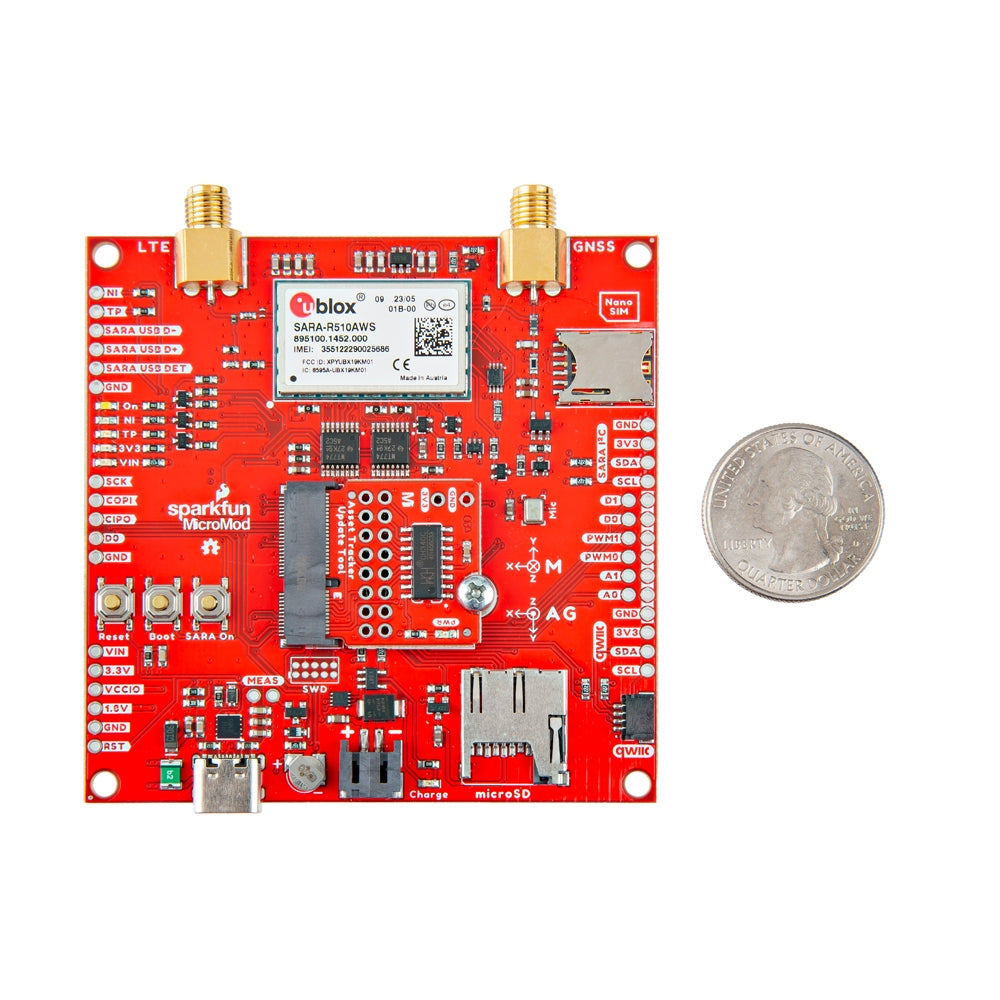

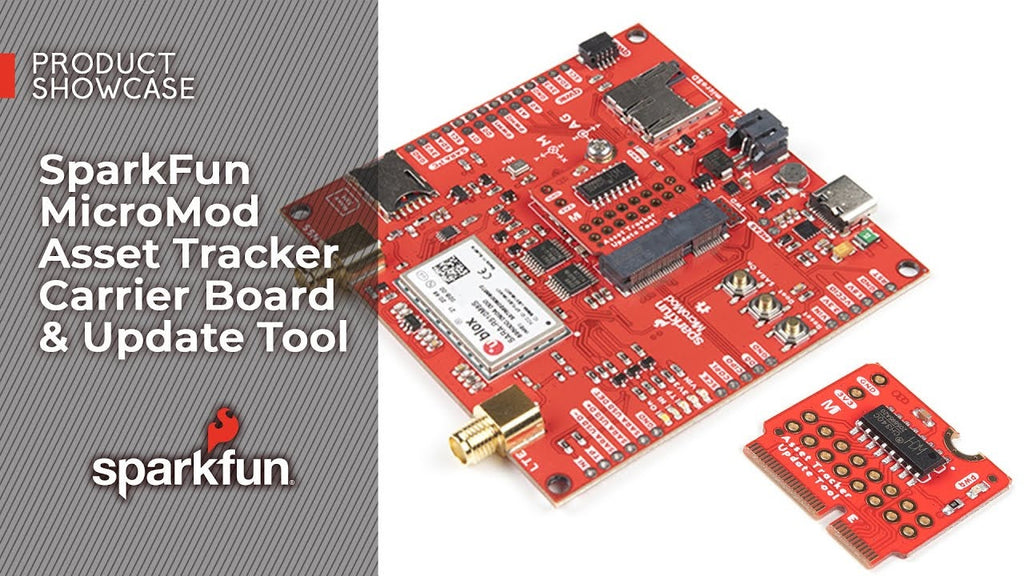

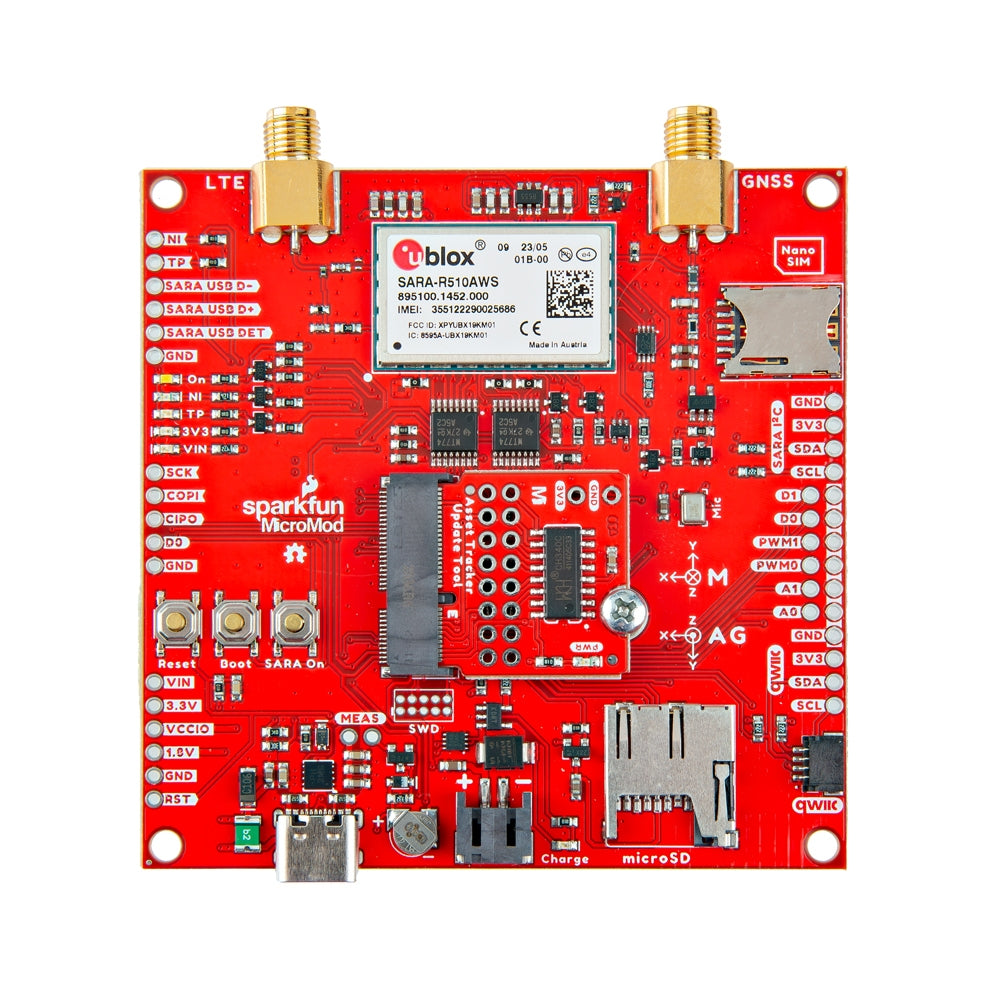

The SparkFun MicroMod Asset Tracker Carrier Board (SARA-R510AWS) is built around AWS IoT ExpressLink.
Features & Specs
- u-blox SARA-R510-AWS module for secure multi-regional AWS IoT Core access
- Please check that your service provider offers LTE-M coverage for your area before purchasing
- 1x MicroMod Update Tool included to communicate directly with the u-blox SARA-R510AWS module.
- Nano SIM socket
- ICM-20948 Inertial Measurement Unit for 9-Degree Of Freedom orientation and movement detection
- “Wake On Motion” is supported
- The IMU is located in the center of the board for easy frame-of-reference
- Digital microphone (SPH0641) for noise detection
- micro-SD socket for data logging
- Can be powered by one of our rechargeable LiPo batteries
- Includes both a LiPo battery charger (MCP73831) and a battery fuel gauge (MAX17048)
- Separate, robust SMA connections for LTE and GNSS antennas
- Switchable 3.3V power for an active GNSS antenna
- USB-C connectivity
- Qwiic (I2C) connector
- LED indicators for:
- Power (VIN and 3.3V)
- SARA-R5 on
- Network indicator
- GNSS timing pulse (1PPS)
- 3.3V breakout pins for:
- SARA on
- Network indicator
- GNSS timing pulse (1PPS)
- I2C bus
- SPI bus
- D0, D1, A0, A1 PWM0, PWM1
- SARA I2C
- RTC backup battery
Features & Specs
- u-blox SARA-R510-AWS module for secure multi-regional AWS IoT Core access
- Please check that your service provider offers LTE-M coverage for your area before purchasing
- 1x MicroMod Update Tool included to communicate directly with the u-blox SARA-R510AWS module.
- Nano SIM socket
- ICM-20948 Inertial Measurement Unit for 9-Degree Of Freedom orientation and movement detection
- “Wake On Motion” is supported
- The IMU is located in the center of the board for easy frame-of-reference
- Digital microphone (SPH0641) for noise detection
- micro-SD socket for data logging
- Can be powered by one of our rechargeable LiPo batteries
- Includes both a LiPo battery charger (MCP73831) and a battery fuel gauge (MAX17048)
- Separate, robust SMA connections for LTE and GNSS antennas
- Switchable 3.3V power for an active GNSS antenna
- USB-C connectivity
- Qwiic (I2C) connector
- LED indicators for:
- Power (VIN and 3.3V)
- SARA-R5 on
- Network indicator
- GNSS timing pulse (1PPS)
- 3.3V breakout pins for:
- SARA on
- Network indicator
- GNSS timing pulse (1PPS)
- I2C bus
- SPI bus
- D0, D1, A0, A1 PWM0, PWM1
- SARA I2C
- RTC backup battery
Documentation
MicroMod Asset Tracker Carrier Documentation:
AWS IoT ExpressLink Documentation:
- AWS IoT ExpressLink Website
- AWS IoT ExpressLink FAQ
- AWS IoT ExpressLink SARA-R5 Starter Kit V1 Product Page
- AWS IoT ExpressLink Documentation
- AWS IoT ExpressLink Programmers Guide
- AWS IoT ExpressLink Example Code
u-blox SARA-R5 LTE-M Module Documentation:
- u-blox SARA-R5 AWS IoT ExpressLink Getting Started Guide
- AWS Partner Device Catalog Listing
- Datasheet (SARA-R5)
- Firmware Update App Note
MicroMod Documentation:
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
