Description

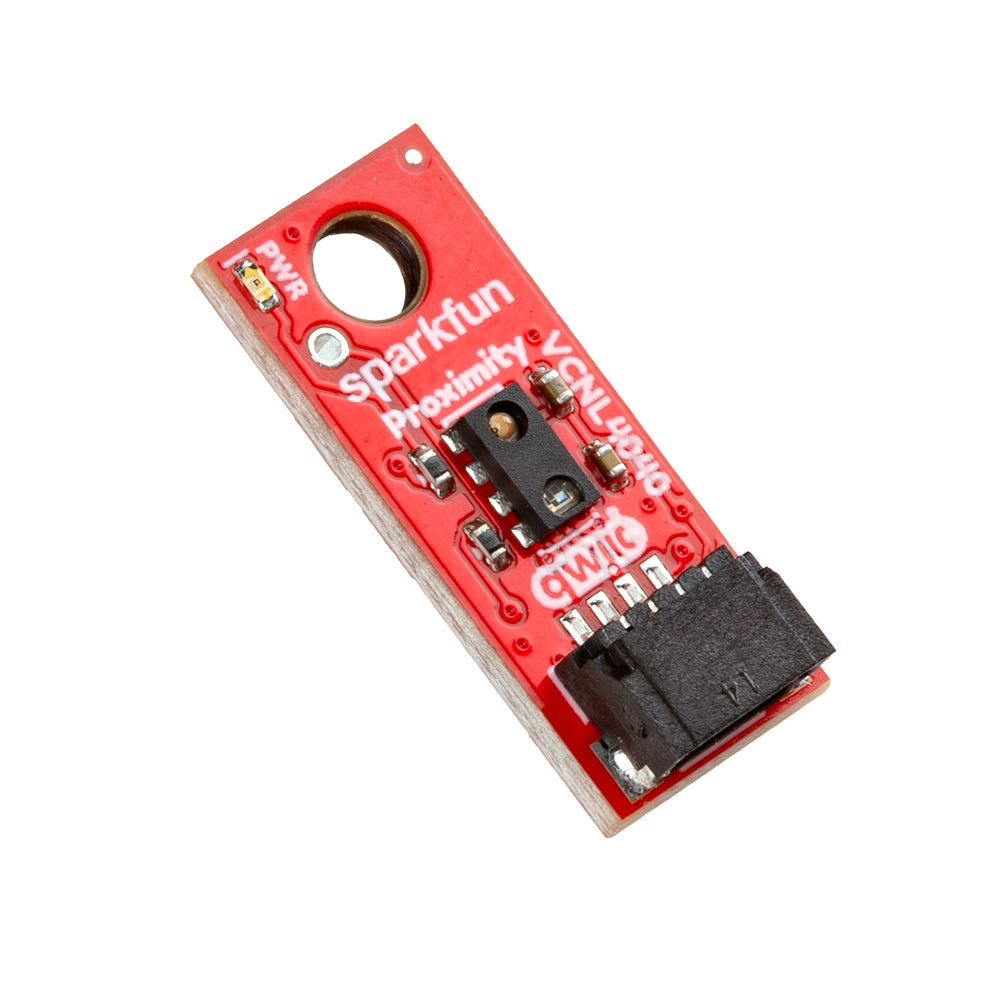

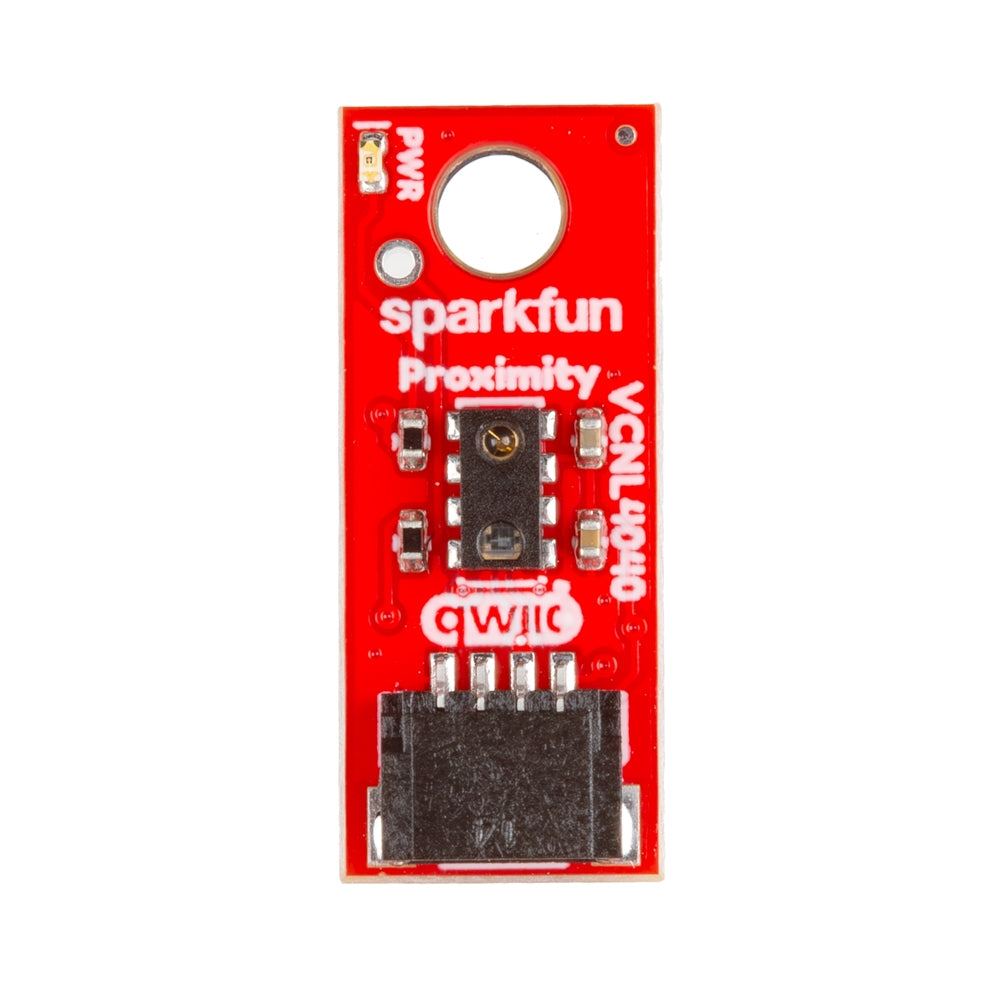

The SparkFun Micro Proximity Sensor packs the VCNL4040's reliable, no-dead-zone presence detection and ambient light sensing into our smallest Qwiic form factor.
Features & Specs
- Range: ~0cm to 20cm (Qualitative detection)
- Capabilities:
- Infrared Emitter (IRED)
- Proximity Sensor (PS)
- Ambient Light Sensor (ALS)
- Dead Zone: None (Reads up to the sensor face)
- Operating Voltage: 3.3V
- I2C Address: 0x60 (Fixed)*

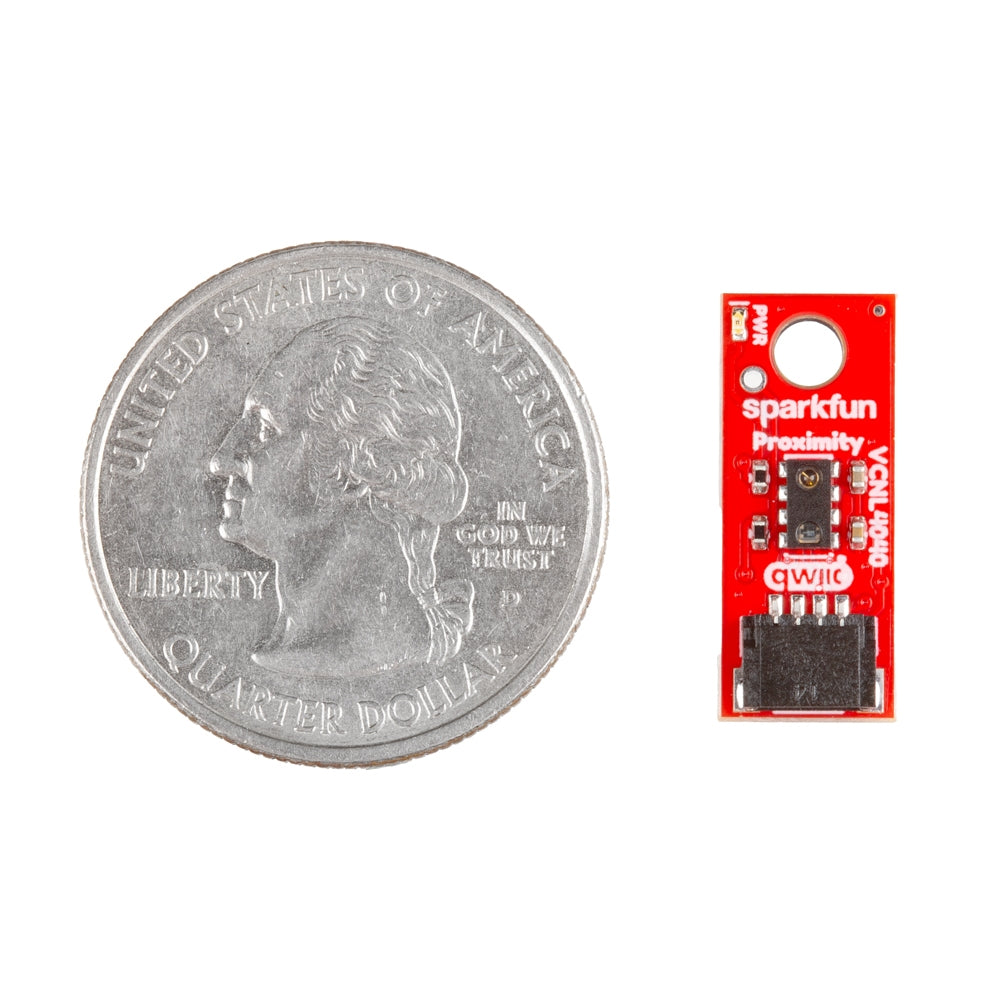

- Qwiic Micro Form Factor (0.75in x 0.30in)
- 1x Qwiic Connector
*Technical Note: The I2C address of the VCNL4040 is hardware-defined. To use multiple sensors on a single bus, you will need a multiplexer like the Qwiic Mux Breakout.
Features & Specs
- Range: ~0cm to 20cm (Qualitative detection)
- Capabilities:
- Infrared Emitter (IRED)
- Proximity Sensor (PS)
- Ambient Light Sensor (ALS)
- Dead Zone: None (Reads up to the sensor face)
- Operating Voltage: 3.3V
- I2C Address: 0x60 (Fixed)*
- Qwiic Micro Form Factor (0.75in x 0.30in)
- 1x Qwiic Connector
*Technical Note: The I2C address of the VCNL4040 is hardware-defined. To use multiple sensors on a single bus, you will need a multiplexer like the Qwiic Mux Breakout.
