Description

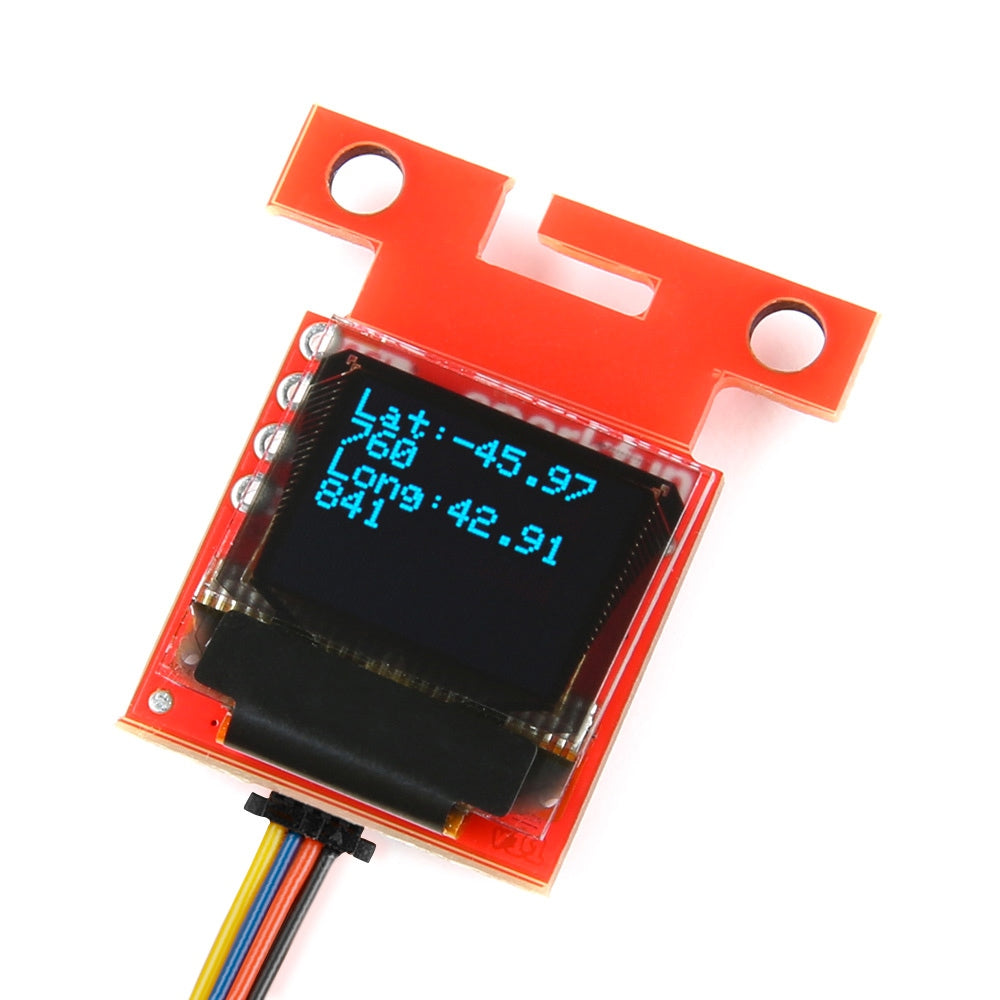

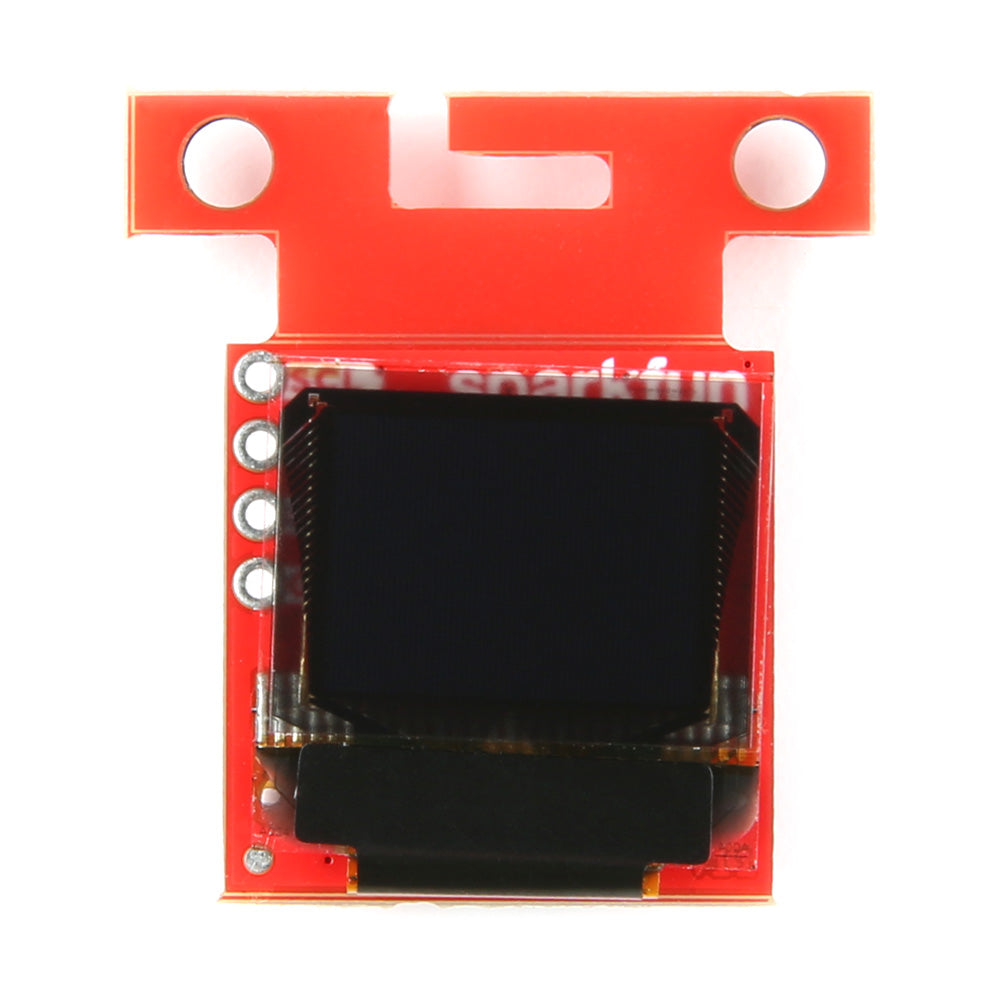

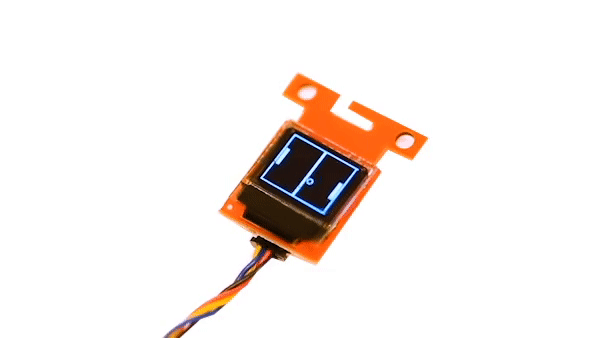

The SparkFun Qwiic Micro OLED Breakout is a Qwiic-enabled version of our popular MicroView and micro OLED display!
Features & Specs

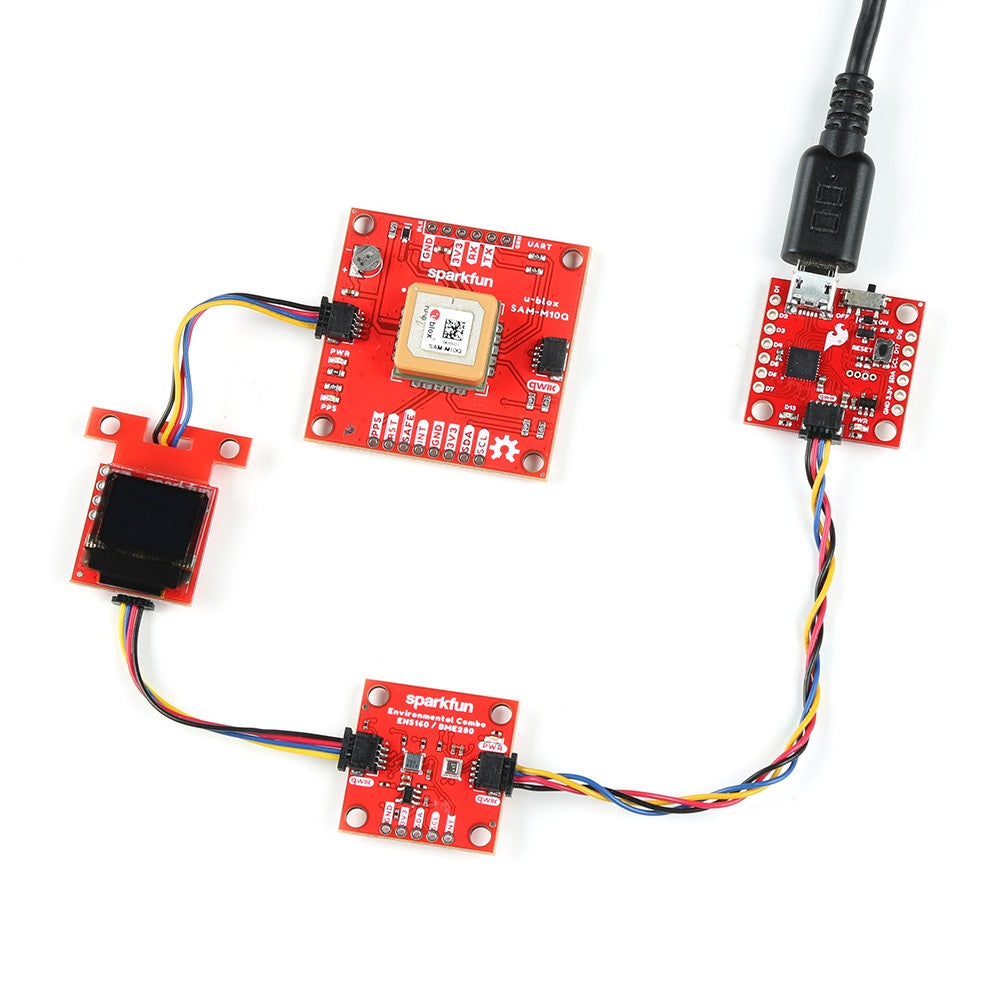

- 2x Qwiic Connectors
- Operating Voltage: 3.3V
- Operating Current: 10mA (20mA max)
- Screen Size: 64x48 pixels (0.66" Across)
- Monochrome Blue-on-Black
- I2C Interface

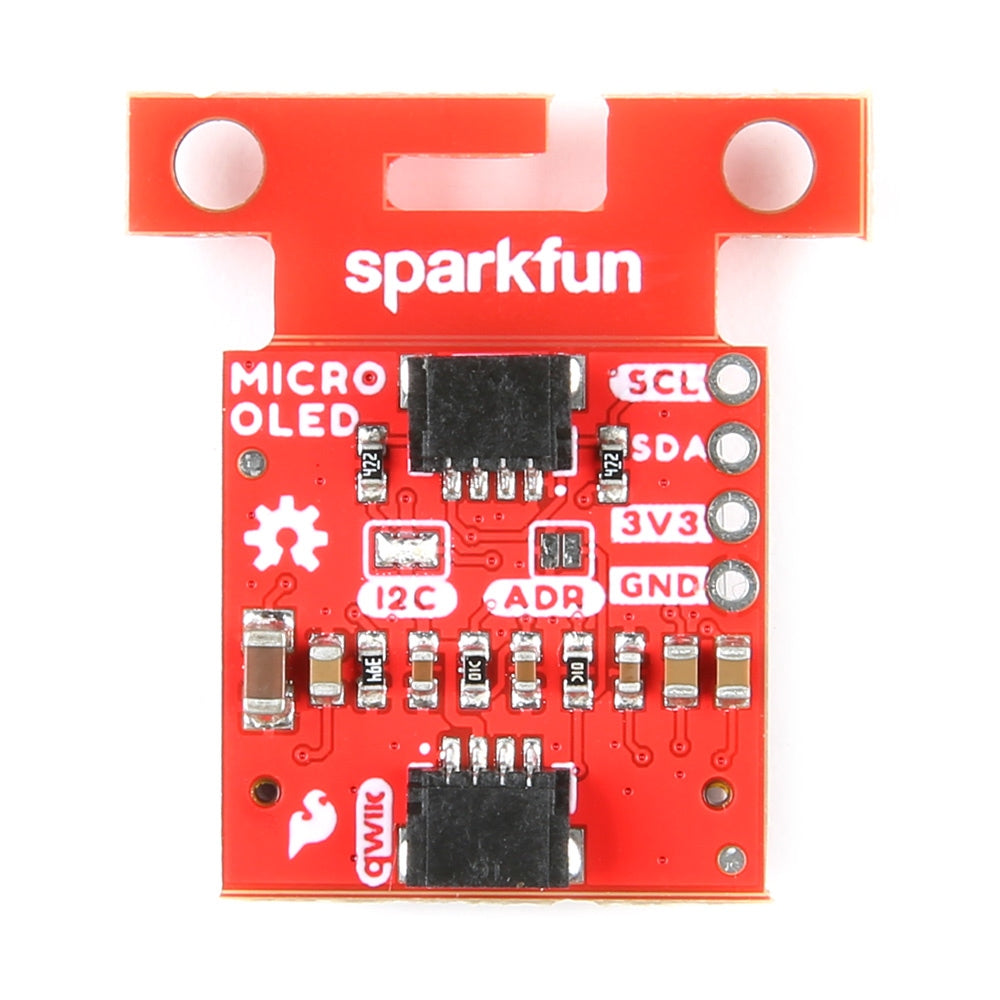

- Built-in 4.7kΩ Pull-up Resistors
- Selectable I2C Address
- 0x3D (Default), 0x3C (Alternate)
- Jumpers
- I2C Pull-up Resistors
- I2C Address

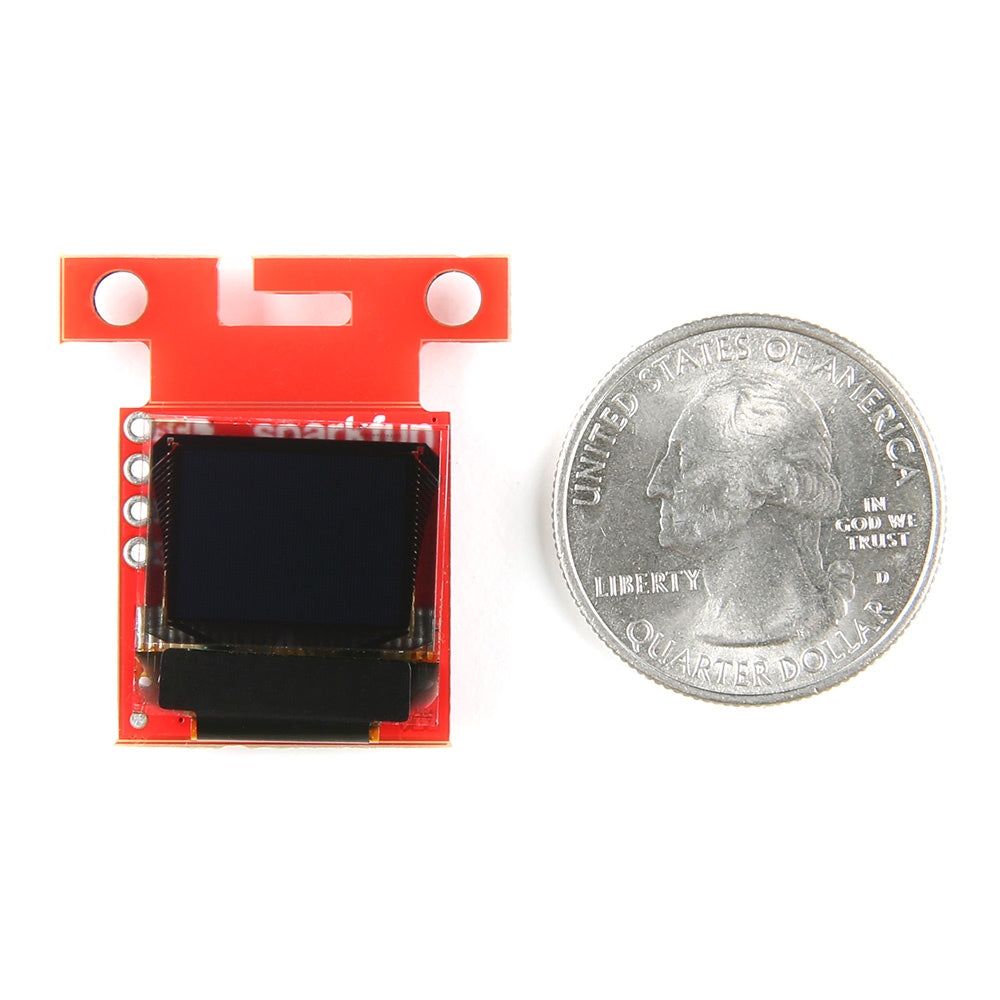

- Dimensions: 1.08" x 1.17"
Revision Change: For V11, we have optimized the two mounting hole locations to match the mounting holes located on a standard 1.0" x 1.0" Qwiic-sized board. The overall functionality of the Qwiic Micro OLED breakout board is the same as the previous version!
Features & Specs
- 2x Qwiic Connectors
- Operating Voltage: 3.3V
- Operating Current: 10mA (20mA max)
- Screen Size: 64x48 pixels (0.66" Across)
- Monochrome Blue-on-Black
- I2C Interface
- Built-in 4.7kΩ Pull-up Resistors
- Selectable I2C Address
- 0x3D (Default), 0x3C (Alternate)
- Jumpers
- I2C Pull-up Resistors
- I2C Address
- Dimensions: 1.08" x 1.17"
Revision Change: For V11, we have optimized the two mounting hole locations to match the mounting holes located on a standard 1.0" x 1.0" Qwiic-sized board. The overall functionality of the Qwiic Micro OLED breakout board is the same as the previous version!
Documentation
- Schematic (v11)
- Eagle Files (v11)
- Board Dimensions
- Hookup Guide
- Datasheet (SSD1306)
- Fritzing Part
- Arduino Library
- Python Package
- Qwiic Info Page
- GitHub Hardware Repo
