Description

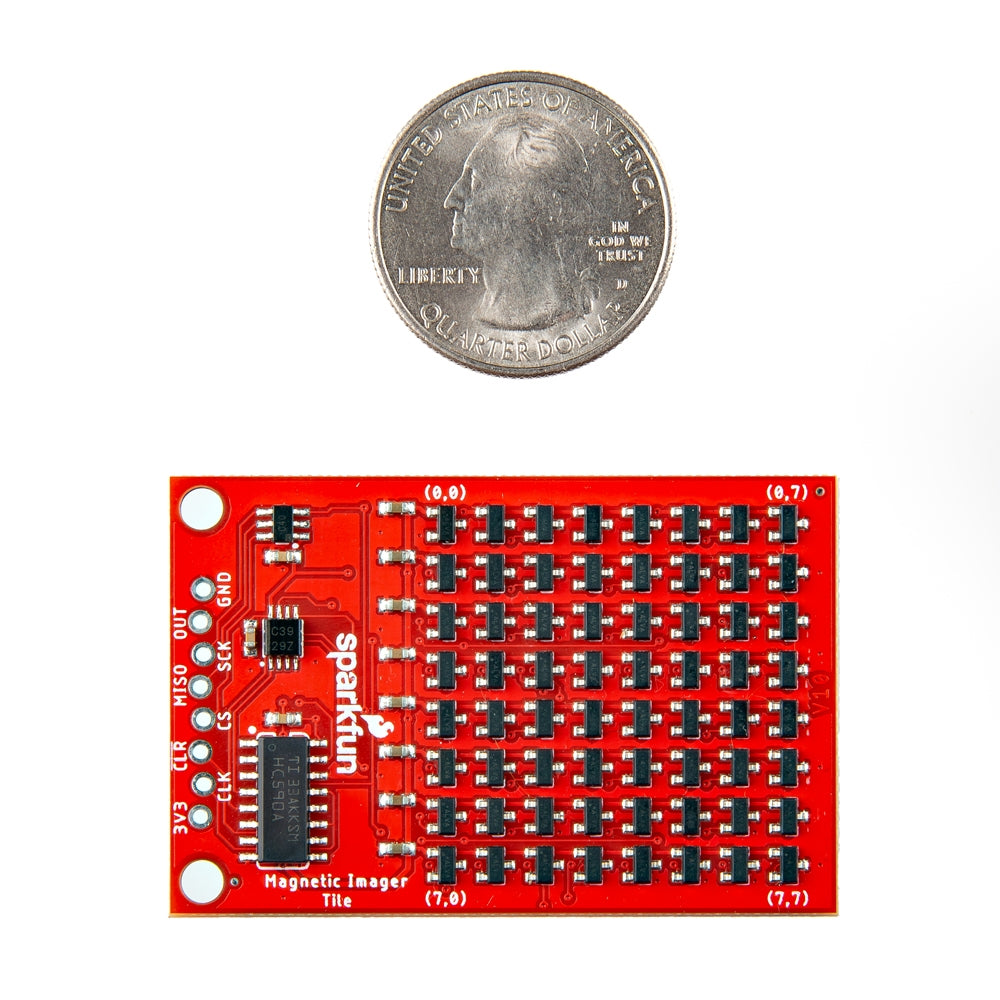

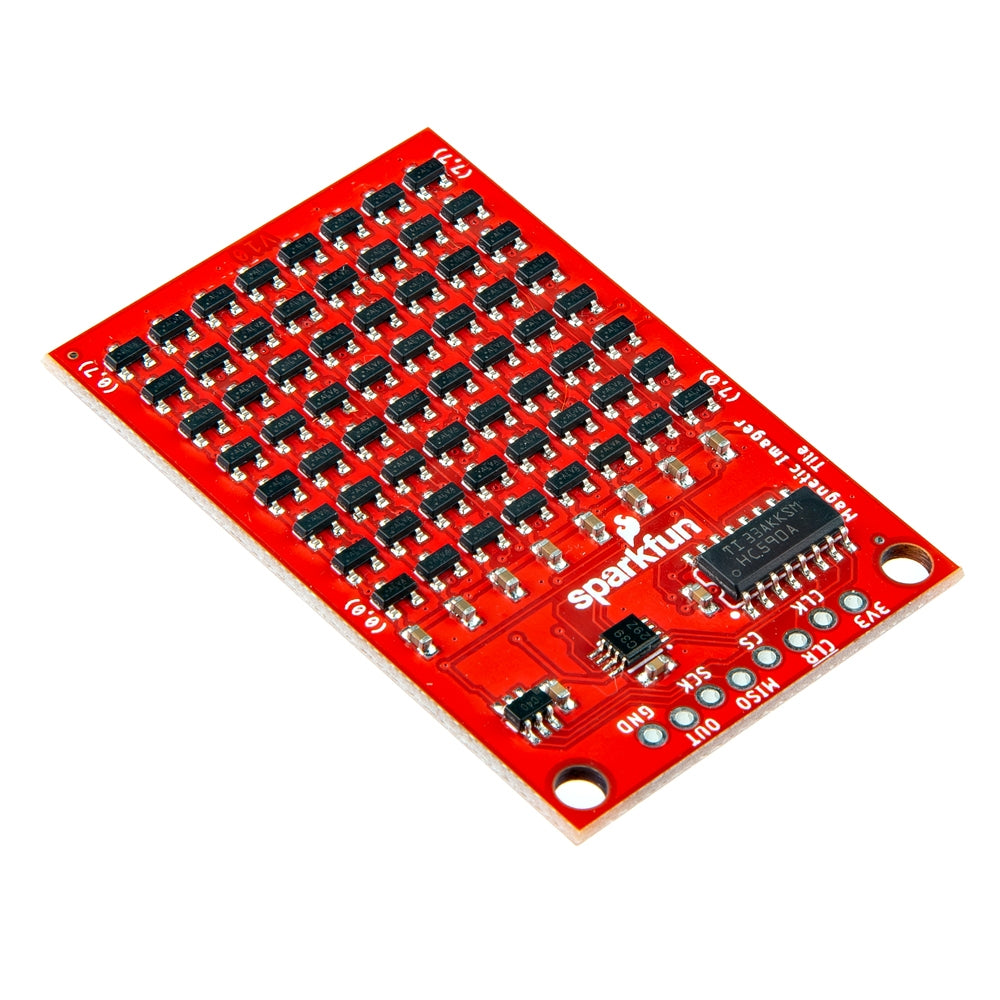

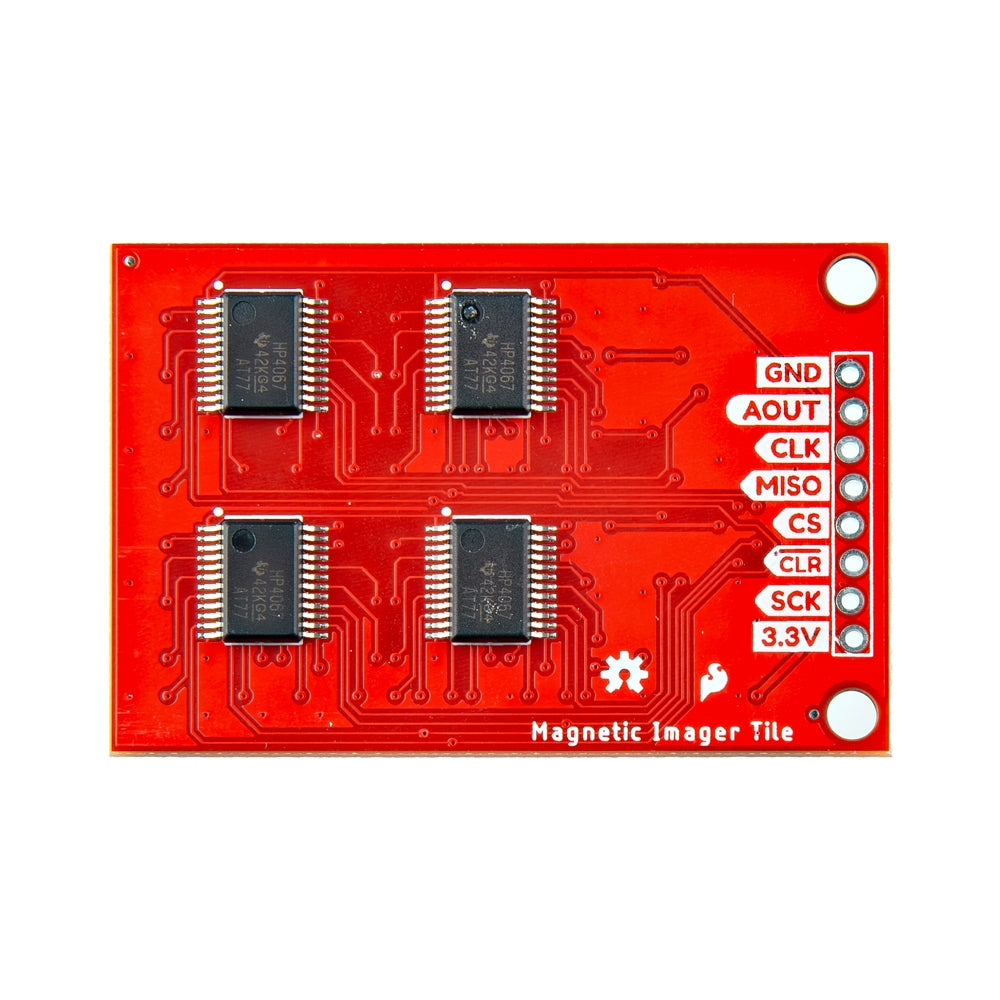

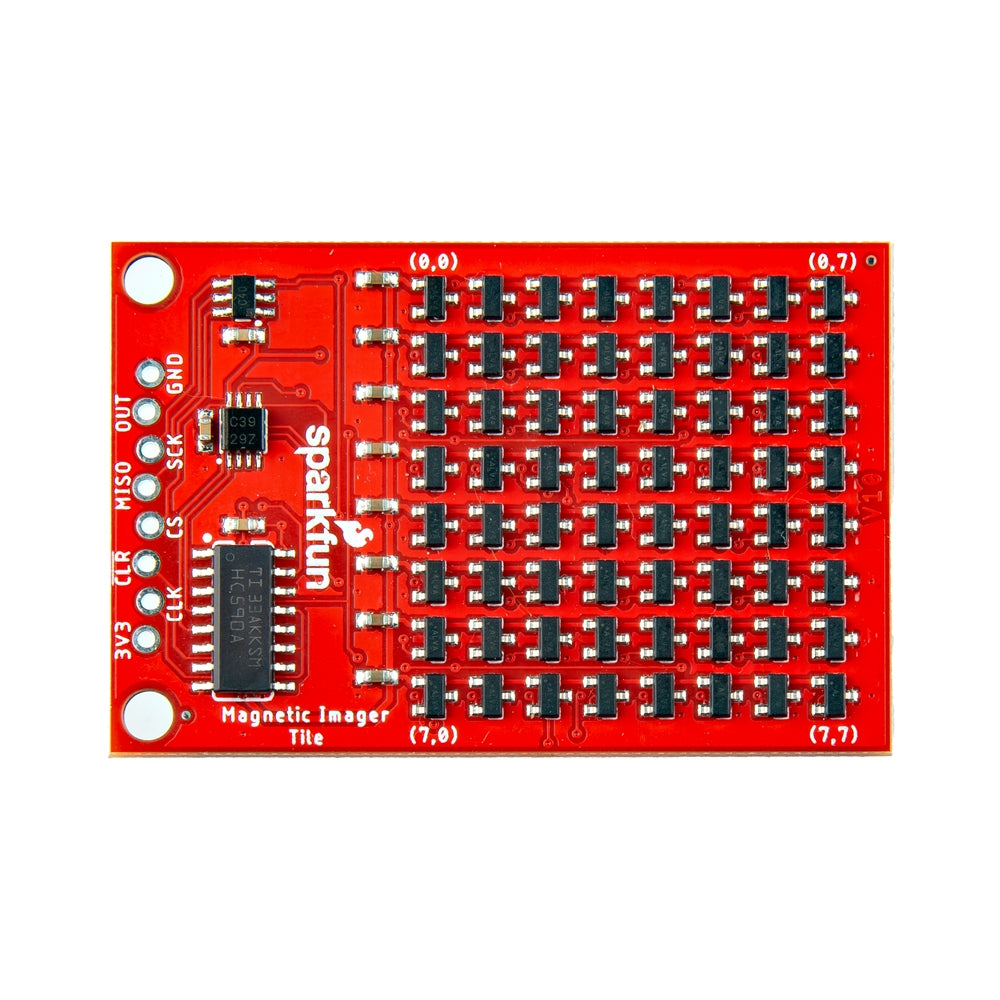

Instantly see, capture, and analyze magnetic fields in real-time with this high-speed, 64-pixel magnetic imaging board.
Features & Specs
- Sensor Array: 8x8 (64) DRV5053VA Hall Effect Sensors
- ADC: 16-bit, 100kSPS (AD7680)
- Magnetic Resolution: ~0.56 µT (5.6 mG) per bit
- Operating Voltage: 3.3V - 5V
- Current Draw: ~150mA @ 3.3V
- Design: Tileable with a 1-pixel gap
- Dimensions: 2.05 in. x 1.35 in. (52 mm x 34 mm)
- Weight: 7.8 g
Features & Specs
- Sensor Array: 8x8 (64) DRV5053VA Hall Effect Sensors
- ADC: 16-bit, 100kSPS (AD7680)
- Magnetic Resolution: ~0.56 µT (5.6 mG) per bit
- Operating Voltage: 3.3V - 5V
- Current Draw: ~150mA @ 3.3V
- Design: Tileable with a 1-pixel gap
- Dimensions: 2.05 in. x 1.35 in. (52 mm x 34 mm)
- Weight: 7.8 g
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Demo Video
- Component Datasheets
- Fritzing Part
- Examples
- GitHub Hardware Repo
