Description

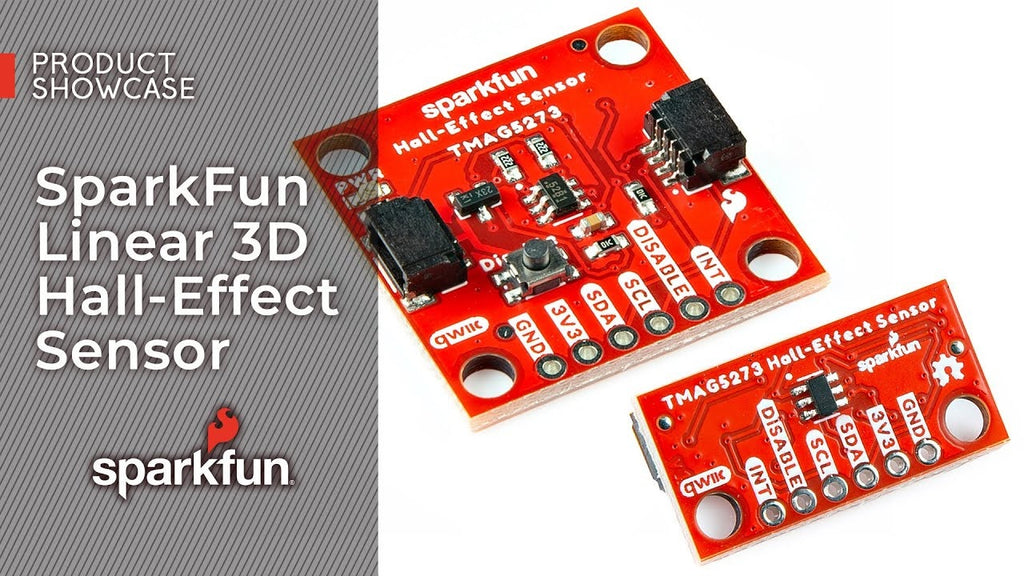

The TMAG5273 Qwiic Sensor is a low-power 3D hall-effect sensor that is perfect for detecting and measuring changes in a nearby magnetic field.
Features & Specs

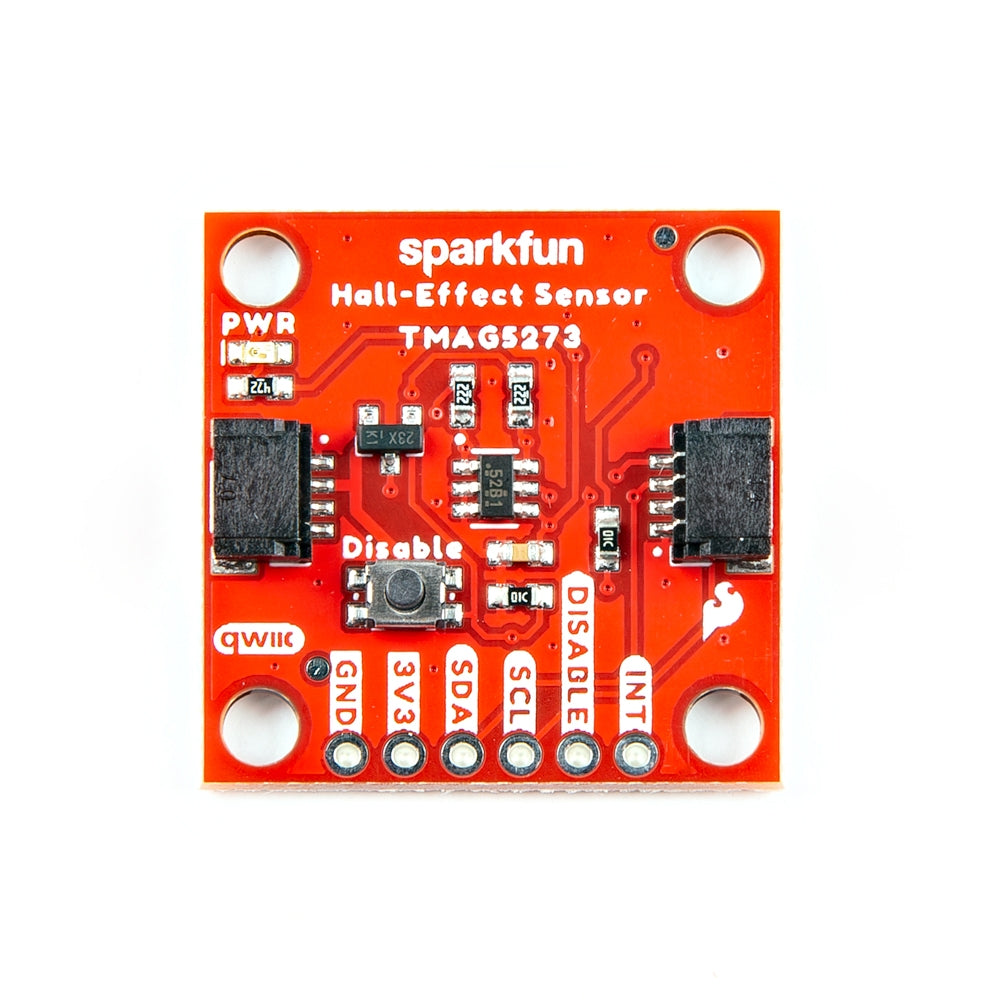

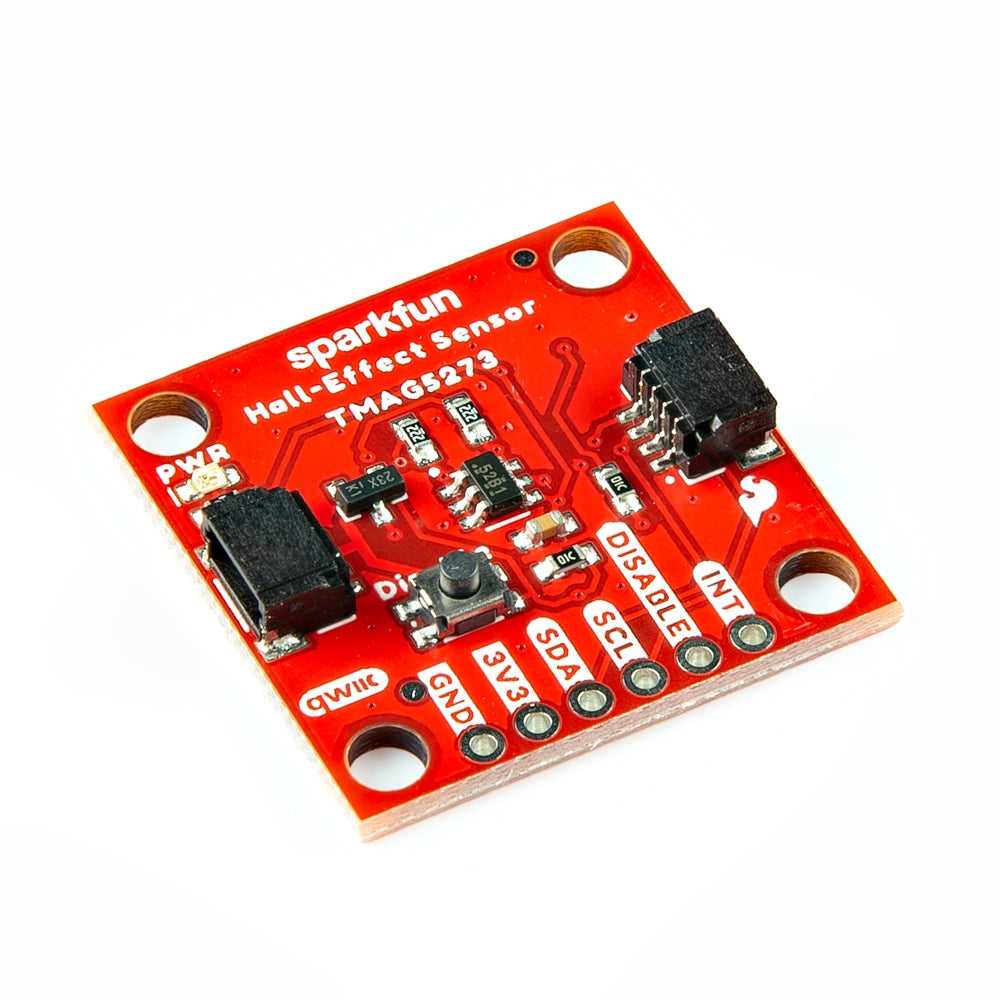

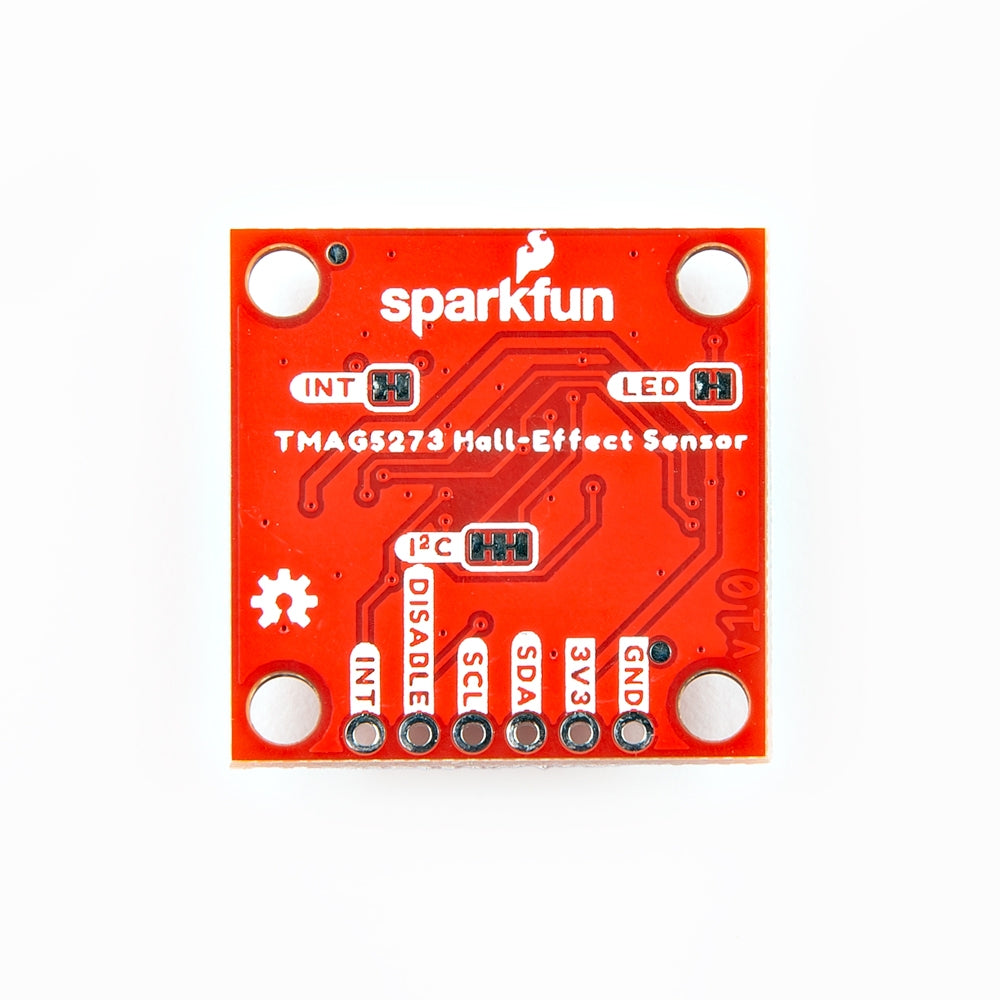

Breakout Board

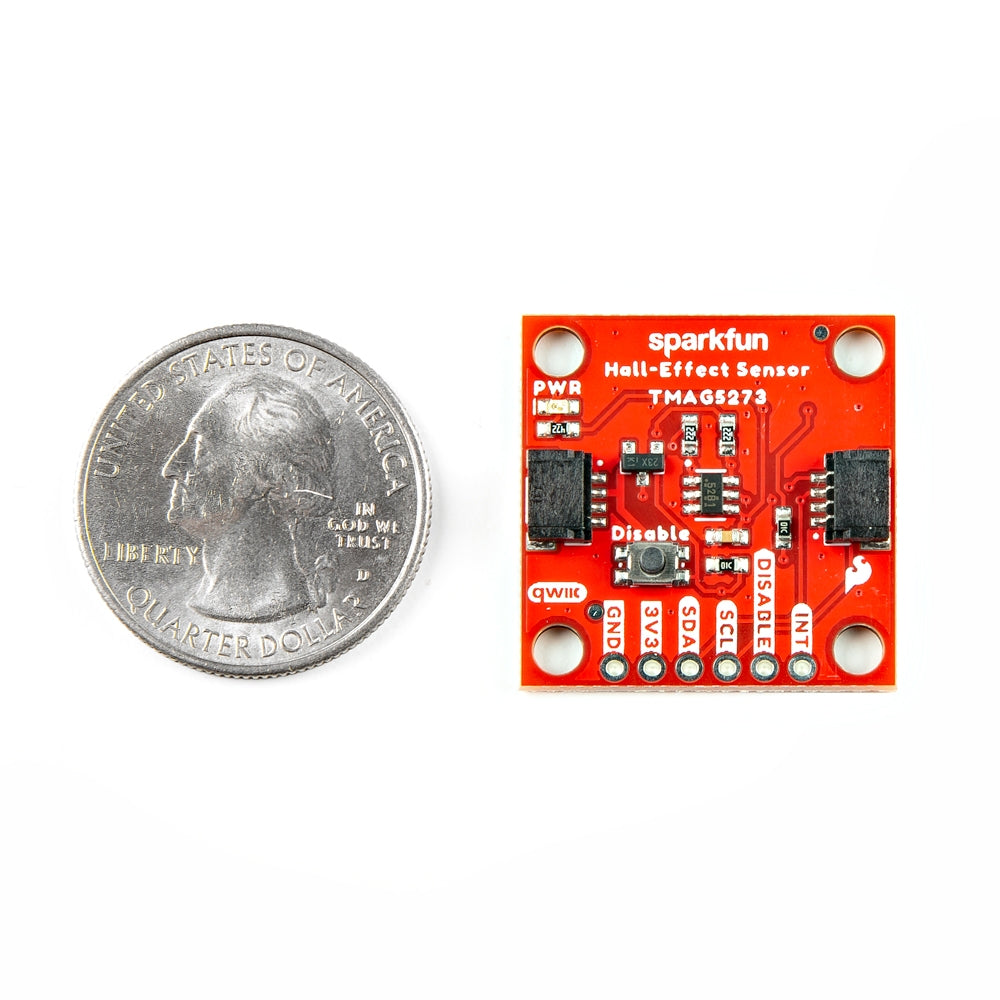

- Dimensions: 1in. x 1in. Standard-footprint
- Two Horizontal Qwiic Connectors
- Four Mounting Holes:
- 4-40 screw compatible
- Six PTH Pins
-
3V3,GND,SCL,SDA,INT,Disable - Power LED (Red)
- Disable Button
TMAG5273 Hall Effect Sensor
- Configurable I2C Address:
- 0x35 (Default) (7-bit)
- Magnetic Range (Sensitivity):
- ± 40mT (820 LSB/mT)
- ± 80mT (410 LSB/mT)
- Magnetic Drift: 5%
- Rotational Accuracy: ± 0.5°/360° rotation
- Voltage Range: 1.7 - 3.6V
- Sleep: 5nA
- Wake-Up/Sleep: 1µA
- Active: 2.3mA
- Operating Temperature: –40 - 125°C
- Integrated temperature compensation/measurement
- Range: -40 - 170°C
- Configurable data rate
- CRC Support
Features & Specs
Breakout Board
- Dimensions: 1in. x 1in. Standard-footprint
- Two Horizontal Qwiic Connectors
- Four Mounting Holes:
- 4-40 screw compatible
- Six PTH Pins
-
3V3,GND,SCL,SDA,INT,Disable - Power LED (Red)
- Disable Button
TMAG5273 Hall Effect Sensor
- Configurable I2C Address:
- 0x35 (Default) (7-bit)
- Magnetic Range (Sensitivity):
- ± 40mT (820 LSB/mT)
- ± 80mT (410 LSB/mT)
- Magnetic Drift: 5%
- Rotational Accuracy: ± 0.5°/360° rotation
- Voltage Range: 1.7 - 3.6V
- Sleep: 5nA
- Wake-Up/Sleep: 1µA
- Active: 2.3mA
- Operating Temperature: –40 - 125°C
- Integrated temperature compensation/measurement
- Range: -40 - 170°C
- Configurable data rate
- CRC Support
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Datasheet (TMAG5273)
- Qwiic Info Page
- TMAG5273 Arduino Library
- GitHub Hardware Repo
