Description

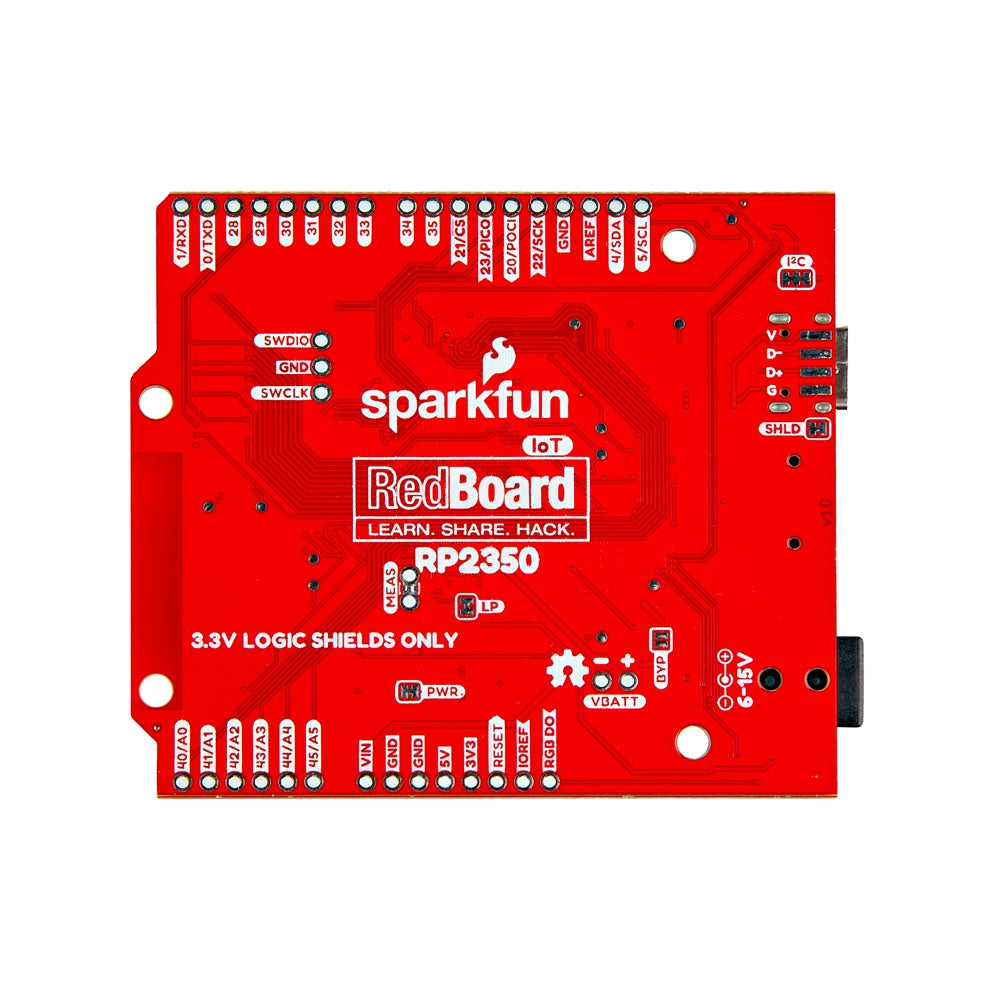

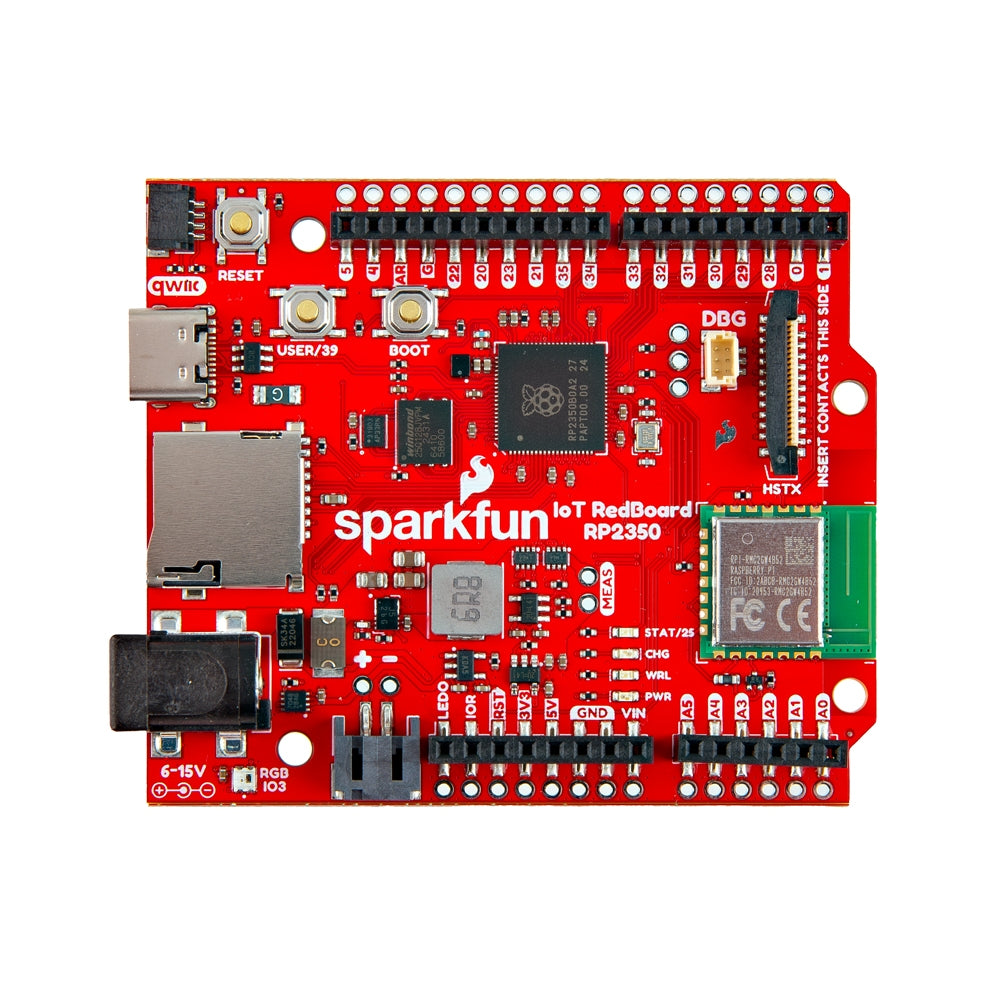

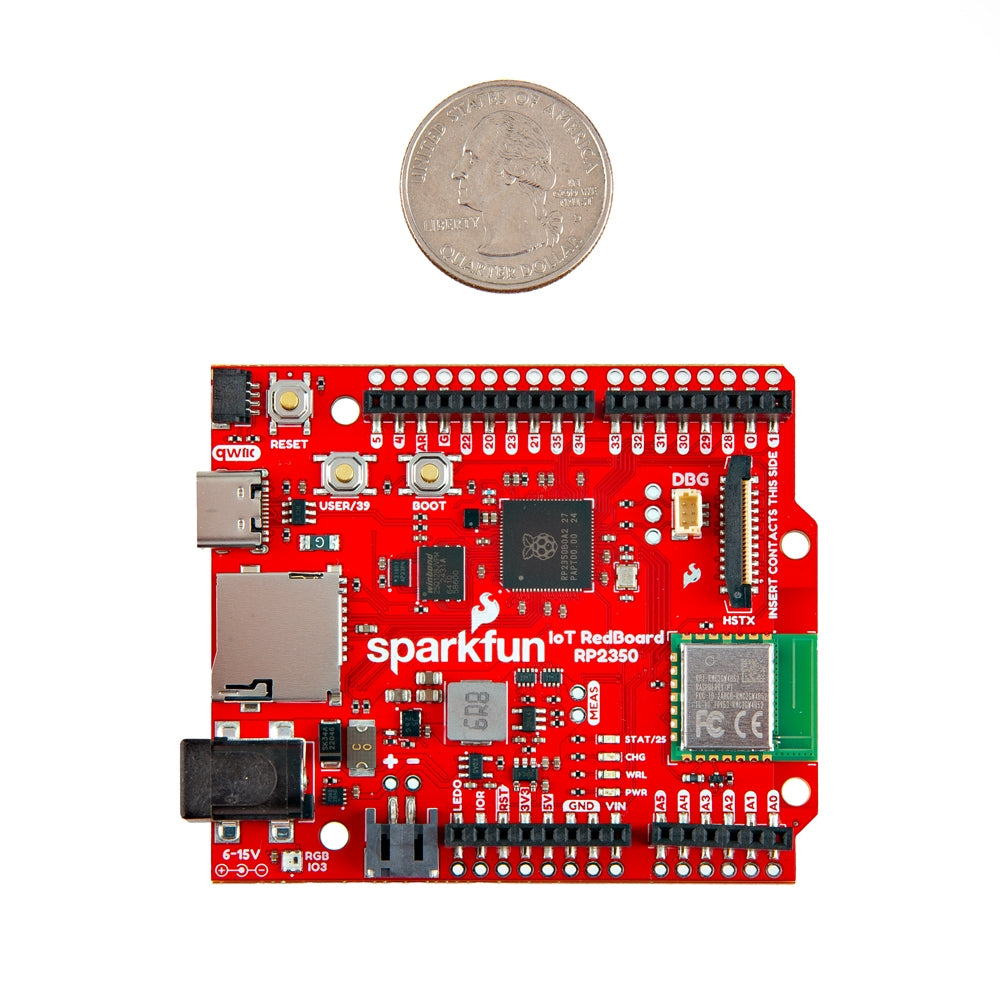

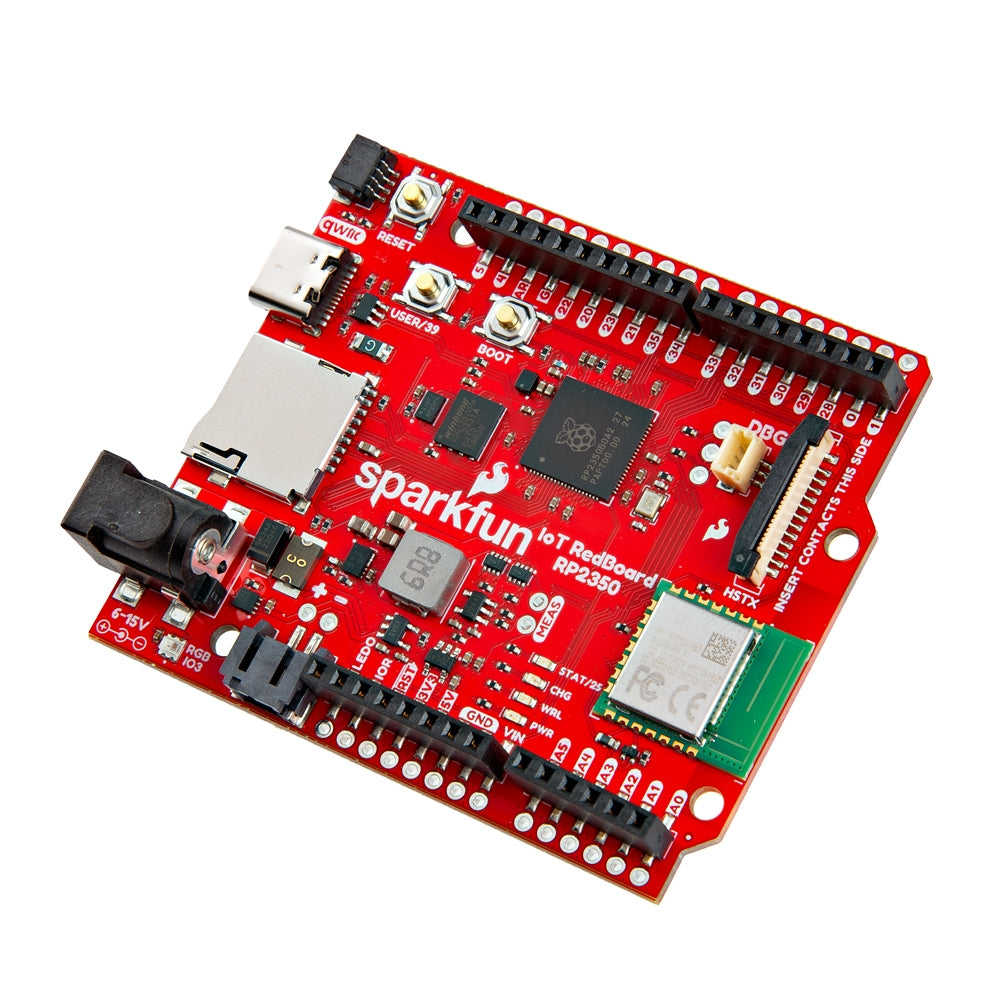

The SparkFun RP2350 IoT RedBoard is a powerful wireless development board featuring the RP2350's selectable Arm/RISC-V cores, WiFi 4, Bluetooth 5.2, and a Qwiic connector in an Arduino R4 form factor.
Features & Specs
IoT RedBoard Features
- RP2350B
- Integrated USB interface
- 48 GPIO pins
- 8 ADC pins
- 1x UART
- 1x I2C
- 1x SPI
- 8x HSTX pins
- Raspberry Pi Radio Module (RM2)
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
- 16MB Flash
- 8MB PSRAM
- µSD Card Slot
- MCP73831 Single-Cell LiPo Battery Charger
- MAX17048 Battery Fuel Gauge
- 3-pin 1mm Vertical Debug Connector
- 22-pin 0.5mm Vertical HSTX Ribbon Connector
- Qwiic Connector
- LEDs:
- PWR - Red power LED
- CHG - Yellow battery charge status LED
- STAT - Blue status LED tied to RP2350 GPIO25
- WRL - Blue status LED tied to RM2 IO0
- RGB - WS2812 RGB LED Data In connects to RP2350 IO3
- Buttons:
- RESET
- BOOT
- USER
RP2350 General Features
- Dual ARM CortexM3 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO (powered) with 3.3V failsafe (unpowered)
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 8 HSTX Pins (Raspberry Pi's High-speed transmit interface)
- 24x PWM Channels
- 12x PIO State Machines
- 6x Analog Input Channels
Features & Specs
IoT RedBoard Features
- RP2350B
- Integrated USB interface
- 48 GPIO pins
- 8 ADC pins
- 1x UART
- 1x I2C
- 1x SPI
- 8x HSTX pins
- Raspberry Pi Radio Module (RM2)
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
- 16MB Flash
- 8MB PSRAM
- µSD Card Slot
- MCP73831 Single-Cell LiPo Battery Charger
- MAX17048 Battery Fuel Gauge
- 3-pin 1mm Vertical Debug Connector
- 22-pin 0.5mm Vertical HSTX Ribbon Connector
- Qwiic Connector
- LEDs:
- PWR - Red power LED
- CHG - Yellow battery charge status LED
- STAT - Blue status LED tied to RP2350 GPIO25
- WRL - Blue status LED tied to RM2 IO0
- RGB - WS2812 RGB LED Data In connects to RP2350 IO3
- Buttons:
- RESET
- BOOT
- USER
RP2350 General Features
- Dual ARM CortexM3 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO (powered) with 3.3V failsafe (unpowered)
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 8 HSTX Pins (Raspberry Pi's High-speed transmit interface)
- 24x PWM Channels
- 12x PIO State Machines
- 6x Analog Input Channels
Documentation
- MicroPython for Beginners
-
Datasheet - RP2350
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5659.5 |
| 3-5 | ₹ 5601.75 |
| 5-10 | ₹ 5486.25 |
| 10+ | ₹ 5370.75 |
Bulk discount will be automatically applied during checkout based on quantity.
