Description

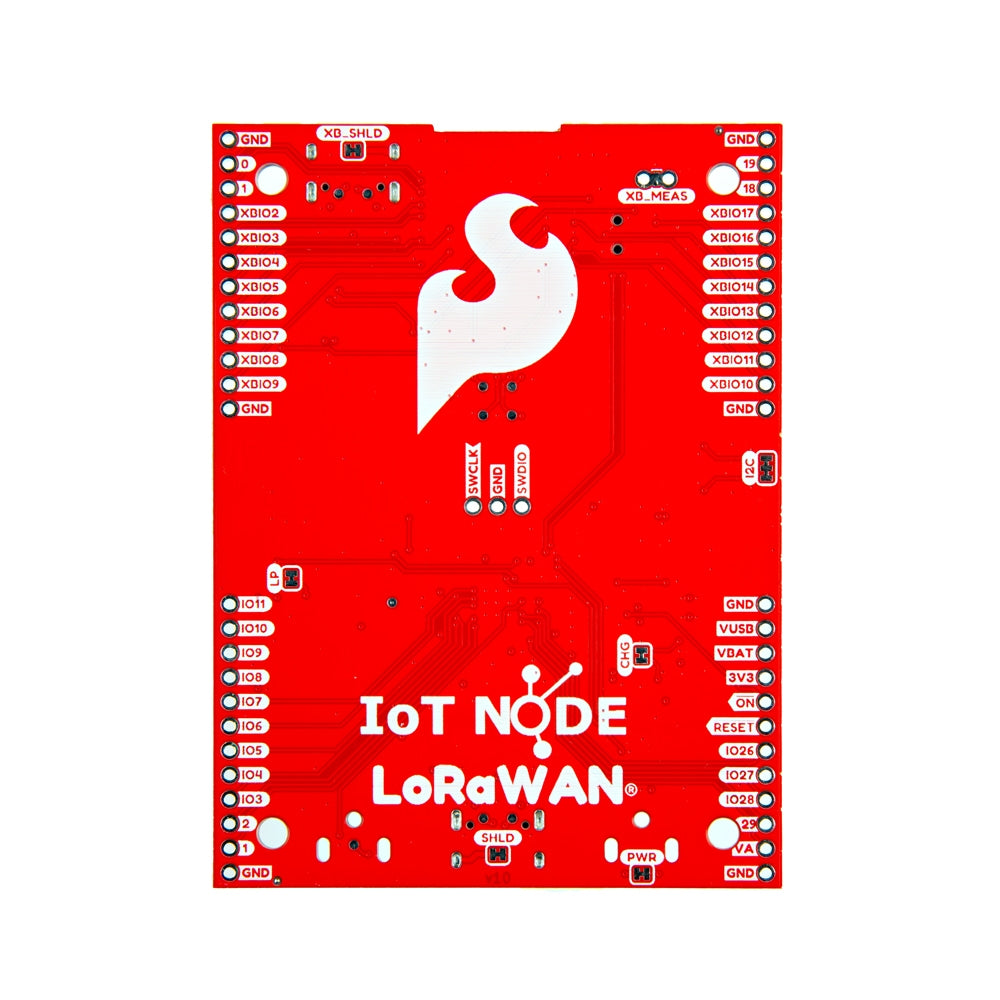

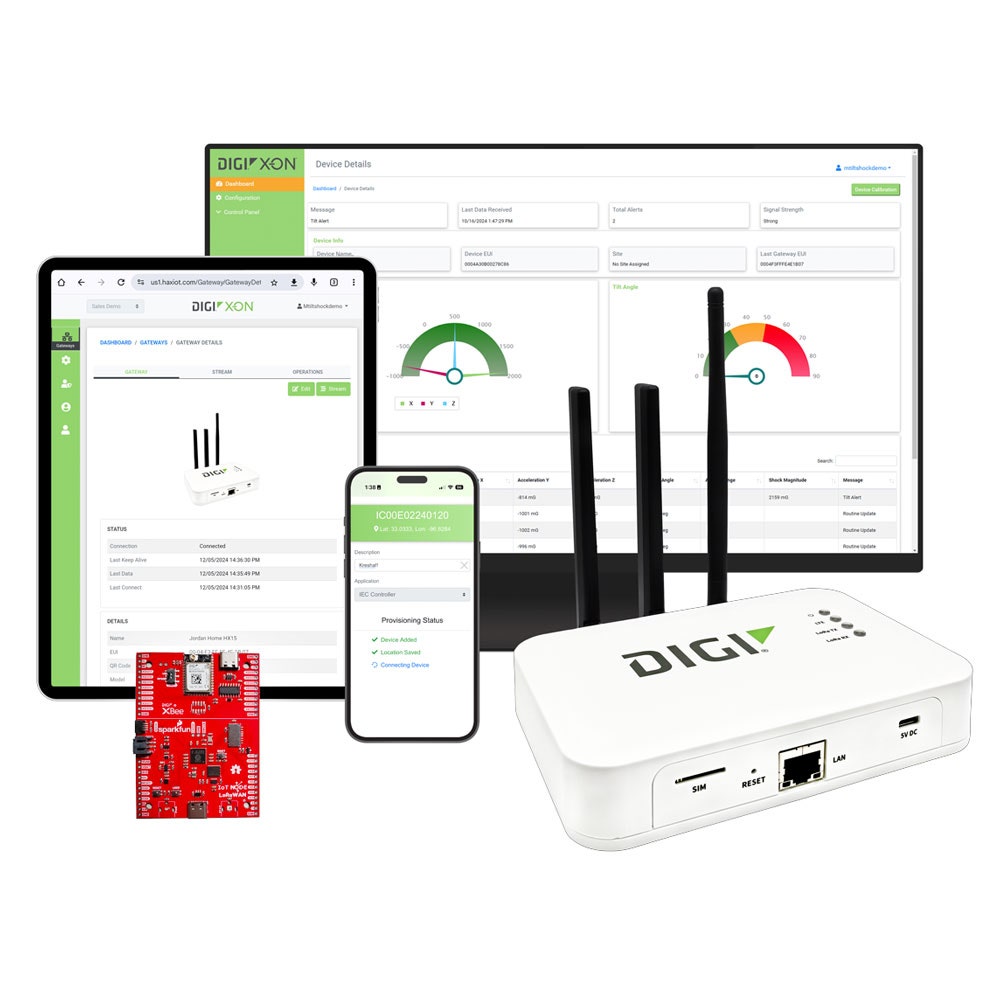

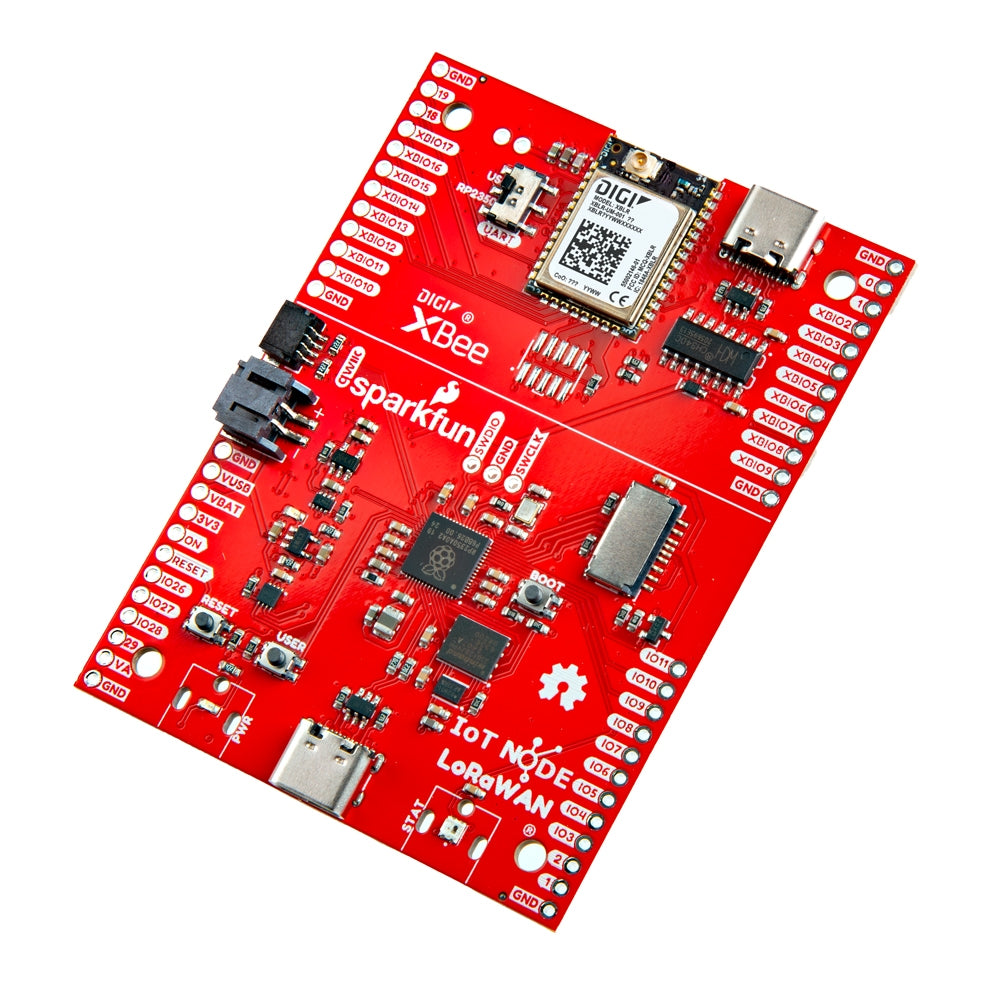

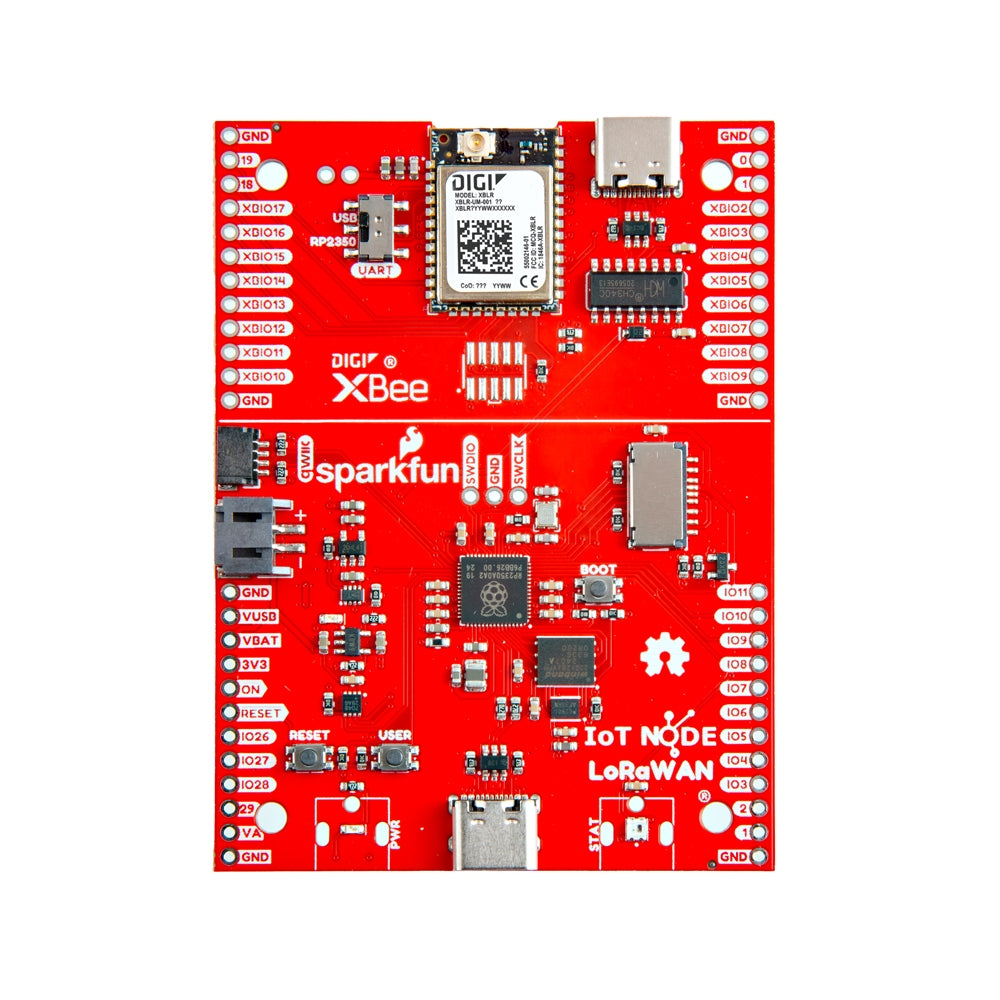

The IoT Node brings an entirely new level of usability to the often convoluted and configuration intensive effort to setup a LoRaWAN®-based IoT device.
Features & Specs
- Raspberry Pi Foundation's RP2350A Microcontroller
- 15 Multifunctional GPIO PinsUp to eight 2-channel PWMs
- Up to two UARTs
- Up to two I2C buses
- Up to two SPI buses
- External Memory
- 16MB QSPI Flash Memory
- 8MB PSRAM Memory
- 15 Multifunctional GPIO PinsUp to eight 2-channel PWMs
- Digi's XBee LR Module
- LoRaWAN® Transceiver
- Modular certifications for FCC and IC
- Frequency Range: SM 902 to 928 MHz, 868 to 870 MHz
- General Features

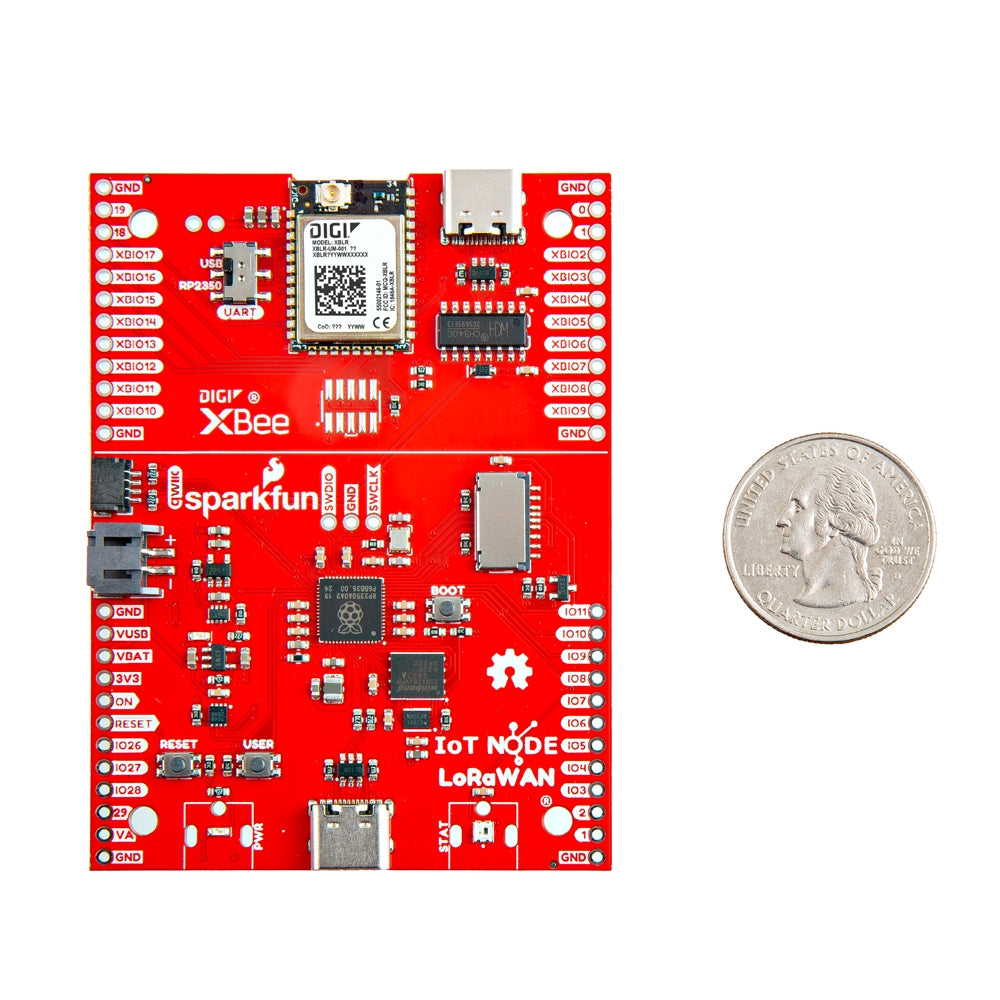

- Dimensions: 83mm x 59mm
- USB-C Connectors:
- USB 1.1 Host/Device support
- XBLR
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- LiPo Charger:
- MCP73831 Charger Management Controller
- Charge rate: 500mA
- MAX17048 LiPo Fuel Gauge
- MCP73831 Charger Management Controller
- XBLR/UART Selection Switch
- LEDs:
- PWR - Red 3.3V power indicator
- CHG - Yellow battery charging indicator
- Buttons:
- Boot
- Reset
- User
Features & Specs
- Raspberry Pi Foundation's RP2350A Microcontroller
- 15 Multifunctional GPIO PinsUp to eight 2-channel PWMs
- Up to two UARTs
- Up to two I2C buses
- Up to two SPI buses
- External Memory
- 16MB QSPI Flash Memory
- 8MB PSRAM Memory
- 15 Multifunctional GPIO PinsUp to eight 2-channel PWMs
- Digi's XBee LR Module
- LoRaWAN® Transceiver
- Modular certifications for FCC and IC
- Frequency Range: SM 902 to 928 MHz, 868 to 870 MHz
- General Features
- Dimensions: 83mm x 59mm
- USB-C Connectors:
- USB 1.1 Host/Device support
- XBLR
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- LiPo Charger:
- MCP73831 Charger Management Controller
- Charge rate: 500mA
- MAX17048 LiPo Fuel Gauge
- MCP73831 Charger Management Controller
- XBLR/UART Selection Switch
- LEDs:
- PWR - Red 3.3V power indicator
- CHG - Yellow battery charging indicator
- Buttons:
- Boot
- Reset
- User
Documentation
| Hardware | Datasheet(s) | Guide(s) | Other Documentation |
|---|---|---|---|
| Schematic | Graphical Datasheet | Hookup Guide | GitHub Hardware Repo |
| KiCade Files | Digi XBee LR | Firmware Guide | Qwiic Info Page |
| Board Dimensions | Digi HX15 Gateway | Digi XBee LR User Manual | RP2350 Info Page |
| Digi XBee Hardware Manual | RP2350 | RP2350 Documentation | |
| RP2350 Product Brief |
