Description

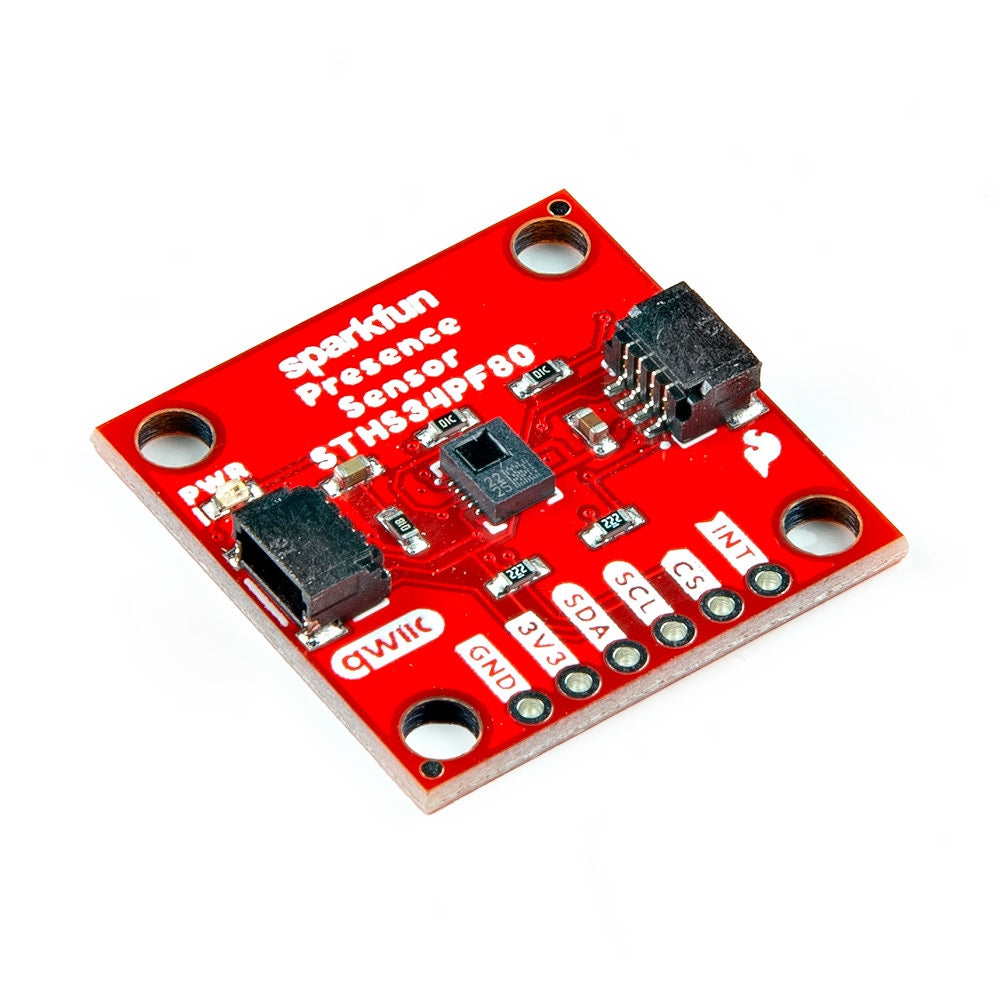

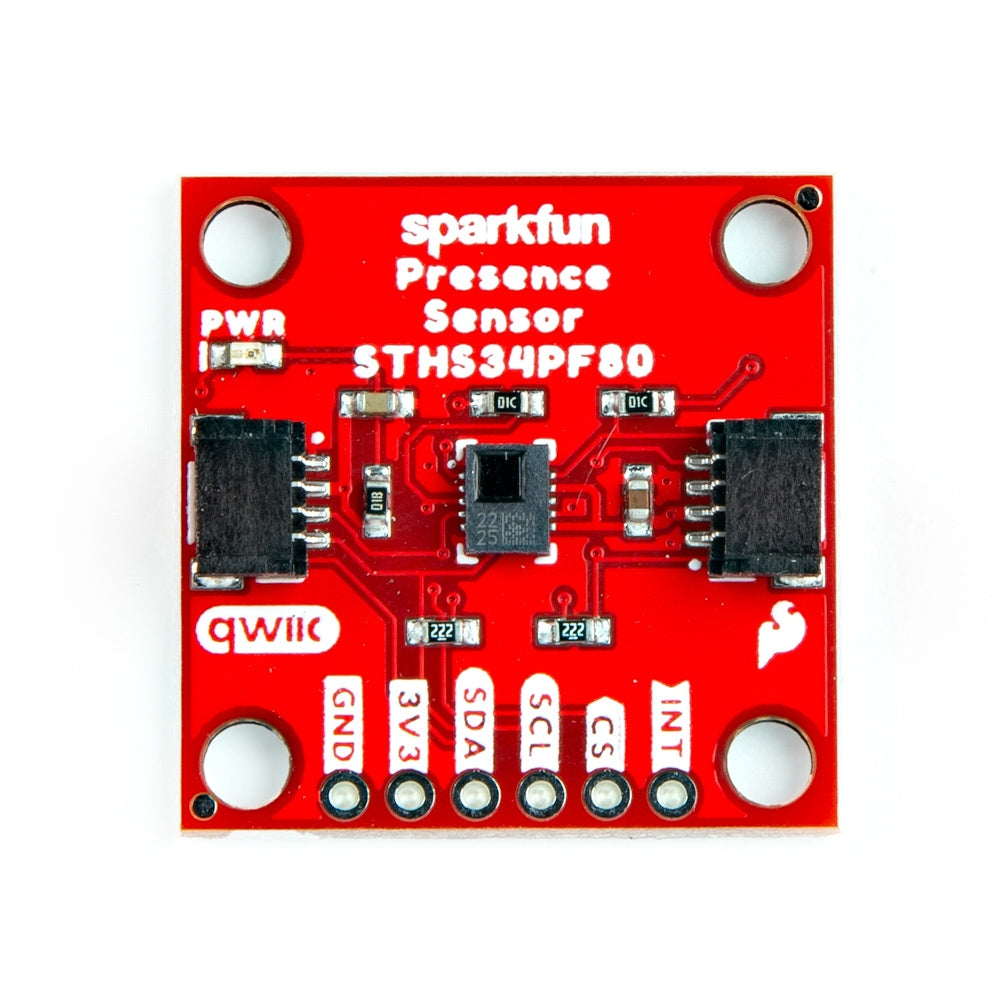

The SparkFun Qwiic Human Presence and Motion Sensor is built around the STHS34PF80 low-power, high-sensitivity IR sensor for presence and motion detection.
Features & Specs
Breakout Board

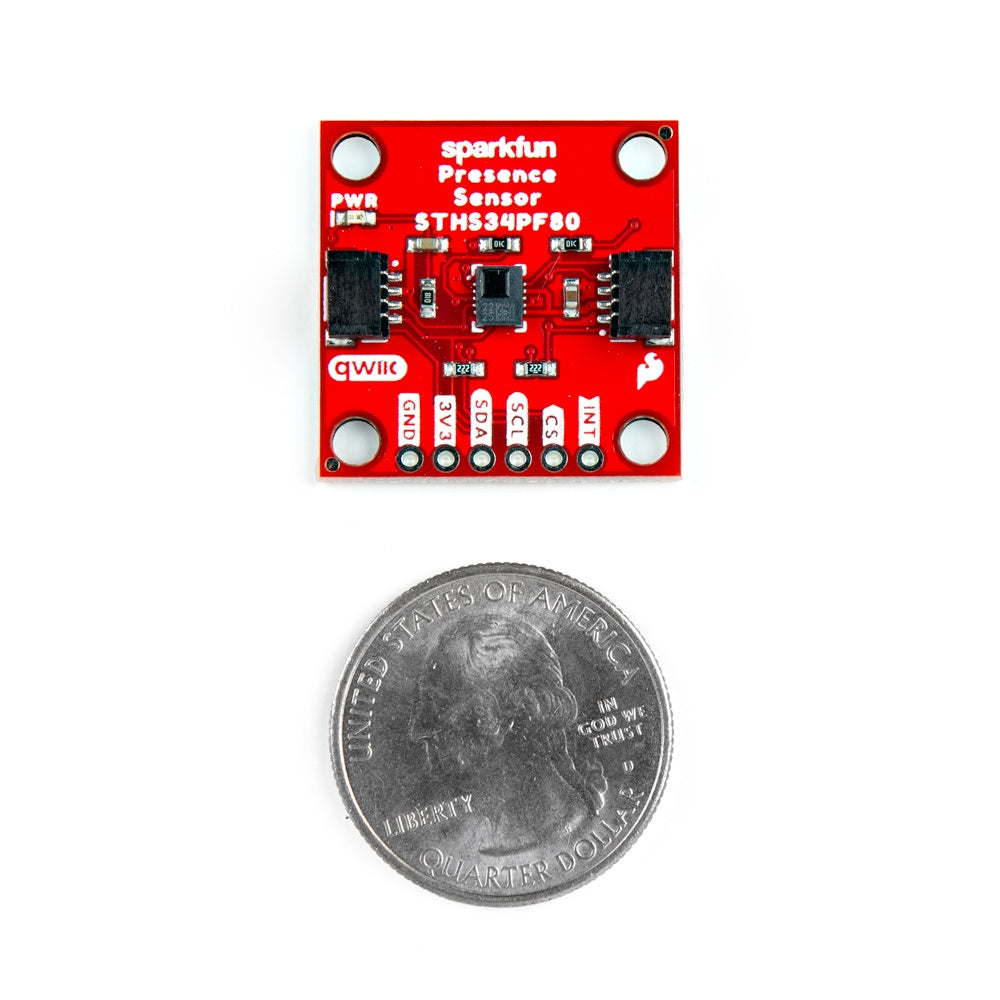

- Dimensions: 1" x 1"
- Two Qwiic Connectors
- I2C Address (7-bit): 0x5A (Default)
- Four Mounting Holes:
- 4-40 screw compatible
- Six PTH Pins
-
3V3,GND,SCL,SDA,CS,INT - Power LED (Red)
STHS34PF80 Features
- Voltage Range: 1.7 to 3.6V
- Current Draw: 10µA
- Interfaces: I²C or SPI
- Optical wavelength: 5 to 20µm
- Range: 4m (objects 70 x 25 cm² in size)
- Built-in Detection Algorithms:
- Identify stationary objects
- Distinguish between stationary and moving objects
- Field of View: 80°
- Output Data Rate: 0.25 to 30Hz
- IR sensitivity: 2000 LSB/°C
- RMS noise: 25 LSBrms
- Operating Temperature: -40 to 85°C (default gain mode)
- Sensor accuracy: ±0.3°C (local)
- One-shot mode
- Factory calibrated
Features & Specs
Breakout Board
- Dimensions: 1" x 1"
- Two Qwiic Connectors
- I2C Address (7-bit): 0x5A (Default)
- Four Mounting Holes:
- 4-40 screw compatible
- Six PTH Pins
-
3V3,GND,SCL,SDA,CS,INT - Power LED (Red)
STHS34PF80 Features
- Voltage Range: 1.7 to 3.6V
- Current Draw: 10µA
- Interfaces: I²C or SPI
- Optical wavelength: 5 to 20µm
- Range: 4m (objects 70 x 25 cm² in size)
- Built-in Detection Algorithms:
- Identify stationary objects
- Distinguish between stationary and moving objects
- Field of View: 80°
- Output Data Rate: 0.25 to 30Hz
- IR sensitivity: 2000 LSB/°C
- RMS noise: 25 LSBrms
- Operating Temperature: -40 to 85°C (default gain mode)
- Sensor accuracy: ±0.3°C (local)
- One-shot mode
- Factory calibrated
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Arduino Library
- Component Datasheets:
- STHS34PF805 Product Page
- STHS34PF805 Datasheet
- Qwiic Ecosystem
- GitHub Hardware Repository
