Description

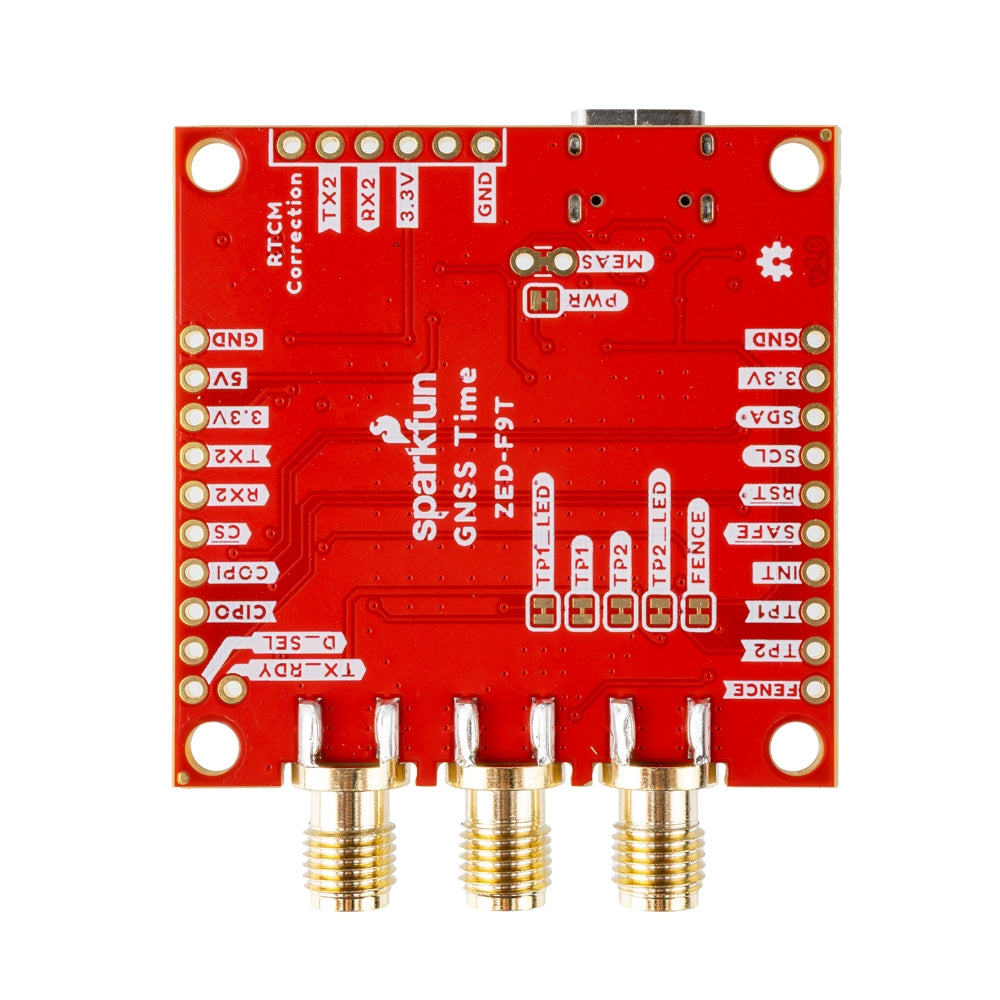

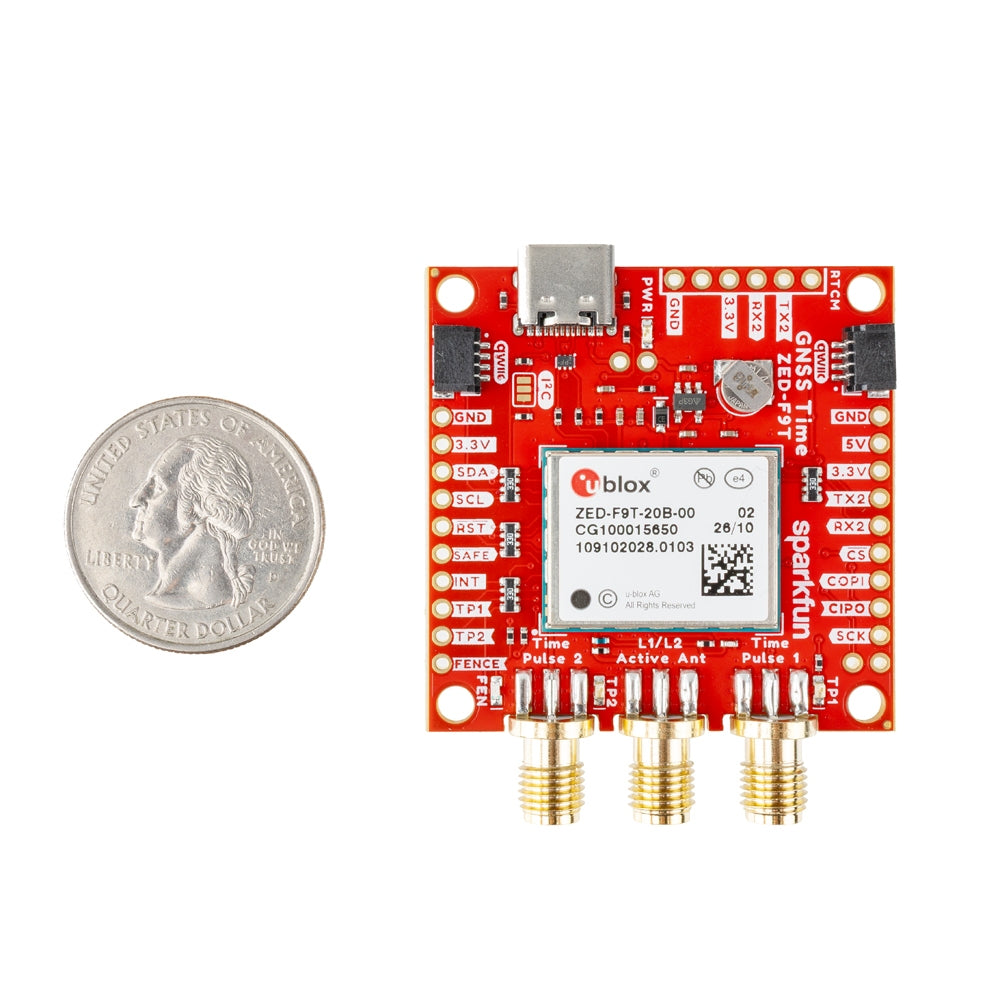

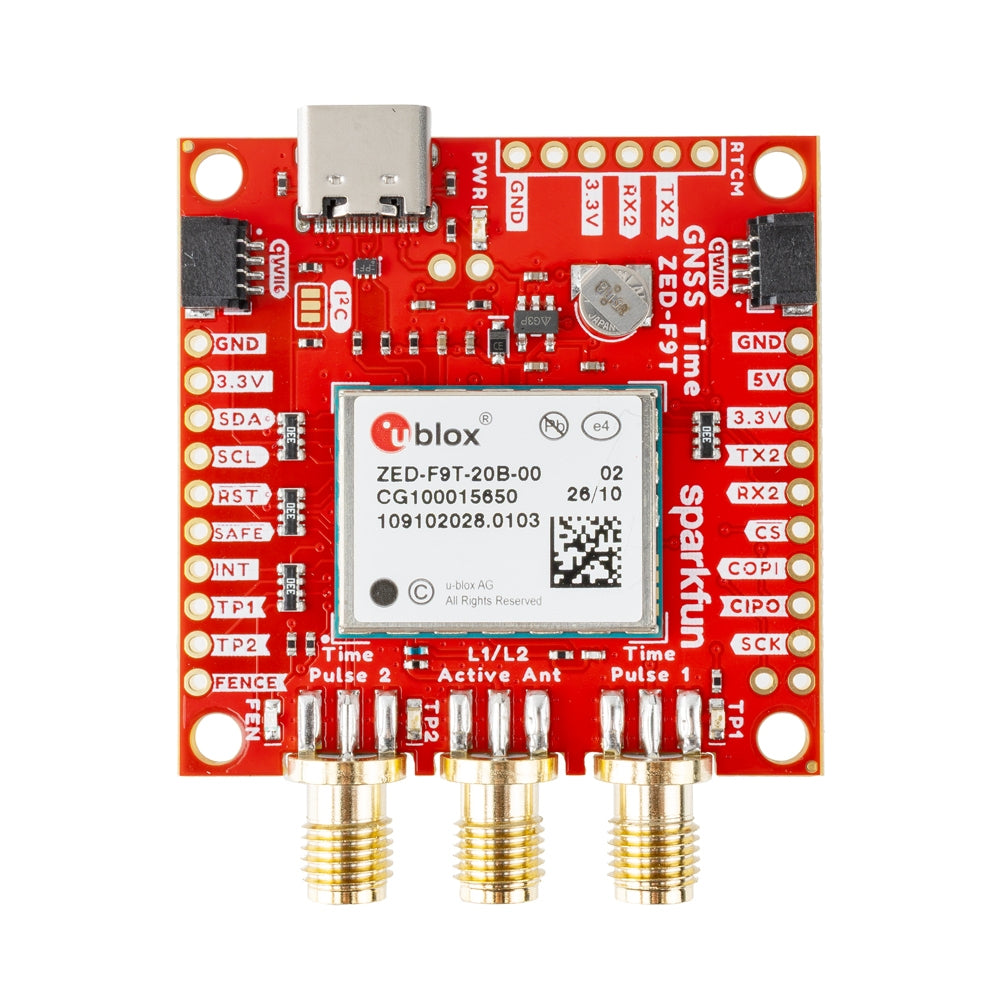

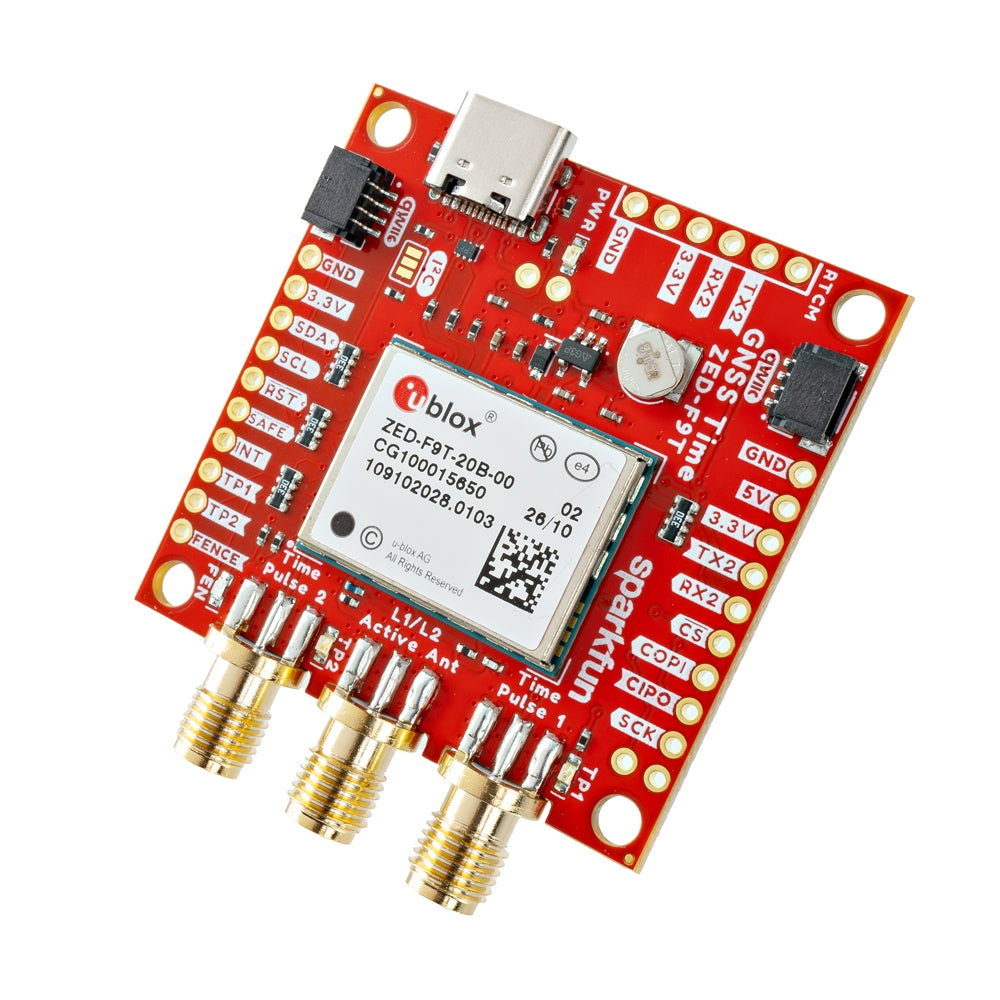

Achieve 5-nanosecond timing accuracy for your network or IoT application. This multi-band GNSS breakout features the u-blox ZED-F9T-20B, USB-C, and dedicated SMA timing ports.
Features & Specs
- Concurrent reception of GPS / QZSS, Galileo, BeiDou, NavIC constellations
- Receives L1/L2/L5, E1/E5, and B1/B2 bands
- L1C/A, L2C, L5
- E1B/C, E5b, E5a
- B1I, B1C, B2a, B2I
- Built-in security, including Galileo OSNMA
- Voltage: 5V or 3.3V (all logic is 3.3V)
- Current: 68mA - 130mA (varies depending on operating conditions and constellations)
- Fix Acquisition: ~24s (Cold) / 2s (Hot)
- Time Pulse Signal Accuracy:
- Absolute Timing Mode: 5ns
- Differential Timing Mode (with correction data): 2.5ns
- Time Pulse Signal Frequency: 0.25Hz to 25MHz
- Time Pulse Signal Jitter: ±4ns
- Horizontal Position Accuracy: 2.0m
- Max Altitude: 80km (49.7 miles)
- Max Velocity: 500m.s (118mph)
- I2C Address: 0x42
- 2x Qwiic Connectors
Features & Specs
- Concurrent reception of GPS / QZSS, Galileo, BeiDou, NavIC constellations
- Receives L1/L2/L5, E1/E5, and B1/B2 bands
- L1C/A, L2C, L5
- E1B/C, E5b, E5a
- B1I, B1C, B2a, B2I
- Built-in security, including Galileo OSNMA
- Voltage: 5V or 3.3V (all logic is 3.3V)
- Current: 68mA - 130mA (varies depending on operating conditions and constellations)
- Fix Acquisition: ~24s (Cold) / 2s (Hot)
- Time Pulse Signal Accuracy:
- Absolute Timing Mode: 5ns
- Differential Timing Mode (with correction data): 2.5ns
- Time Pulse Signal Frequency: 0.25Hz to 25MHz
- Time Pulse Signal Jitter: ±4ns
- Horizontal Position Accuracy: 2.0m
- Max Altitude: 80km (49.7 miles)
- Max Velocity: 500m.s (118mph)
- I2C Address: 0x42
- 2x Qwiic Connectors
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- ZED-F9T-20B Documents
- u-center Software
- Building a GNSS System
- Qwiic Info Page
- Arduino Library - v3
- GitHub Hardware Repo
