Description

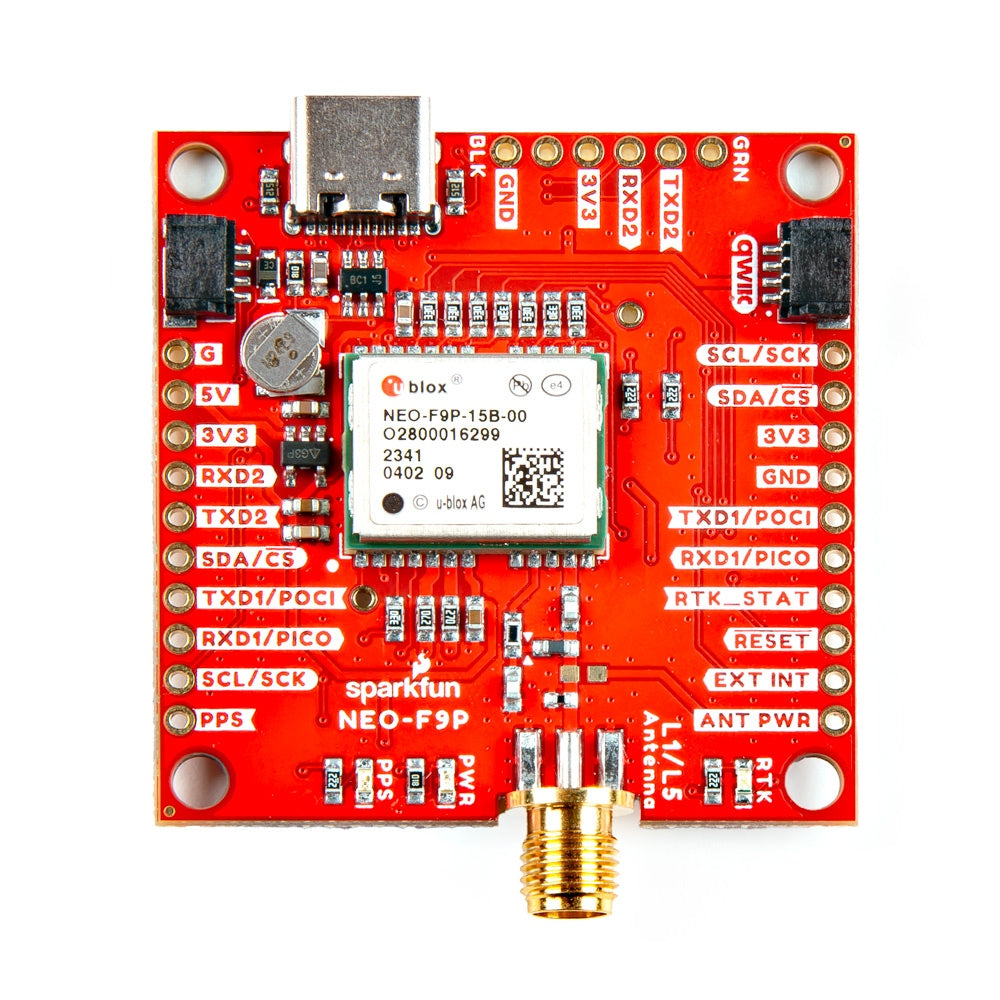

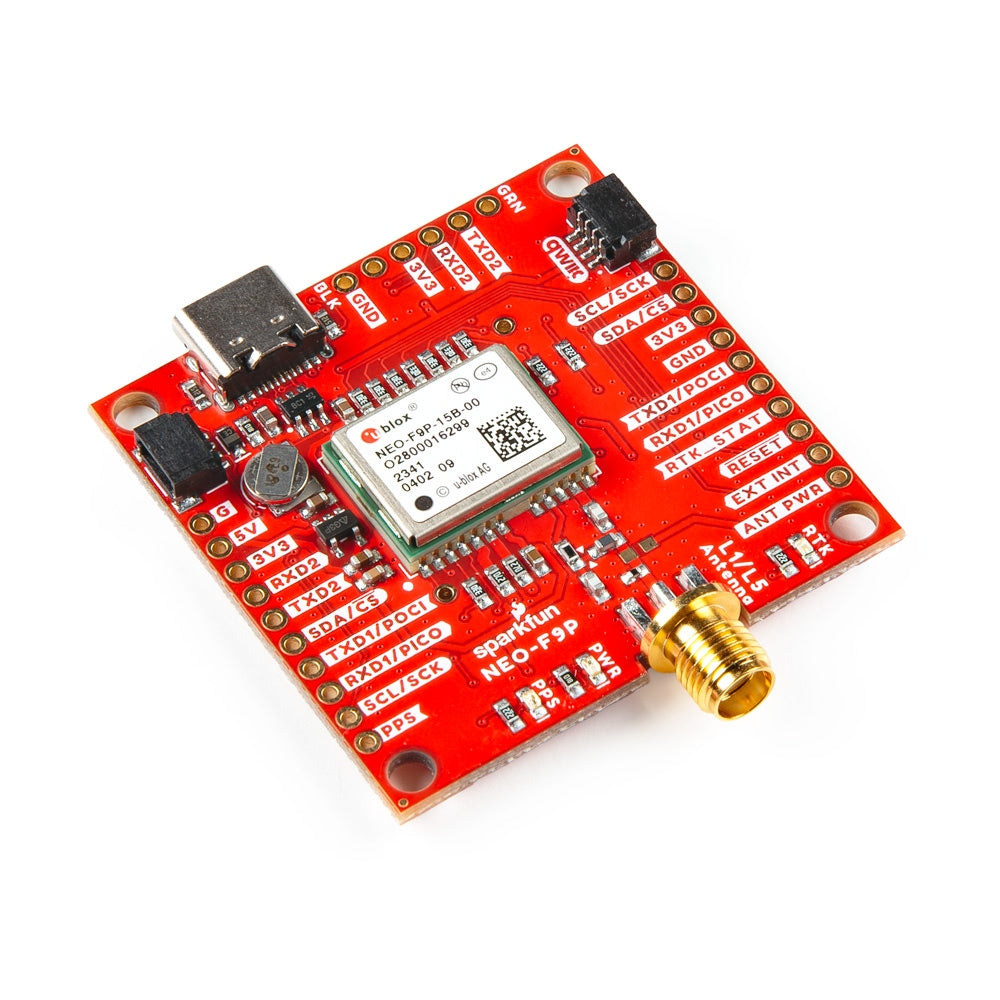

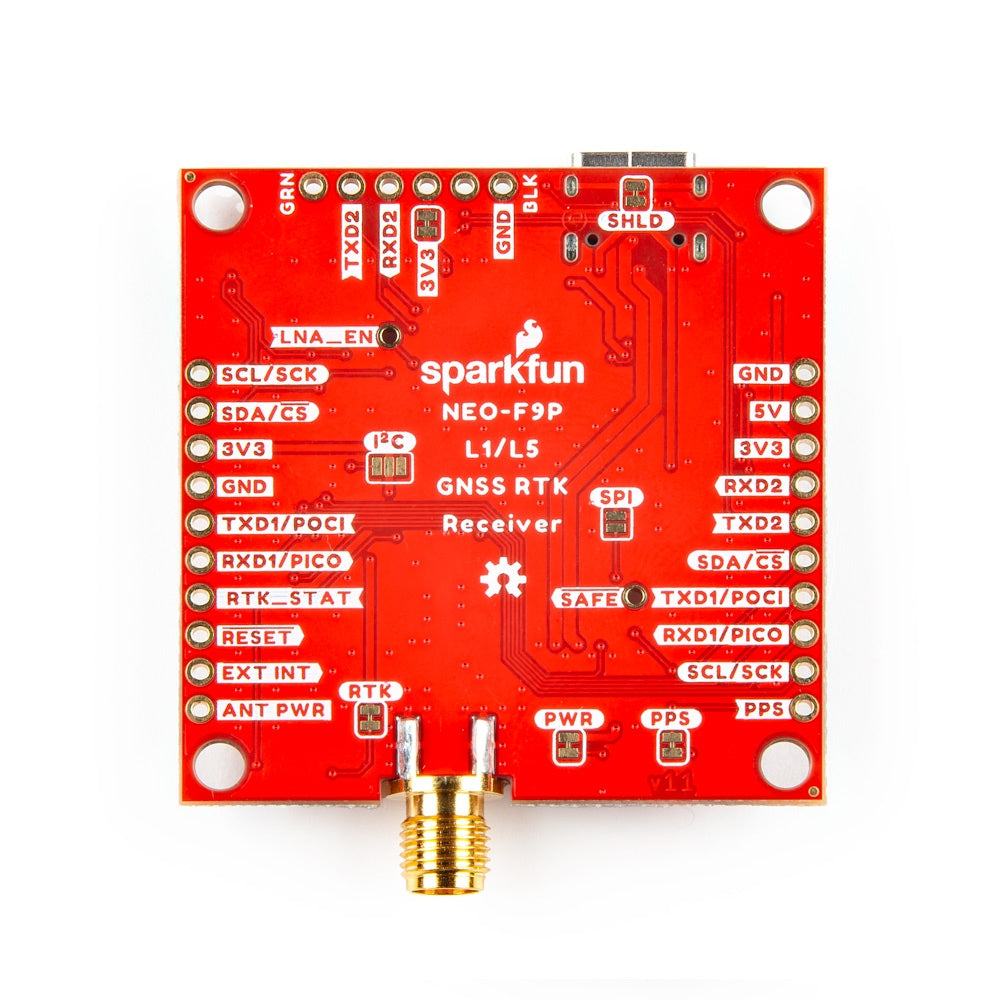

Achieve centimeter-level accuracy even in challenging environments with the L1/L5 dual-band precision of the u-blox NEO-F9P.
Features & Specs
Board Features:
- 1x USB Type C Connector
- 2x Qwiic Connectors
- Default I2C Address: 0x42
- Integrated SMA connector
- Concurrent reception of GPS, GLONASS, Galileo and BeiDou
- 184-Channel GNSS Receiver
- Receives L1/L5 Bands
- Voltage: 5V or 3.3V but all logic is 3.3V
- Current: 95mA - 135mA (varies with constellations and tracking state)
- Time to First Fix: 27s (cold), 3s (hot)
Max Navigation Rate:
- RTK (basic location over UBX binary protocol) - 25Hz
- PVT - 25Hz
- RAW - 25Hz
Horizontal Position Accuracy:
- 1.5m without RTK
- 0.01m with RTK
Vertical Position Accuracy:
- 2.0m without RTK
- 0.01m with RTK
- Time Pulse Accuracy: 30ns
Operational Limits
- Max G: ≤4G
- Max Altitude: 80km (49.7 miles)
- Max Velocity: 500m/s (1118 mph)
Software Configurable
- Geofencing
- Odometer
- Spoofing Detection External Interrupt
- Pin Control Low Power Mode
- Many others!
- Supports NMEA, UBX, RTCM, SPARTN, CLAS protocols over UART or I2C interfaces
- Power LED
Jumpers
- USB Shield
- Power LED
- 3v3 (for UART2 Port)
- I2C Pull-Up Resistors
- SPI
- Pulse Per Second (PPS)
- RTK Status LED

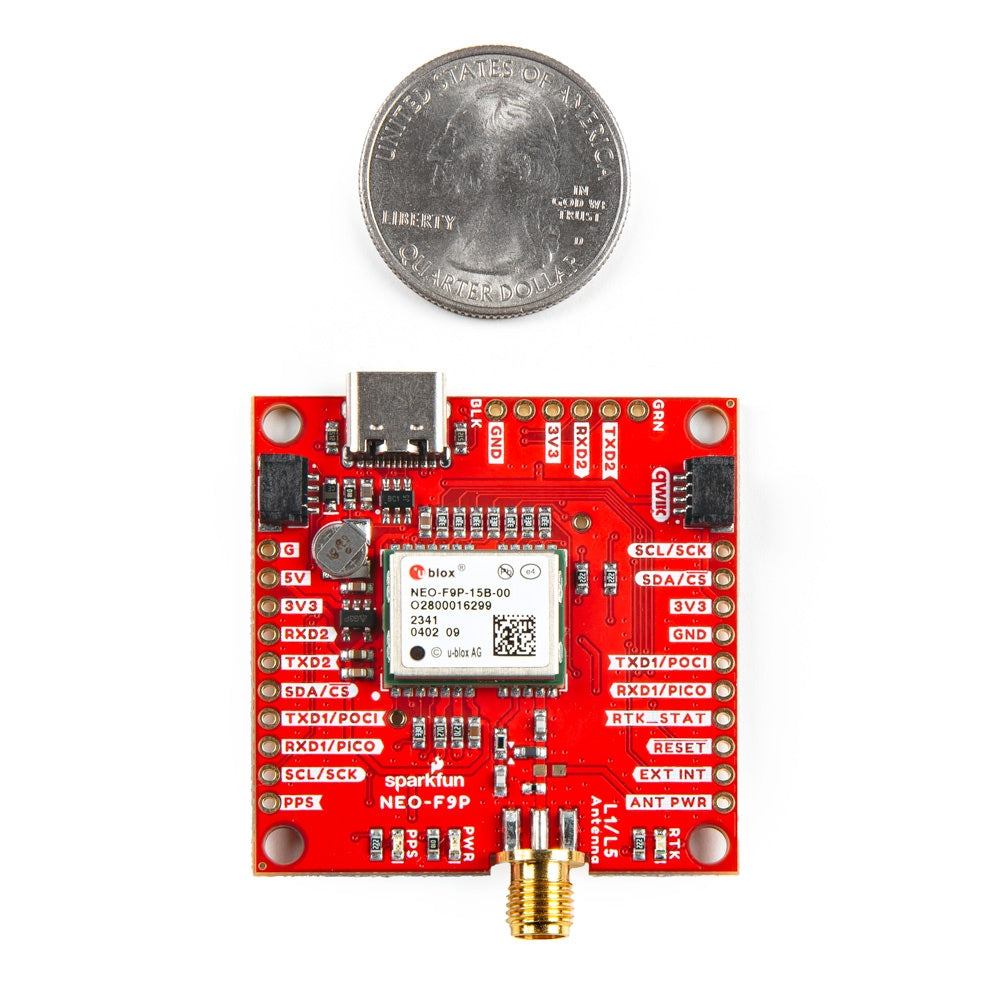

Board Dimensions
- 1.70" x 1.70" (43.2mm x 43.2mm)
Features & Specs
Board Features:
- 1x USB Type C Connector
- 2x Qwiic Connectors
- Default I2C Address: 0x42
- Integrated SMA connector
- Concurrent reception of GPS, GLONASS, Galileo and BeiDou
- 184-Channel GNSS Receiver
- Receives L1/L5 Bands
- Voltage: 5V or 3.3V but all logic is 3.3V
- Current: 95mA - 135mA (varies with constellations and tracking state)
- Time to First Fix: 27s (cold), 3s (hot)
Max Navigation Rate:
- RTK (basic location over UBX binary protocol) - 25Hz
- PVT - 25Hz
- RAW - 25Hz
Horizontal Position Accuracy:
- 1.5m without RTK
- 0.01m with RTK
Vertical Position Accuracy:
- 2.0m without RTK
- 0.01m with RTK
- Time Pulse Accuracy: 30ns
Operational Limits
- Max G: ≤4G
- Max Altitude: 80km (49.7 miles)
- Max Velocity: 500m/s (1118 mph)
Software Configurable
- Geofencing
- Odometer
- Spoofing Detection External Interrupt
- Pin Control Low Power Mode
- Many others!
- Supports NMEA, UBX, RTCM, SPARTN, CLAS protocols over UART or I2C interfaces
- Power LED
Jumpers
- USB Shield
- Power LED
- 3v3 (for UART2 Port)
- I2C Pull-Up Resistors
- SPI
- Pulse Per Second (PPS)
- RTK Status LED
Board Dimensions
- 1.70" x 1.70" (43.2mm x 43.2mm)
Documentation
SparkFun Resources
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Qwiic Info Page
- Building a GPS System
- RTK Solutions
- Arduino Library
- GitHub Hardware Repo
u-blox NEO-F9P Resources
- Product Summary
- Datasheet
- Integration Manual
- GPS L5 Application Note
- UBX and NMEA Protocol Manual
- Release Notes - FW1.00
- White Paper: Modern GNSS/GPS signals: Moving from Single-Band to Dual-Band
- u-blox ECCN
