Description

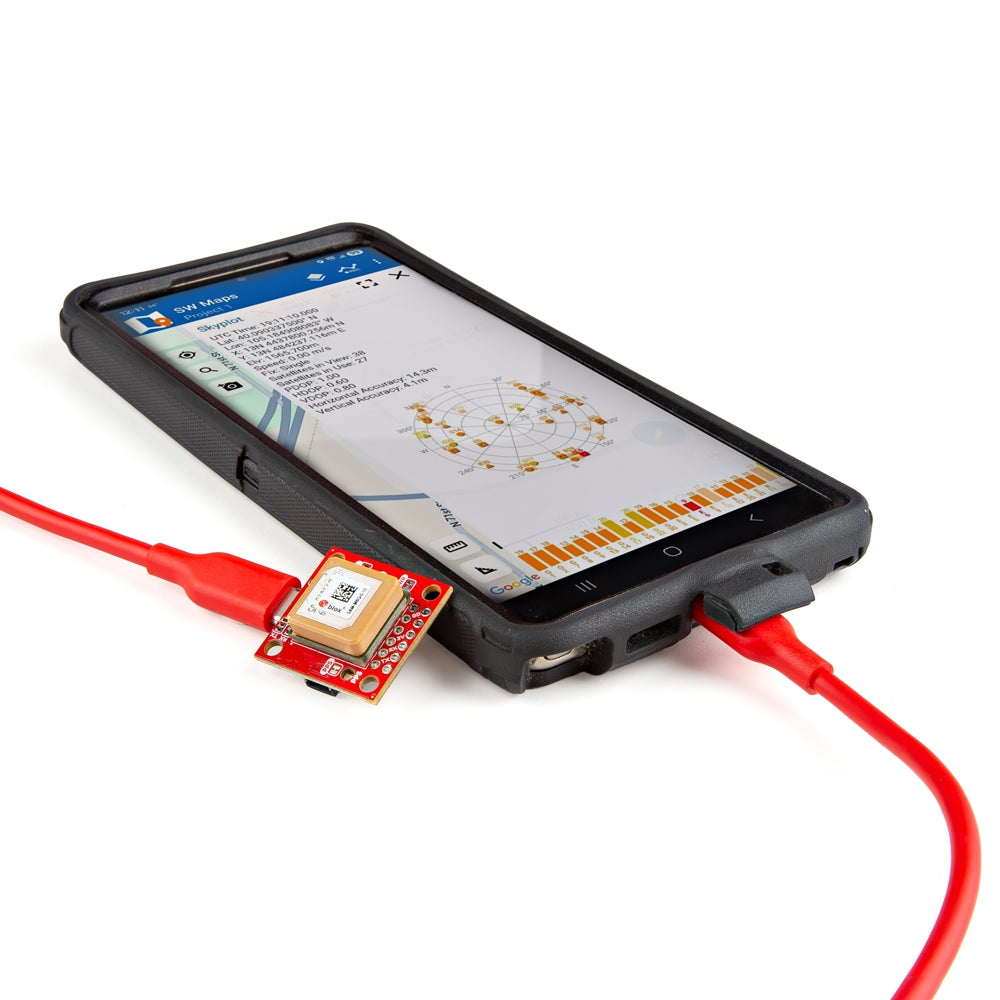

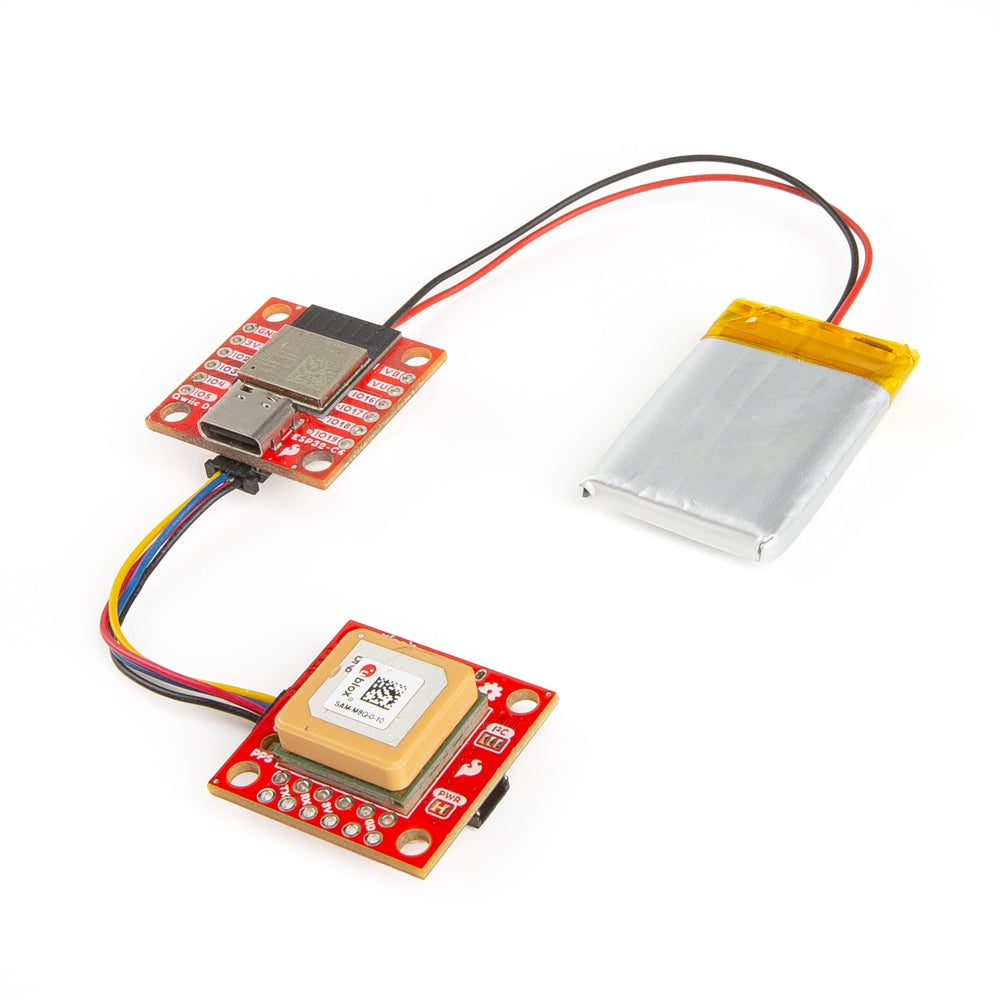

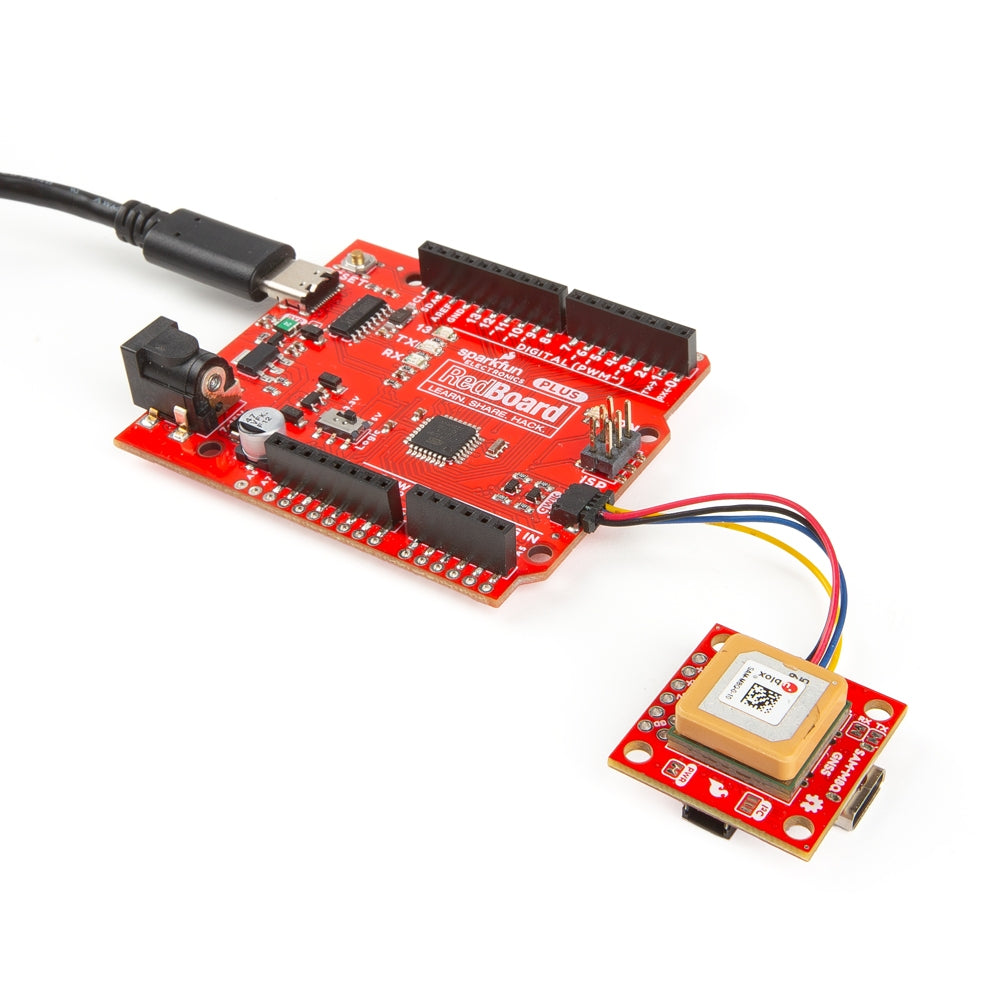

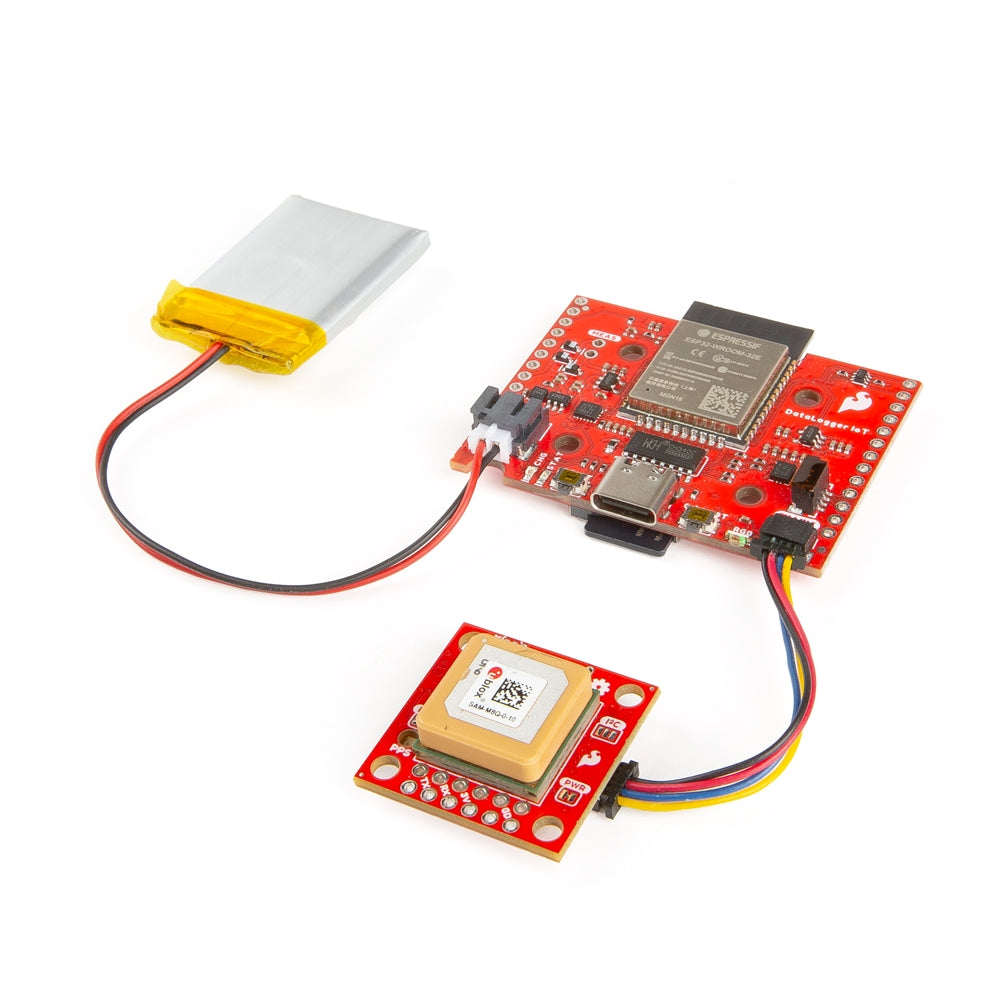

A beginner-friendly GNSS board that grows with you. Features USB-C for easy PC connection, Qwiic for embedded use, and 10Hz multi-constellation tracking.
Features & Specs

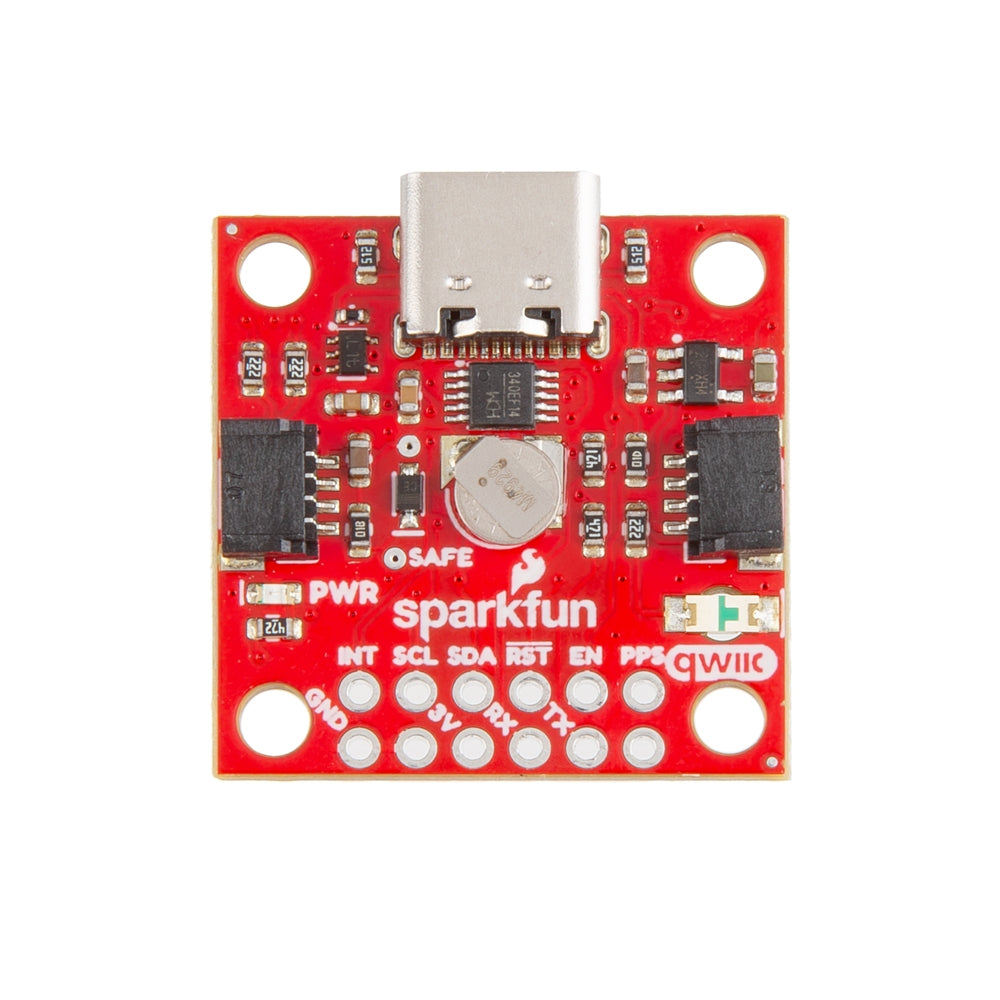

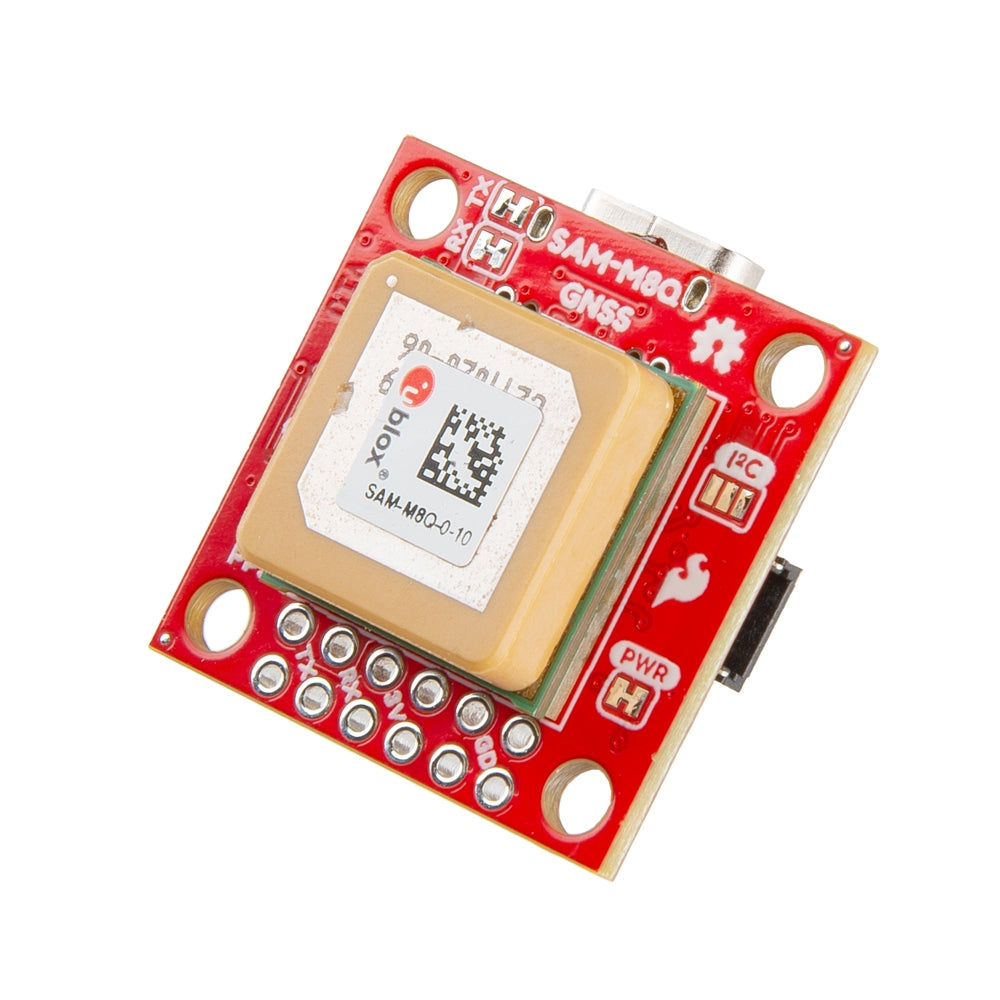

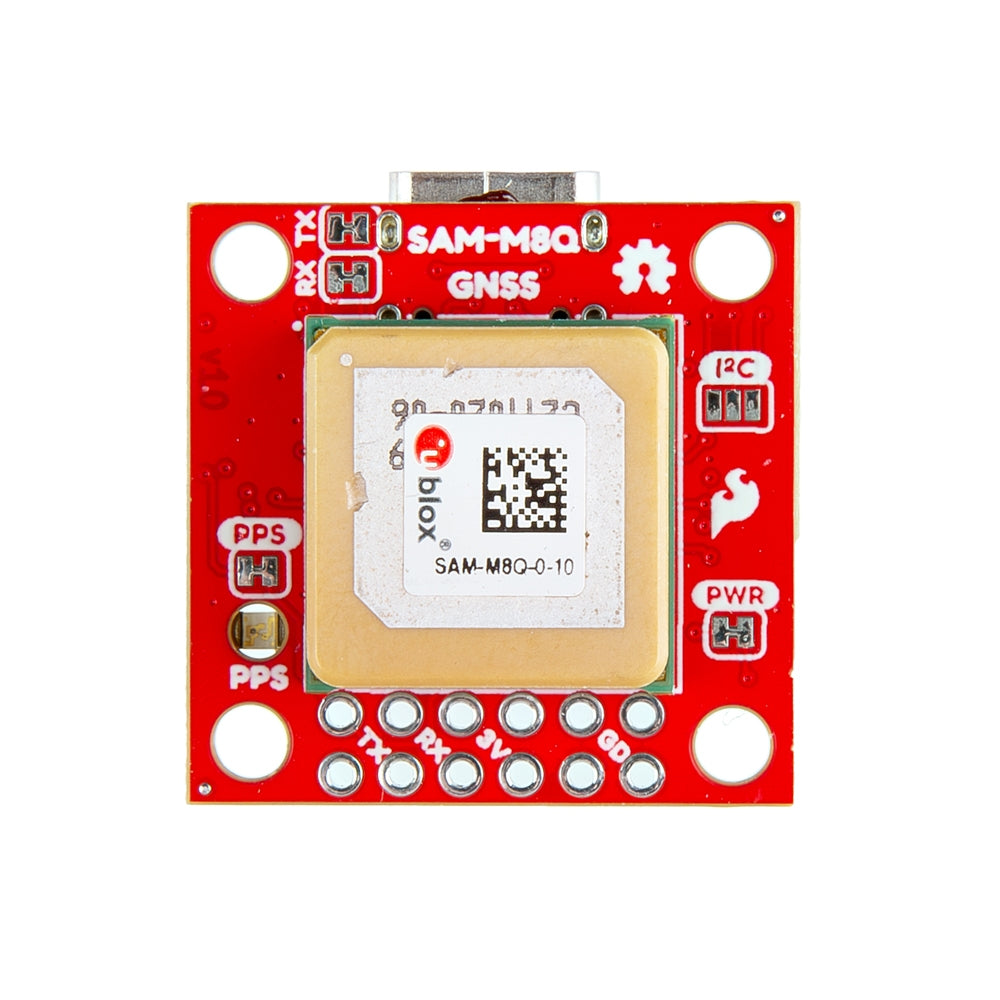

SAM-M8Q GNSS Board:
- u-blox SAM-M8Q GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- QZSS (Japan)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- USB-C Connector
- Qwiic Connectors (x2)
- 4-pin JST-SH
- Twelve 0.1"-pitch PTH pins
- 3.3V enable
- I2C signals
- PPS signal
- Interrupt trigger
- Reset
- BlueSMiRF Header
- 3.3V
- UART
- GND
- Dimensions: 25.4mm x 25.4mm (1.00" x 1.00")
- Four mounting holes:
- 4-40 screw compatible
SAM-M8Q GNSS Module:
- Voltage Range: 2.7 to 3.6V
- Continuous mode: 29mA
- Power Save mode: 9.5mA
- Channels: 72
- GNSS Frequency Bands:
- GPS: L1C/A
- GLONASS: L1OF
- Galileo: E1 B/C
- QZSS: L1C/A, L1 SAIF
- SBAS: L1C/A
- Accuracy:
- Horizontal Position: 2.5m - 8.0m
- Velocity: 0.05m/s
- Heading: 0.3 degrees
- Time Pulse: 30ns
- Time to Fix:
- Cold Start: 26s
- Aided: 2s
- Reacquisition: 1s
- Update Rate:
- Single Band: 18Hz
- Dual Band: 10Hz
- Interfaces:
- UART
- DDC (I2C)
- Ext. Interrupt
- Configurable PPS out
- 0.25Hz to 10MHz
- Protocols: NMEA, UBX, and RTCM
- Operational Limits
- Altitude: 50,000m
- Dynamic: 4g
- Velocity: 500m/s

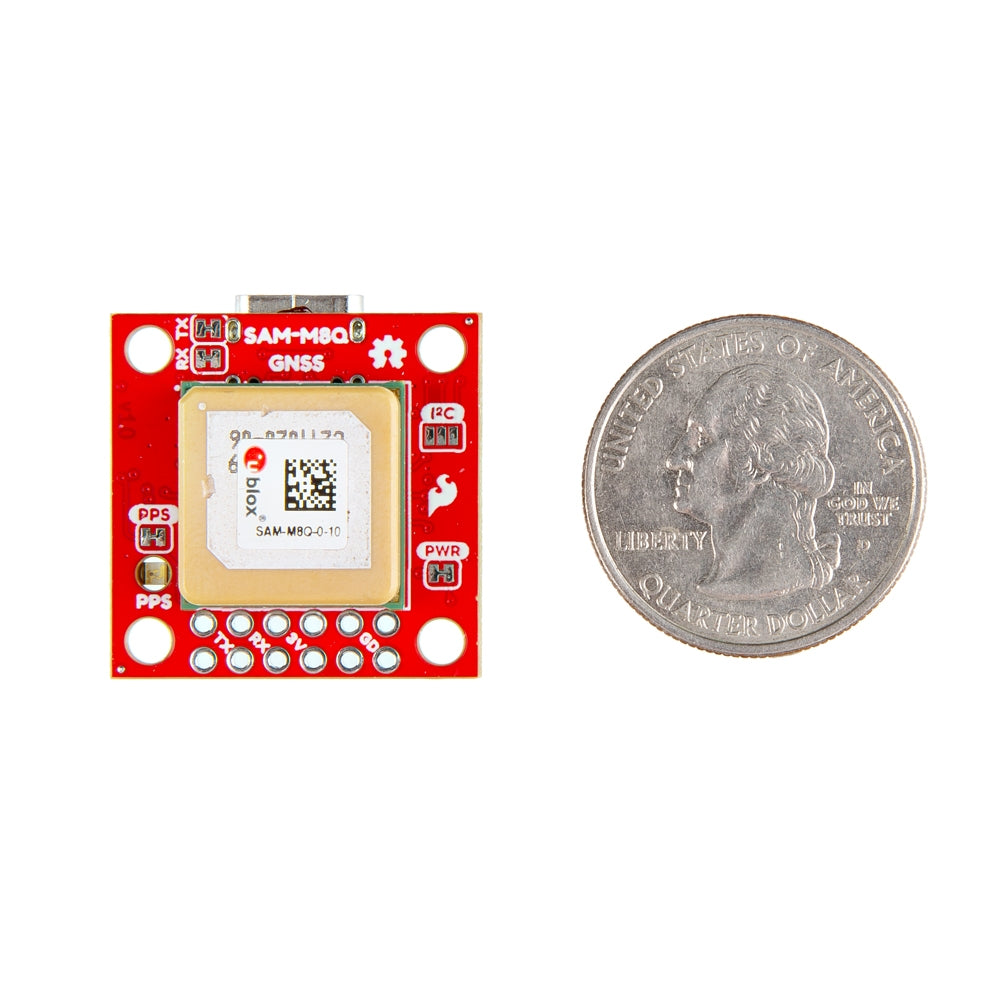

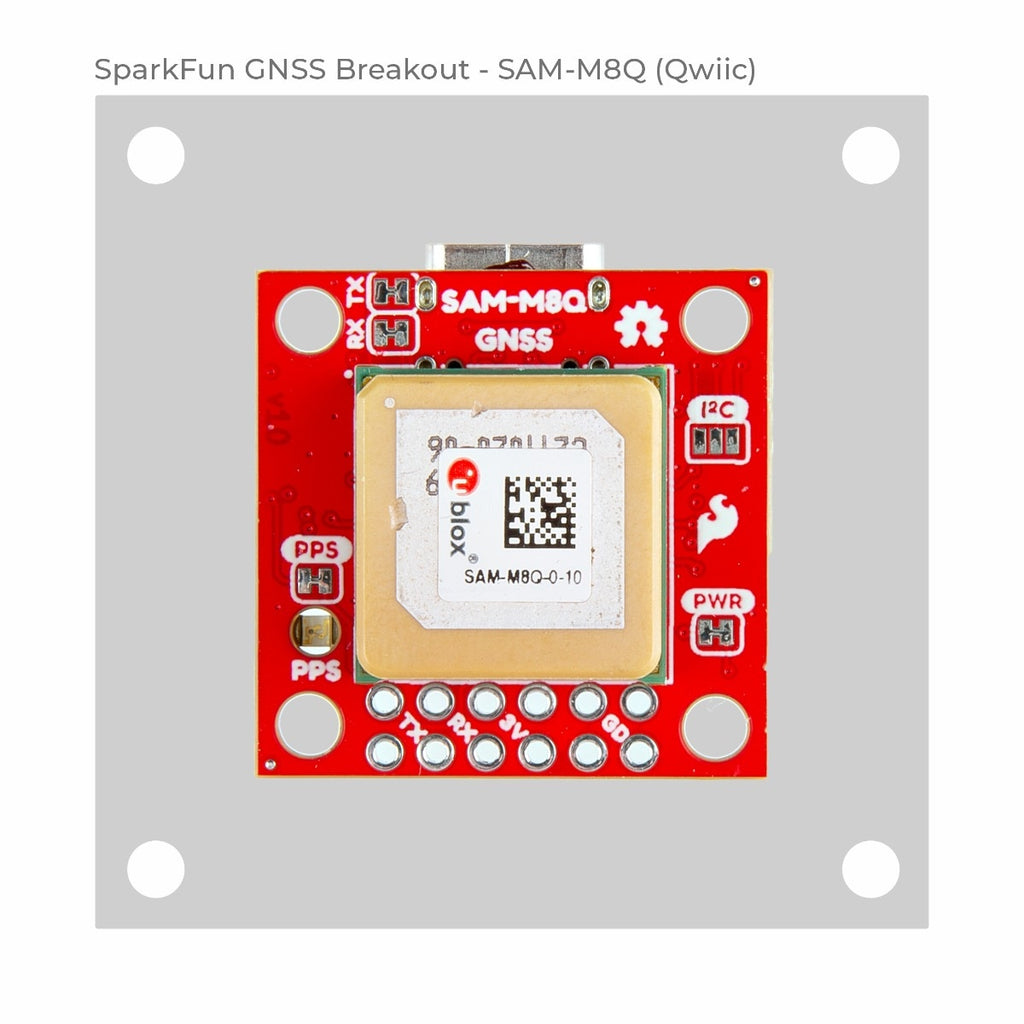

SAM-M8Q Board Size Comparison
Features & Specs
SAM-M8Q GNSS Board:
- u-blox SAM-M8Q GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- QZSS (Japan)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- USB-C Connector
- Qwiic Connectors (x2)
- 4-pin JST-SH
- Twelve 0.1"-pitch PTH pins
- 3.3V enable
- I2C signals
- PPS signal
- Interrupt trigger
- Reset
- BlueSMiRF Header
- 3.3V
- UART
- GND
- Dimensions: 25.4mm x 25.4mm (1.00" x 1.00")
- Four mounting holes:
- 4-40 screw compatible
SAM-M8Q GNSS Module:
- Voltage Range: 2.7 to 3.6V
- Continuous mode: 29mA
- Power Save mode: 9.5mA
- Channels: 72
- GNSS Frequency Bands:
- GPS: L1C/A
- GLONASS: L1OF
- Galileo: E1 B/C
- QZSS: L1C/A, L1 SAIF
- SBAS: L1C/A
- Accuracy:
- Horizontal Position: 2.5m - 8.0m
- Velocity: 0.05m/s
- Heading: 0.3 degrees
- Time Pulse: 30ns
- Time to Fix:
- Cold Start: 26s
- Aided: 2s
- Reacquisition: 1s
- Update Rate:
- Single Band: 18Hz
- Dual Band: 10Hz
- Interfaces:
- UART
- DDC (I2C)
- Ext. Interrupt
- Configurable PPS out
- 0.25Hz to 10MHz
- Protocols: NMEA, UBX, and RTCM
- Operational Limits
- Altitude: 50,000m
- Dynamic: 4g
- Velocity: 500m/s
SAM-M8Q Board Size Comparison
Documentation
- Schematic
- KiCad Files
- Hookup Guide
- SAM-M8Q Documentation
- u-center Software
- SparkFun u-blox GNSS Arduino Library
- GitHub Hardware Repo
