Description

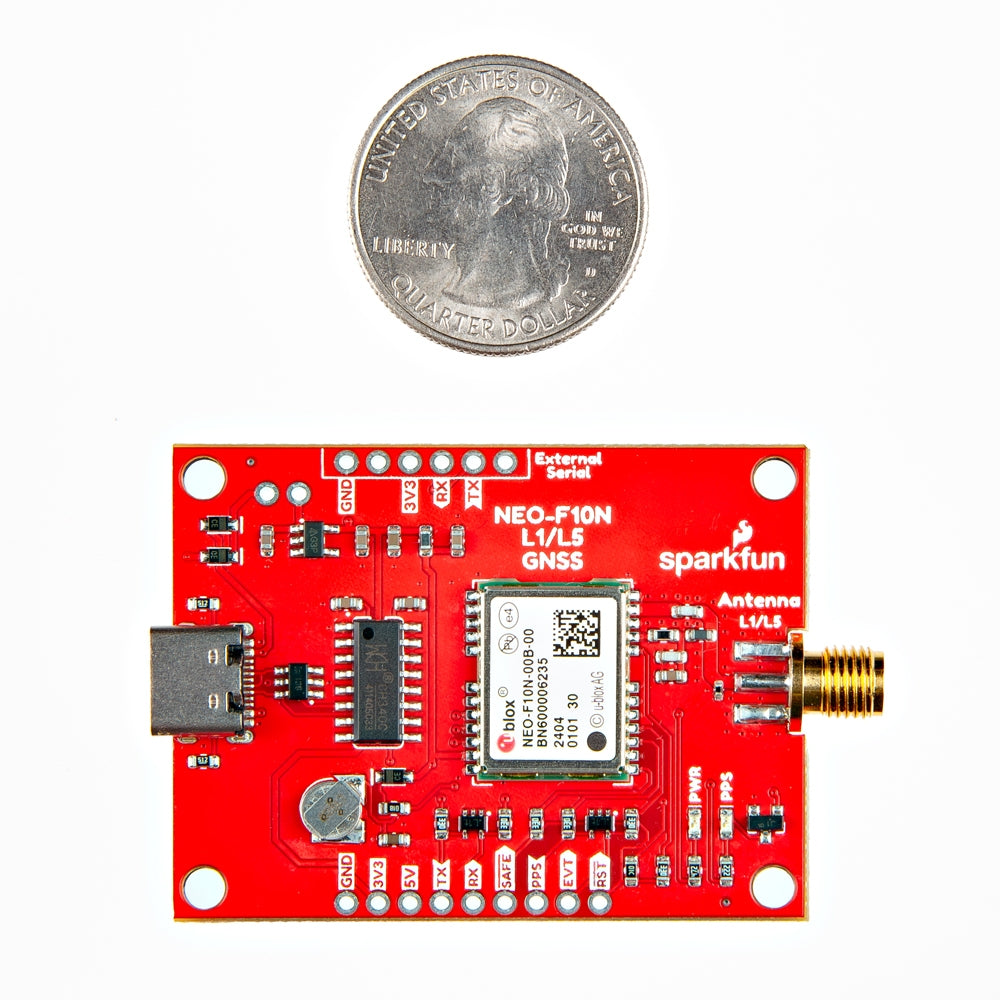

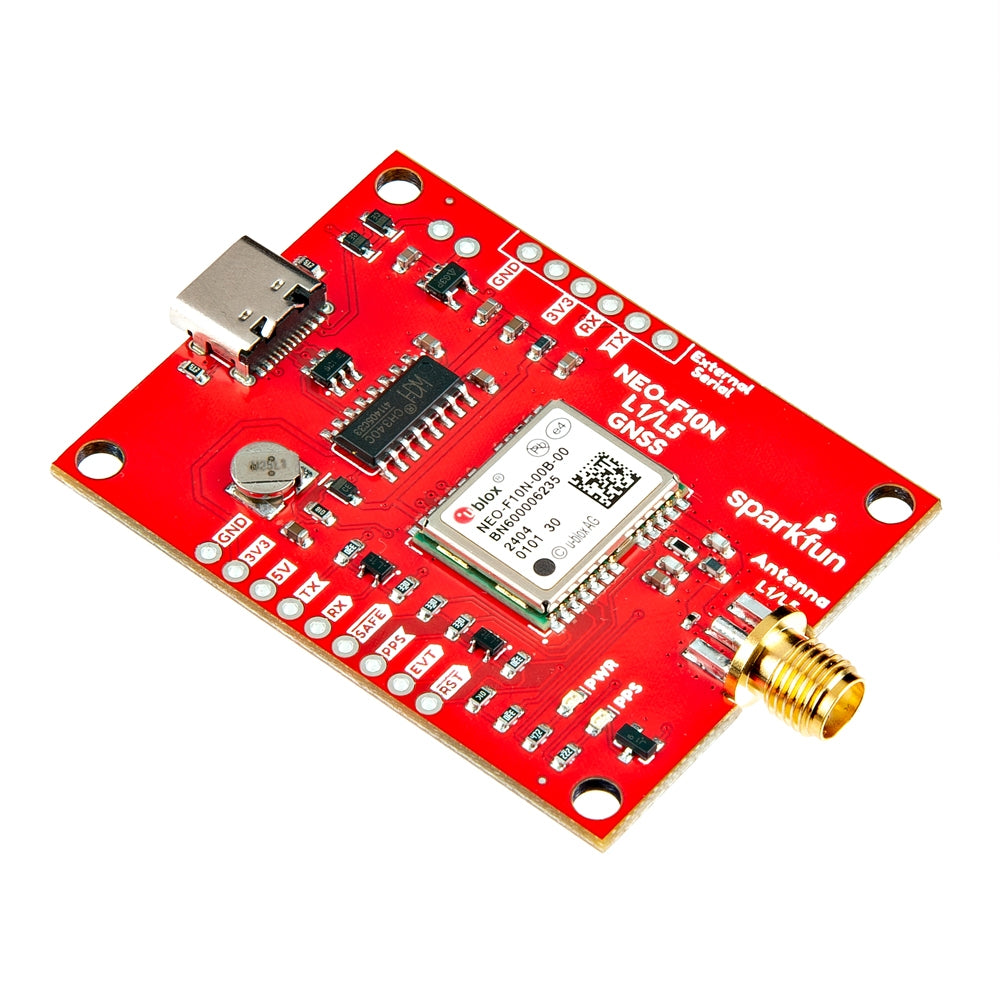

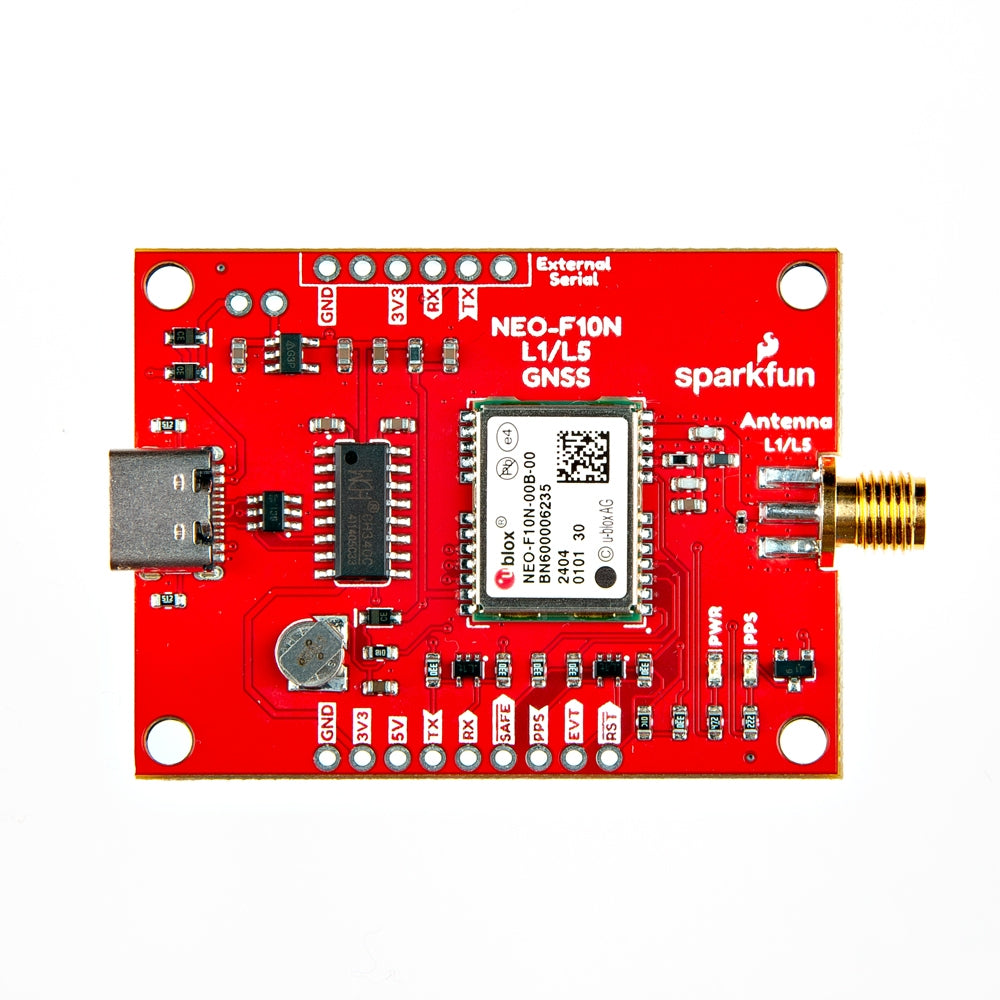

The SparkFun NEO-F10N GNSS L1/L5 Breakout is a super economical GNSS board with meter-level positional accuracy.
Features & Specs
- 1x USB Type C Connector
- ESD Protection Diodes for USB Data Lines
- CH340C USB-to-Serial Converter
- Integrated SMA Connector
- Concurrent Reception of GPS, Galileo, and Beidou
- Receives L1/L5 Bands
- Voltage: 5V or 3.3V but all logic is 3.3V
- Current: 21mA-26mA (varies with constellations and tracking state)
- AP2112K 3.3V/600mA Voltage Regulator
- Backup Battery to Aid in Hot Starts
- Time to First Fix: 28s (cold), 2s (hot)
- Max Navigation Rate for Single GNSS Configuration (GPS): 20 Hz
- Positional Accuracy (GPS): 1.5m
- Time Pulse Accuracy: 30ns
- Operational Limits
- Max G: ≤ 4G
- Max Altitude: 80km (49.7 miles)
- Max Velocity: 500m/s (1118mph)
- Software Configurable
- Baud Rate (38400 Baud, default)
- Odometer
- Spoof Detection
- External Interrupt
- Pin Control
- Many others!
- Supports: NMEA, UBX over UART
- LED
- Power
- Pulse Per Second (PPS)
- Jumpers
- USB Shield (SHLD)
- USB 5V (USB-5V)
- Measure (MEAS)
- USB Transmit (USB-TX)
- USB Receive (USB-RX)
- External 3.3V (EXT-3V3)
- Power LED (PWR)
- PPS LED (PPS)
- Board Dimensions (not including SMA connector)
- 50.8mm x 38.1mm
- Weight: 9.75g
Features & Specs
- 1x USB Type C Connector
- ESD Protection Diodes for USB Data Lines
- CH340C USB-to-Serial Converter
- Integrated SMA Connector
- Concurrent Reception of GPS, Galileo, and Beidou
- Receives L1/L5 Bands
- Voltage: 5V or 3.3V but all logic is 3.3V
- Current: 21mA-26mA (varies with constellations and tracking state)
- AP2112K 3.3V/600mA Voltage Regulator
- Backup Battery to Aid in Hot Starts
- Time to First Fix: 28s (cold), 2s (hot)
- Max Navigation Rate for Single GNSS Configuration (GPS): 20 Hz
- Positional Accuracy (GPS): 1.5m
- Time Pulse Accuracy: 30ns
- Operational Limits
- Max G: ≤ 4G
- Max Altitude: 80km (49.7 miles)
- Max Velocity: 500m/s (1118mph)
- Software Configurable
- Baud Rate (38400 Baud, default)
- Odometer
- Spoof Detection
- External Interrupt
- Pin Control
- Many others!
- Supports: NMEA, UBX over UART
- LED
- Power
- Pulse Per Second (PPS)

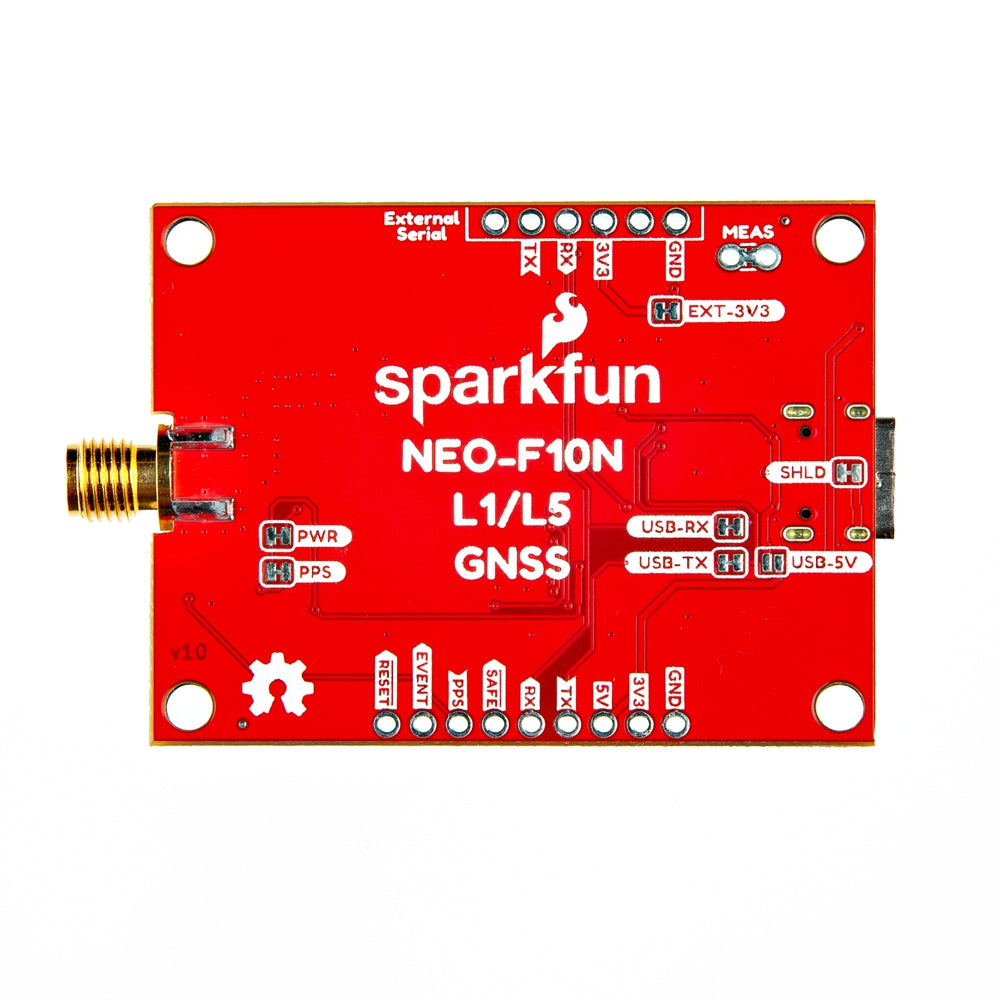

- Jumpers
- USB Shield (SHLD)
- USB 5V (USB-5V)
- Measure (MEAS)
- USB Transmit (USB-TX)
- USB Receive (USB-RX)
- External 3.3V (EXT-3V3)
- Power LED (PWR)
- PPS LED (PPS)
- Board Dimensions (not including SMA connector)
- 50.8mm x 38.1mm
- Weight: 9.75g
Documentation
SparkFun Resources
- Schematic
- KiCad Files
- 3D Model
- Board Dimensions
- Hookup Guide
- Building a GPS System
- Arduino Library
- GitHub Hardware Repo
u-blox NEO-F10N Resources
- Product Summary
- Datasheet
- Integration Manual
- Interface Description
- White Paper: Modern GNSS/GPS signals: Moving from Single-Band to Dual-Band
- u-blox ECCN
