Description

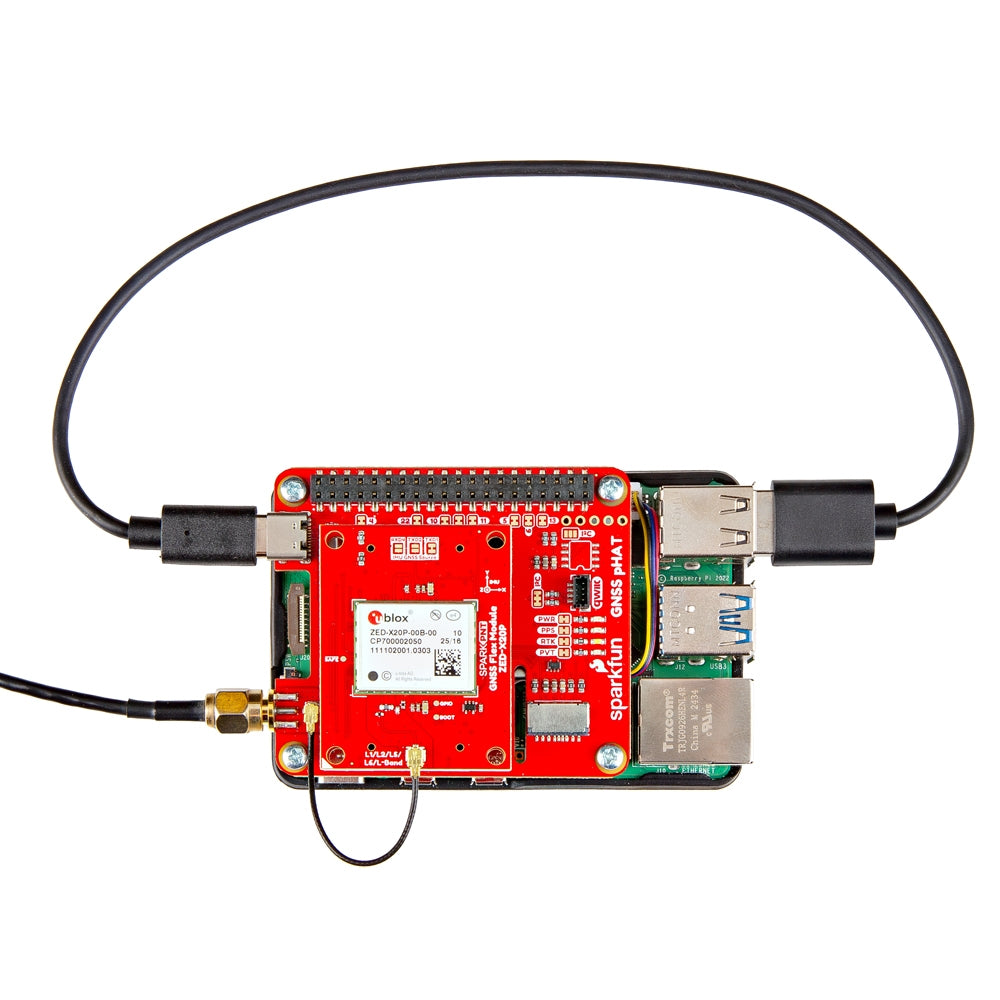

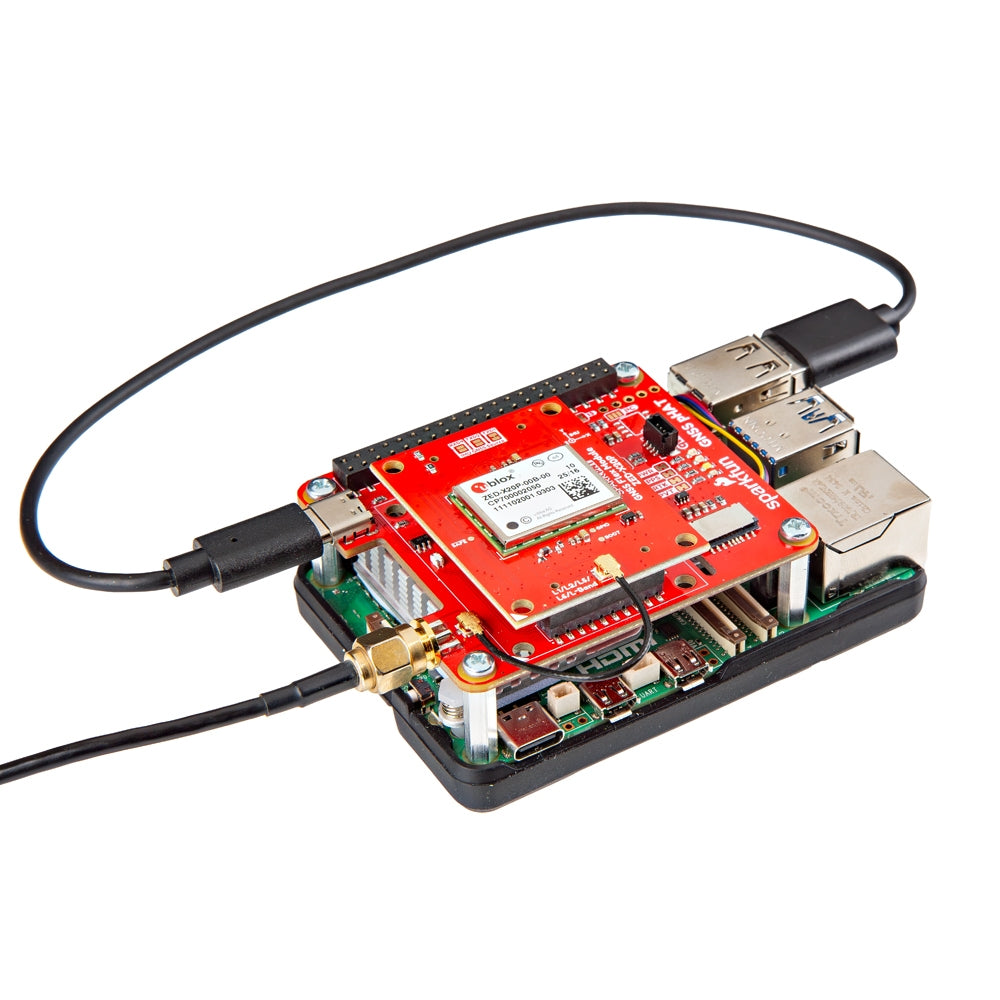

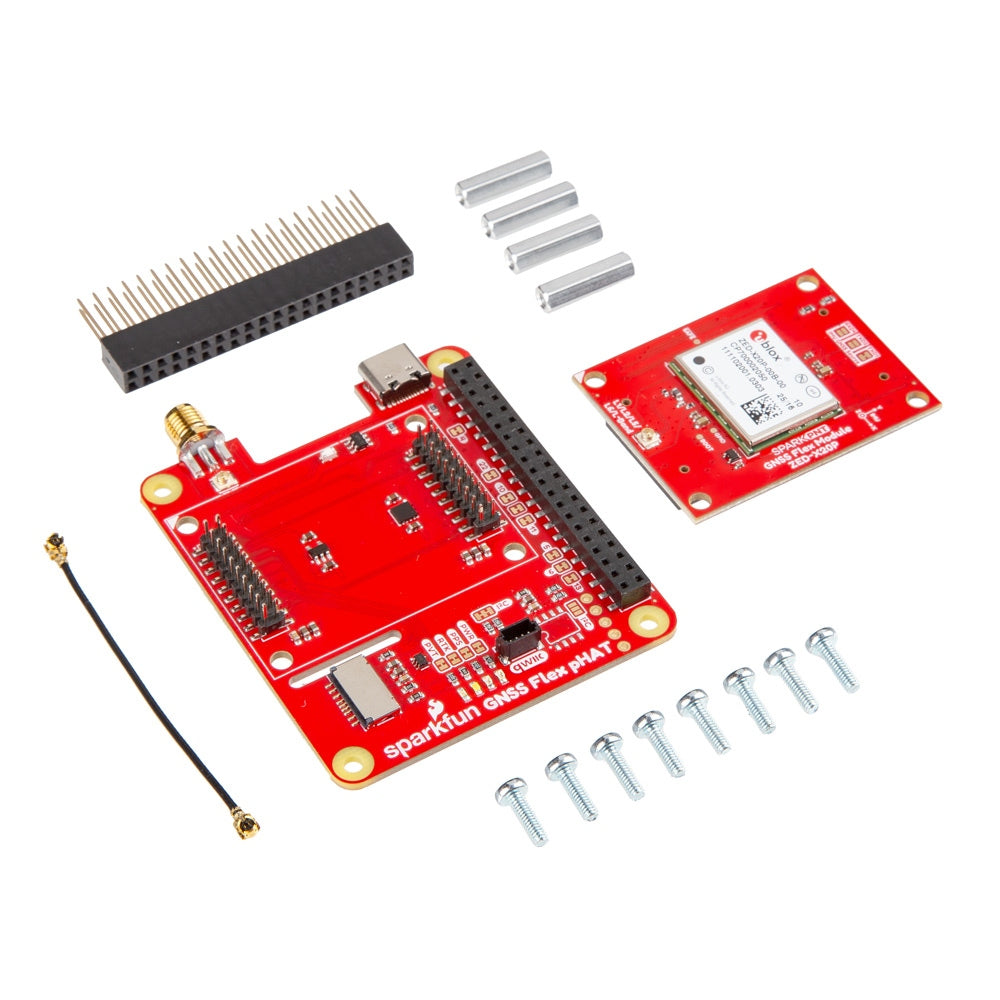

Equip your Raspberry Pi with next-generation, centimeter-level RTK accuracy using this easy-to-install pHAT featuring the all-band u-blox ZED-X20P.
Features & Specs

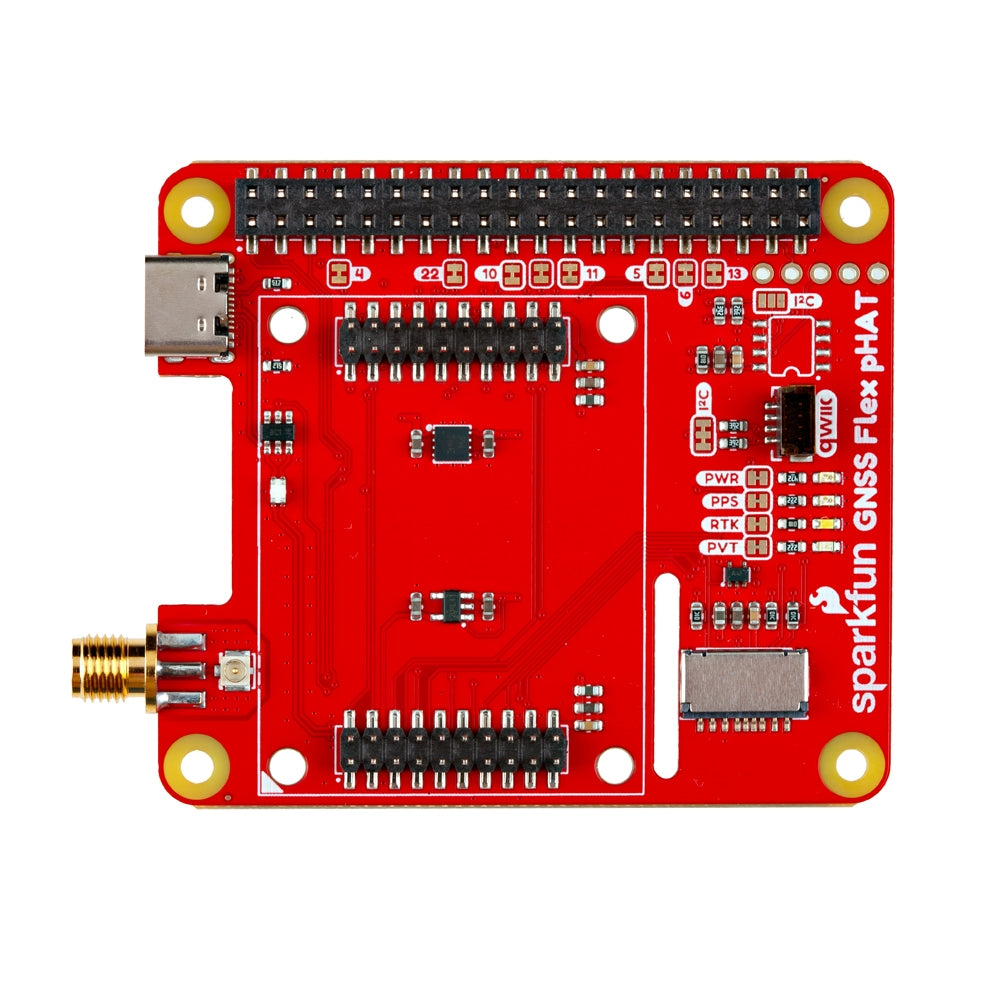

GNSS Flex pHAT:
- 40-pin socket for Raspberry Pi header
- 40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data (Read USB note)
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- Two 2x20-pin, 2mm-pitch male headers
- USB-C connector (Read USB note)
- Interfaces directly w/ GNSS Flex Module
- Antenna bridge
- U.FL connector
- SMA connector
- µSD card socket
- Qwiic connector
- Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
- Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I2C pull-up resistors (x4)

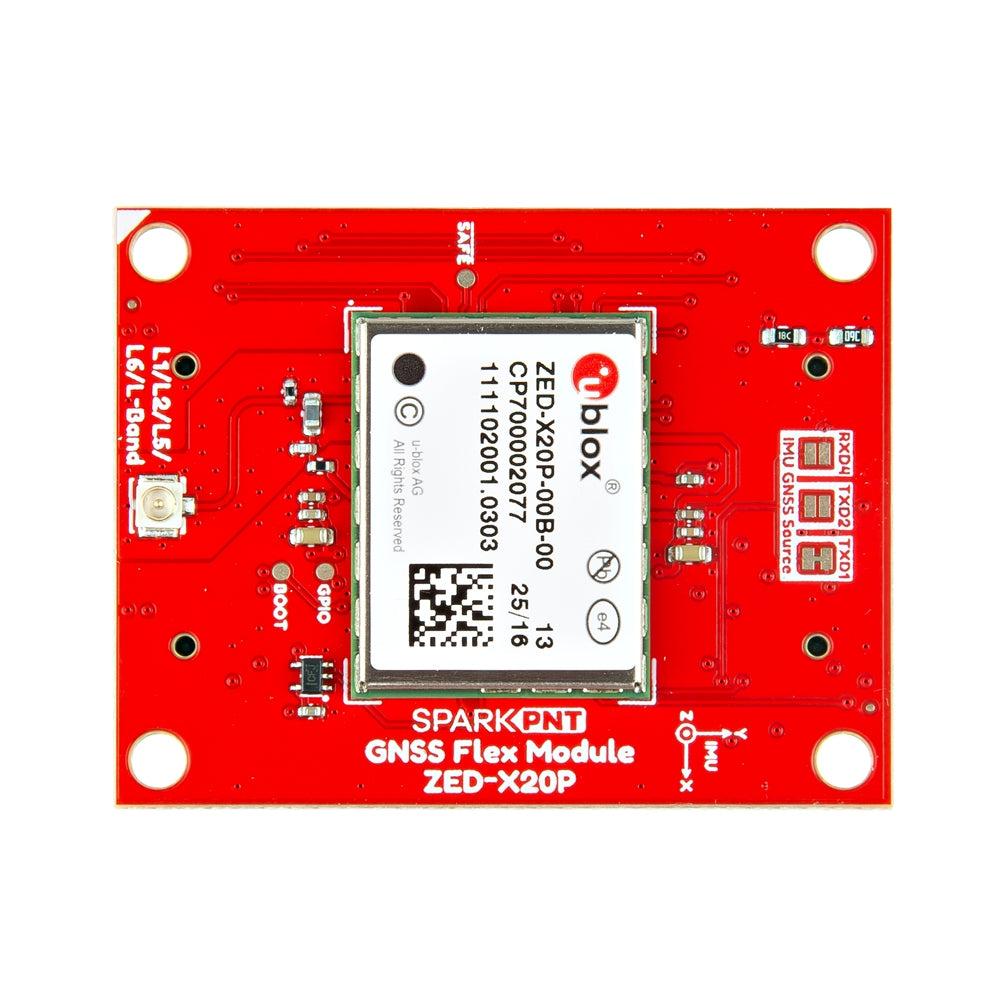

GNSS Flex Module - ZED-X20P:
- u-blox ZED-X20P Allband, GNSS module
- GNSS Constellations:
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex pHAT / Breakout
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB (x1) (Read USB note)
- UART (x2)
- I2C bus
- PPS signal (x1)
- PVT signal (x1)
- RTK signal (x1)
- Event signal (x1)
- Power
- 40-pin socket for GNSS Flex pHAT / Breakout
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
- Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
- Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
- Header spacing: 36.0mm
Flex Module Interfaces:
- USB: ZED-X20P USB (D+ and D-) (Read USB note)
- I2C: ZED-X20P I2C (SDA and SCL)
- Flex COM1: ZED-X20P UART1 (TX and RX only)
- Flex COM2: ZED-X20P UART2 (TX and RX only)
- Flex COM3: N/C
- Flex COM4: N/C
- PPS1: ZED-X20P TIMEPULSE
- PPS2: N/C
- EVENTA: ZED-X20P EXTINT
- EVENTB: N/C
- RTK LED: ZED-X20P RTK_STAT (Inverted)
-
PVT LED: ZED-X20P GEO_STAT (Geofence)
ZED-X20P General Features:
- Supply voltage: 2.7V to 3.6V
- GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
- Interfaces:
- USB (Read USB note)
- UART x2
- SPI
- I2C
- Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
- Services:
- AssistNow
- PointPerfect
- Operating temperature: -40°C to 85°C
- Dimensions: 17.0mm x 22.0mm x 2.4mm
*: Feature in development
Features & Specs
GNSS Flex pHAT:
- 40-pin socket for Raspberry Pi header
- 40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data (Read USB note)
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- Two 2x20-pin, 2mm-pitch male headers
- USB-C connector (Read USB note)
- Interfaces directly w/ GNSS Flex Module
- Antenna bridge
- U.FL connector
- SMA connector
- µSD card socket
- Qwiic connector
- Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
- Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I2C pull-up resistors (x4)

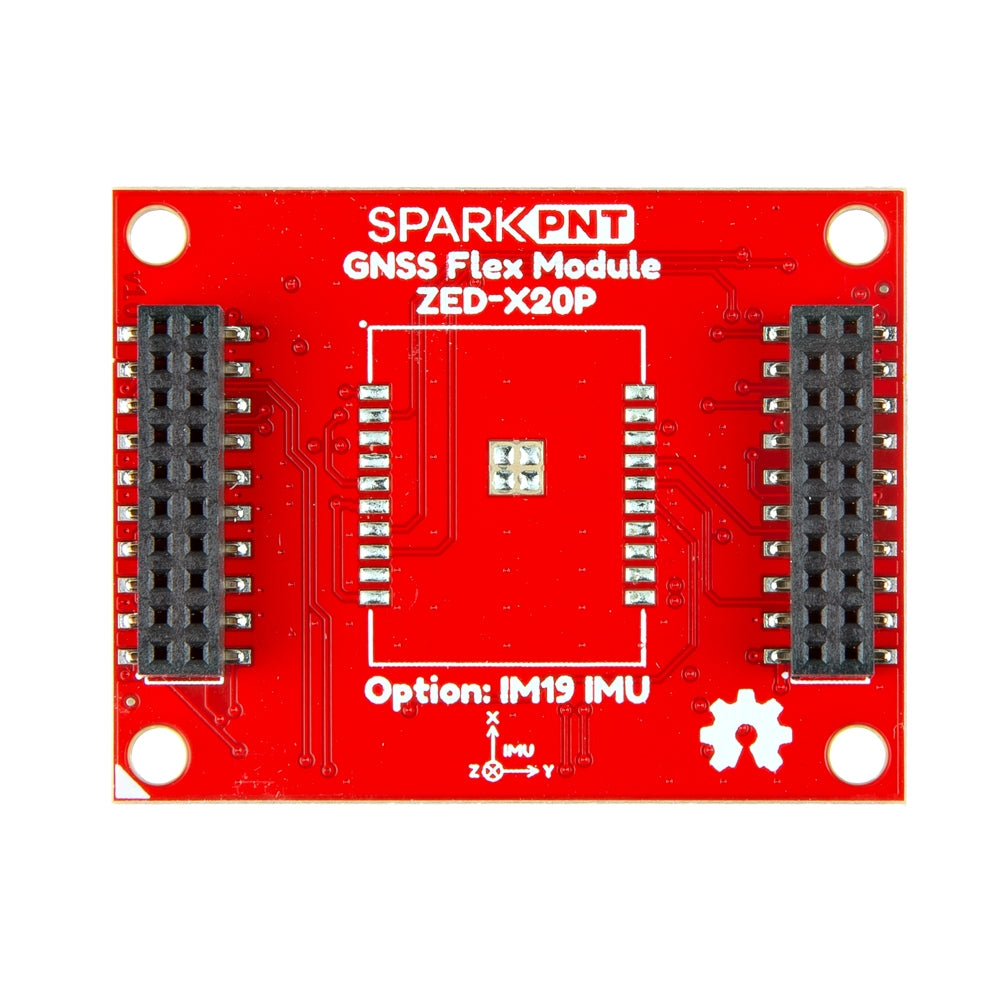

GNSS Flex Module - ZED-X20P:
- u-blox ZED-X20P Allband, GNSS module
- GNSS Constellations:
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WAAS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations:
- Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex pHAT / Breakout
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB (x1) (Read USB note)
- UART (x2)
- I2C bus
- PPS signal (x1)
- PVT signal (x1)
- RTK signal (x1)
- Event signal (x1)
- Power
- 40-pin socket for GNSS Flex pHAT / Breakout
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
- Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
- Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
- Header spacing: 36.0mm
Flex Module Interfaces:
- USB: ZED-X20P USB (D+ and D-) (Read USB note)
- I2C: ZED-X20P I2C (SDA and SCL)
- Flex COM1: ZED-X20P UART1 (TX and RX only)
- Flex COM2: ZED-X20P UART2 (TX and RX only)
- Flex COM3: N/C
- Flex COM4: N/C
- PPS1: ZED-X20P TIMEPULSE
- PPS2: N/C
- EVENTA: ZED-X20P EXTINT
- EVENTB: N/C
- RTK LED: ZED-X20P RTK_STAT (Inverted)
-
PVT LED: ZED-X20P GEO_STAT (Geofence)
ZED-X20P General Features:
- Supply voltage: 2.7V to 3.6V
- GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
- Interfaces:
- USB (Read USB note)
- UART x2
- SPI
- I2C
- Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
- Services:
- AssistNow
- PointPerfect
- Operating temperature: -40°C to 85°C
- Dimensions: 17.0mm x 22.0mm x 2.4mm
*: Feature in development
Documentation
- Design Files
- GNSS Flex pHAT
- ZED-X20P Flex Module
- Hookup Guide
- Component Documentation
- ZED-X20P GNSS Module
- Product Summary
- Datasheet
- Integration Manual
- GNSS Product Nomenclature
- Firmware (HPG 2.02)
- Application Note
- ZED-X20P GNSS Module
- Building a GNSS System
- Qwiic Info Page
- GitHub Hardware Repositories:
