SparkFun GNSS Flex pHAT - mosaic-X5 & IM19 IMU

Roll over image to zoom in

SparkFun GNSS Flex pHAT - mosaic-X5 & IM19 IMU


	₹ 110075.0 includes GST and import duties.
	B2B customers can avail ₹ 16786.44 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	sparkfun
SKU:	7447103144021
MPN:	GPS-29889

Share this product

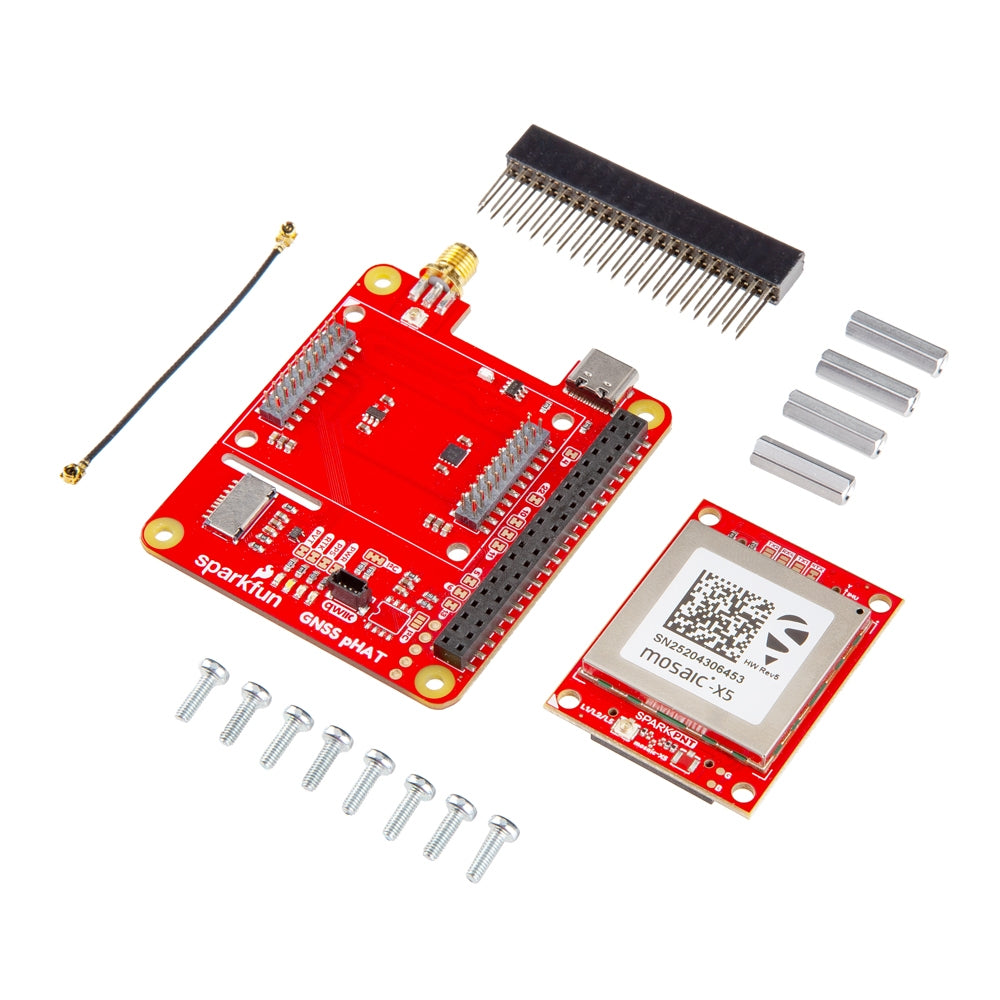

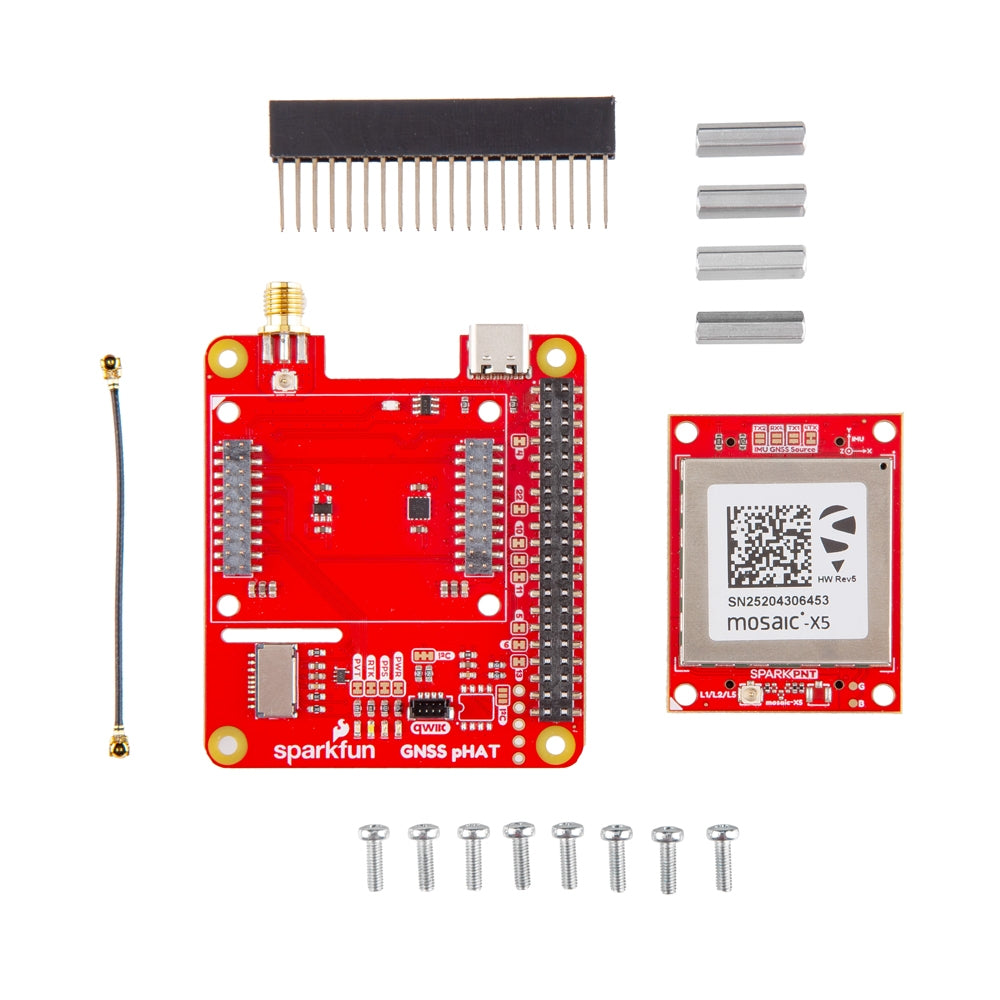

The ultimate all-in-one GNSS Flex pHAT, featuring the Septentrio mosaic-X5 and an IM19 IMU for survey-grade, millimeter-level RTK precision with full tilt compensation.

Features & Specs

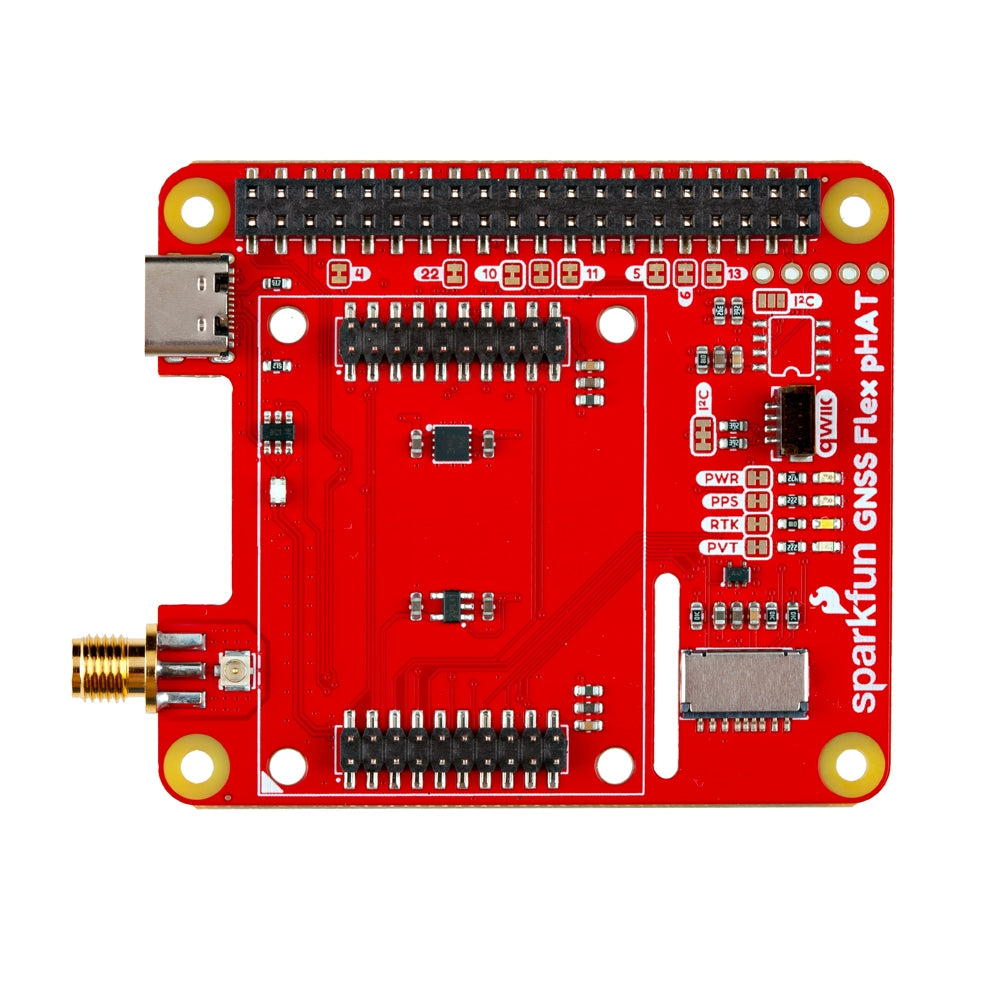

GNSS Flex pHAT:

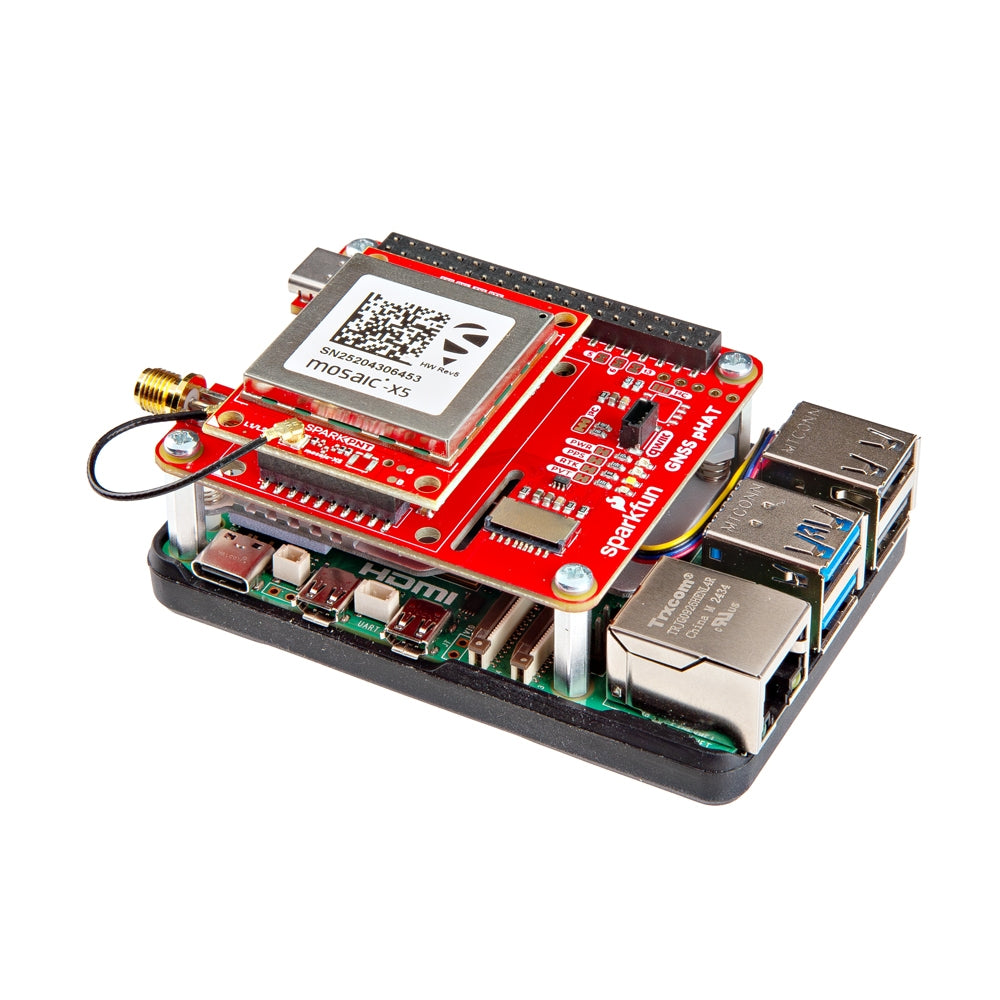

40-pin socket for Raspberry Pi header
40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB data
  - UART (x4)
  - SD card
  - I²C bus
  - PPS signal (x2)
  - LED indicators (x2)
  - Event indicators (x2)
USB-C connector
- Interfaces directly w/ GNSS Flex Module
Antenna bridge
- U.FL connector
- SMA connector
µSD card socket
Qwiic connector
Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I²C pull-up resistors (x4)

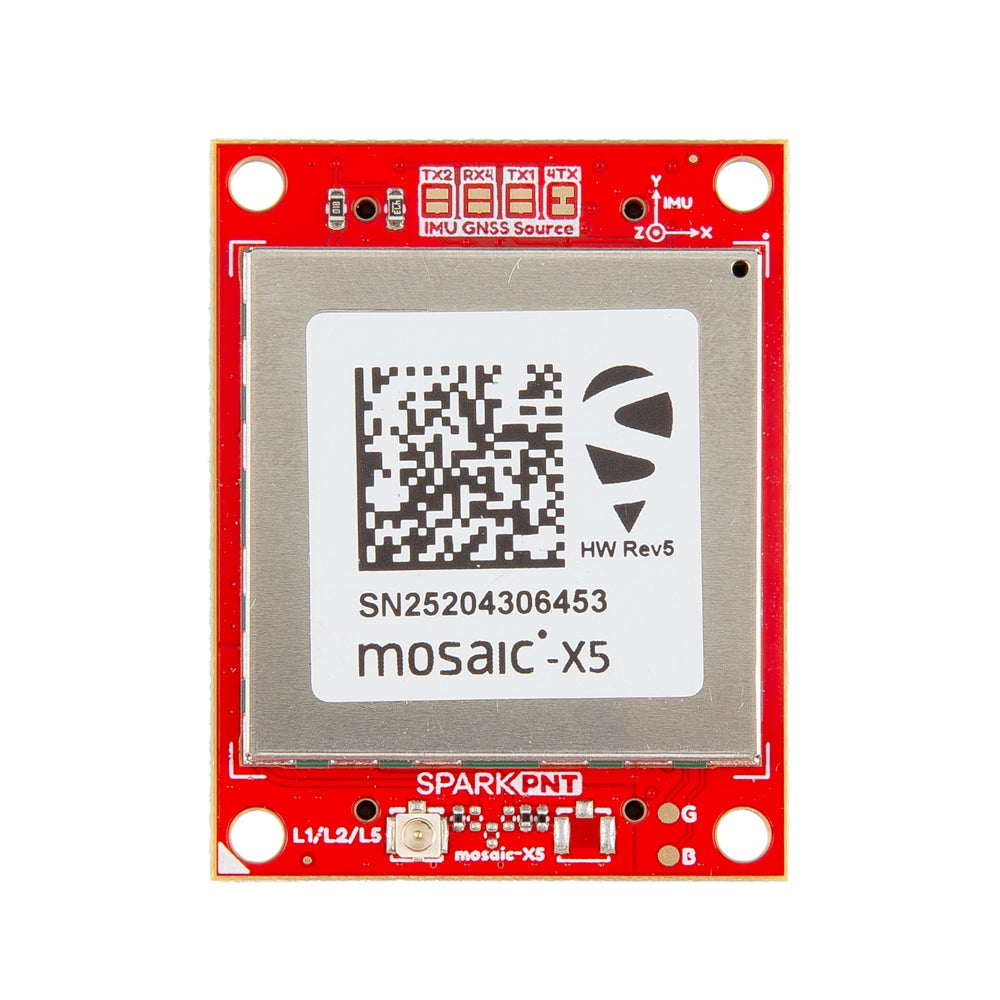

mosaic-X5 and IM19 GNSS Flex Module:

Septentrio mosaic-X5 GNSS Receiver
- GNSS Constellations:
  - GPS (USA)
  - GLONASS (Russia)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WAAS (USA)
  - SDCM (Russia)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
IM19 Inertial Measurement Unit
Two 2x20-pin, 2mm-pitch male headers
- 40-pin socket for GNSS Flex system
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB (x1)
  - UART (x4)
  - SD card
  - PPS signal (x1)
  - LED indicators (x2)
  - Event indicators (x2)
U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
Header spacing: 36.0mm

Flex Module Interfaces:

USB: mosaic-X5 only (D+ and D-)
SD Card: mosaic-X5 only (CMD, CLK, and DATA)
Flex COM1: mosaic-X5 UART1
Flex COM2: mosaic-X5 UART2
Flex COM3: IM19 UART1 (TX and RX only)
Flex COM4: IM19 UART2 (TX and RX only)
PPS1: mosaic-X5 PPS
PPS2: N/C
EVENTA: mosaic-X5 EVENTA
EVENTB: mosaic-X5 EVENTB
RTK LED: mosaic-X5 GP_LED2
PVT LED: mosaic-X5 GP_LED

mosaic-X5 General Features:

Voltage Range: 3.135 to 3.465V
- Max current: 500mA
RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
Channels: 448 (simultaneous tracking)
GNSS Frequency Bands:
- GPS: L1 C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3CSMA
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- QZSS: L1 C/A, L1 C/B, L5, L2C
- NavIC: L5
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5)
- L-band PPP
Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
Timing Precision: 5ns
Update Rate: 100Hz
Latency: < 10ms
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
Interfaces:
- UART (x4)
- Ethernet
- USB device (2.0, HS)
- SDIO (mass storage)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out

IM19 General Features:

Operating Range:
- Accelerometer: ±8g
- Gyroscope: ±1000°/s -Accuracy:
- Accelerometer Bias: ±5mg
- Gyroscope Bias Accuracy: ±0.2°/s
  - Roll/Pitch: ±0.025° (1σ)
  - Heading: ±0.25° (1σ)
- RTK: + 0.3mm/tilt°, with 200cm straight pole (1σ)
- Auto Steering Yaw: 0.25° (1σ)
Initialization: ~1s
Footprint: 14.8mm x 18.4mm

Shipping Restrictions

This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:

Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.

This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.

Features & Specs

GNSS Flex pHAT:

40-pin socket for Raspberry Pi header
40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB data
  - UART (x4)
  - SD card
  - I²C bus
  - PPS signal (x2)
  - LED indicators (x2)
  - Event indicators (x2)
USB-C connector
- Interfaces directly w/ GNSS Flex Module
Antenna bridge
- U.FL connector
- SMA connector
µSD card socket
Qwiic connector
Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I²C pull-up resistors (x4)

mosaic-X5 and IM19 GNSS Flex Module:

Septentrio mosaic-X5 GNSS Receiver
- GNSS Constellations:
  - GPS (USA)
  - GLONASS (Russia)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WAAS (USA)
  - SDCM (Russia)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
IM19 Inertial Measurement Unit
Two 2x20-pin, 2mm-pitch male headers
- 40-pin socket for GNSS Flex system
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB (x1)
  - UART (x4)
  - SD card
  - PPS signal (x1)
  - LED indicators (x2)
  - Event indicators (x2)
U.FL Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
Dimensions: 44.0mm x 34.0mm (Approx. 1.73" x 1.34")
Four mounting holes:
- 4-40 screw compatible
- Hole centers: 39.0mm x 29.0mm
Header spacing: 36.0mm

Flex Module Interfaces:

USB: mosaic-X5 only (D+ and D-)
SD Card: mosaic-X5 only (CMD, CLK, and DATA)
Flex COM1: mosaic-X5 UART1
Flex COM2: mosaic-X5 UART2
Flex COM3: IM19 UART1 (TX and RX only)
Flex COM4: IM19 UART2 (TX and RX only)
PPS1: mosaic-X5 PPS
PPS2: N/C
EVENTA: mosaic-X5 EVENTA
EVENTB: mosaic-X5 EVENTB
RTK LED: mosaic-X5 GP_LED2
PVT LED: mosaic-X5 GP_LED

mosaic-X5 General Features:

Voltage Range: 3.135 to 3.465V
- Max current: 500mA
RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
Channels: 448 (simultaneous tracking)
GNSS Frequency Bands:
- GPS: L1 C/A, L1PY, L2C, L2P, L5
- GLONASS: L1CA, L2CA, L2P, L3CSMA
- Galileo: E1, E5a, E5b, E5 AltBoc, E6
- Beidou: B1I, B1C, B2a, B2b, B2I, B3
- QZSS: L1 C/A, L1 C/B, L5, L2C
- NavIC: L5
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5)
- L-band PPP
Time to Fix
- Cold Start: < 45s
- Warm: < 20s
- Reacquisition: 1s
Timing Precision: 5ns
Update Rate: 100Hz
Latency: < 10ms
VANT Voltage Range: 3.0 to 5.0V
- Max current: 150mA
Interfaces:
- UART (x4)
- Ethernet
- USB device (2.0, HS)
- SDIO (mass storage)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out

IM19 General Features:

Operating Range:
- Accelerometer: ±8g
- Gyroscope: ±1000°/s -Accuracy:
- Accelerometer Bias: ±5mg
- Gyroscope Bias Accuracy: ±0.2°/s
  - Roll/Pitch: ±0.025° (1σ)
  - Heading: ±0.25° (1σ)
- RTK: + 0.3mm/tilt°, with 200cm straight pole (1σ)
- Auto Steering Yaw: 0.25° (1σ)
Initialization: ~1s
Footprint: 14.8mm x 18.4mm

Shipping Restrictions

This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.

Documentation

Design Files
- GNSS Flex pHAT
- mosaic-X5 Flex Module
Hookup Guide
- Software: RxTools
- Correction Service: Agnostic Corrections
Component Datasheets:
Building a GNSS System
Qwiic Info Page
GitHub Hardware Repositories:
- GNSS Flex pHAT
- GNSS Flex Modules

WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov

Quantity	Price
2	₹ 107873.5
3-5	₹ 106772.75
5-10	₹ 104571.25
10+	₹ 102369.75

Bulk discount will be automatically applied during checkout based on quantity.
