Description

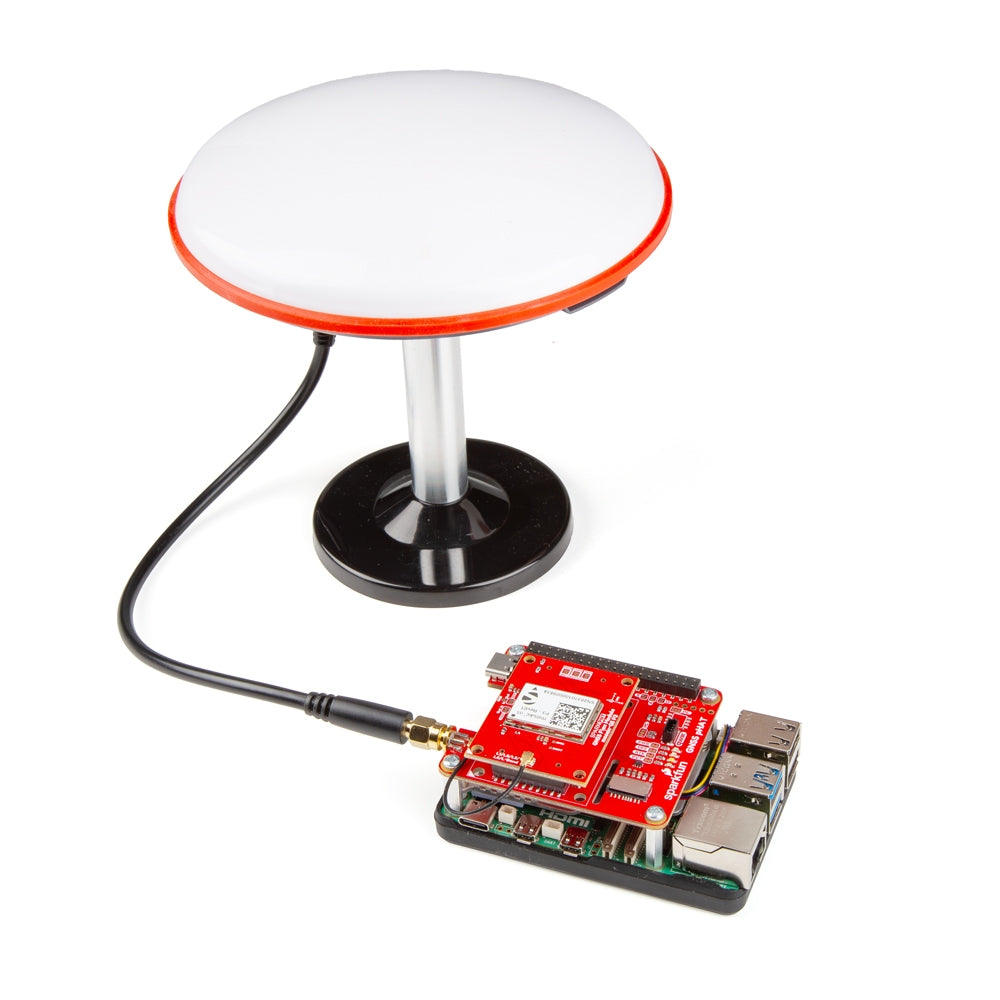

Equip your Raspberry Pi with survey-grade, millimeter-level RTK accuracy with this ultra-low-power pHAT featuring the Septentrio mosaic-G5.
Features & Specs

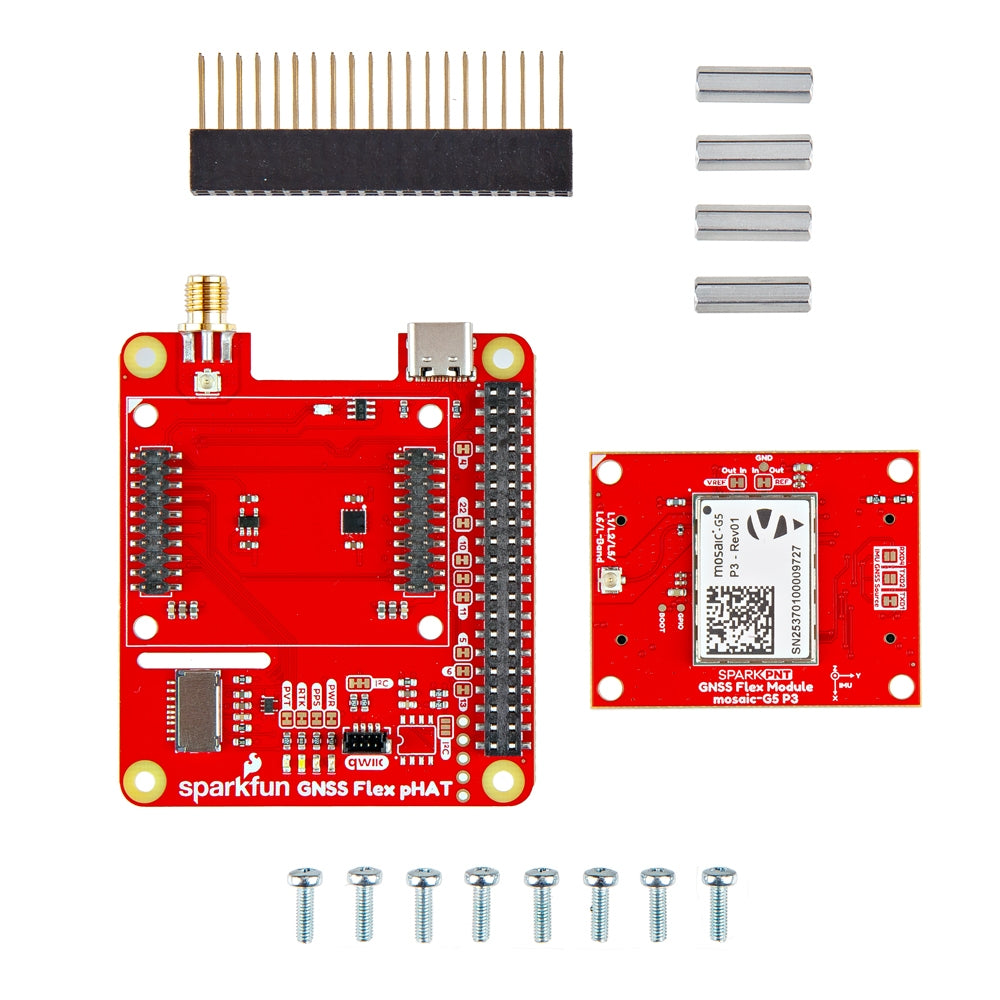

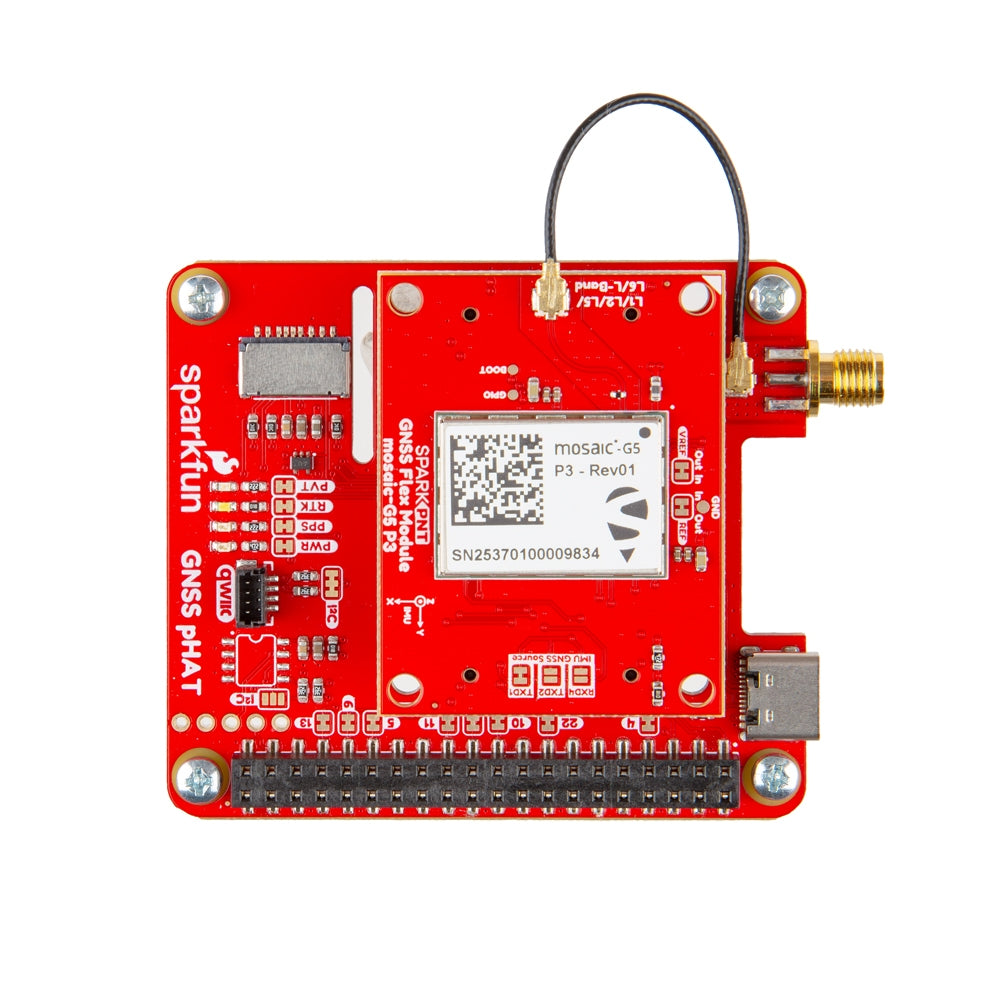

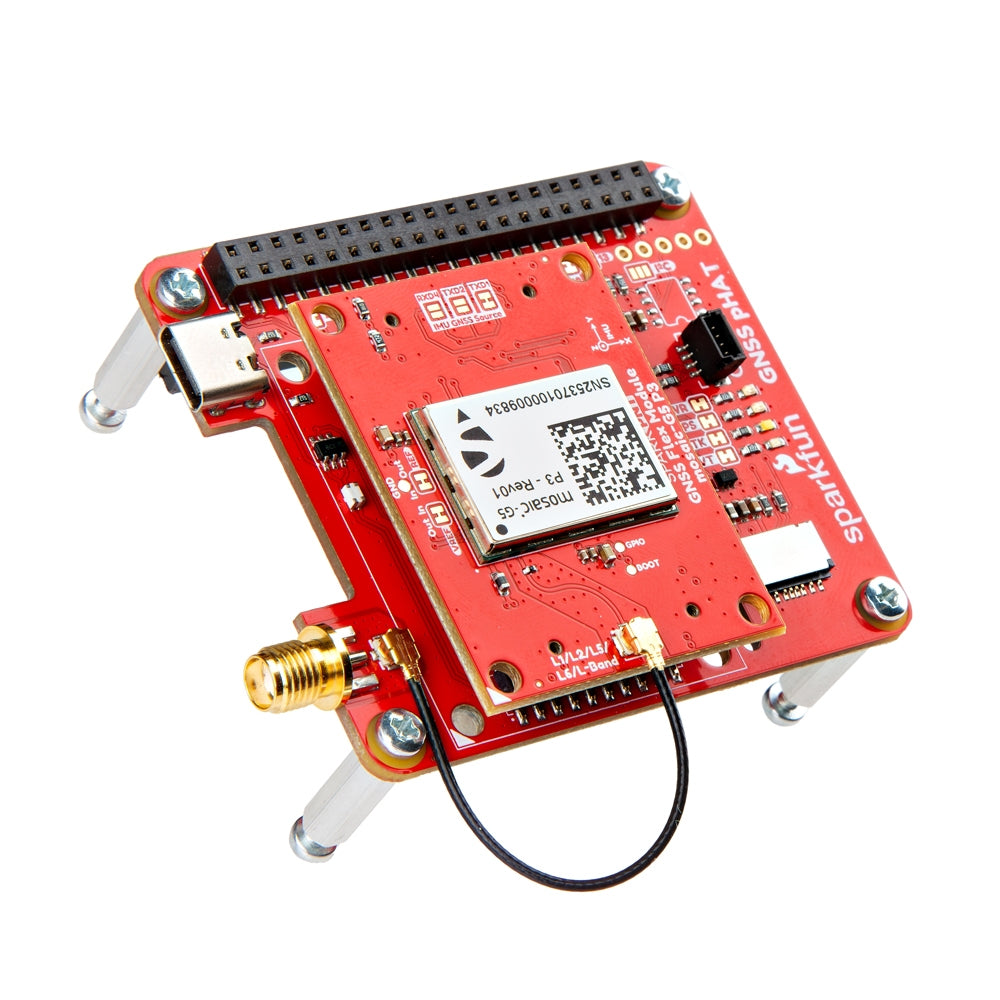

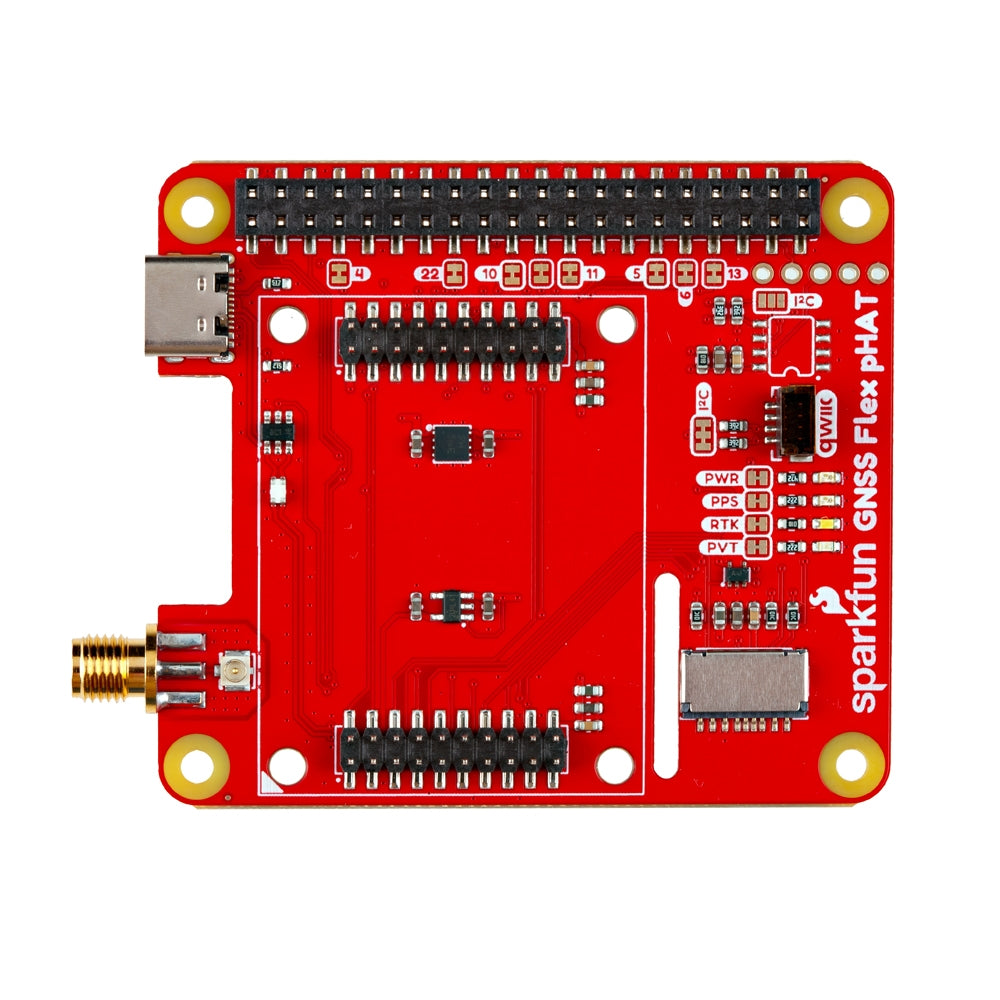

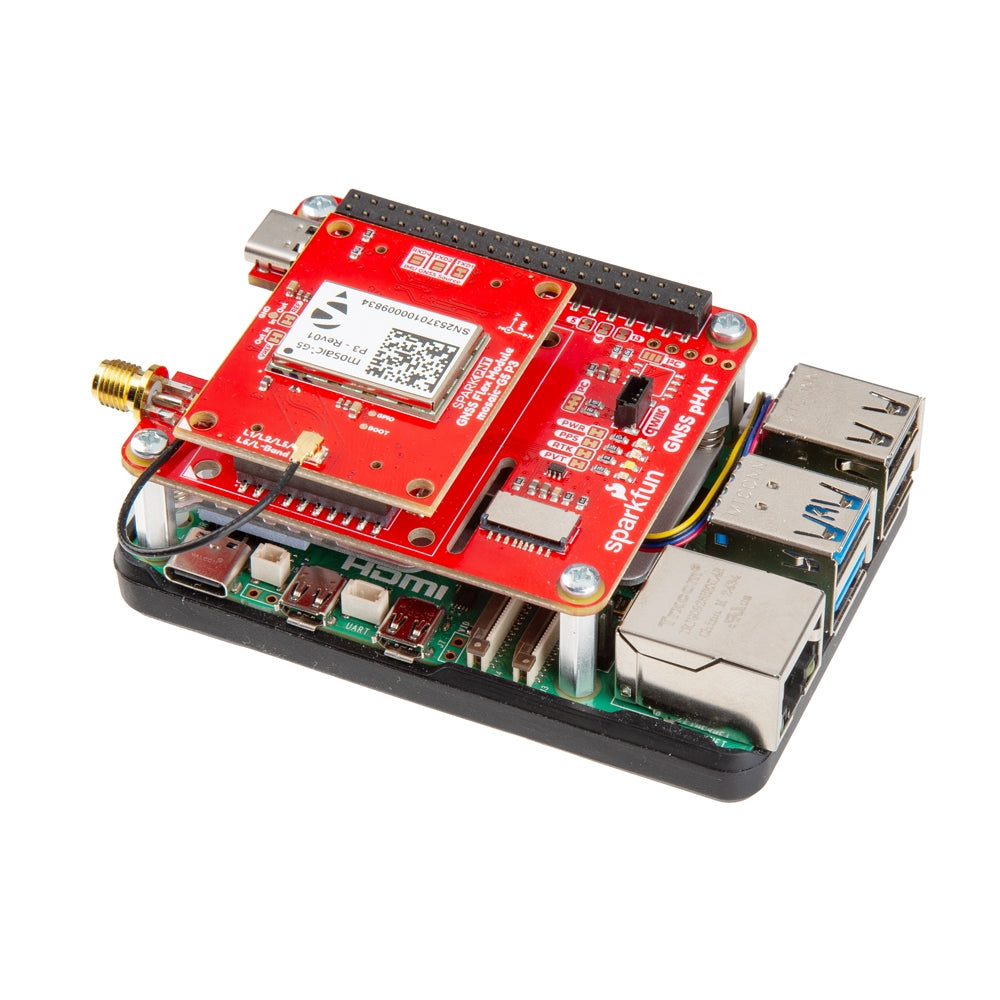

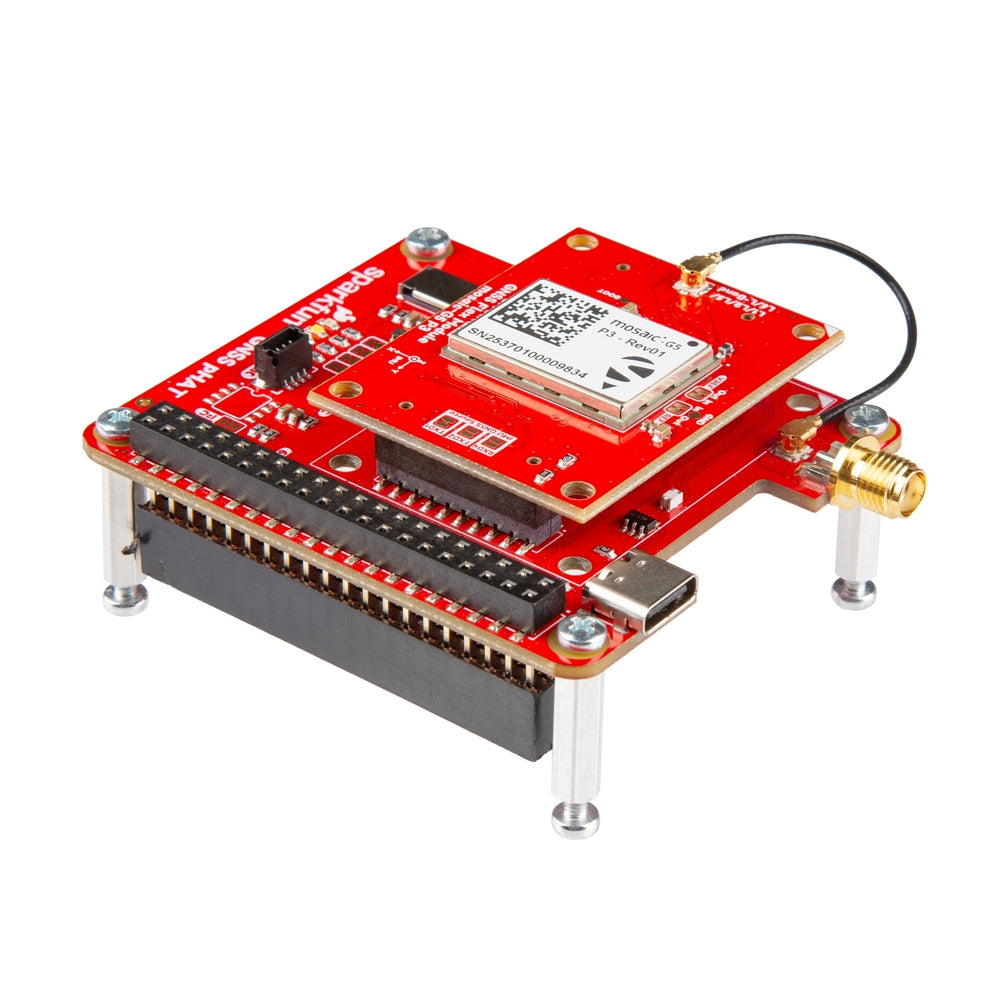

GNSS Flex pHAT:
- 40-pin socket for Raspberry Pi header
- 40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- Two 2x20-pin, 2mm-pitch male headers
- USB-C connector
- Interfaces directly w/ GNSS Flex Module
- Antenna bridge
- U.FL connector
- SMA connector
- µSD card socket
- Qwiic connector
- Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
- Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I2C pull-up resistors (x4)

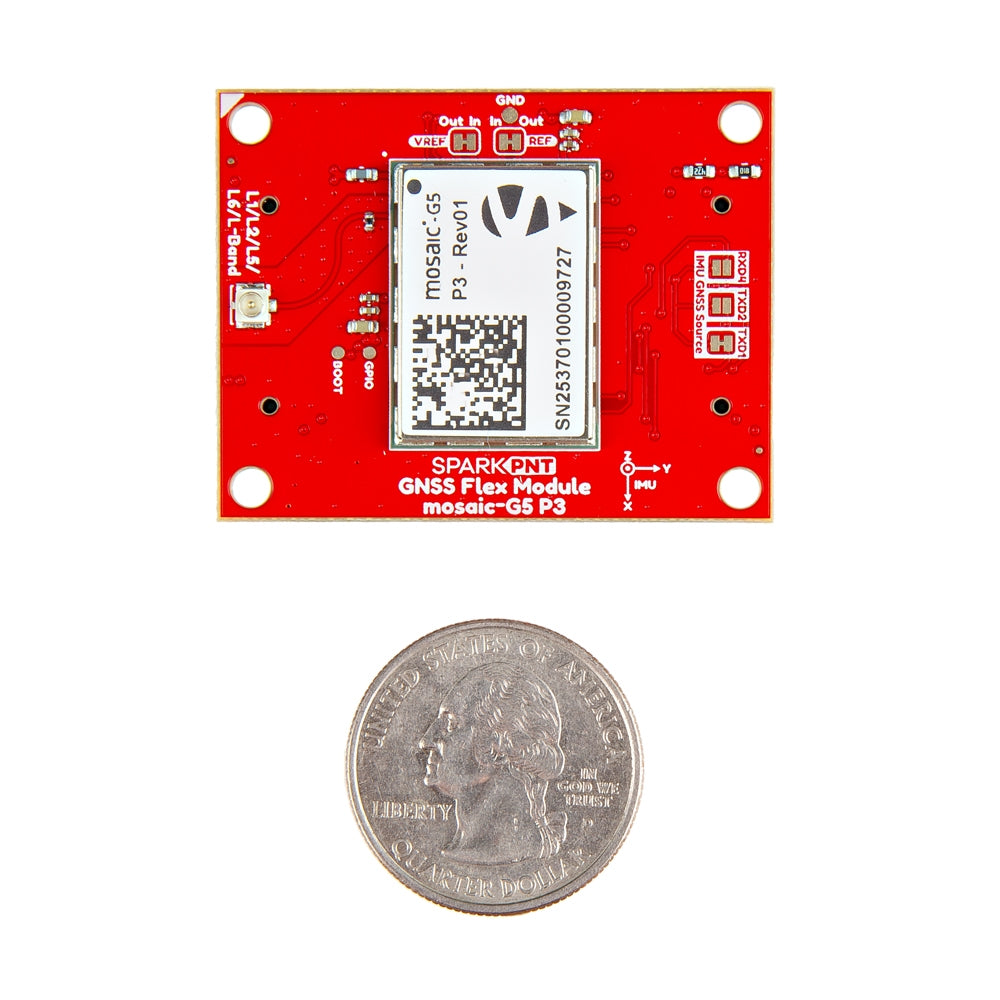

mosaic-G5 P3 GNSS Flex Module:
- mosaic-G5 P3 GNSS Receiver
- Two 2x20-pin, 2mm-pitch male headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB device (2.0, HS)
- UART (x2)
- PPS signals (x2)
- Event marker inputs (x2)
- GPIO pins (x2)
- Power
- 40-pin socket for GNSS Flex system
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
mosaic-G5 P3 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Typical power consumption: 0.44W
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 789 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS: L1C/A, L1C, L2C, L2PY, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3I
- Galileo: E1, E5a, E5b, E6
- QZSS: L1C/A, L1 C/B, L2C, L5, L6
- Time to Fix
- Cold Start: < 35s
- Warm: < 10s
- Reacquisition: 1s
- Event Accuracy: < 3ns
- Update Rate: 20Hz
- Latency: < 10ms
- VANT Voltage: 3.3VMax current: 150mA
- Interfaces:
- UART (x2)
- USB device (2.0, HS)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out (x2)
- Protocols:
- Septentrio Binary Format (SBF)
- NMEA 0183, v2.3, v3.03, V4.0
- RTCM v3.x (MSM included)
- Package Size: 16.4mm x 22.8mm x 2.4mm
- Weight: 2.2g
- Galileo High Accuracy Service (HAS) 1
- Galileo OSNMA
- Full raw measurement data (P3 only)
- 5 constellations RTK (rover)
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Features & Specs
GNSS Flex pHAT:
- 40-pin socket for Raspberry Pi header
- 40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- Two 2x20-pin, 2mm-pitch male headers
- USB-C connector
- Interfaces directly w/ GNSS Flex Module
- Antenna bridge
- U.FL connector
- SMA connector
- µSD card socket
- Qwiic connector
- Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
- Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I2C pull-up resistors (x4)
mosaic-G5 P3 GNSS Flex Module:
- mosaic-G5 P3 GNSS Receiver
- Two 2x20-pin, 2mm-pitch male headers
- 40-pin socket for GNSS Flex system
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB device (2.0, HS)
- UART (x2)
- PPS signals (x2)
- Event marker inputs (x2)
- GPIO pins (x2)
- Power
- 40-pin socket for GNSS Flex system
- U.FL Connector:
- GNSS Antenna (Active, Multi-band)
mosaic-G5 P3 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Typical power consumption: 0.44W
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 789 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS: L1C/A, L1C, L2C, L2PY, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3I
- Galileo: E1, E5a, E5b, E6
- QZSS: L1C/A, L1 C/B, L2C, L5, L6
- Time to Fix
- Cold Start: < 35s
- Warm: < 10s
- Reacquisition: 1s
- Event Accuracy: < 3ns
- Update Rate: 20Hz
- Latency: < 10ms
- VANT Voltage: 3.3VMax current: 150mA
- Interfaces:
- UART (x2)
- USB device (2.0, HS)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out (x2)
- Protocols:
- Septentrio Binary Format (SBF)
- NMEA 0183, v2.3, v3.03, V4.0
- RTCM v3.x (MSM included)
- Package Size: 16.4mm x 22.8mm x 2.4mm
- Weight: 2.2g
- Galileo High Accuracy Service (HAS) 1
- Galileo OSNMA
- Full raw measurement data (P3 only)
- 5 constellations RTK (rover)
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
