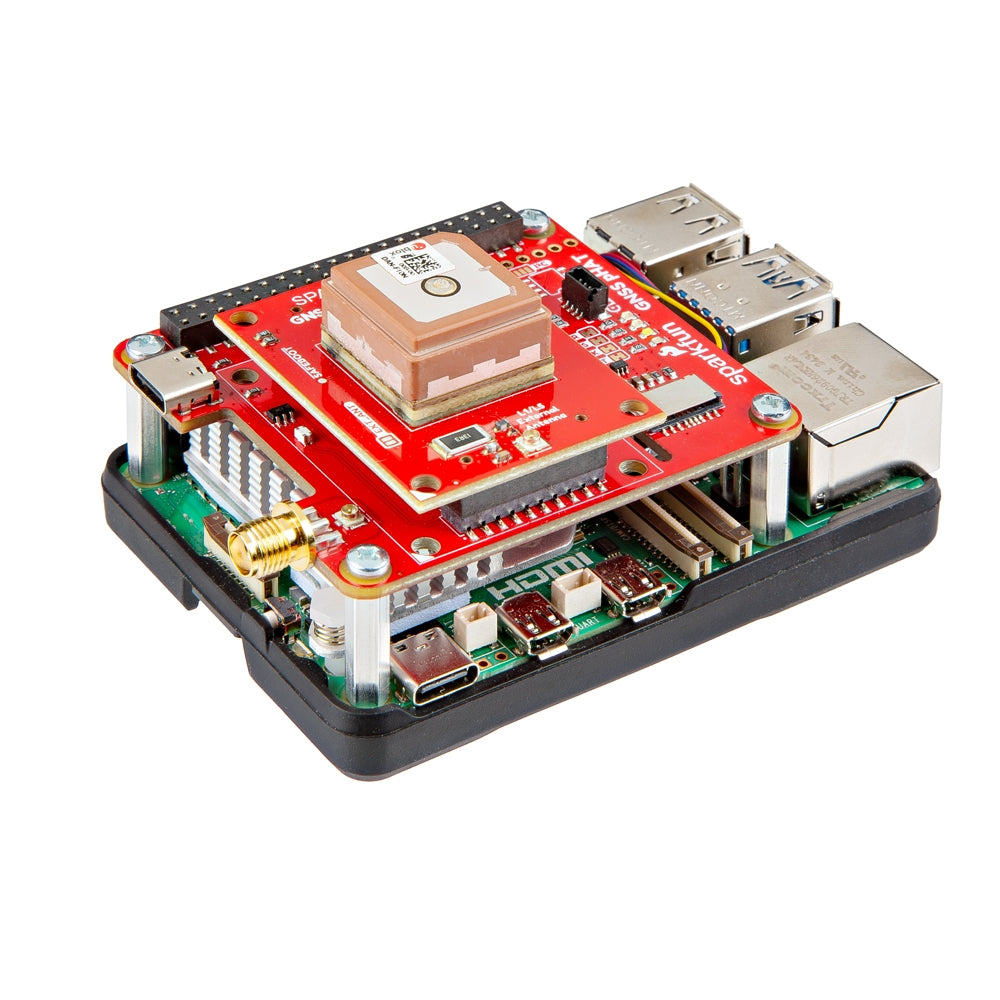

SparkFun GNSS Flex pHAT - DAN-F10N


	₹ 10495.0 includes GST and import duties.
	B2B customers can avail ₹ 1600.49 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	sparkfun
SKU:	7447053434965
MPN:	GPS-29491

Share this product

Features & Specs

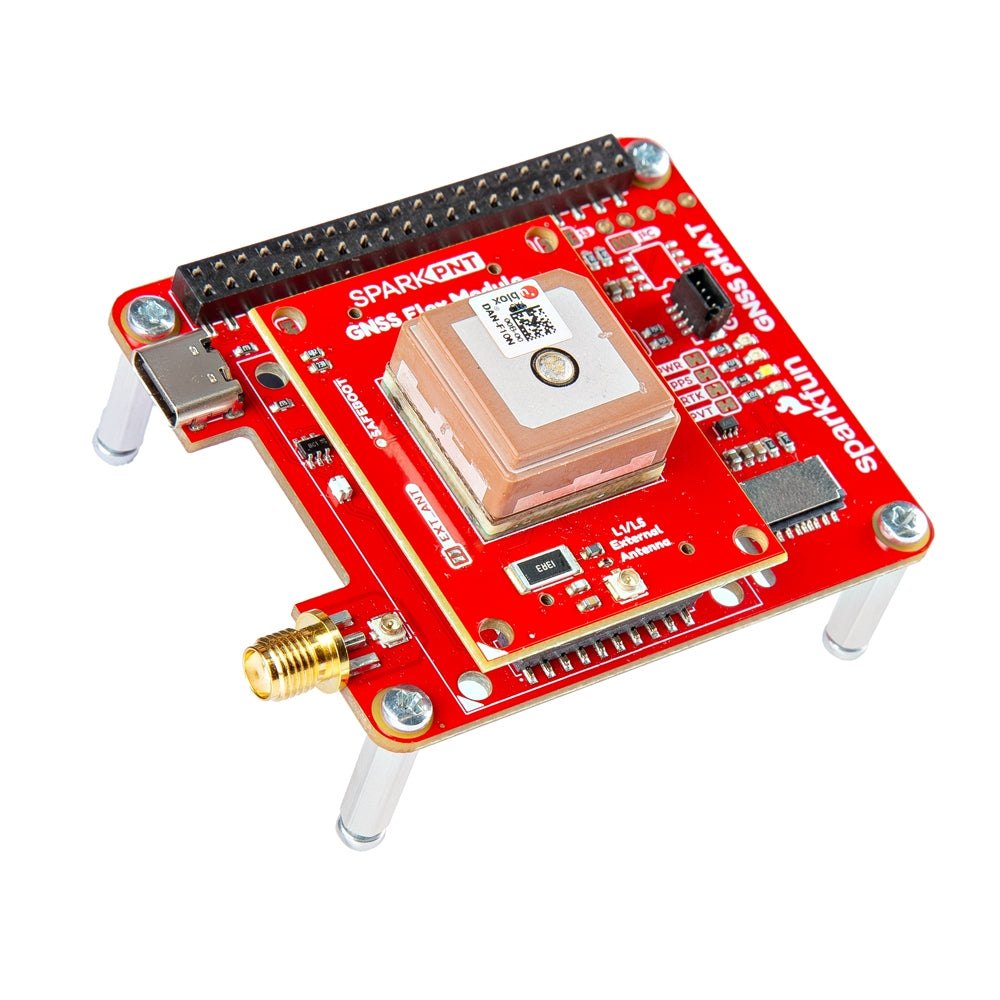

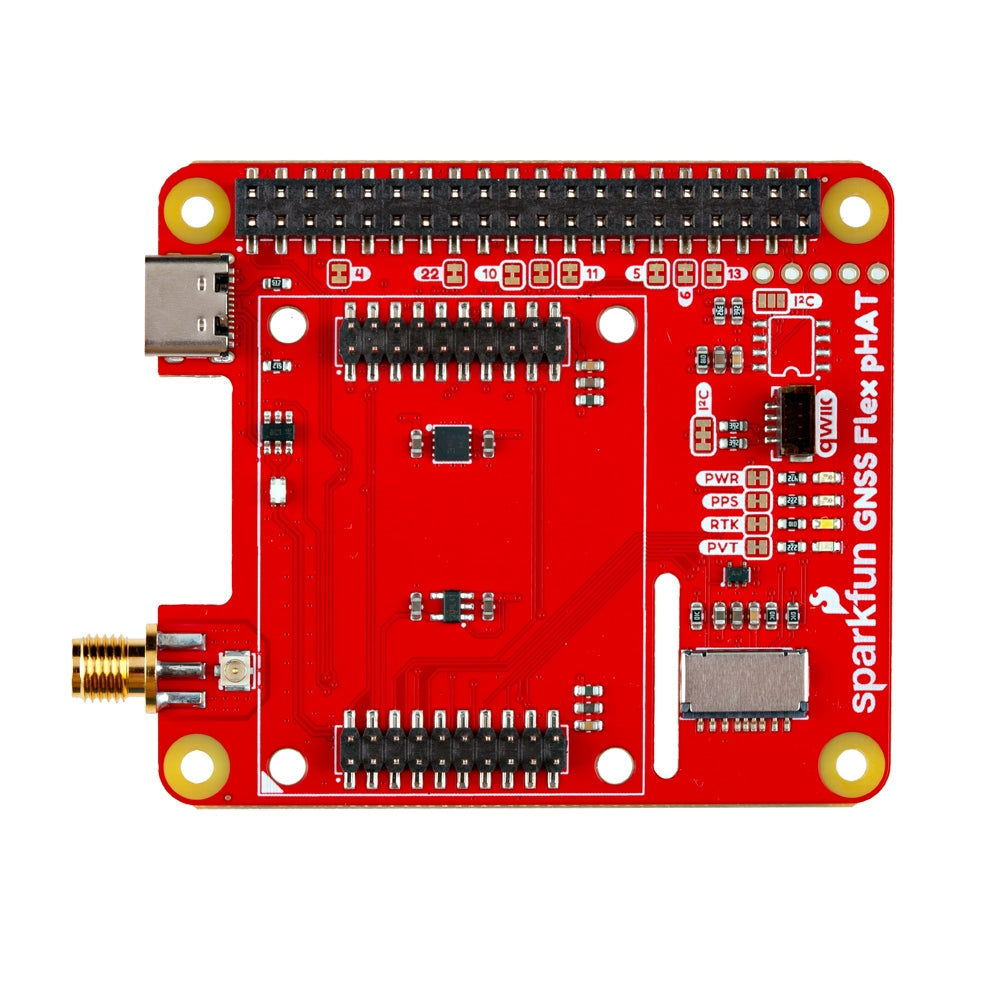

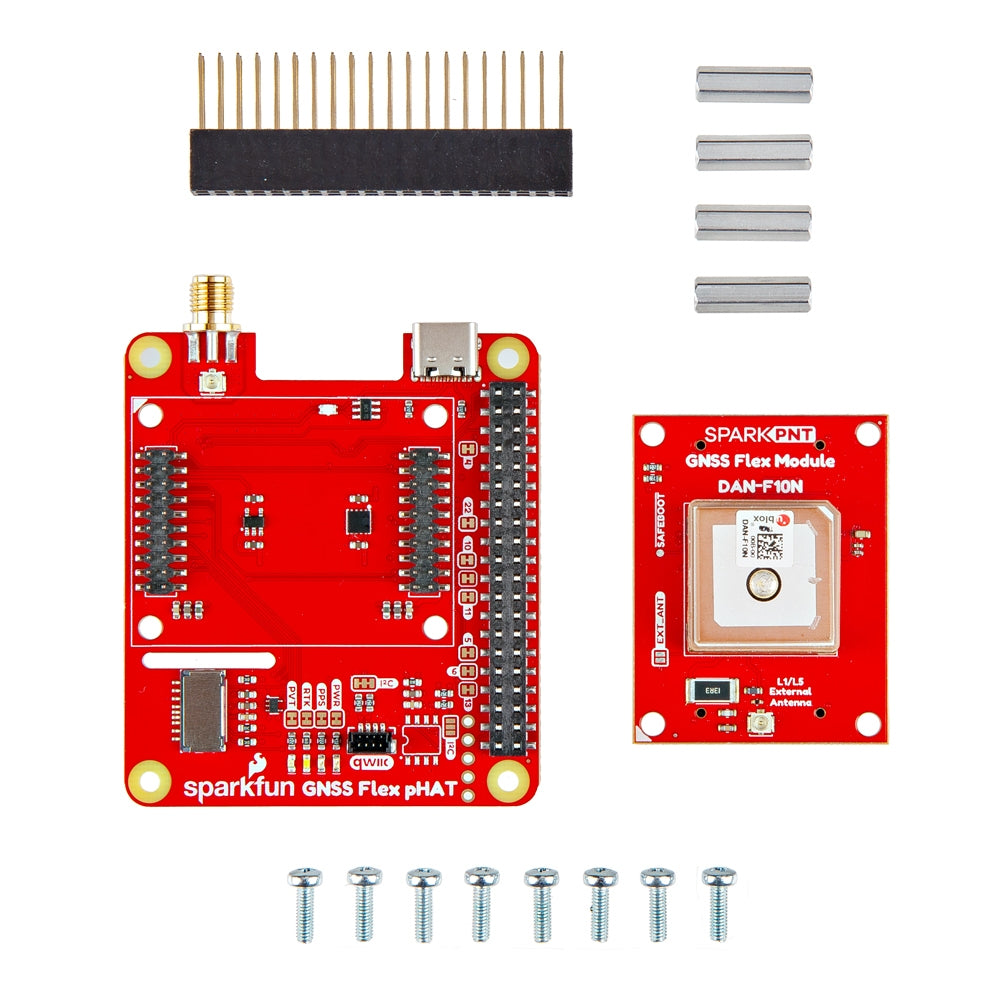

GNSS Flex pHAT:

40-pin socket for Raspberry Pi header
40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB data
  - UART (x4)
  - SD card
  - I²C bus
  - PPS signal (x2)
  - LED indicators (x2)
  - Event indicators (x2)
USB-C connector
- Interfaces directly w/ GNSS Flex Module
Antenna bridge
- U.FL connector
- SMA connector
µSD card socket
Qwiic connector
Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I²C pull-up resistors (x4)

Flex Module Interfaces:

I²C: N/C
Flex COM1: DAN-F10N UART (TX and RX only)
Flex COM2: N/C
Flex COM3: N/C
Flex COM4: N/C
PPS1: DAN-F10N TIMEPULSE
PPS2: N/C
EVENTA: DAN-F10N EXTINT
EVENTB: N/C
RTK LED: N/C
PVT LED: N/C

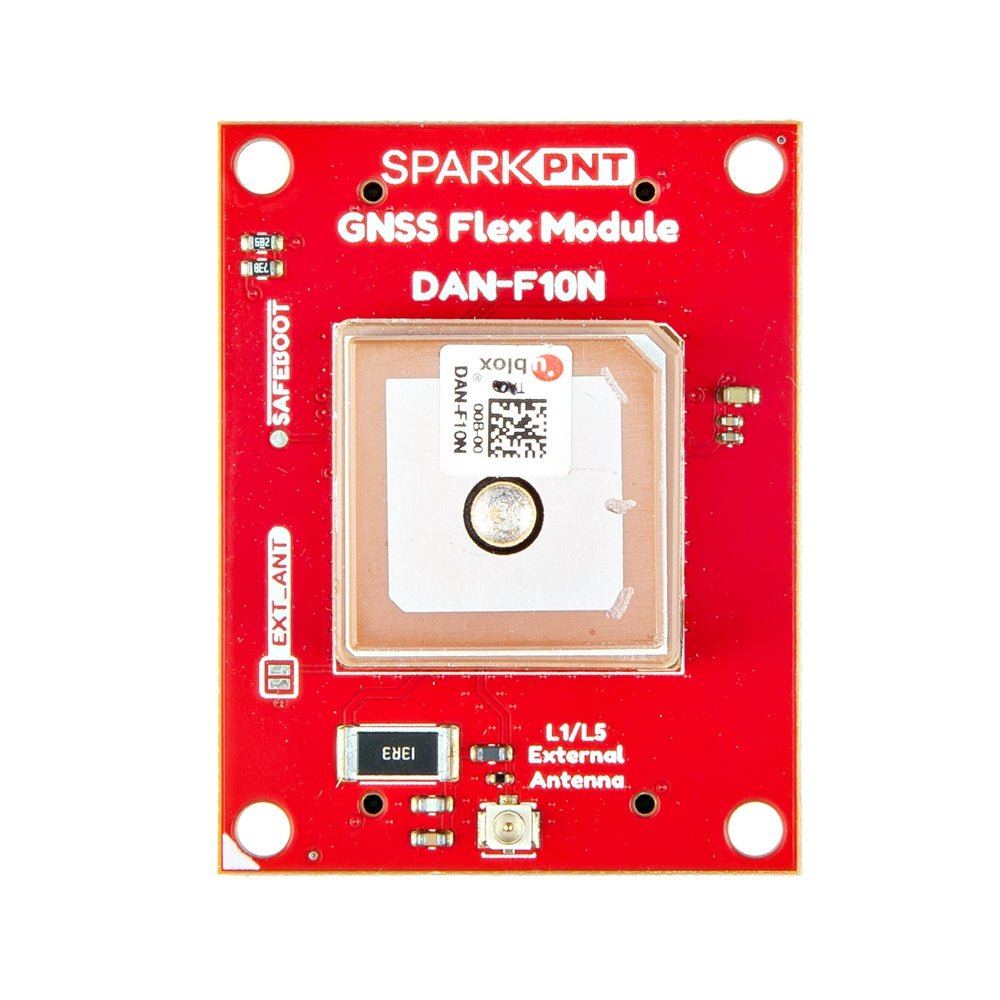

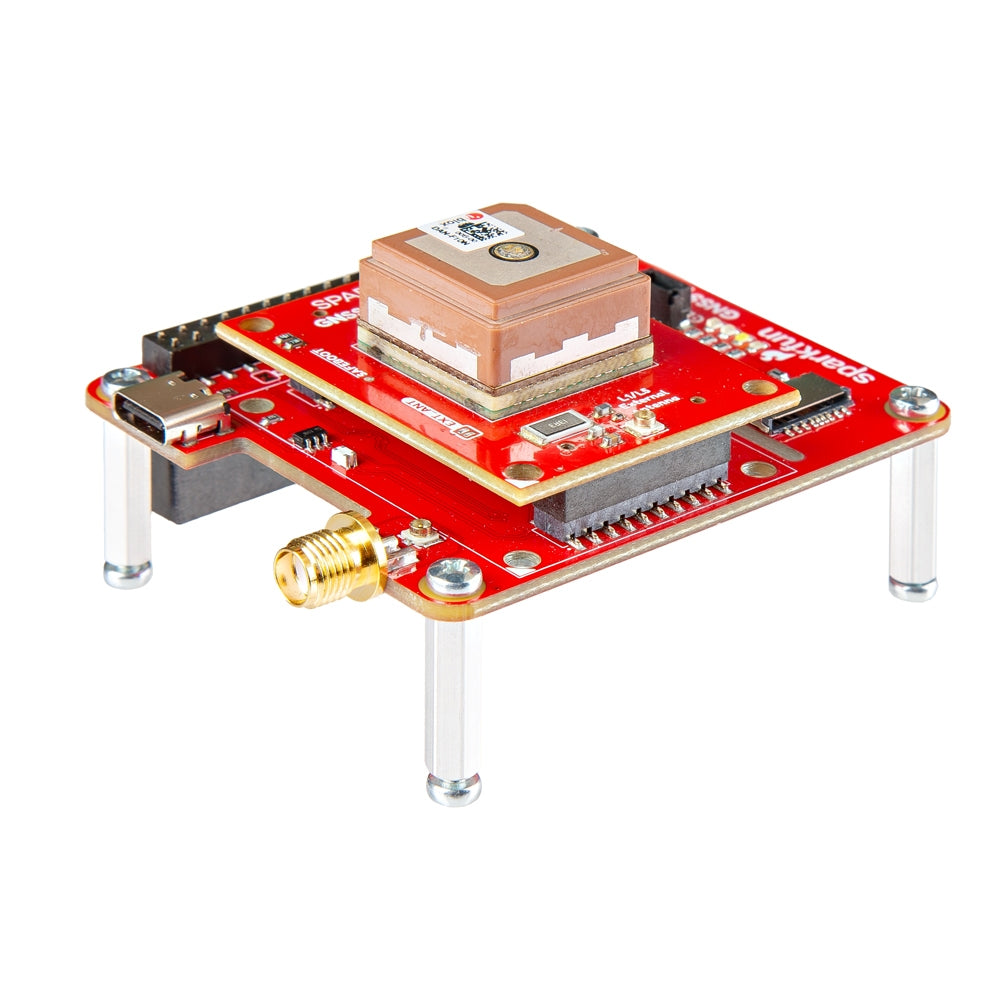

DAN-F10N GNSS Flex Module:

u-blox DAN-F10N GNSS module
- GNSS Constellations:
  - GPS (USA)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WAAS (USA)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
  - KASS (Korea)
  - SouthPAN (Australian + New Zealand)
Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - UART
  - PPS signal (x1)
  - Event indicators (x1)
U.FL Connector:
- GNSS Antenna (optional, L1/L5 dual-band)
Dimensions: 34.0 x 44.0mm
Weight: 23.85g

DAN-F10N General Features

GNSS receiver
- u-blox F10 engine
- GPS: L1 C/A, L5
- QZSS: L1C/A, L5
- Galileo: E1B/C, E5a
- BeiDou: B1C, B2a
- NavIC: L5
- SBAS: L1 C/A, L1S, L1Sb, B1C
Sensitivity
- Tracking & Navigation: -164dBm
- Reacquisition: -156dBm
- Cold start: -145dBm
- Hot start: -156dBm
Update rate: Up to 10Hz
Horizontal position accuracy
- 1.0m CEP (with SBAS)
- 1.5m CEP (without SBAS)
Acquisition
- Cold start: 28s
- Aided start: 2s
- Reacquisition: 2s
Interfaces
- 1x UART
- Digital I/O
  - Configurable timepulse (0.25Hz to 10MHz)
  - EXTINT input for wakeup
- JTAG debug interface (disabled by default)
Communication protocol
- NMEA: 2.1, 2.3, 4.0, 4.10, 4.11 (default)
- UBX binary
- RTCM v3.4
- SPARTN v2.0.2
Security
- RF interference and jamming detection/reporting
- Spoofing detection/reporting
- Secure boot for firmware integrity
- Signed UBX messages (SHA-256
Misc
- Antenna switch function
  - Supports external active antenna (optional)
- Integrated RTC crystal and TCXO
Power
- Power supply: 2.7V to 3.6V
- Backup supply: 1.65V to 3.6V
- Power consumption: 63 mW (continuous tracking, 3V)
Temperature range: -40°C to +85°C
Package
- 56-pin LCC package
- 20 x 20 x 11.6mm
- 17.5g

Features & Specs

GNSS Flex pHAT:

40-pin socket for Raspberry Pi header
40-pin header for GNSS Flex modules
- Two 2x20-pin, 2mm-pitch male headers
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - USB data
  - UART (x4)
  - SD card
  - I²C bus
  - PPS signal (x2)
  - LED indicators (x2)
  - Event indicators (x2)
USB-C connector
- Interfaces directly w/ GNSS Flex Module
Antenna bridge
- U.FL connector
- SMA connector
µSD card socket
Qwiic connector
Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
Twenty-four jumpers
- Raspberry Pi GPIO isolation (x16)
- LED power isolation (x4)
- I²C pull-up resistors (x4)

Flex Module Interfaces:

I²C: N/C
Flex COM1: DAN-F10N UART (TX and RX only)
Flex COM2: N/C
Flex COM3: N/C
Flex COM4: N/C
PPS1: DAN-F10N TIMEPULSE
PPS2: N/C
EVENTA: DAN-F10N EXTINT
EVENTB: N/C
RTK LED: N/C
PVT LED: N/C

DAN-F10N GNSS Flex Module:

u-blox DAN-F10N GNSS module
- GNSS Constellations:
  - GPS (USA)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WAAS (USA)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
  - KASS (Korea)
  - SouthPAN (Australian + New Zealand)
Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
  - Power
    - 3.3V
    - Backup power
    - USB bus detect (not a power source)
  - UART
  - PPS signal (x1)
  - Event indicators (x1)
U.FL Connector:
- GNSS Antenna (optional, L1/L5 dual-band)
Dimensions: 34.0 x 44.0mm
Weight: 23.85g

DAN-F10N General Features

GNSS receiver
- u-blox F10 engine
- GPS: L1 C/A, L5
- QZSS: L1C/A, L5
- Galileo: E1B/C, E5a
- BeiDou: B1C, B2a
- NavIC: L5
- SBAS: L1 C/A, L1S, L1Sb, B1C
Sensitivity
- Tracking & Navigation: -164dBm
- Reacquisition: -156dBm
- Cold start: -145dBm
- Hot start: -156dBm
Update rate: Up to 10Hz
Horizontal position accuracy
- 1.0m CEP (with SBAS)
- 1.5m CEP (without SBAS)
Acquisition
- Cold start: 28s
- Aided start: 2s
- Reacquisition: 2s
Interfaces
- 1x UART
- Digital I/O
  - Configurable timepulse (0.25Hz to 10MHz)
  - EXTINT input for wakeup
- JTAG debug interface (disabled by default)
Communication protocol
- NMEA: 2.1, 2.3, 4.0, 4.10, 4.11 (default)
- UBX binary
- RTCM v3.4
- SPARTN v2.0.2
Security
- RF interference and jamming detection/reporting
- Spoofing detection/reporting
- Secure boot for firmware integrity
- Signed UBX messages (SHA-256
Misc
- Antenna switch function
  - Supports external active antenna (optional)
- Integrated RTC crystal and TCXO
Power
- Power supply: 2.7V to 3.6V
- Backup supply: 1.65V to 3.6V
- Power consumption: 63 mW (continuous tracking, 3V)
Temperature range: -40°C to +85°C
Package
- 56-pin LCC package
- 20 x 20 x 11.6mm
- 17.5g

Documentation

Design Files
- GNSS Flex pHAT
- DAN-F10N Flex Module
Hookup Guide
- u-center 2 Software
Component Documentation
Building a GNSS System
Qwiic Info Page
GitHub Hardware Repositories:
- GNSS Flex pHAT
- GNSS Flex Modules
