Description

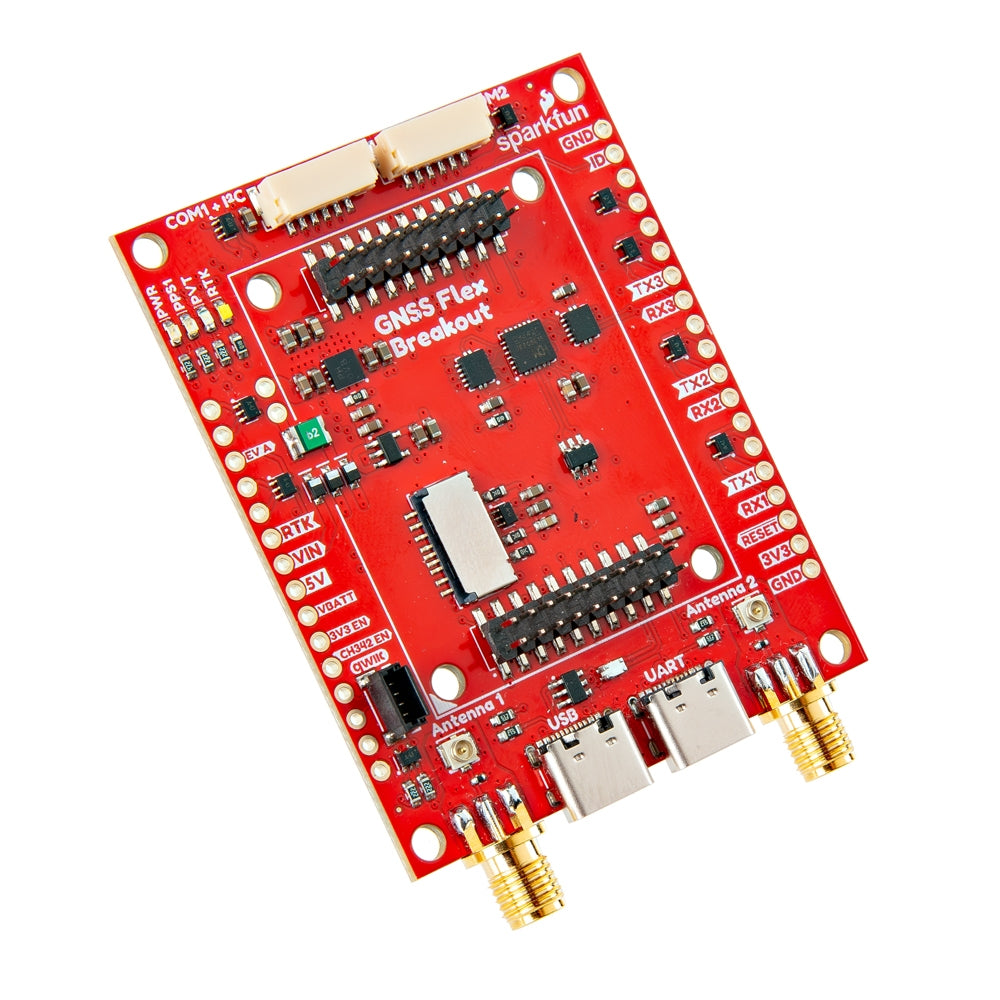

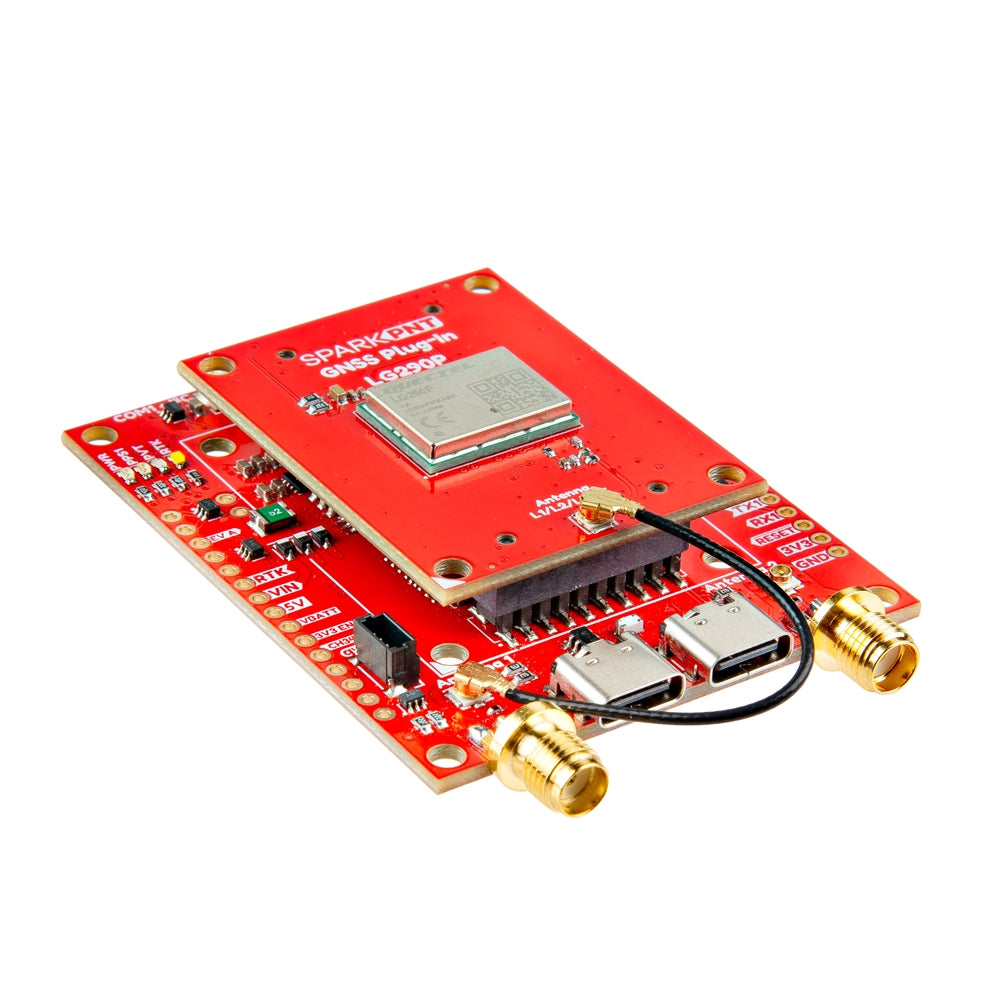

The essential development carrier for the GNSS Flex system, providing full I/O breakout, a dual-UART to USB bridge, and Pixhawk-compatible connectors for easy integration.
Features & Specs

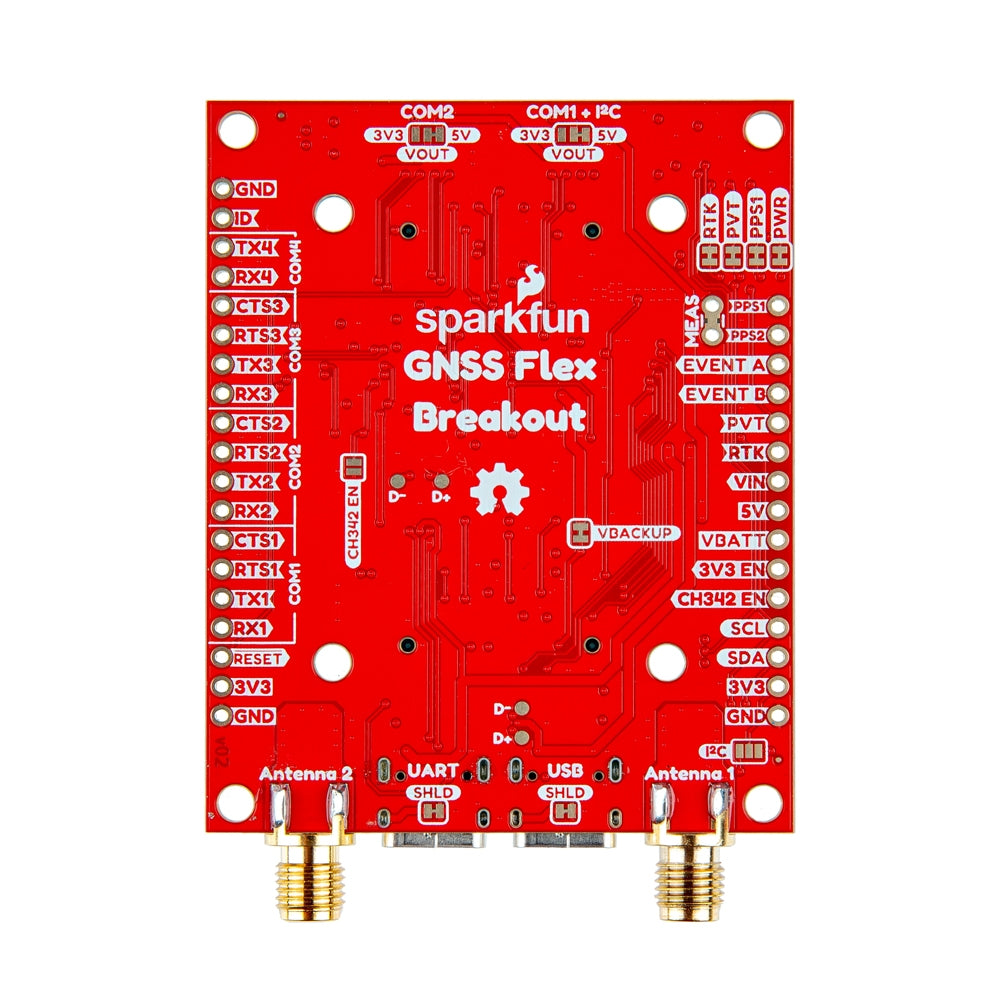

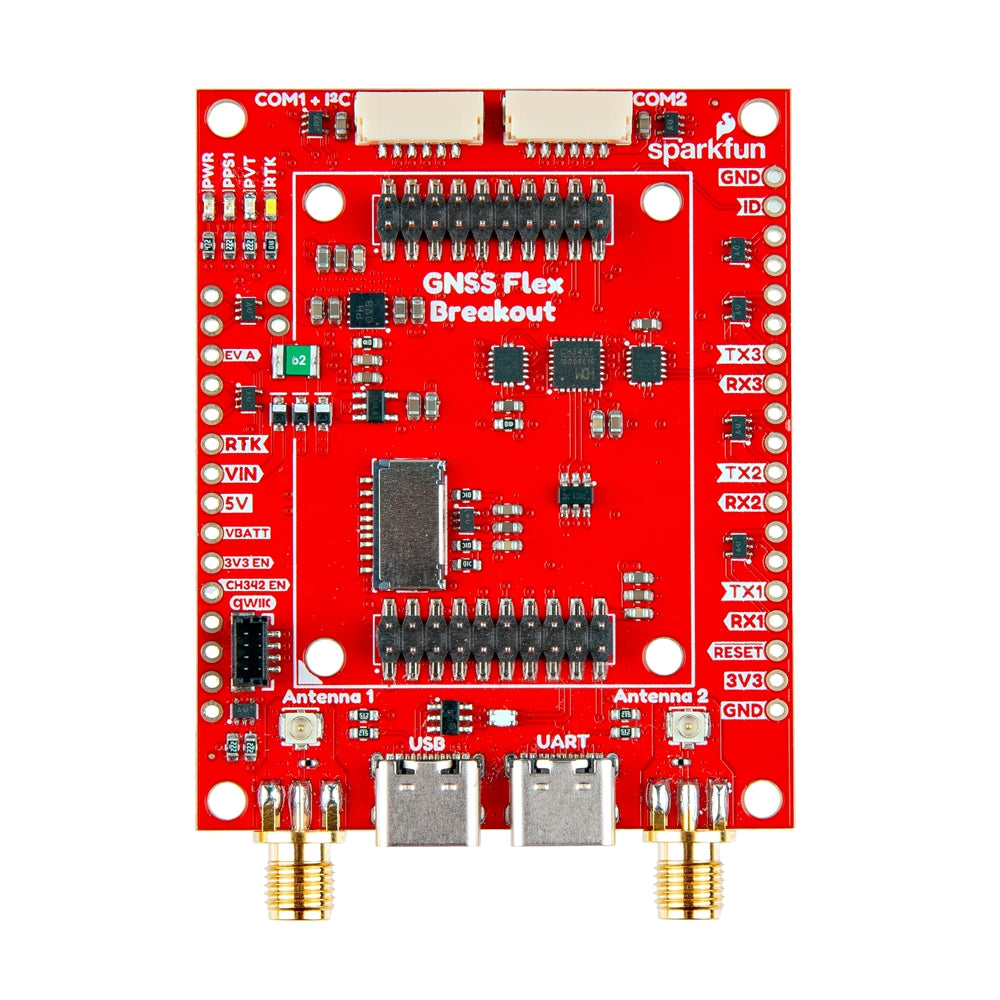

GNSS Flex Breakout:

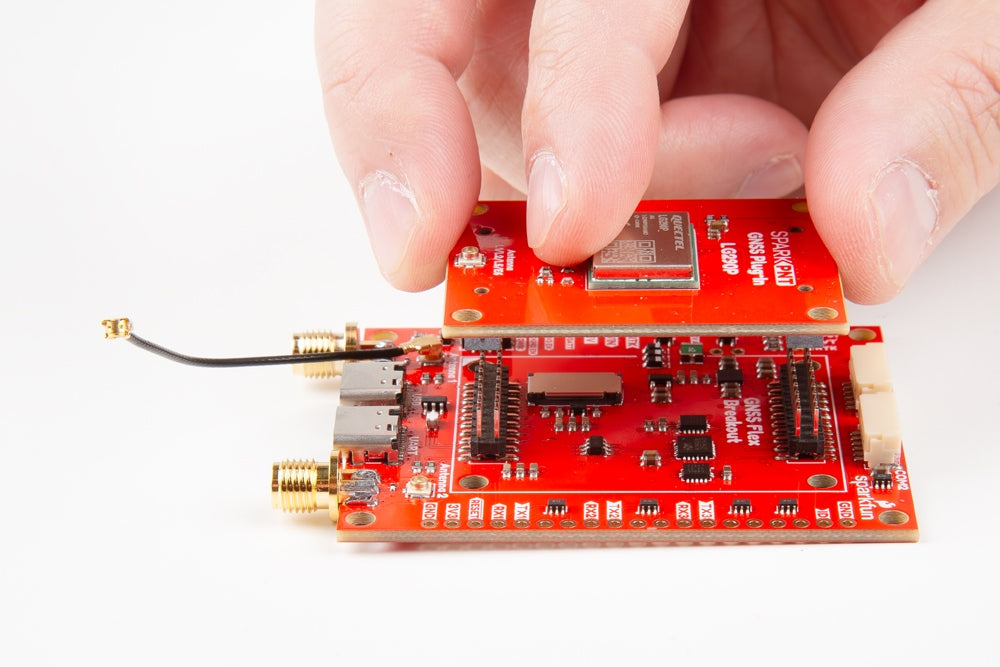

- 40-pin header for GNSS Flex modules
- Two 2x10-pin, 2mm-pitch male headers
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- Two 2x10-pin, 2mm-pitch male headers
-
USB USB-C connector
- Provides a direct pass-through connection to the attached module's native USB interface (requires a USB-capable GNSS module)
- 5V power input
-
UART USB-C connector
- Interfaces to UART1 and UART2 on the GNSS Flex Module via a CH342 interface
- 5V power input
- JST connectors (x2)
- Provides access to UART1 (TX & RX) plus I2C - for connection to a Pixhawk flight controller

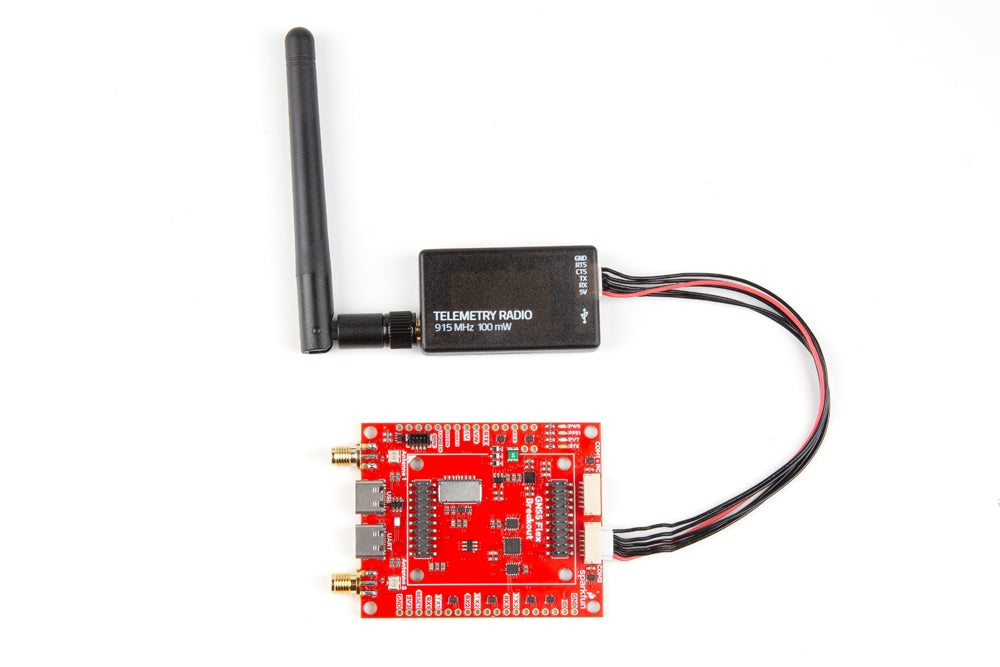

- Provides access to UART2 with handshaking - for connection to a telemetry radio
- 5V power output
- Optional 3.3V power output - configured via jumpers
- Optional 5V power input - when all other power sources are disconnected
- Antenna bridges (x2)
- u.FL connector
- SMA connector
- µSD card socket
- Qwiic connector
- Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
Features & Specs
GNSS Flex Breakout:
- 40-pin header for GNSS Flex modules
- Two 2x10-pin, 2mm-pitch male headers
- Power
- 3.3V
- Backup power
- USB bus detect (not a power source)
- USB data
- UART (x4)
- SD card
- I2C bus
- PPS signal (x2)
- LED indicators (x2)
- Event indicators (x2)
- Power
- Two 2x10-pin, 2mm-pitch male headers
-
USB USB-C connector
- Provides a direct pass-through connection to the attached module's native USB interface (requires a USB-capable GNSS module)
- 5V power input
-
UART USB-C connector
- Interfaces to UART1 and UART2 on the GNSS Flex Module via a CH342 interface
- 5V power input
- JST connectors (x2)
- Provides access to UART1 (TX & RX) plus I2C - for connection to a Pixhawk flight controller
- Provides access to UART2 with handshaking - for connection to a telemetry radio
- 5V power output
- Optional 3.3V power output - configured via jumpers
- Optional 5V power input - when all other power sources are disconnected
- Antenna bridges (x2)
- u.FL connector
- SMA connector
- µSD card socket
- Qwiic connector
- Indicator LEDs
- PWR (Red)
- PPS (Yellow)
- RTK (White)
- PVT (Blue)
Documentation
- Design Files
- Component Documentation
- Hookup Guide
- Building a GNSS System
- Qwiic Info Page
- GitHub Hardware Repository
