Description

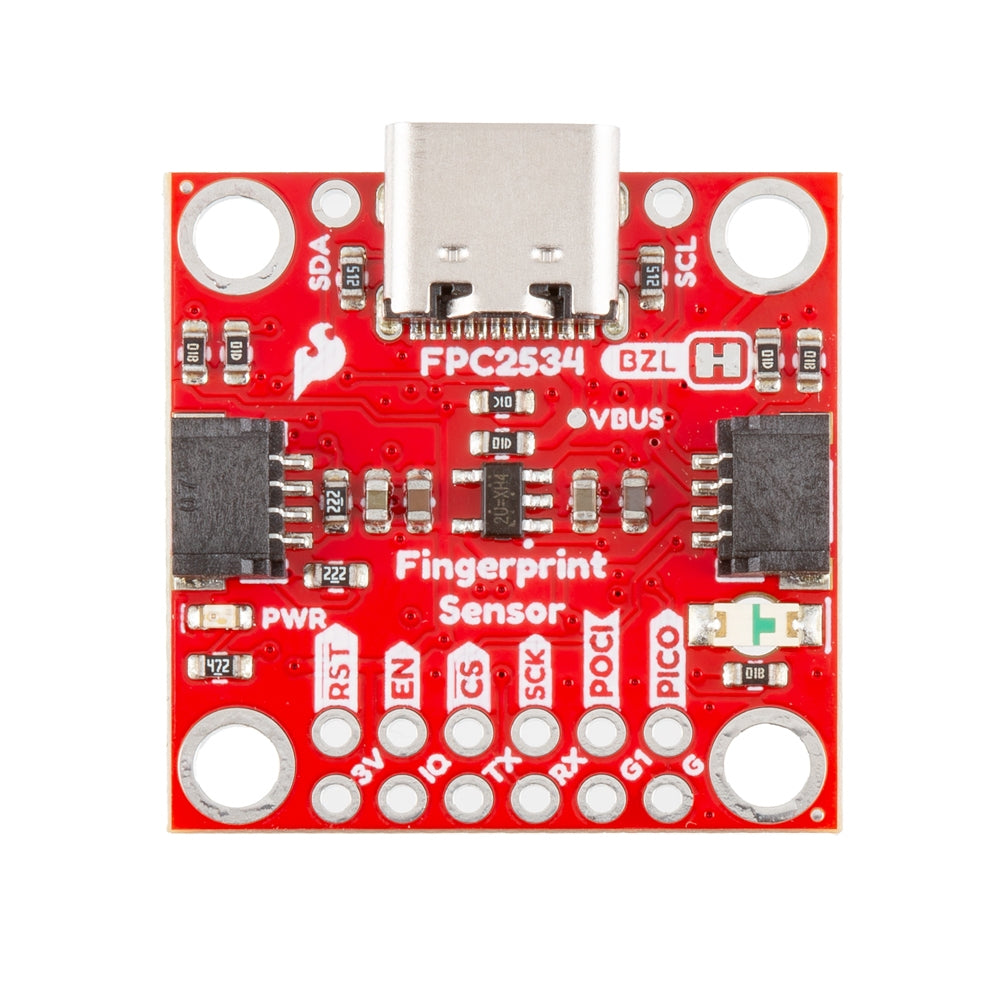

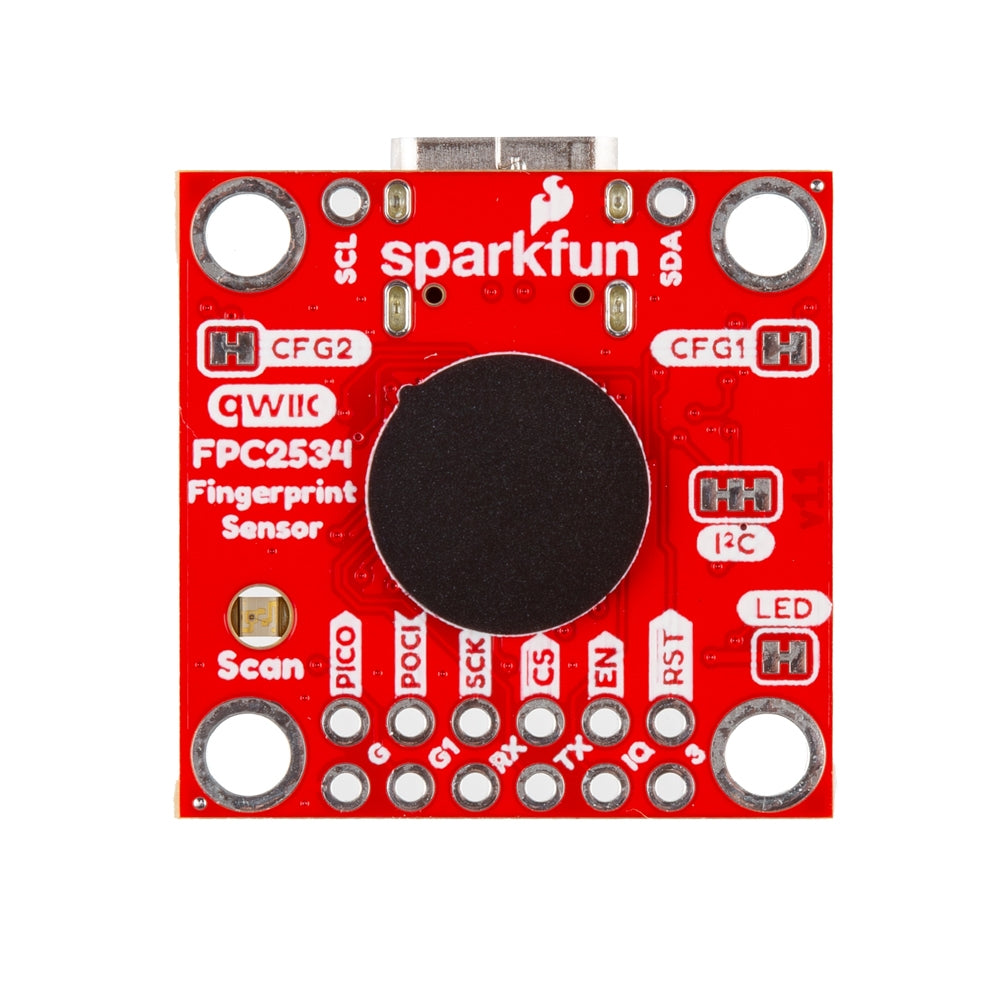

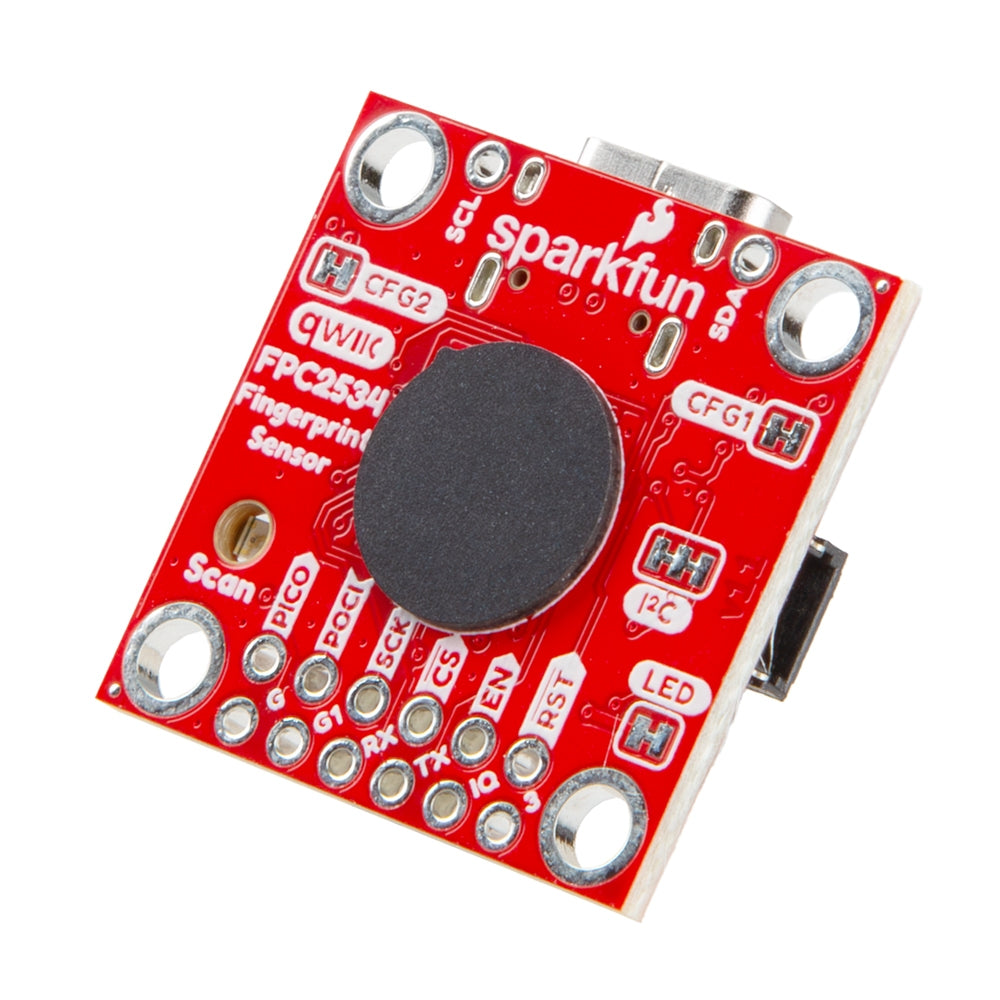

The SparkFun FPC2534 board is a secure, Qwiic-enabled fingerprint sensor that stores 45 encrypted templates and doubles as a navigation touchpad.
Features & Specs
FPC2534 Features:
- Automatically created fingerprint templates
- Up to 45 unique templates
- Encrypted and stored in Flash memory
- Onboard authentication software
- Advanced security features
- Secure communication
- Anti-spoof functionality
- Four-direction navigation with tap detection
- Multiple communication interfaces*
- I2C (Default), SPI, UART, and USB
- Selectable by adjusting the config (CFG1/2) jumpers on the board
- Low-profile design with durable matte coating
- 3.3V operating voltage
General Features:
- 2x Qwiic connectors
- 1x USB-C connector
- 2x 0.1"-spaced PTH headers
- 4x grounded mounting holes (connected to FPC2534 bezel ground)
- Green scan LED
- Red power LED
*Note: Communicating with the FPC2534 over I2C requires connecting the interrupt request (IRQ) and reset (RST) pins to compatible I/O pins on a microcontroller.
Features & Specs
FPC2534 Features:
- Automatically created fingerprint templates
- Up to 45 unique templates
- Encrypted and stored in Flash memory
- Onboard authentication software
- Advanced security features
- Secure communication
- Anti-spoof functionality
- Four-direction navigation with tap detection
- Multiple communication interfaces*
- I2C (Default), SPI, UART, and USB
- Selectable by adjusting the config (CFG1/2) jumpers on the board
- Low-profile design with durable matte coating
- 3.3V operating voltage
General Features:
- 2x Qwiic connectors
- 1x USB-C connector
- 2x 0.1"-spaced PTH headers
- 4x grounded mounting holes (connected to FPC2534 bezel ground)
- Green scan LED
- Red power LED
*Note: Communicating with the FPC2534 over I2C requires connecting the interrupt request (IRQ) and reset (RST) pins to compatible I/O pins on a microcontroller.
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- Datasheet (FPC2534)
- Supplemental Information (FPC2534)
- Hookup Guide
- SparkFun FPC2534 Arduino Library
- Qwiic Information Page
- GitHub Repository
