Description

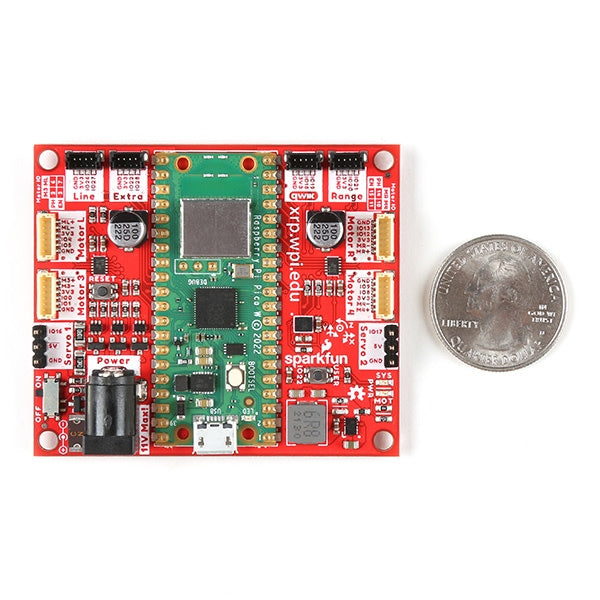

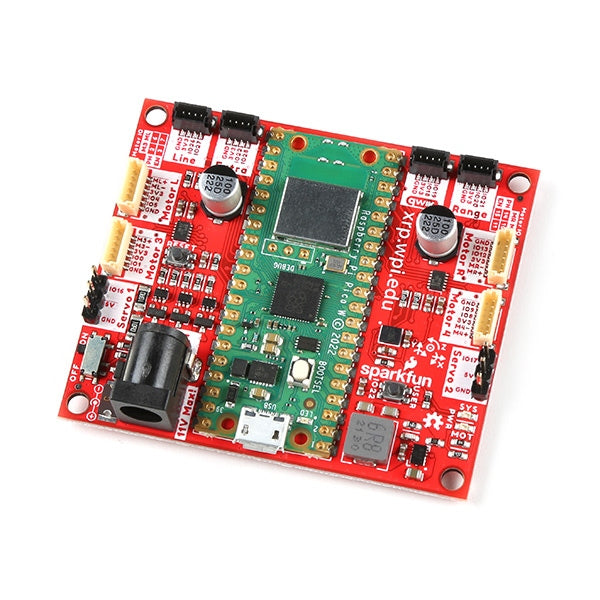

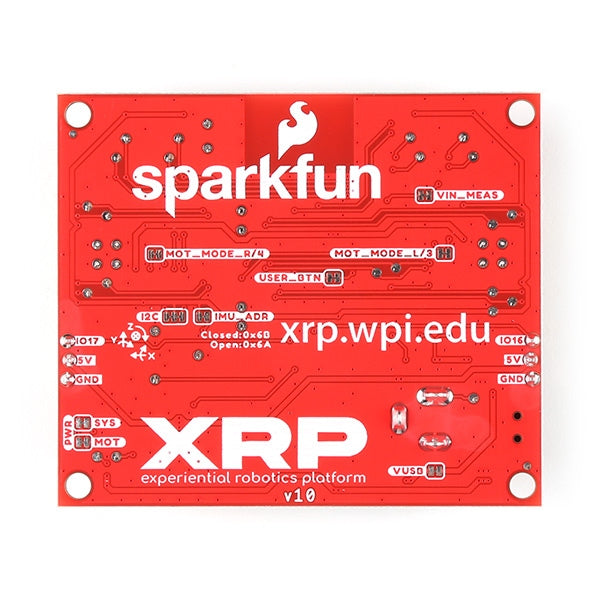

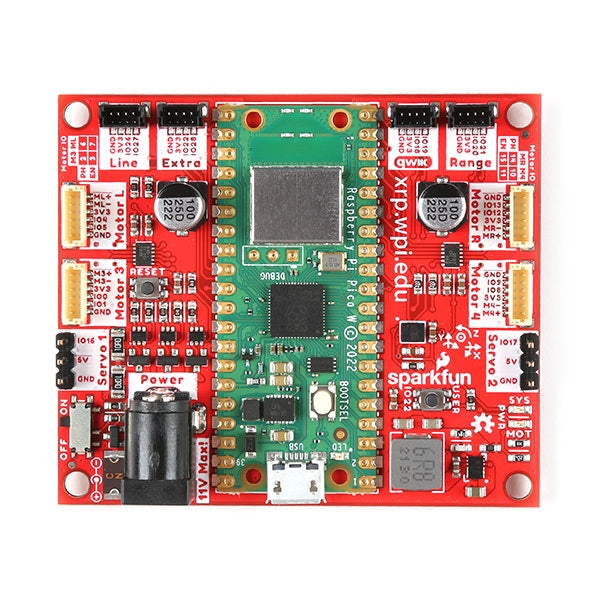

At the heart of the Experiential Robotics Platform (XRP) lies the powerful yet easy-to-use XRP Controller Board, the brains of the XRP.
Features & Specs
Raspberry Pi Pico W:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
- 264kB of SRAM, and 2MB of on-board Flash memory
- Infineon CYW43439 Based Wireless Module
- USB 1.1 Host and Device support
- Low-power sleep and dormant modes
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating point libraries on-chip
XRP Controller:
- LSM6DSO 6DoF IMU
- DRV8835 H-Bridge Motor Driver
- 4x DC Motor Connectors
- 2x Servo Motor Connectors
- 1x Vertical Qwiic Connector
- 1x Line Follower Connector
- 1x Range Sensor Connector
- 1x Extra Connector
- PWR & GND Pins
- GPIO28 & GPIO22 Pins for Pico W
- Power
- Barrel Jack
- microB USB (On Pico W)
- Power Switch
Features & Specs
Raspberry Pi Pico W:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
- 264kB of SRAM, and 2MB of on-board Flash memory
- Infineon CYW43439 Based Wireless Module
- USB 1.1 Host and Device support
- Low-power sleep and dormant modes
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating point libraries on-chip
XRP Controller:
- LSM6DSO 6DoF IMU
- DRV8835 H-Bridge Motor Driver
- 4x DC Motor Connectors
- 2x Servo Motor Connectors
- 1x Vertical Qwiic Connector
- 1x Line Follower Connector
- 1x Range Sensor Connector
- 1x Extra Connector
- PWR & GND Pins
- GPIO28 & GPIO22 Pins for Pico W
- Power
- Barrel Jack
- microB USB (On Pico W)
- Power Switch
Documentation
-
XRP Robotics Platform Home Page (Online Modules
