Description

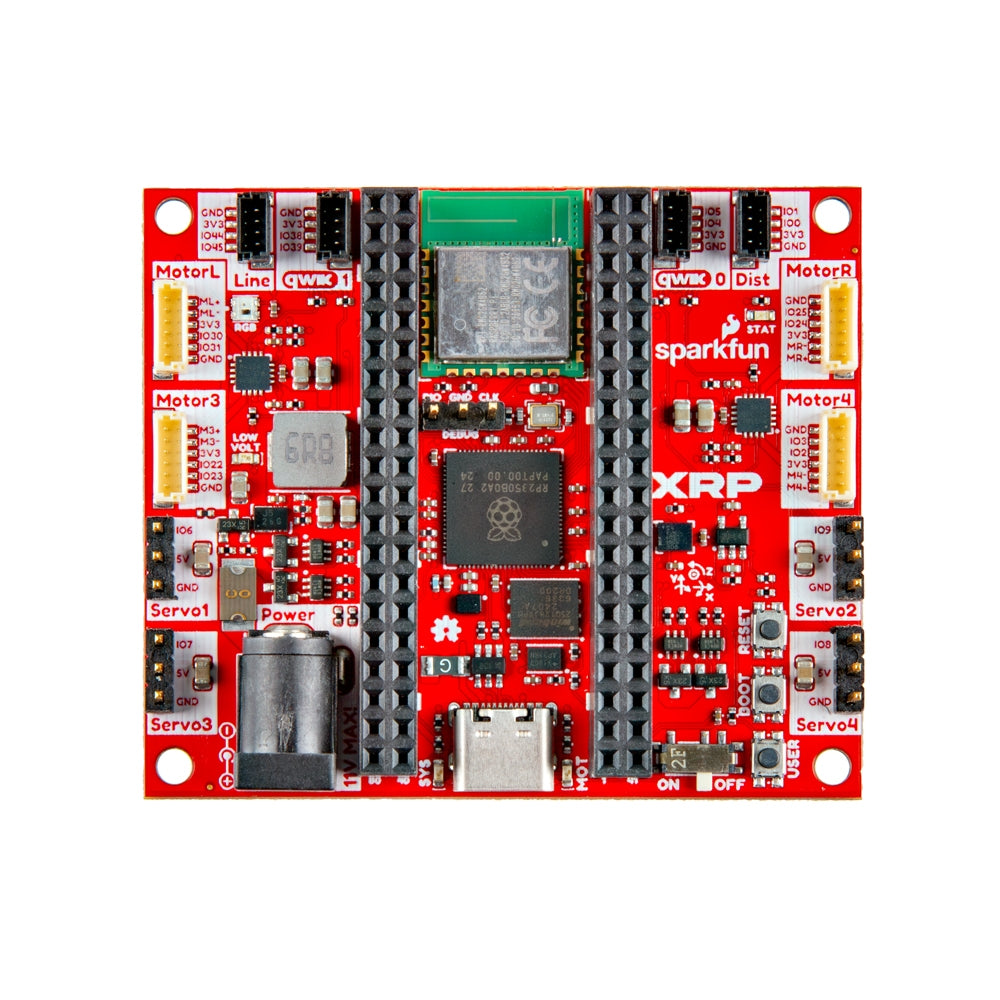

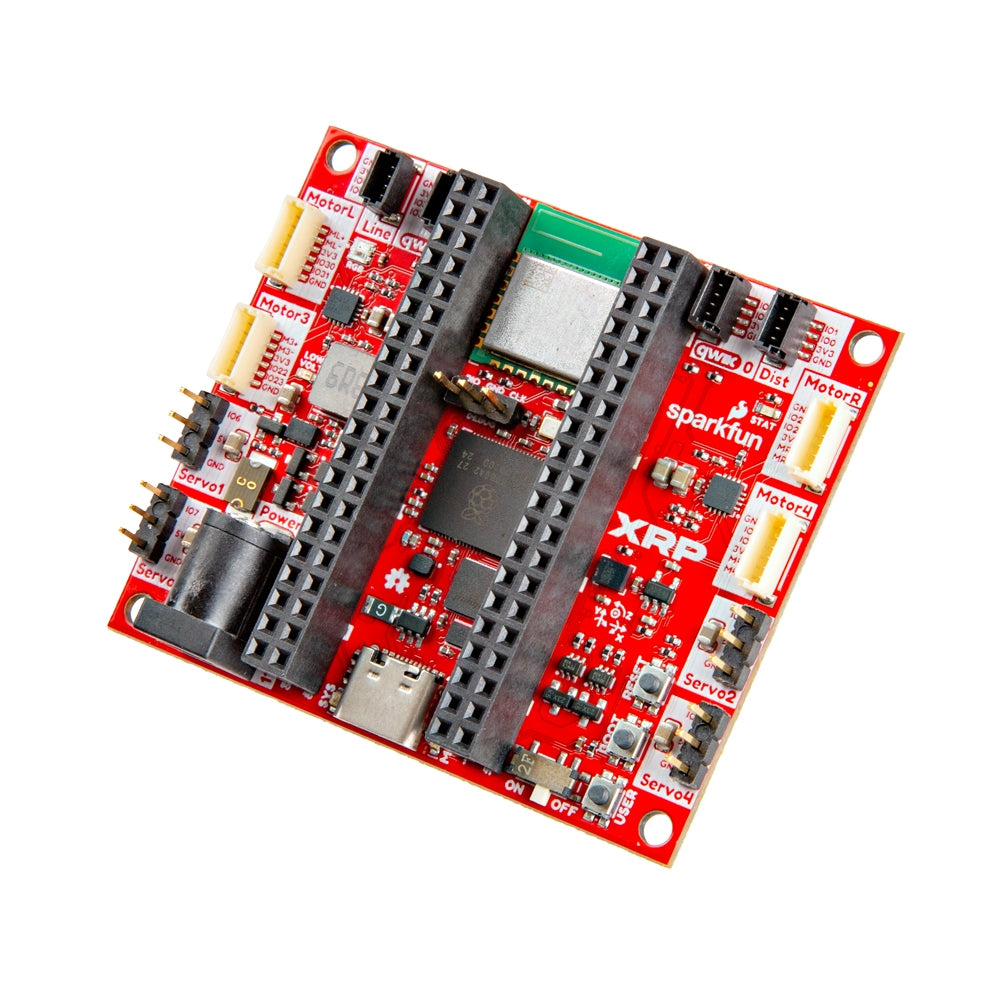

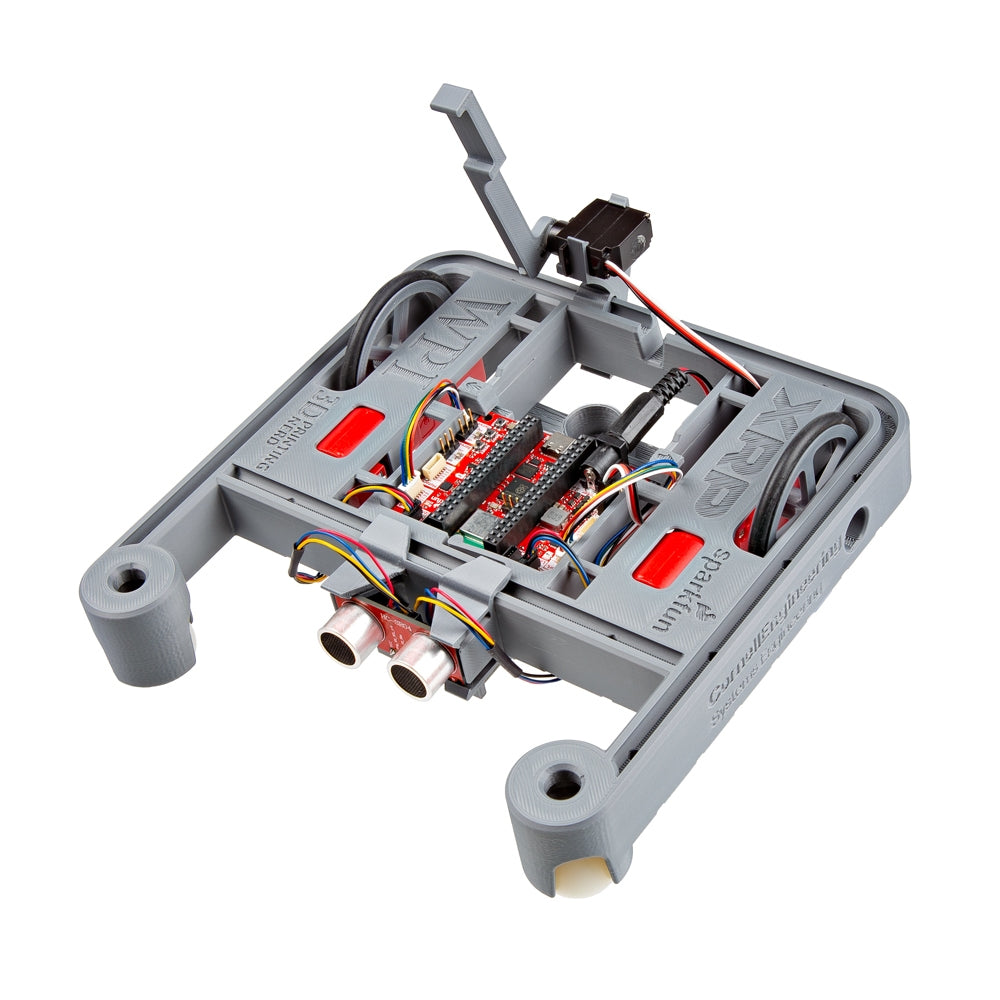

The XRP Controller, driven by an RP2350 dual-core processor, serves as the brain of your XRP robot, enabling complex functions and seamless control.
Features & Specs
Raspberry Pi RP2350:
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
- 1 HSTX (High-speed transmit)
Raspberry Pi Radio Module 2:
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
XRP Controller:
- LSM6DSO 6DoF IMU
- 2x DRV8411A H-Bridge Motor Drivers
- 4x DC Motor Connectors
- 4x Servo Motor Connectors
- 2x Vertical Qwiic Connectors
- 1x Line Follower Connector
- 1x Range Sensor Connector
- 2x 40-pin Expansion Headers
- 1x 3-pin Debug Header
- 16MB Flash
- 8MB PSRAM
- Power
- Barrel Jack
- USB-C
- Power Switch
- Buttons
- RESET
- BOOT
- USER
- LEDs
- SYS - Red 3.3V Power Status LED
- MOT - Red 5V Power Status LED
- LOW VOLT - Red Battery Voltage Indicator LED
- STAT - Blue LED connected to RM2 IO0
- RGB - WS2812 RGB LED DataIn connects to RP2350 IO37
Features & Specs
Raspberry Pi RP2350:
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
- 1 HSTX (High-speed transmit)
Raspberry Pi Radio Module 2:
- WiFi 4
- Bluetooth 5.2
- BDR (1 Mbps)
- EDR (2 or 3 Mbps)
XRP Controller:
- LSM6DSO 6DoF IMU
- 2x DRV8411A H-Bridge Motor Drivers
- 4x DC Motor Connectors
- 4x Servo Motor Connectors
- 2x Vertical Qwiic Connectors
- 1x Line Follower Connector
- 1x Range Sensor Connector
- 2x 40-pin Expansion Headers
- 1x 3-pin Debug Header
- 16MB Flash
- 8MB PSRAM
- Power
- Barrel Jack
- USB-C
- Power Switch
- Buttons
- RESET
- BOOT
- USER
- LEDs
- SYS - Red 3.3V Power Status LED
- MOT - Red 5V Power Status LED
- LOW VOLT - Red Battery Voltage Indicator LED
- STAT - Blue LED connected to RM2 IO0
- RGB - WS2812 RGB LED DataIn connects to RP2350 IO37
Documentation
- Schematic
- KiCad Files

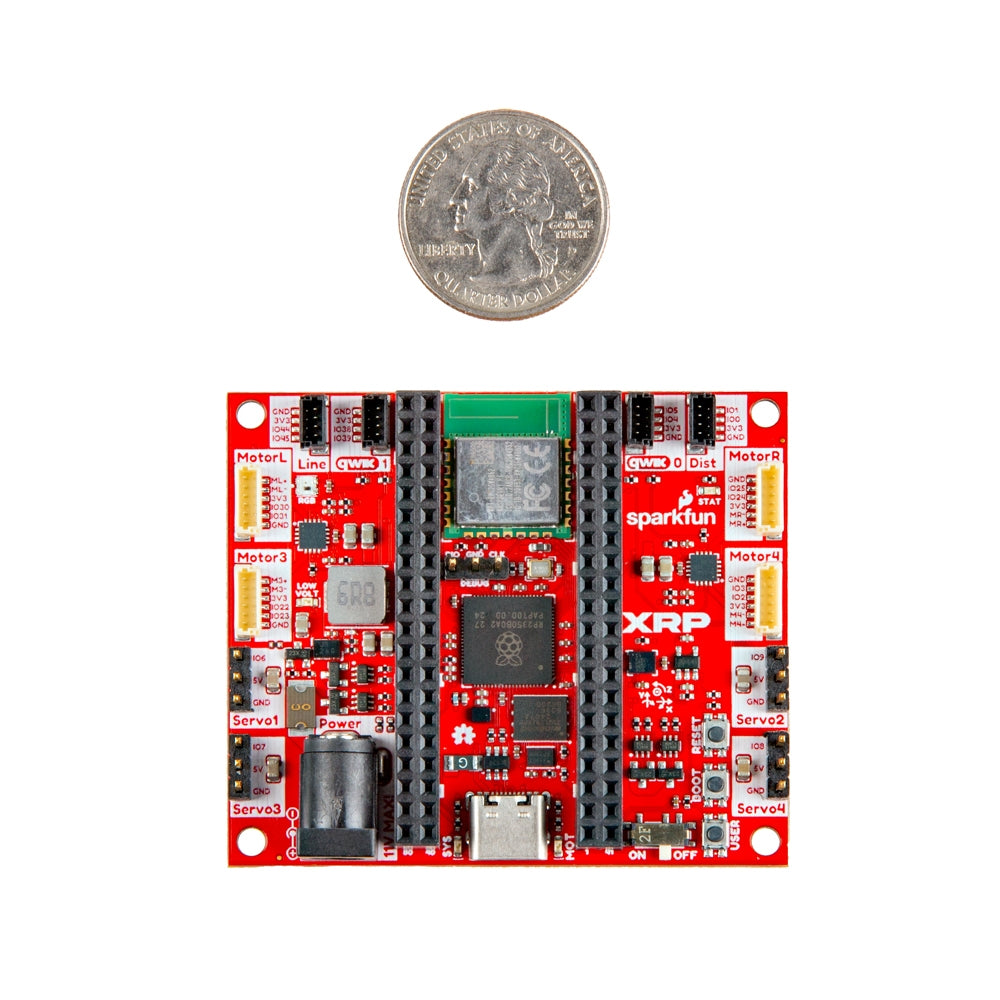

- Board Dimensions
- Datasheets
- XRP Compliance Documentation (31.7 MB)
- XRP Robotics Platform Home Page (Online Modules, Coding Environment, and More Detailed Information)
- XRP Hardware Overview
- XRP Chassis 3D Printing Files
- XRP Controller GitHub Repository
