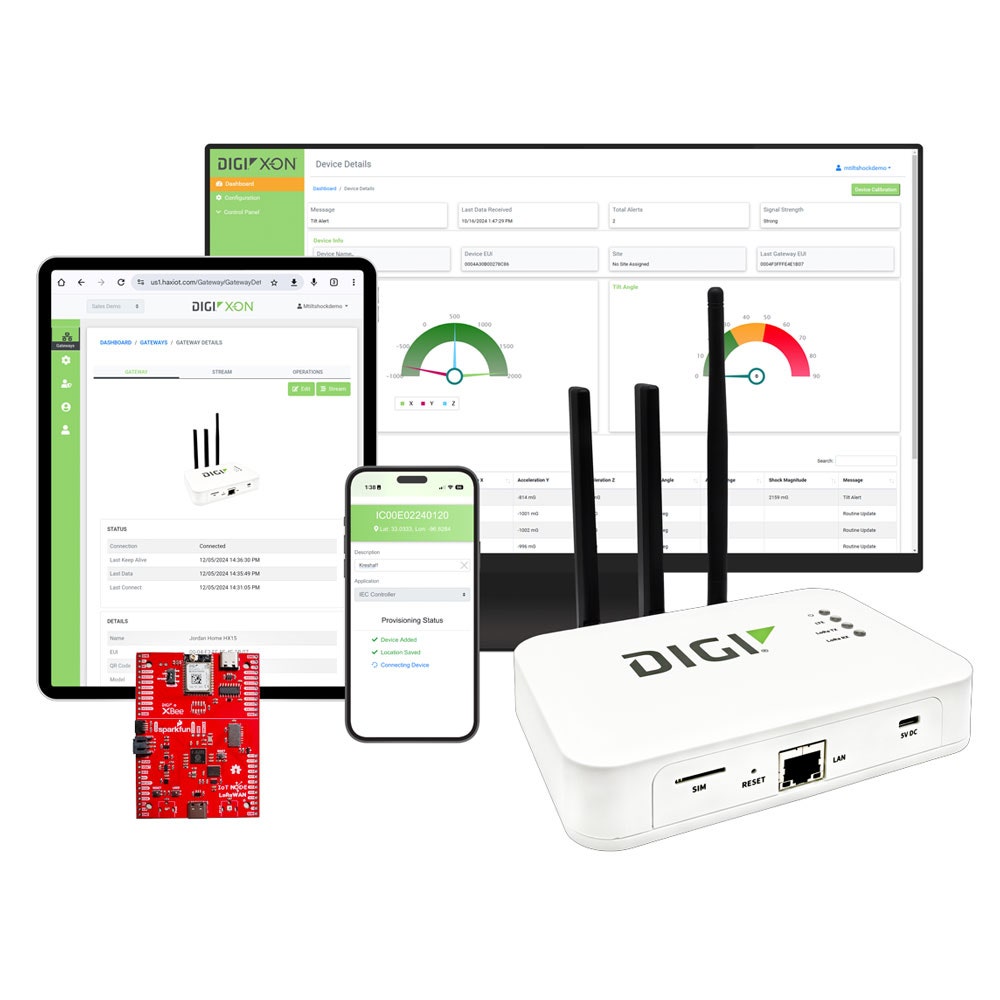

Sparkfun Digi X-ON Kit for LoRaWAN® (Europe)

Roll over image to zoom in

Sparkfun Digi X-ON Kit for LoRaWAN® (Europe)


	₹ 65355.0 includes GST and import duties.
	B2B customers can avail ₹ 9966.64 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	sparkfun
SKU:	7447005233237
MPN:	KIT-27214

Share this product

Features & Specs

Digi HX15 Gateway for LoRaWAN® (EU)

Interfaces EU
- Ethernet Backhaul: RJ-45, 10/100/1000 M
- Cellular Backhaul: LTE Cat 1 or Cat M1/NB-IoT multi-region, up to 10 Mbps, with 2G fallback for EU
- Supported Bands LTE: B1, B3, B7, B8, B20, B28A; 3G: B1, B8; 2G: B3, B8
- LTE SIM: Micro SIM (3FF), pre-activated SIM card included on LTE gateways
- Cellular Antennas: LTE, 3G, 2G,3G (SMA type), omni-directional, 50 Ω, max. input 25 W
LoRa SpecsRegional
- Bands: EU868
- Max TX Power: +27 dBm
- RX Sensitivity: −138 dBm
- Channels: 8 Rx / 1 Tx
- LORA Antenna: −1.6 dBm (SMA type), 50 Ω, omni-directional, max. input 25 W

SparkFun IoT Node for LoRaWAN®

Raspberry Pi Foundation's RP2350A Microcontroller
- 15 Multifunctional GPIO Pins
  - Up to eight 2-channel PWMs
  - Up to two UARTs
  - Up to two I2C buses
  - Up to two SPI buses
- External Memory
  - 16MB QSPI Flash Memory
  - 8MB PSRAM Memory
Digi's XBee LR Module
- LoRaWAN Transceiver
- Modular certifications for FCC and IC
- Frequency Range: SM 902 to 928 MHz, 868 to 870 MHz
General Features
- Dimensions: 83mm x 59mm
- USB-C Connectors:
  - USB 1.1 Host/Device support
  - XBLR
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- LiPo Charger:
  - MCP73831 Charger Management Controller
    - Charge rate: 500mA
  - MAX17048 LiPo Fuel Gauge
- XBLR/UART Selection Switch
- LEDs:
  - ```
  PWR - Red 3.3V power indicator
```
- ```
CHG - Yellow battery charging indicator
```
- Buttons:
  - ```
   Boot
```
- ```
Reset
```
  - ```
  User
```

SparkFun Environmental Combo Breakout - ENS160/BME280 (Qwiic)

2x Qwiic-Enabled Connectors
Input Voltage Range
- Typically 3.3V via Qwiic cable
ENS160
- I2C Addresses: 0x53 (Default) or 0x52
- Wide Operating Ranges
  - VDD: 1.71 1.98V
  - VDDIO: 1.71V to 3.6V
  - Temperature: -40°C to +85°C
  - Humidity: 5% to 95% (non-condensing)
- IAQ standard compliance for AQI, eCO2, and TVOC
  - Air Quality Index - Umweltbundesamt (AQI-UBA)
    - Range: 1 to 5
    - Resolution: 1
  - Equivalent Carbon Dioxide (eCO2)
    - Range: 400 to 65,000 ppm
    - Resolution: 1 ppm
  - Total Volatile Organic Compound (TVOC)
    - Range: 0 to 65,000 ppb
    - Resolution: 1 ppb
- Immunity to humidity and ozone
  - Superior output stability over the whole temperature and relative humidity operating ranges
  - Effective ozone compensation
- Independent sensor heater control for highest VOC selectivity and outstanding background discrimination
BME280
- VDD: 1.71V to 3.6V
- VDDIO: 1.2V to 3.6V
- I2C Addresses: 0x77 (Default) or 0x76
- Temperature
  - Operating Range: -40°C to 85°C
  - Full accuracy to ± 0.5°C from -0°C to 65°C
  - Resolution 0.01°C
- Humidity
  - Operating Range: 0% to 100% RH
  - Accurate to ±3% from 20% -80% RH
  - Resolution: 0.008%RH
- Pressure
  - Operating Range: 30,000 Pa to 110,000Pa
  - Absolute Accuracy of ±100Pa
  - Relative Accuracy of ±12Pa
  - Resolution: 0.18Pa
- Altitude Range
  - 0ft to 30,000ft (9.2km)
  - Relative accuracy of 3.3ft (1m) at sea level, 6.6 (2m) at 30,000ft
Power LED
1.8V AP2127K Voltage Regulator (for ENS160)
2.2kΩ Pull-up Resistors
Jumpers
- Power LED
- I2C Pullup Resistors
- Selectable Addresses
  - ENS160: 0x53 (Default) or 0x52

Features & Specs

Digi HX15 Gateway for LoRaWAN® (EU)

Interfaces EU
- Ethernet Backhaul: RJ-45, 10/100/1000 M
- Cellular Backhaul: LTE Cat 1 or Cat M1/NB-IoT multi-region, up to 10 Mbps, with 2G fallback for EU
- Supported Bands LTE: B1, B3, B7, B8, B20, B28A; 3G: B1, B8; 2G: B3, B8
- LTE SIM: Micro SIM (3FF), pre-activated SIM card included on LTE gateways
- Cellular Antennas: LTE, 3G, 2G,3G (SMA type), omni-directional, 50 Ω, max. input 25 W
LoRa SpecsRegional
- Bands: EU868
- Max TX Power: +27 dBm
- RX Sensitivity: −138 dBm
- Channels: 8 Rx / 1 Tx
- LORA Antenna: −1.6 dBm (SMA type), 50 Ω, omni-directional, max. input 25 W

SparkFun IoT Node for LoRaWAN®

Raspberry Pi Foundation's RP2350A Microcontroller
- 15 Multifunctional GPIO Pins
  - Up to eight 2-channel PWMs
  - Up to two UARTs
  - Up to two I2C buses
  - Up to two SPI buses
- External Memory
  - 16MB QSPI Flash Memory
  - 8MB PSRAM Memory
Digi's XBee LR Module
- LoRaWAN Transceiver
- Modular certifications for FCC and IC
- Frequency Range: SM 902 to 928 MHz, 868 to 870 MHz
General Features
- Dimensions: 83mm x 59mm
- USB-C Connectors:
  - USB 1.1 Host/Device support
  - XBLR
- 2-pin JST Connector for LiPo Battery (not included)
- 4-pin Qwiic Connector
- LiPo Charger:
  - MCP73831 Charger Management Controller
    - Charge rate: 500mA
  - MAX17048 LiPo Fuel Gauge
- XBLR/UART Selection Switch
- LEDs:
  - ```
  PWR - Red 3.3V power indicator
```
- ```
CHG - Yellow battery charging indicator
```
- Buttons:
  - ```
   Boot
```
- ```
Reset
```
  - ```
  User
```

SparkFun Environmental Combo Breakout - ENS160/BME280 (Qwiic)

2x Qwiic-Enabled Connectors
Input Voltage Range
- Typically 3.3V via Qwiic cable
ENS160
- I2C Addresses: 0x53 (Default) or 0x52
- Wide Operating Ranges
  - VDD: 1.71 1.98V
  - VDDIO: 1.71V to 3.6V
  - Temperature: -40°C to +85°C
  - Humidity: 5% to 95% (non-condensing)
- IAQ standard compliance for AQI, eCO2, and TVOC
  - Air Quality Index - Umweltbundesamt (AQI-UBA)
    - Range: 1 to 5
    - Resolution: 1
  - Equivalent Carbon Dioxide (eCO2)
    - Range: 400 to 65,000 ppm
    - Resolution: 1 ppm
  - Total Volatile Organic Compound (TVOC)
    - Range: 0 to 65,000 ppb
    - Resolution: 1 ppb
- Immunity to humidity and ozone
  - Superior output stability over the whole temperature and relative humidity operating ranges
  - Effective ozone compensation
- Independent sensor heater control for highest VOC selectivity and outstanding background discrimination
BME280
- VDD: 1.71V to 3.6V
- VDDIO: 1.2V to 3.6V
- I2C Addresses: 0x77 (Default) or 0x76
- Temperature
  - Operating Range: -40°C to 85°C
  - Full accuracy to ± 0.5°C from -0°C to 65°C
  - Resolution 0.01°C
- Humidity
  - Operating Range: 0% to 100% RH
  - Accurate to ±3% from 20% -80% RH
  - Resolution: 0.008%RH
- Pressure
  - Operating Range: 30,000 Pa to 110,000Pa
  - Absolute Accuracy of ±100Pa
  - Relative Accuracy of ±12Pa
  - Resolution: 0.18Pa
- Altitude Range
  - 0ft to 30,000ft (9.2km)
  - Relative accuracy of 3.3ft (1m) at sea level, 6.6 (2m) at 30,000ft
Power LED
1.8V AP2127K Voltage Regulator (for ENS160)
2.2kΩ Pull-up Resistors
Jumpers
- Power LED
- I2C Pullup Resistors
- Selectable Addresses
  - ENS160: 0x53 (Default) or 0x52

Documentation

Digi HX15 Gateway for LoRaWAN®

SparkFun IoT Node for LoRaWAN®

SparkFun Environmental Combo Breakout - ENS160/BME280 (Qwiic)
