Description

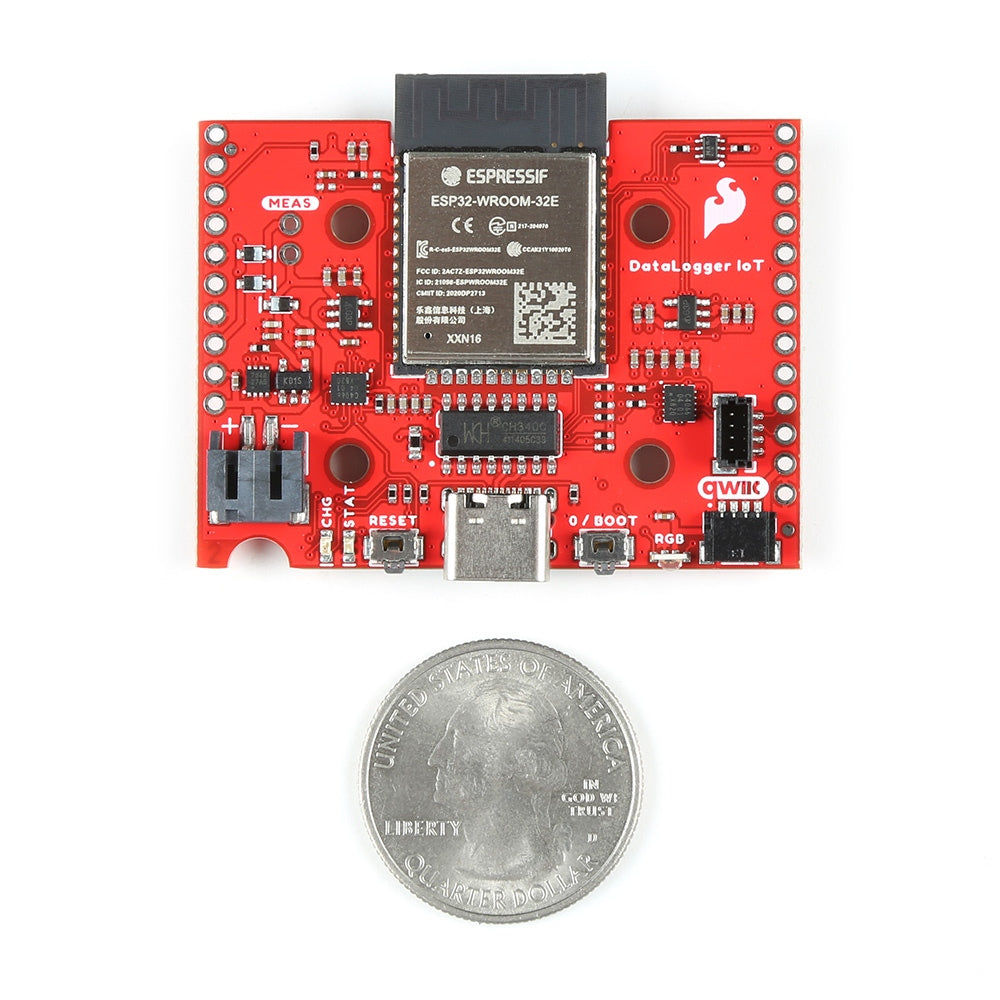

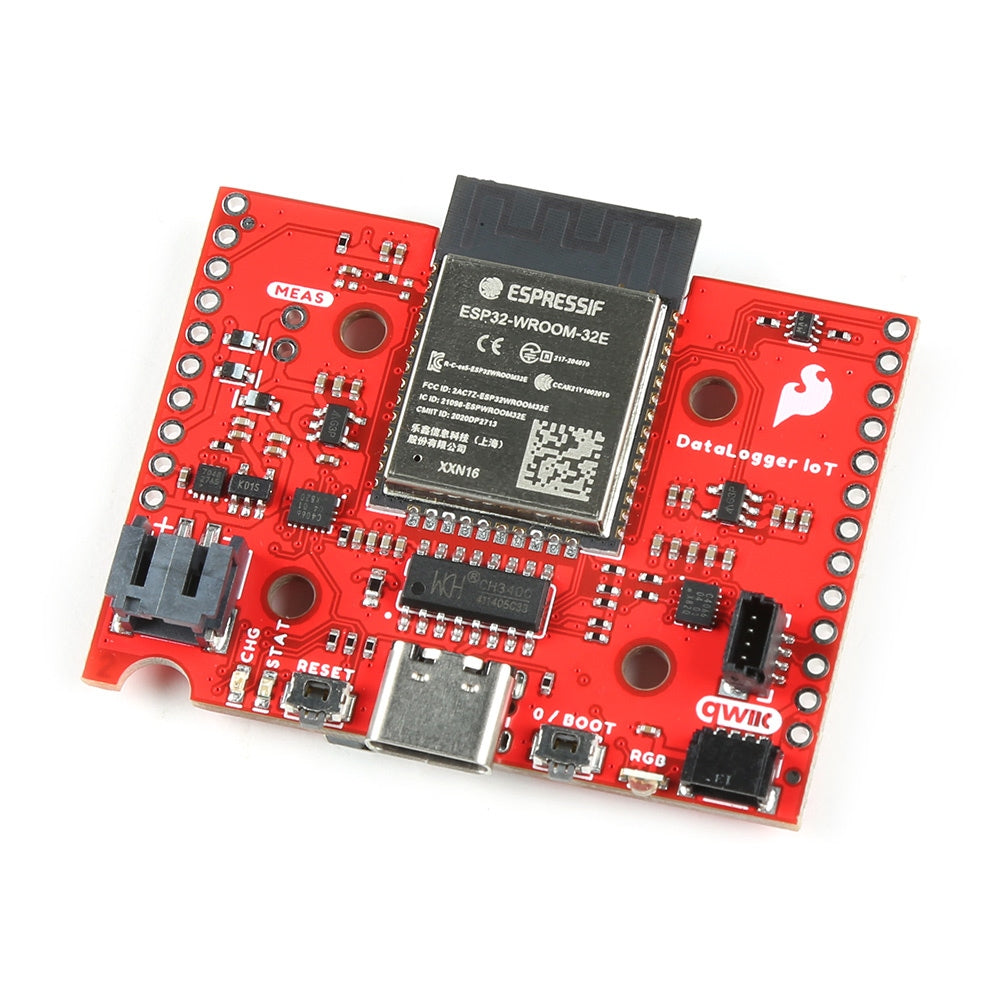

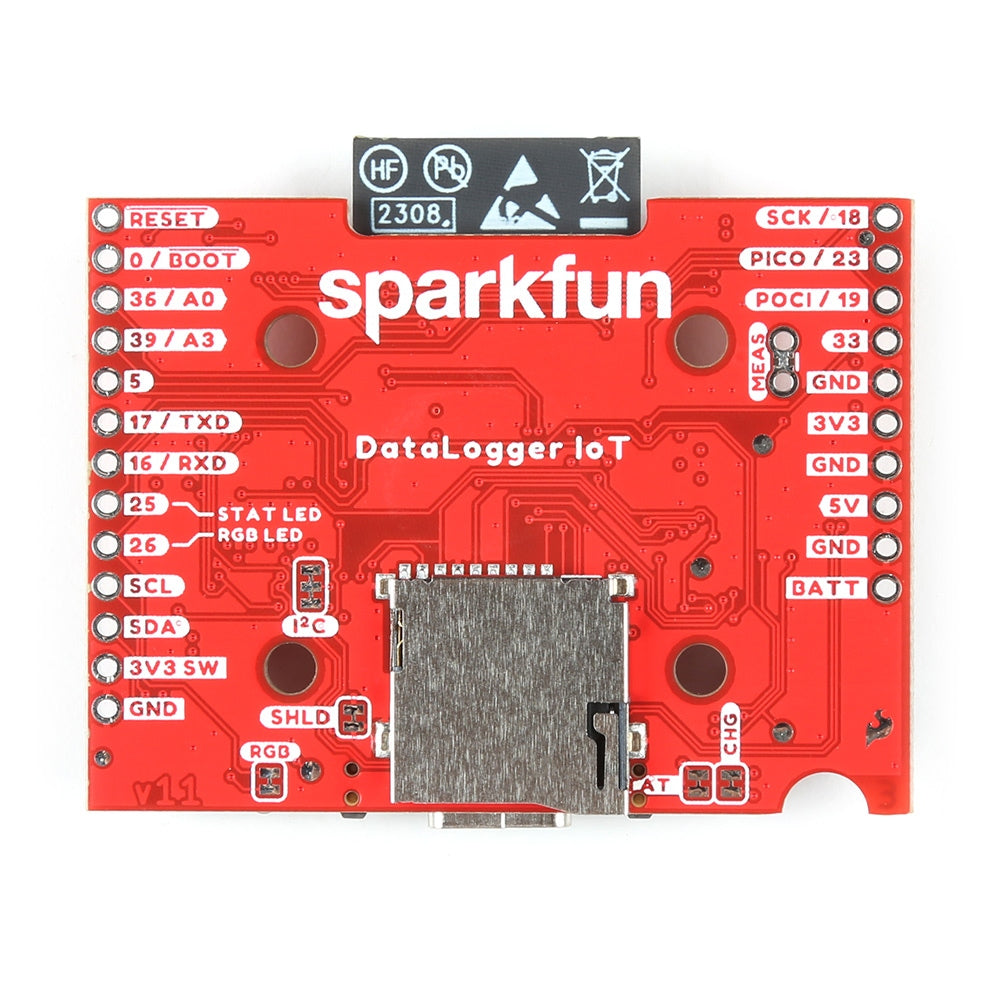

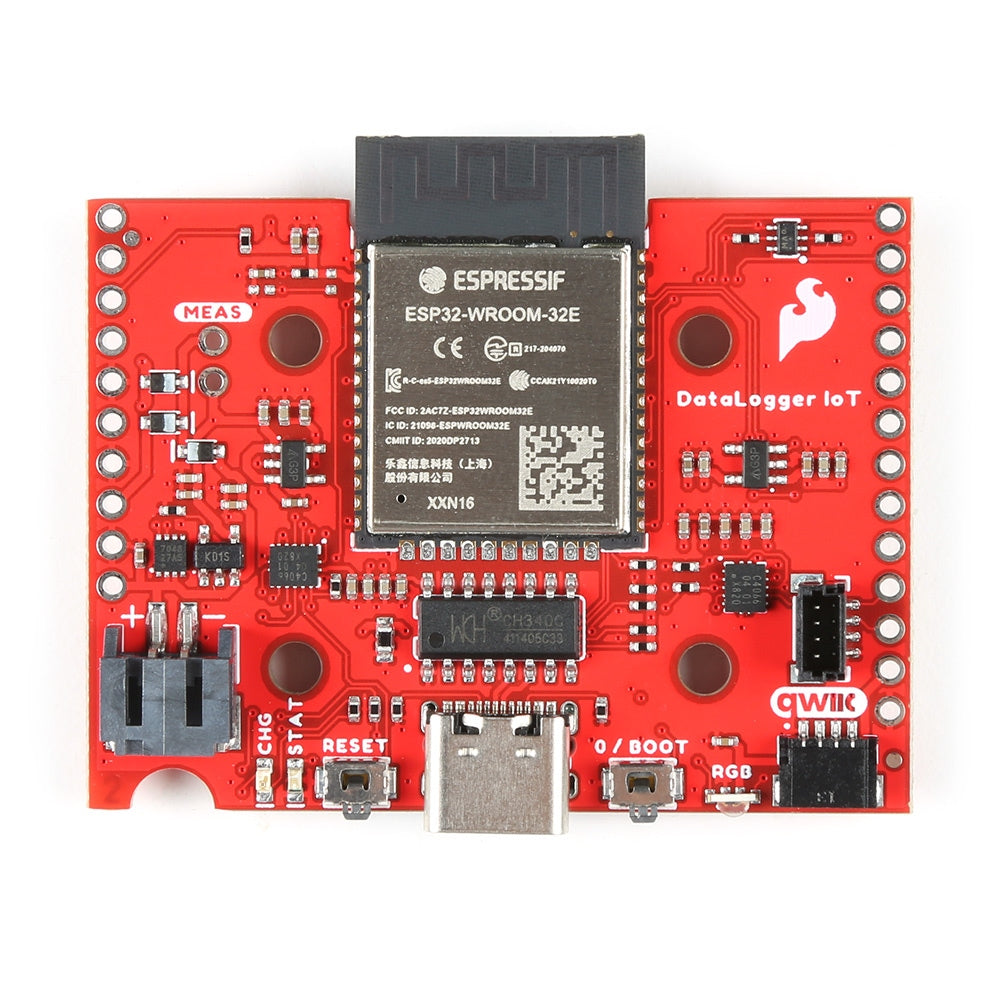

A zero-code data logger designed to automatically detect, configure, and log dozens of Qwiic sensors to a microSD card or wireless IoT service.
Features & Specs
ESP32-WROOM-32E Module:
- Integrated 802.11b/g/n WiFi 2.4GHz transceiver
- Configurable via CH340C
Power Specs:
- 3.3V to 6.0V (via VIN)
- 5V with USB (via 5V or USB type C)
- 3.6V to 4.2V with LiPo battery (via BATT or 2-pin JST)
- Built-in MCP73831 single-cell LiPo charger
- Minimum 500mA charge rate
- 3.3V (via I2C)
- MAX17048 LiPo Fuel Gauge
Ports
- 1x USB Type-C
- 1x JST style connector for LiPo battery
- 2x Qwiic-enabled I2C
- 1x microSD socket
- Support for 4-bit SDIO and microSD cards formatted to FAT32
LEDs
- Charge (CHG)
- Status (STAT)
- 1-Wire B3DQ3BRG Addressable RGB
Jumpers
- Measure
- RGB LED
- Status LED
- Charge LED
- I2C pull-up resistors
- USB Shield
Buttons
- Reset
- Boot
Dimensions: 1.66in. x 2.00in.
Weight: 10.65g
Features & Specs
ESP32-WROOM-32E Module:
- Integrated 802.11b/g/n WiFi 2.4GHz transceiver
- Configurable via CH340C
Power Specs:
- 3.3V to 6.0V (via VIN)
- 5V with USB (via 5V or USB type C)
- 3.6V to 4.2V with LiPo battery (via BATT or 2-pin JST)
- Built-in MCP73831 single-cell LiPo charger
- Minimum 500mA charge rate
- 3.3V (via I2C)
- MAX17048 LiPo Fuel Gauge
Ports
- 1x USB Type-C
- 1x JST style connector for LiPo battery
- 2x Qwiic-enabled I2C
- 1x microSD socket
- Support for 4-bit SDIO and microSD cards formatted to FAT32
LEDs
- Charge (CHG)
- Status (STAT)
- 1-Wire B3DQ3BRG Addressable RGB
Jumpers
- Measure
- RGB LED
- Status LED
- Charge LED
- I2C pull-up resistors
- USB Shield
Buttons
- Reset
- Boot
Dimensions: 1.66in. x 2.00in.
Weight: 10.65g
Documentation
- Schematic
- Eagle Files
- Board Dimensions
- Fritzing Part
- Hookup Guide
- System Update Guide
- Creating and Connecting to an Arduino IoT Device
- CH340 Drivers
- Firmware
- GitHub Hardware Repo
