Description

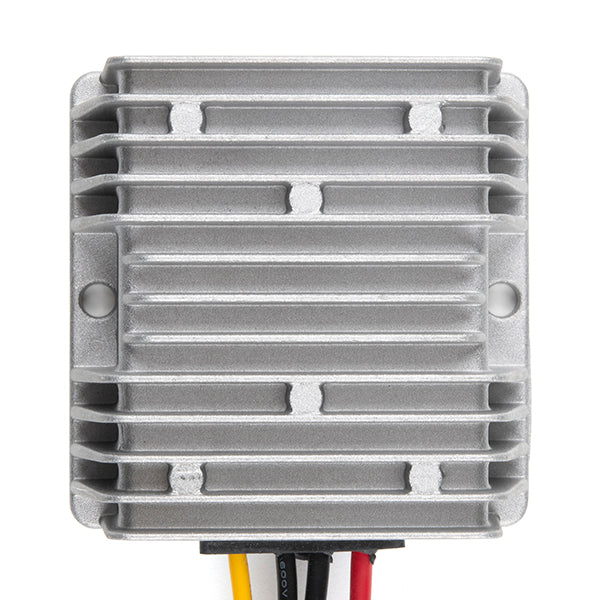

A simple constant current power supply that outputs 12.6VDC and 10A. It comes in a robust metal enclosure (IP68 rated) with a 100,000 hour service life. It features Over-voltage, Over-current, Short Circuit, and Over-temperature safety features. This can be used for charging Li-Ion batteries similar to the one we sell but requires good knowledge of how to do so. It also works for powering LED lighting-type devices.
\The device accepts 8-36V DC inputs via 14 AWG wires (The Red and Black ones) and outputs 12.6VDC and a constant 10A for current via the 16AWG wires (Yellow and Black).
Features:
- Input Voltage: 12V/24V DC
- Input Voltage Range: 8-36V DC
- Efficiency: 96% @ 12V in
- Output Voltage: 12.6V DC
- Output Current: 10A (Constant)
- Voltage Regulation: < 1%
- Load Regulation: < 2%
- Ripple & Noise: 156mVp-p
- Operating Temperature Range: -30�°C to 80�°C
- Waterproof Rating: IP68
- Dimensions: 74mm x 74mm x 32mm
- Weight: 290g
- Input Cables (Red/Black): 14AWG and 16.5cm Long
- Output Cables (Yellow/Black): 16AWG and 16.5cm Long
- 1 Year Manufacturers Warranty
