Description

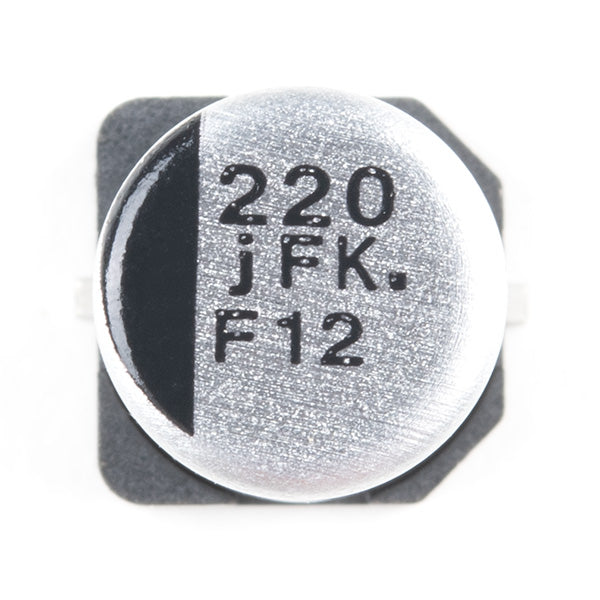

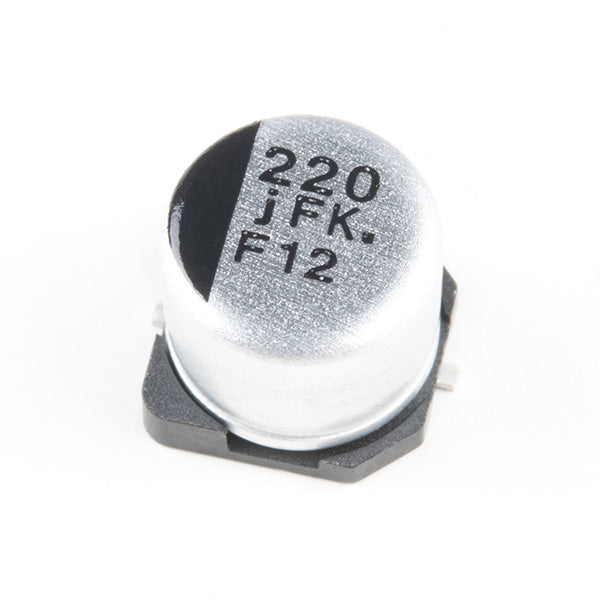

Panasonic FK SMT Aluminum Electrolytic Capacitors feature a high endurance of up to 2000 hours at +105°C and a temperature range as low as -55°C. These capacitors offer low impedance in a miniature package. FK SMT Aluminum Electrolytic Capacitors are RoHS compliant and available in a vibration-proof product with an operating voltage range between 6.3VDC.
Features:
- Capacitance: 220 µF
- Tolerance: ±20%
- Voltage - Rated: 6.3 V
- Lifetime @ Temp.: 2000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ratings: AEC-Q200
- Ripple Current @ Low Frequency: 180 mA @ 120 Hz
- Ripple Current @ High Frequency: 240 mA @ 100 kHz
- Impedance: 360 mOhms

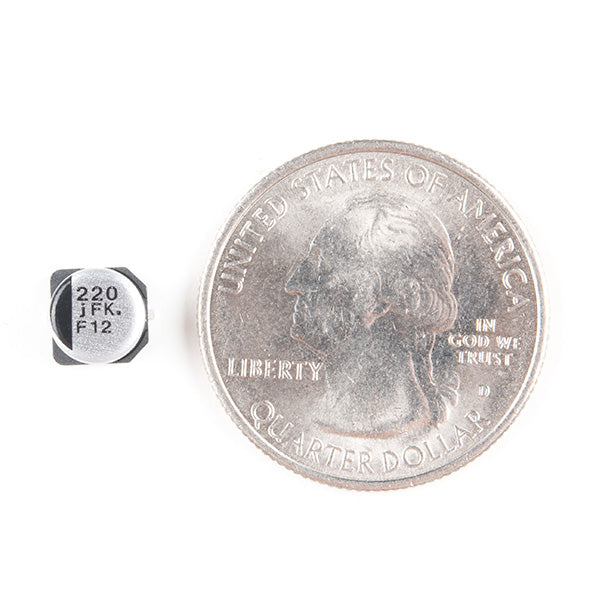

- Size / Dimension: 0.248" Dia (6.30mm)
- Height - Seated (Max): 0.240" (6.10mm)

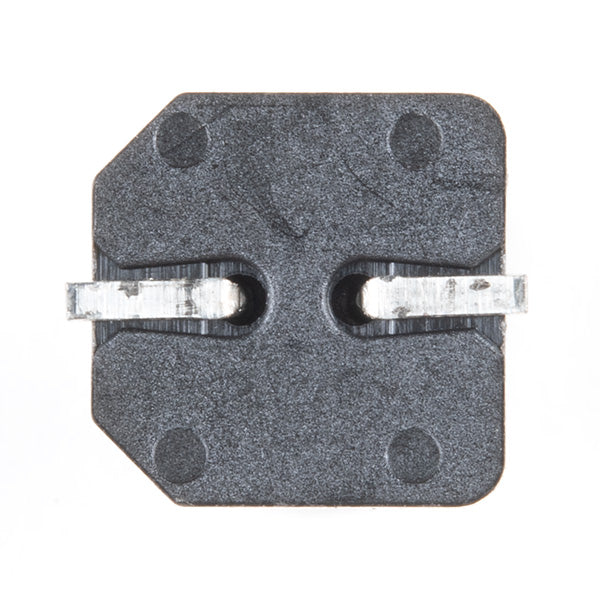

- Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Documents:
Bulk Discount
| Quantity | Price |
| 2 | ₹ 117.6 |
| 3-5 | ₹ 116.4 |
| 5-10 | ₹ 114.0 |
| 10+ | ₹ 111.6 |
Bulk discount will be automatically applied during checkout based on quantity.
