Description

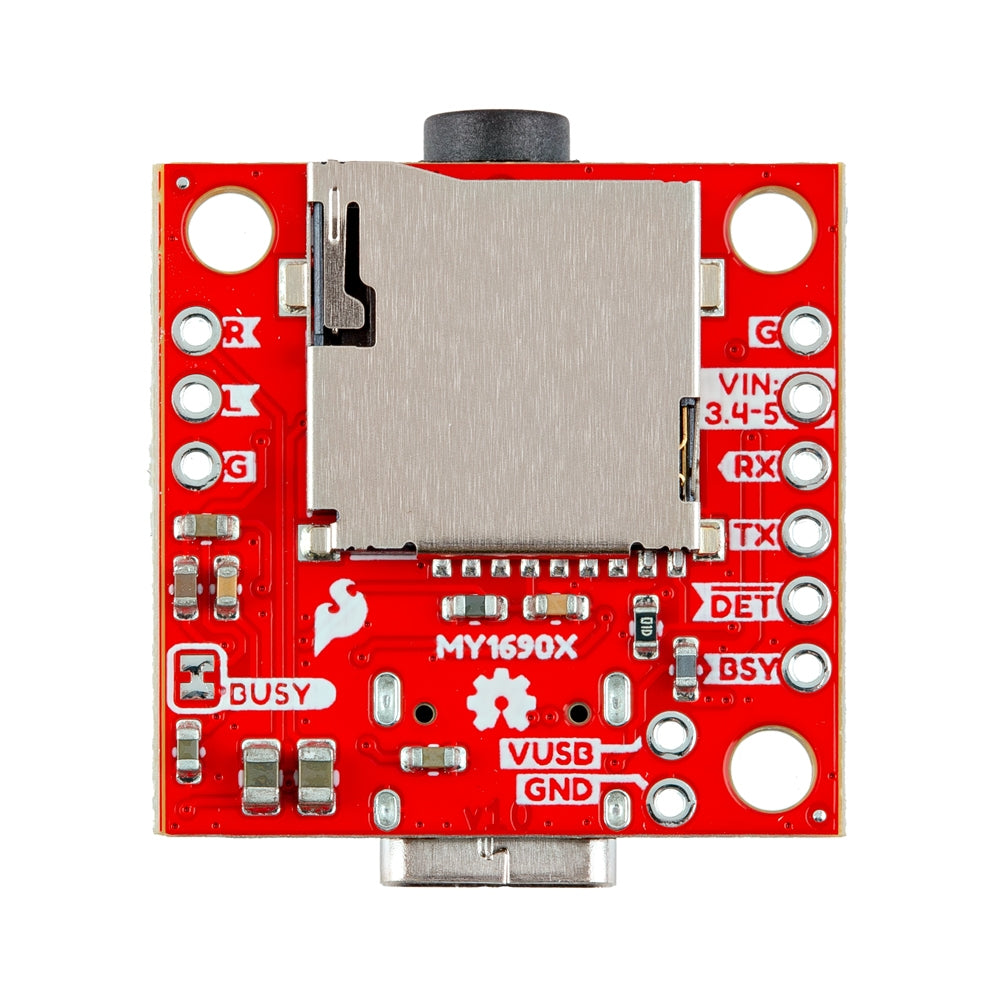

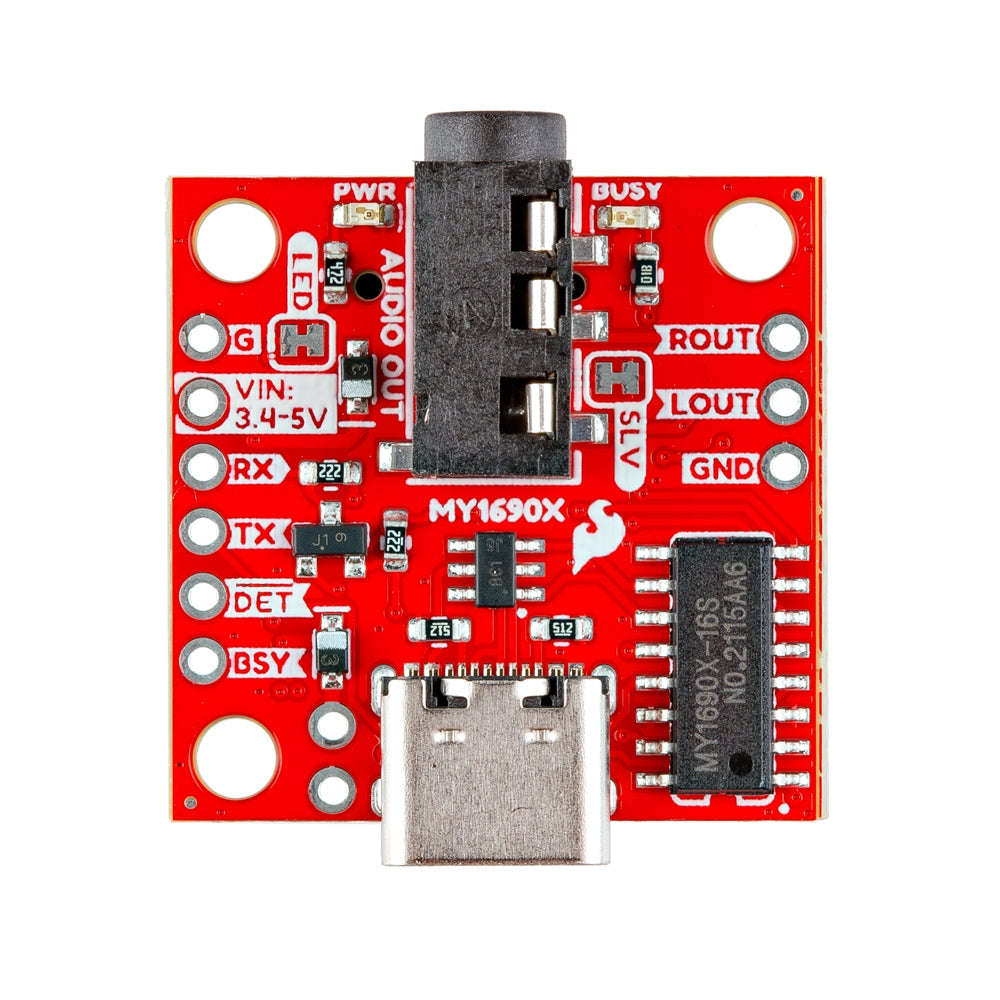

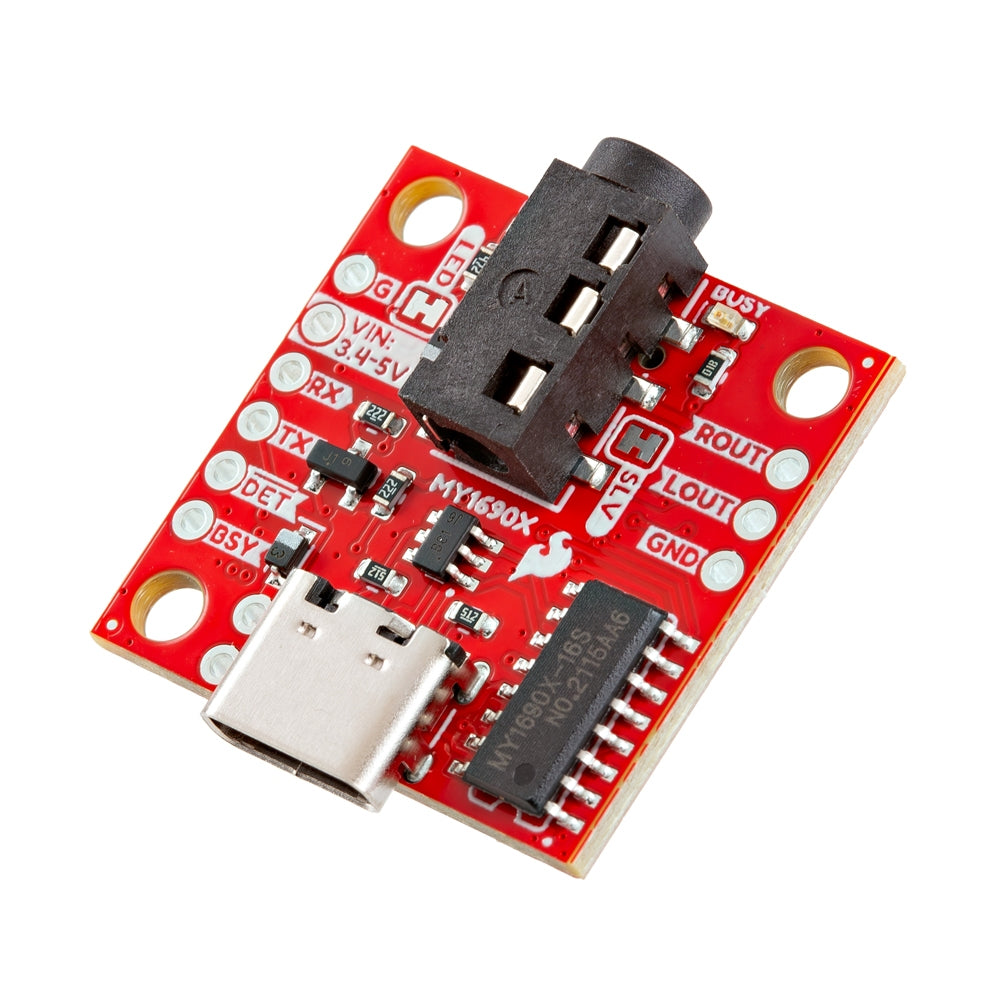

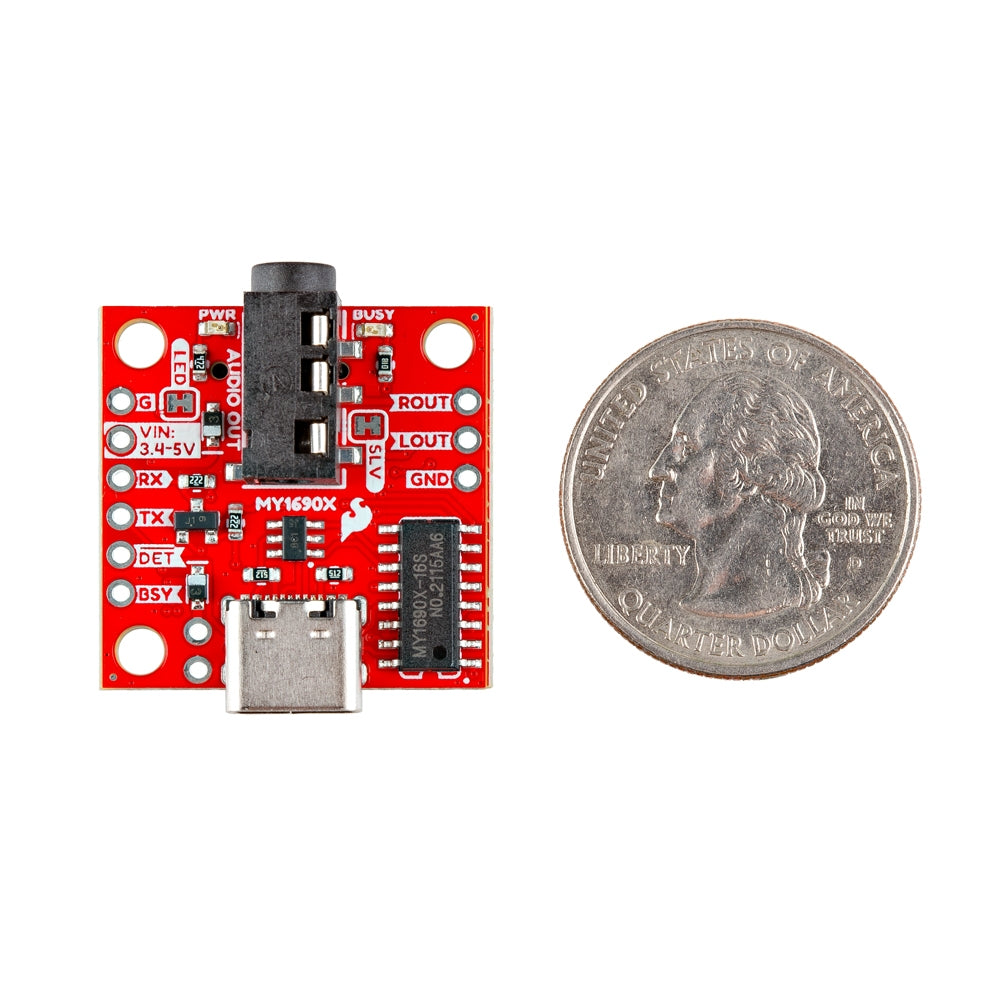

Effortlessly add audio to your projects with the compact SparkFun Audio Player Breakout, a serial-controlled MP3/WAV player with microSD support and easy file management via USB.
Features & Specs
- MY1690X Serial MP3 Decoder
- Compatible with .MP3 and .WAV audio files
- Audio Sampling Rate: 8-48K
- Bit Rate: 8-320Kbps
- FAT16 or FAT32 SD formats
- MicroSD cards up to 32GB
- Serial UART Command Set
- Supply Voltage:
- VIN: 3.4-5V
- VUSB: 5V
- 0.1in.-spaced through hole headers
- MY1690X UART (TX/RX)
- MY1690X Card Detect
- MY1690X Busy Signal
- Power (VIN) and Ground
- 1x USB-C Connector
- Mounts as removable USB drive
- 3.5mm TRRS Audio Jack
- MicroSD Card Slot
Features & Specs
- MY1690X Serial MP3 Decoder
- Compatible with .MP3 and .WAV audio files
- Audio Sampling Rate: 8-48K
- Bit Rate: 8-320Kbps
- FAT16 or FAT32 SD formats
- MicroSD cards up to 32GB
- Serial UART Command Set
- Supply Voltage:
- VIN: 3.4-5V
- VUSB: 5V
- 0.1in.-spaced through hole headers
- MY1690X UART (TX/RX)
- MY1690X Card Detect
- MY1690X Busy Signal
- Power (VIN) and Ground
- 1x USB-C Connector
- Mounts as removable USB drive
- 3.5mm TRRS Audio Jack
- MicroSD Card Slot
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- Hookup Guide
- Datasheet - MY1690X
- SparkFun MY1690X MP3 Decoder Arduino Library
- GitHub Hardware Repo
