Description
Whether you're an agriculturalist, a professional meteorologist, or a weather hobbyist, building a weather station can be a rewarding project.
Features & Specs

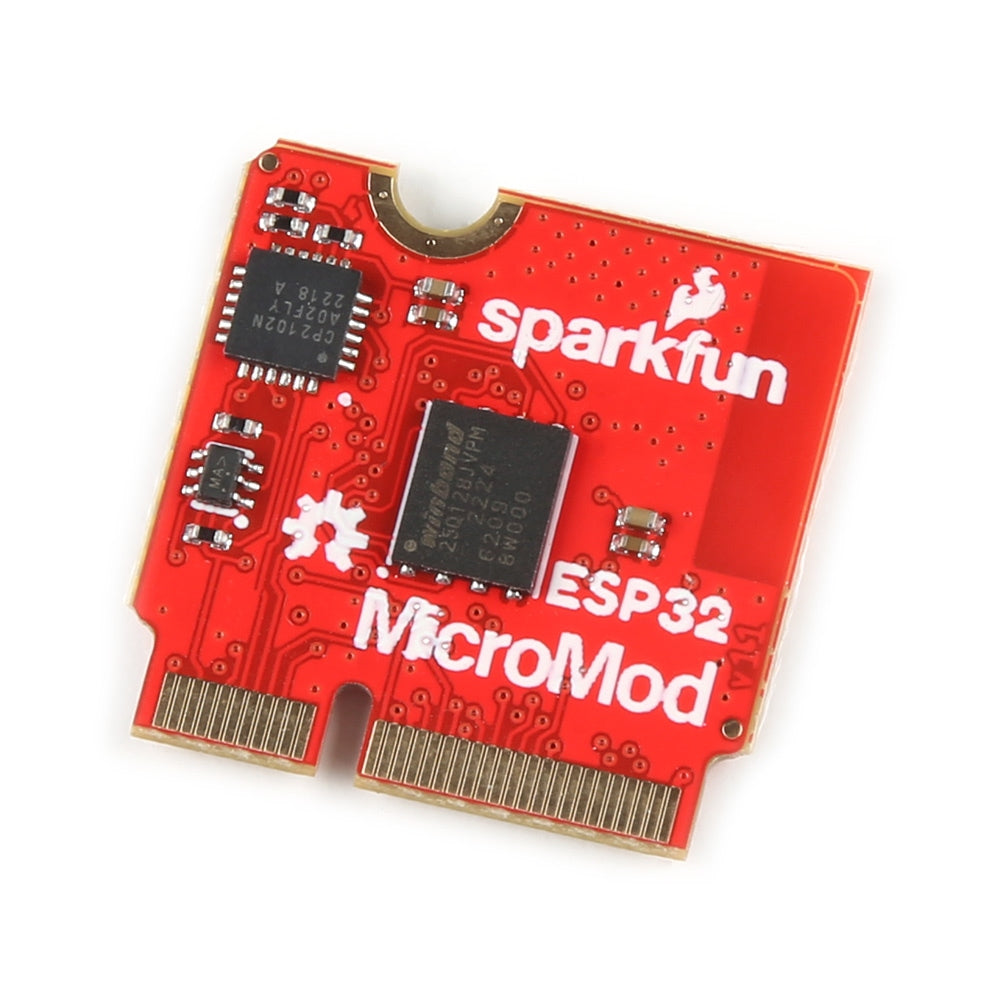

ESP32 MicroMod Processor Board:
- General Features:
- Dual-core Tensilica LX6 microprocessor
- Up to 240MHz clock frequency
- 520kB internal SRAM
- 128mbit/16MB flash storage
- Integrated 802.11 BGN WiFi transceiver
- 2.7 to 3.6V operating range
- 500µA sleep current under hibernation
- 10-electrode capacitive touch support
- Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
- Specific Peripherals made available on MicroMod ESP32:
- 1x USB dedicated for programming and debug
- 1x UART
- 2x I2C
- 1x SPI
- 7x GPIO
- 2x Digital Pins
- 2x Analog Pins
- 2x PWM
- Status LED
- VIN Level ADC
- *Additional peripherals are available but are shared on dedicated MicroMod pins.

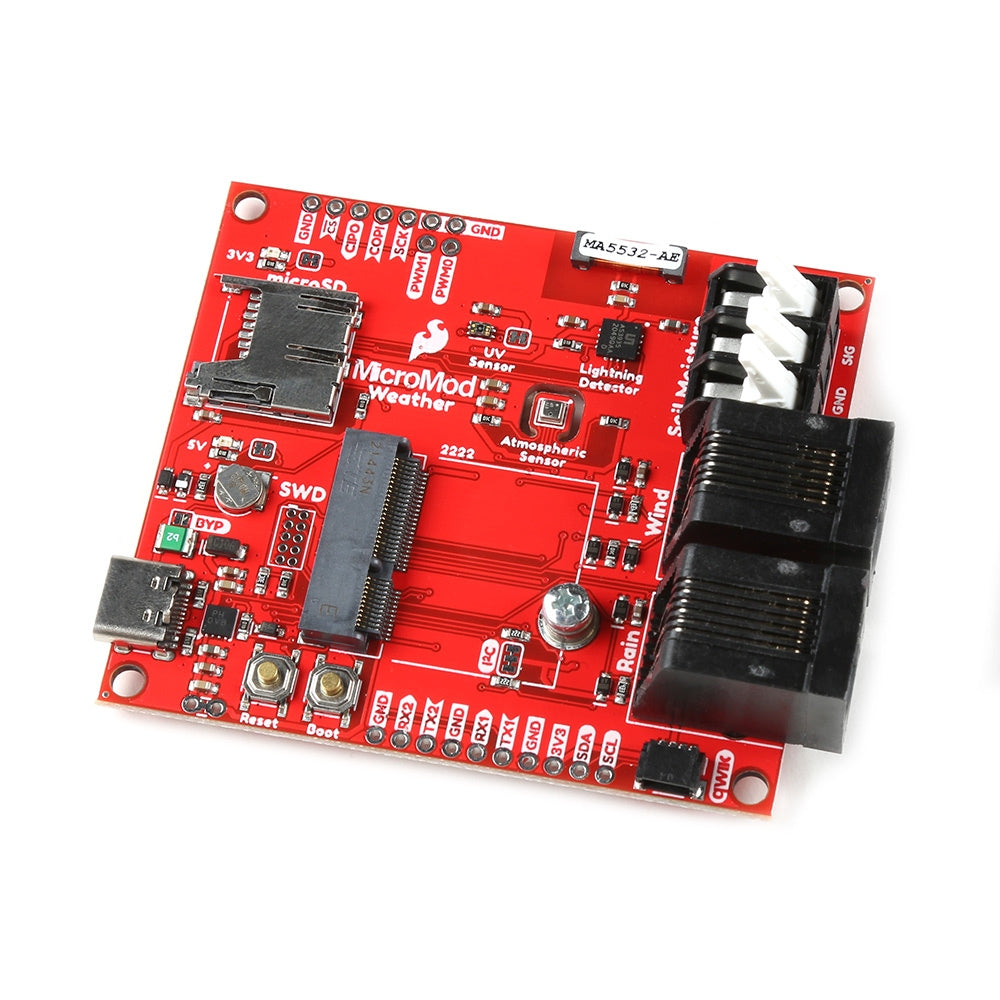

MicroMod Weather Carrier Board (w/o UV Sensor):
- Barometric Pressure/Humidity/Temperature Sensor - BME280
- Operated in I2C mode. I2C address: 0x77
- Lightning Detector - AS3935
- Operated in SPI mode.
- 2 x RJ11 Connectors to connect Wind/Rain sensors.
- 3-pin Latch Terminal to connect Soil Moisture sensor.

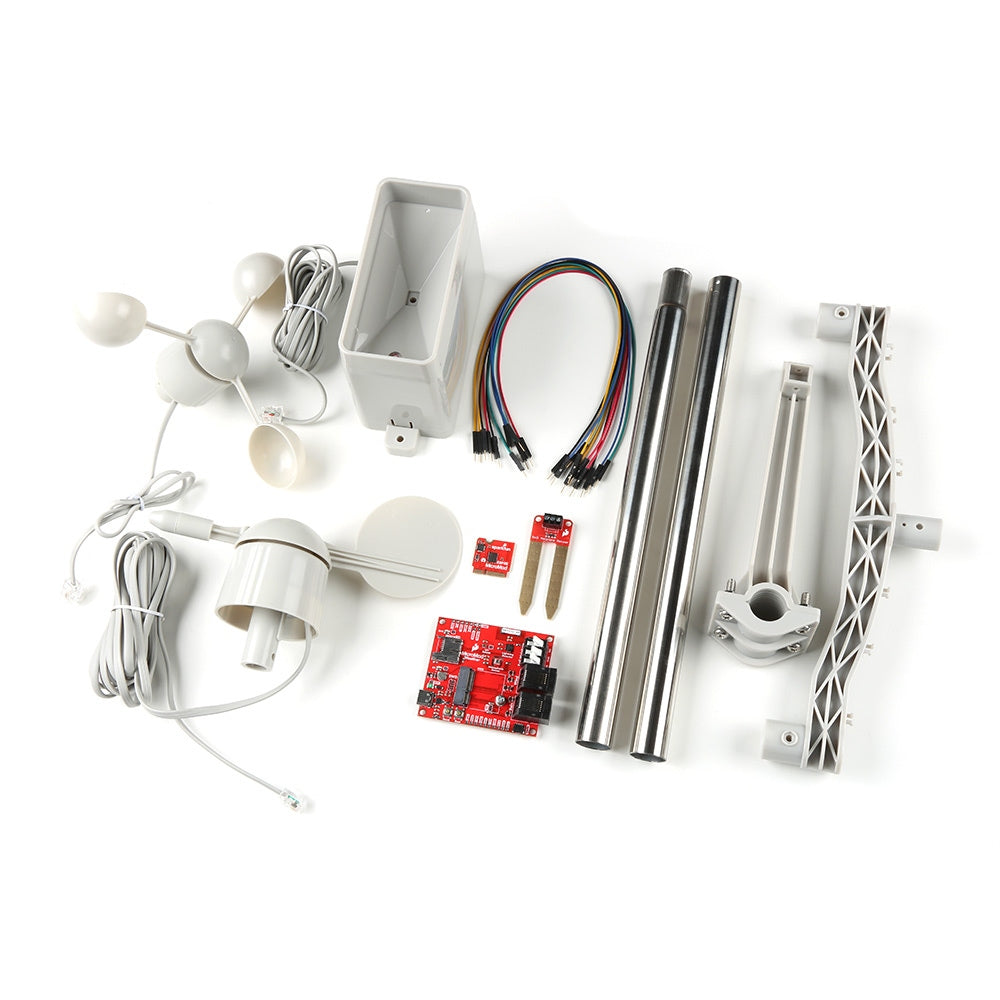

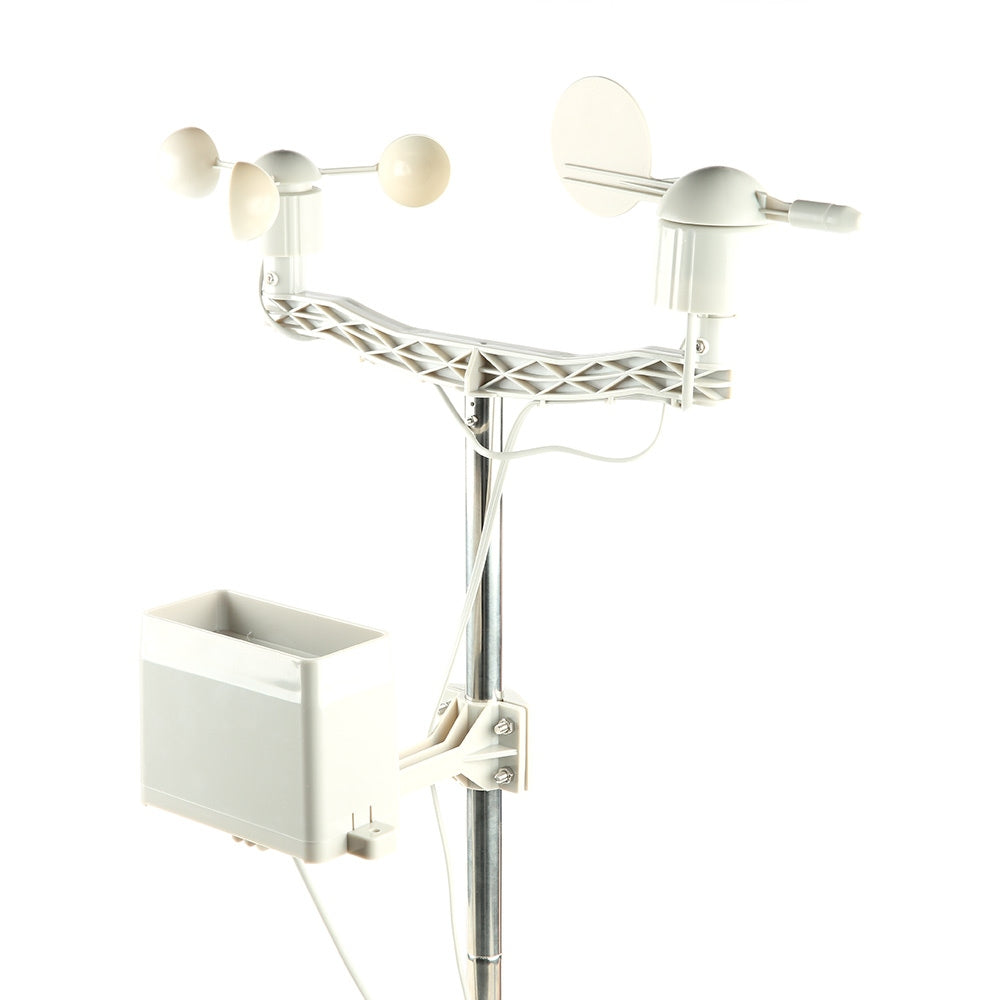

Weather Meter Kit:
- Wind Vane
- Cup Anemometer
- Tipping Bucket Rain Gauge
- Two-Part Mounting Mast
- Rain Gauge Mounting Arm
- Wind Meter Mounting Bar
- 2 x Mounting Clamps
- 4 x Zip Ties

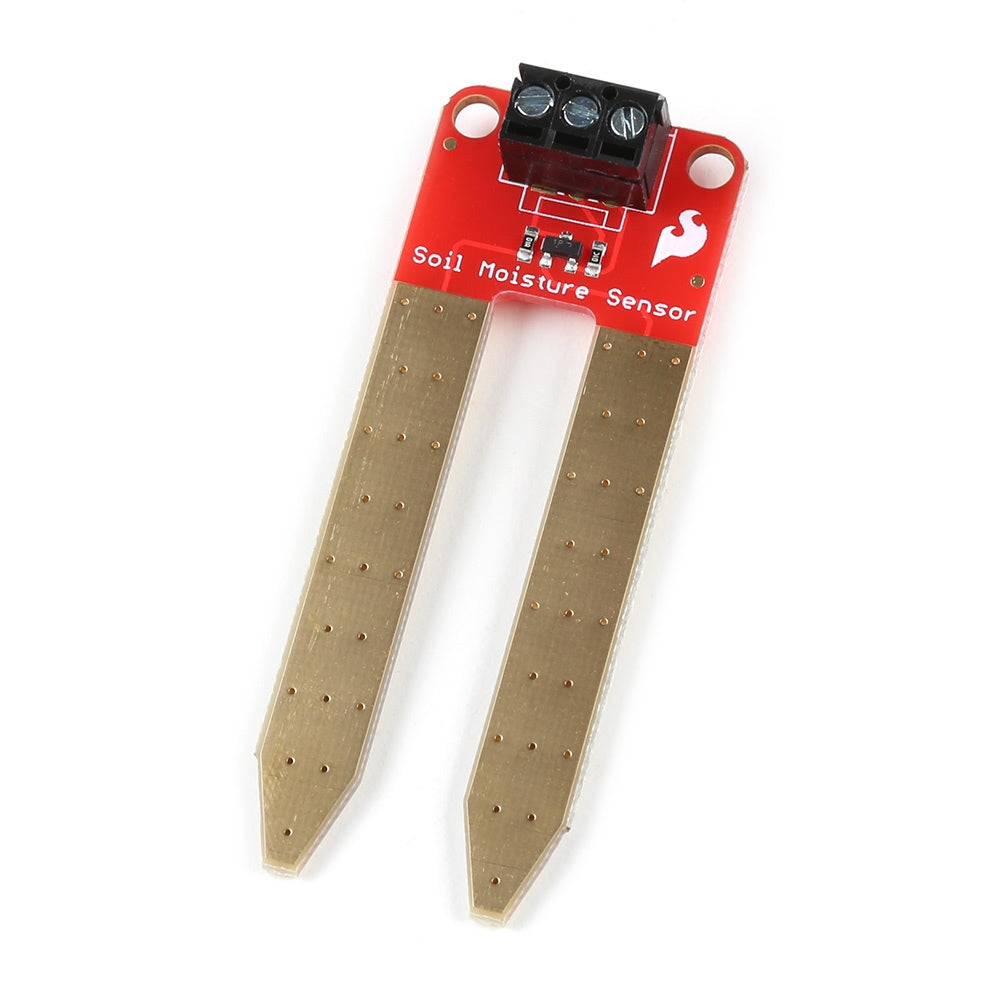

Soil Moisture Sensor:
- PCB Coated in ENIG (Electroless Nickel Immersion Gold)
- 3-Pin Screw Terminal (Pre-Assembled)
Features & Specs
ESP32 MicroMod Processor Board:
- General Features:
- Dual-core Tensilica LX6 microprocessor
- Up to 240MHz clock frequency
- 520kB internal SRAM
- 128mbit/16MB flash storage
- Integrated 802.11 BGN WiFi transceiver
- 2.7 to 3.6V operating range
- 500µA sleep current under hibernation
- 10-electrode capacitive touch support
- Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
- Specific Peripherals made available on MicroMod ESP32:
- 1x USB dedicated for programming and debug
- 1x UART
- 2x I2C
- 1x SPI
- 7x GPIO
- 2x Digital Pins
- 2x Analog Pins
- 2x PWM
- Status LED
- VIN Level ADC
- *Additional peripherals are available but are shared on dedicated MicroMod pins.
MicroMod Weather Carrier Board (w/o UV Sensor):
- Barometric Pressure/Humidity/Temperature Sensor - BME280
- Operated in I2C mode. I2C address: 0x77
- Lightning Detector - AS3935
- Operated in SPI mode.
- 2 x RJ11 Connectors to connect Wind/Rain sensors.
- 3-pin Latch Terminal to connect Soil Moisture sensor.
Weather Meter Kit:
- Wind Vane
- Cup Anemometer
- Tipping Bucket Rain Gauge
- Two-Part Mounting Mast
- Rain Gauge Mounting Arm
- Wind Meter Mounting Bar
- 2 x Mounting Clamps
- 4 x Zip Ties
Soil Moisture Sensor:
- PCB Coated in ENIG (Electroless Nickel Immersion Gold)
- 3-Pin Screw Terminal (Pre-Assembled)
Documentation
Weather Meter Kit:
MicroMod Documentation:
- General Information:
- Getting Started with MicroMod
- Pinout - SparkFun MicroMod Interface v1.0
- Pin Descriptions - SparkFun MicroMod Interface v1.0
- MicroMod Info Page
- MicroMod Forums
- ESP32 Processor Board:
- Schematic
- Eagle Files
- Board Dimensions
- Hookup Guide
- Datasheet (ESP32-D0WDQ6-V3)
- Graphical Datasheet
- GitHub Hardware Repo
- ESP32 Documentation:
- ESP32.com
- Espressif ESP32 Resource Page
- Weather Carrier Board (w/o UV Sensor):
- Schematic
- Eagle Files
- Hookup Guide
- Board Dimensions
- Hardware GitHub Repo
- BME280 Datasheet (PDF)
- AS3935 Datasheet
- Arduino Libraries:
- BME280 Arduino Library
- AS3935 Arduino Library
Soil Moisture Sensor:
