Description

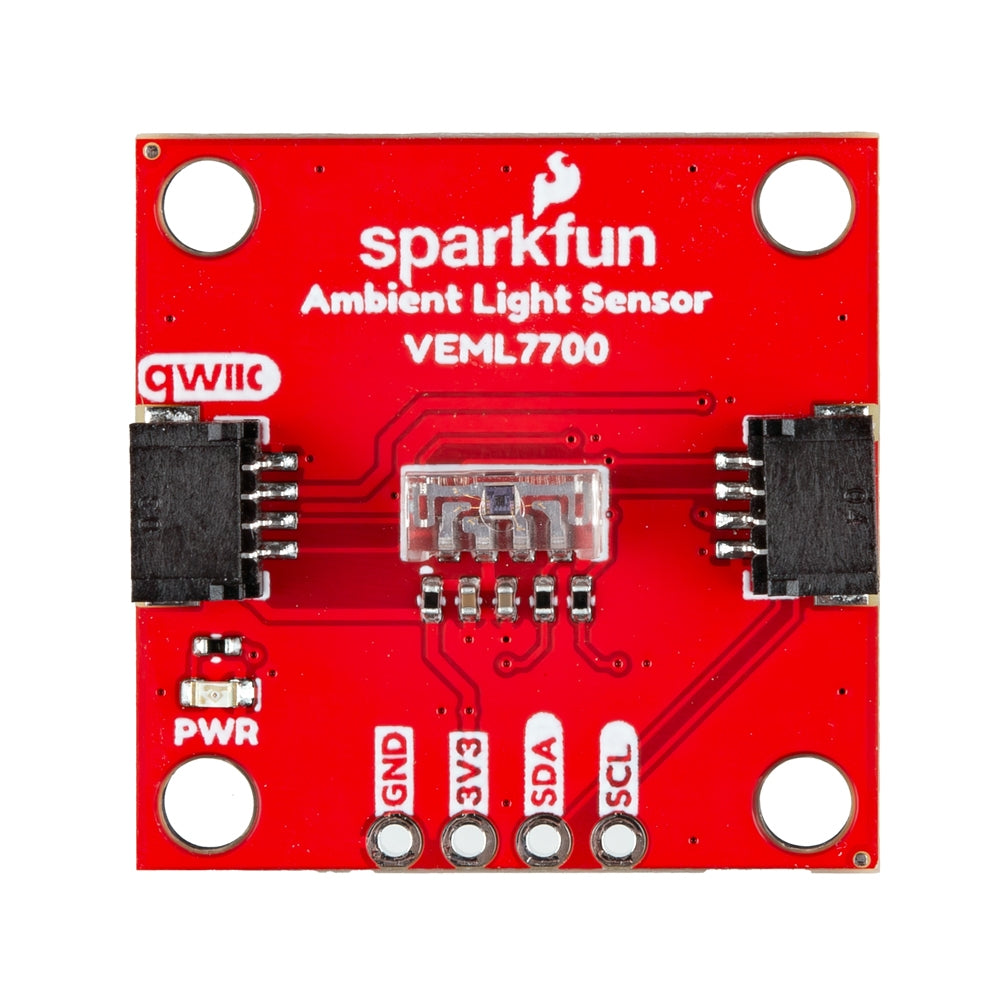

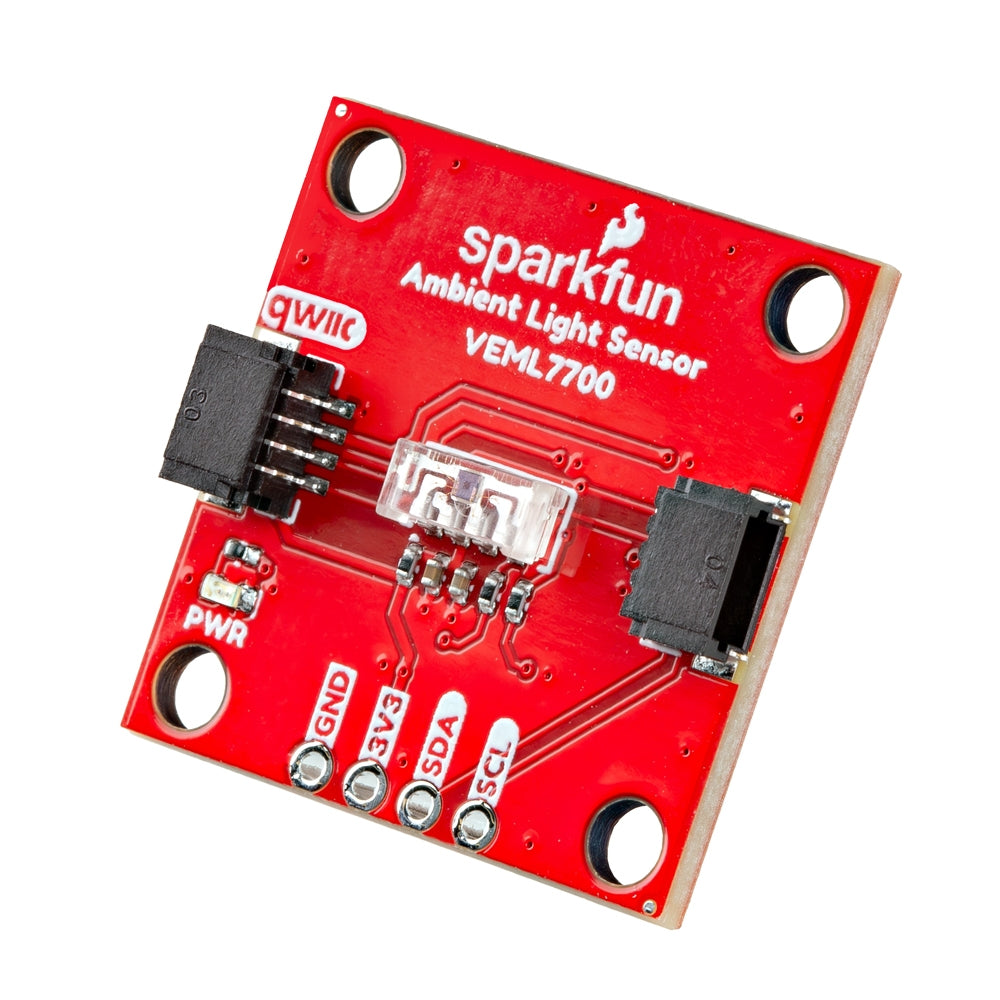

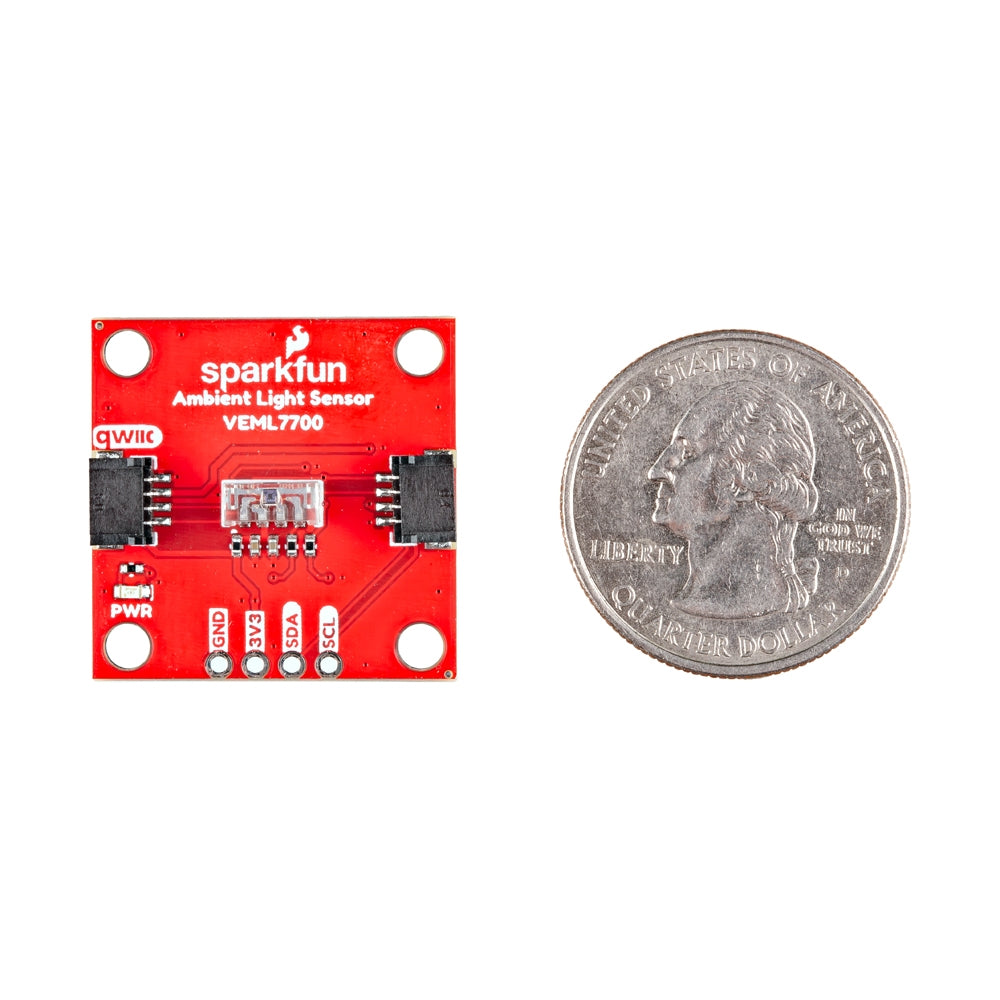

The SparkFun Qwiic VEML7700 Ambient Light Sensor delivers precise 16-bit lux readings via I2C, featuring Arduino and Python libraries for easy setup!
Features & Specs
- Filtron™ technology adaption: close to real human eye response
- O-Trim™ technology adoption: ALS output tolerance ≤ 10 %
- 16-bit dynamic range for ambient light detection from 0 lx to about 167 klx with resolution down to 0.005 lx/count
- 100 Hz and 120 Hz flicker noise rejection
- Excellent temperature compensation
- High dynamic detection resolution
- Software shutdown mode control
- High and low threshold windows with interrupt flags
- Supply voltage:
- 3.3V (TYP); 2.5V (MIN); 3.6V (MAX)
- Typical current draw:
- Shut down: 0.5µA
- Refresh time 4100ms: 2µA
- Refresh time 100ms: 45µA

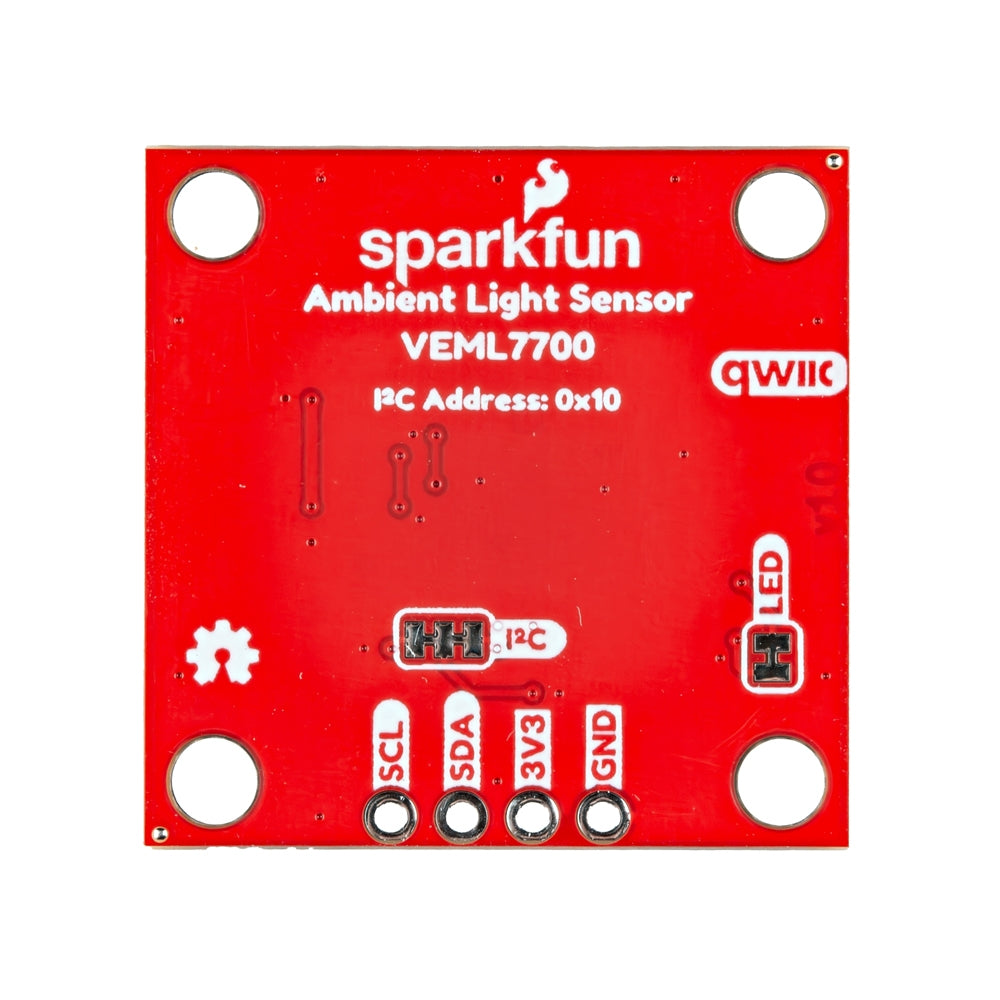

- I2C address: 0x10 (unshifted)
Features & Specs
- Filtron™ technology adaption: close to real human eye response
- O-Trim™ technology adoption: ALS output tolerance ≤ 10 %
- 16-bit dynamic range for ambient light detection from 0 lx to about 167 klx with resolution down to 0.005 lx/count
- 100 Hz and 120 Hz flicker noise rejection
- Excellent temperature compensation
- High dynamic detection resolution
- Software shutdown mode control
- High and low threshold windows with interrupt flags
- Supply voltage:
- 3.3V (TYP); 2.5V (MIN); 3.6V (MAX)
- Typical current draw:
- Shut down: 0.5µA
- Refresh time 4100ms: 2µA
- Refresh time 100ms: 45µA
- I2C address: 0x10 (unshifted)
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- Datasheet (VEML7700)
- Application Note (VEML7700)
- Hookup Guide
- Libraries
- GitHub Hardware Repo
