Description

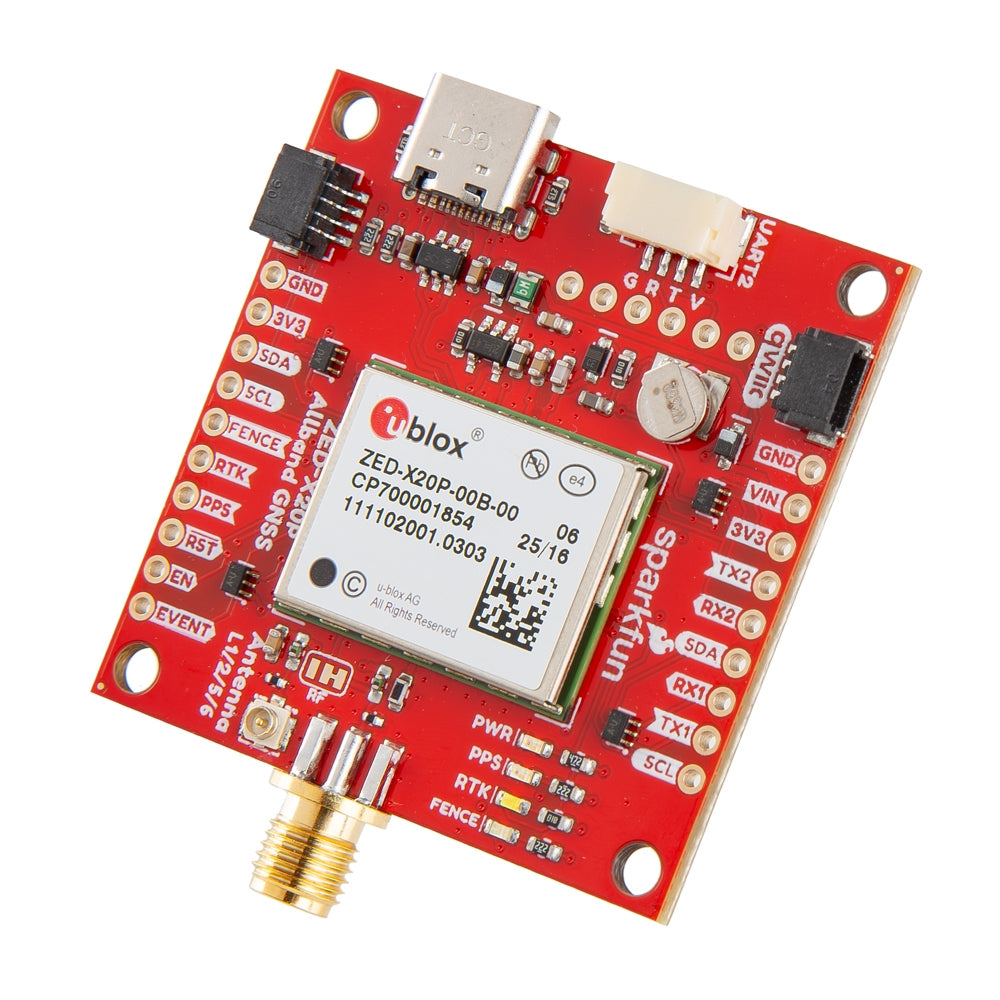

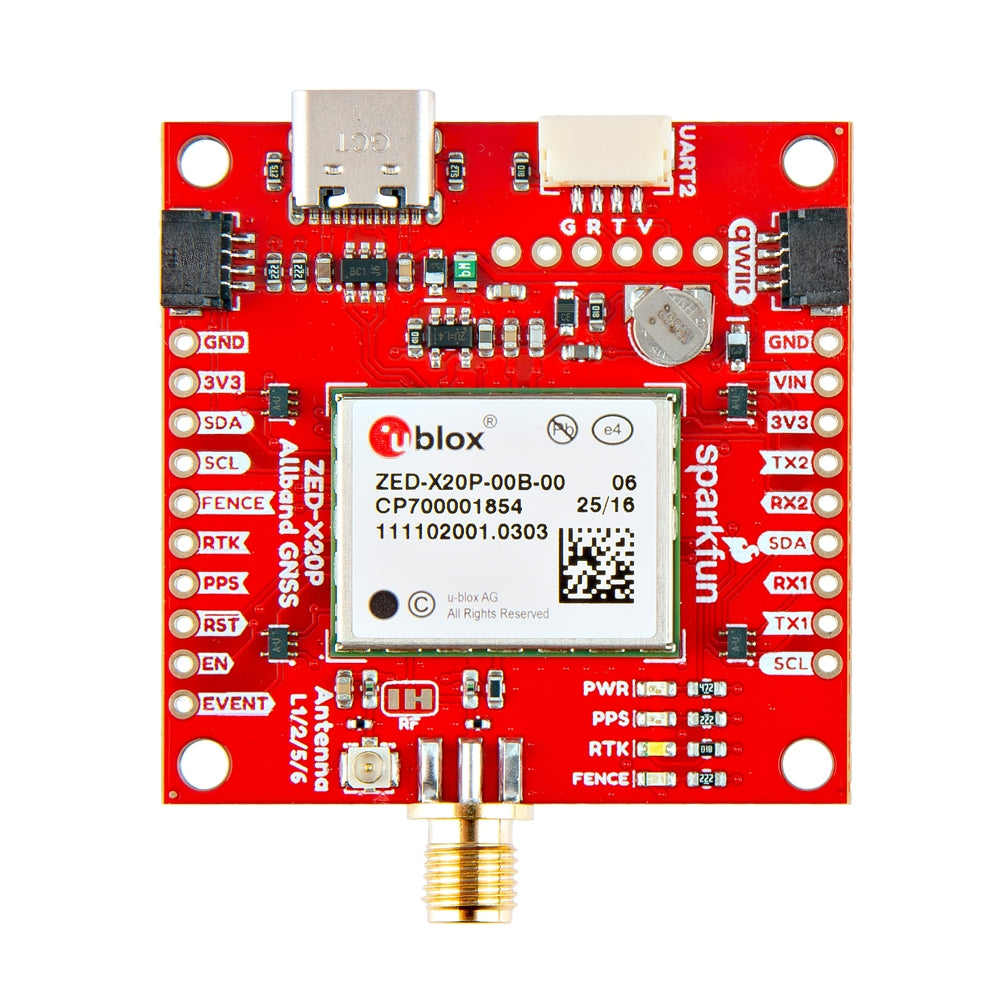

The SparkFun Allband GNSS RTK Breakout - ZED-X20P (Qwiic) features the latest GNSS engine from u-blox; the X20 is a successor to their popular F9 engine.
Features & Specs
SparkFun Allband GNSS RTK Breakout - ZED-X20P Features
- U-blox ZED-X20P Allband, GNSS module
- GNSS Constellations
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WASS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations
- Breakout board:

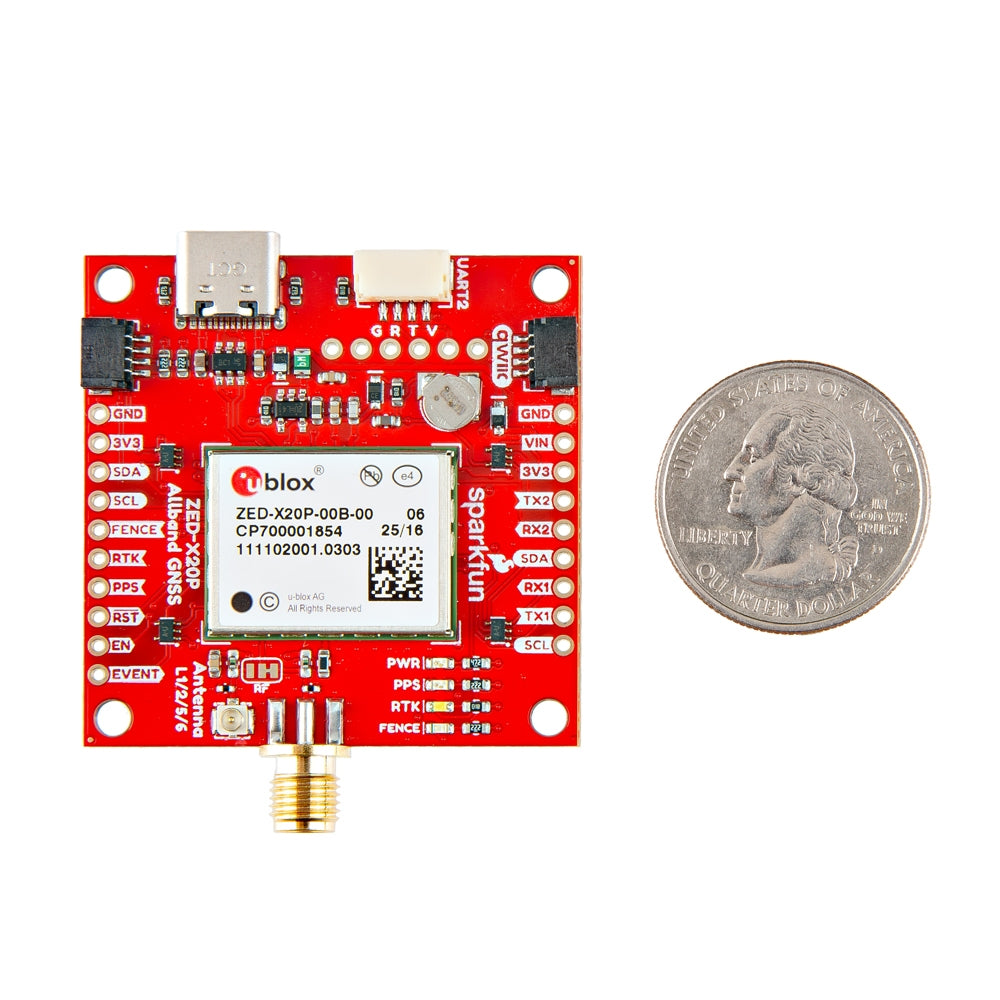

- Dimensions: 1.70" x 1.70" (43.2mm x 43.2mm)
- Four mounting holes:
- 4-40 screw compatible
- Connections:
- 19 PTH Pins
- 4-pin JST Qwiic connector* (x2)
- UART interfaces (x3)
- USB-C connector
- 6 PTH pins (BlueSMiRF/Serial-to-UART)
- 4-pin locking JST connector
- LEDs:
- PWR - Red 3.3V power indicator
- PPS - Yellow Pulse-Per-Second indicator
- RTK - White RTK correction indicator
- FENCE - Blue Geofence status indicator
- Backup battery
ZED-X20P General Features
- Supply voltage: 2.7V to 3.6V
- GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
- Interfaces:
- UART x2
- SPI
- I2C
- Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
- Services:
- AssistNow
- PointPerfect
- Operating temperature: -40°C to 85°C
- Dimensions: 17.0mm x 22.0mm x 2.4mm
*: Feature in development
Features & Specs
SparkFun Allband GNSS RTK Breakout - ZED-X20P Features
- U-blox ZED-X20P Allband, GNSS module
- GNSS Constellations
- GPS (USA)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- NavIC (India)
- SBAS Systems:
- WASS (USA)
- EGNOS (EU)
- BDSBAS (China)
- MSAS (Japan)
- GAGAN (India)
- GNSS Constellations
- Breakout board:
- Dimensions: 1.70" x 1.70" (43.2mm x 43.2mm)
- Four mounting holes:
- 4-40 screw compatible
- Connections:
- 19 PTH Pins
- 4-pin JST Qwiic connector* (x2)
- UART interfaces (x3)
- USB-C connector
- 6 PTH pins (BlueSMiRF/Serial-to-UART)
- 4-pin locking JST connector
- LEDs:
- PWR - Red 3.3V power indicator
- PPS - Yellow Pulse-Per-Second indicator
- RTK - White RTK correction indicator
- FENCE - Blue Geofence status indicator
- Backup battery
ZED-X20P General Features
- Supply voltage: 2.7V to 3.6V
- GNSS Support:
- GPS: L1C/A, L2C, L5
- Galileo: E1B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B*, L2C, L5, L6
- NavIC: L1*, L5
- SBAS: L1C/A
- Interfaces:
- UART x2
- SPI
- I2C
- Features
- Programmable flash memory
- Carrier phase output
- Jamming detection
- Galileo OSNMA
- Secure boot
- Services:
- AssistNow
- PointPerfect
- Operating temperature: -40°C to 85°C
- Dimensions: 17.0mm x 22.0mm x 2.4mm
*: Feature in development
Documentation
- Schematic
- KiCad Files
- Board Dimensions
- STEP File
- Hookup Guide
- u-center 2 Software
- Component Documentation
- ZED-X20P GNSS Receiver
- Datasheet
- Product Summary
- Integration Manual
- GPS L5 Configuration
- Firmware (HPG 2.02)
- RT9080 Datasheet
- JST Connector Datasheet
- ZED-X20P GNSS Receiver
- Building a GNSS System
- Qwiic Info Page
- GitHub Hardware Repository
