Description

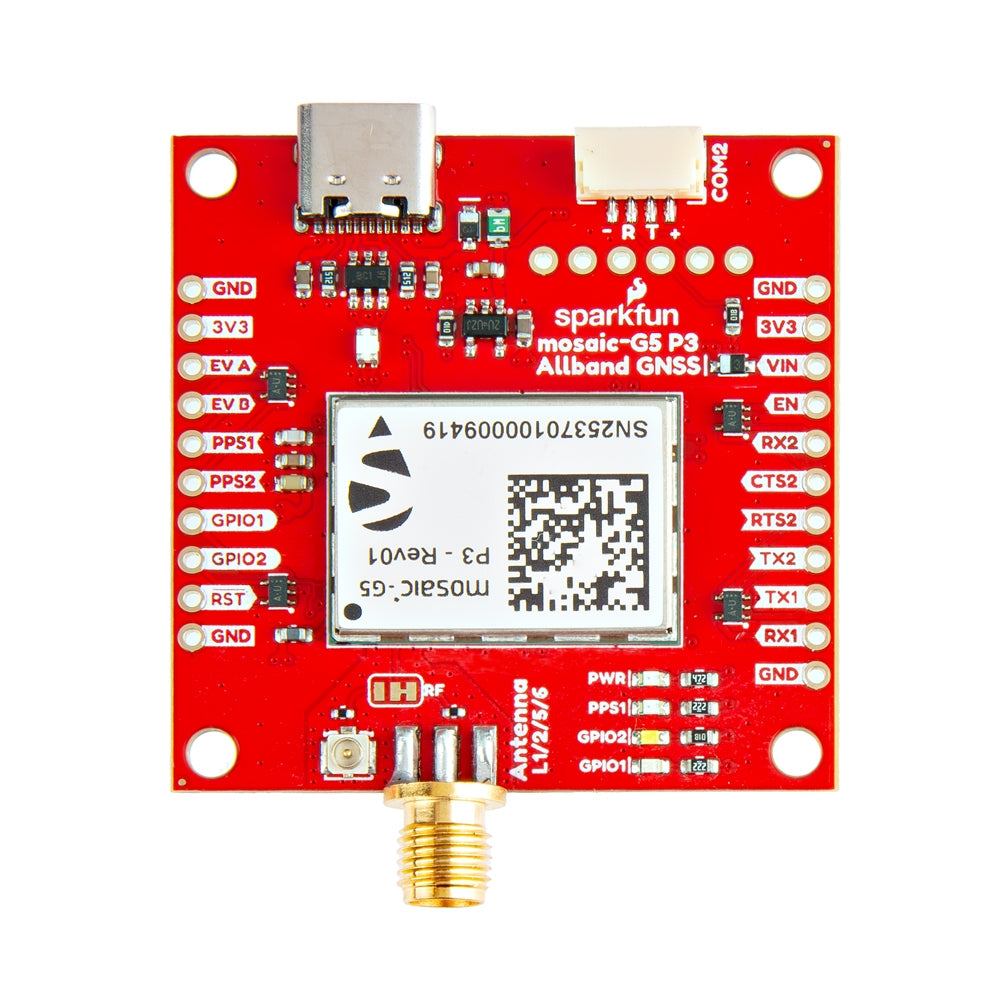

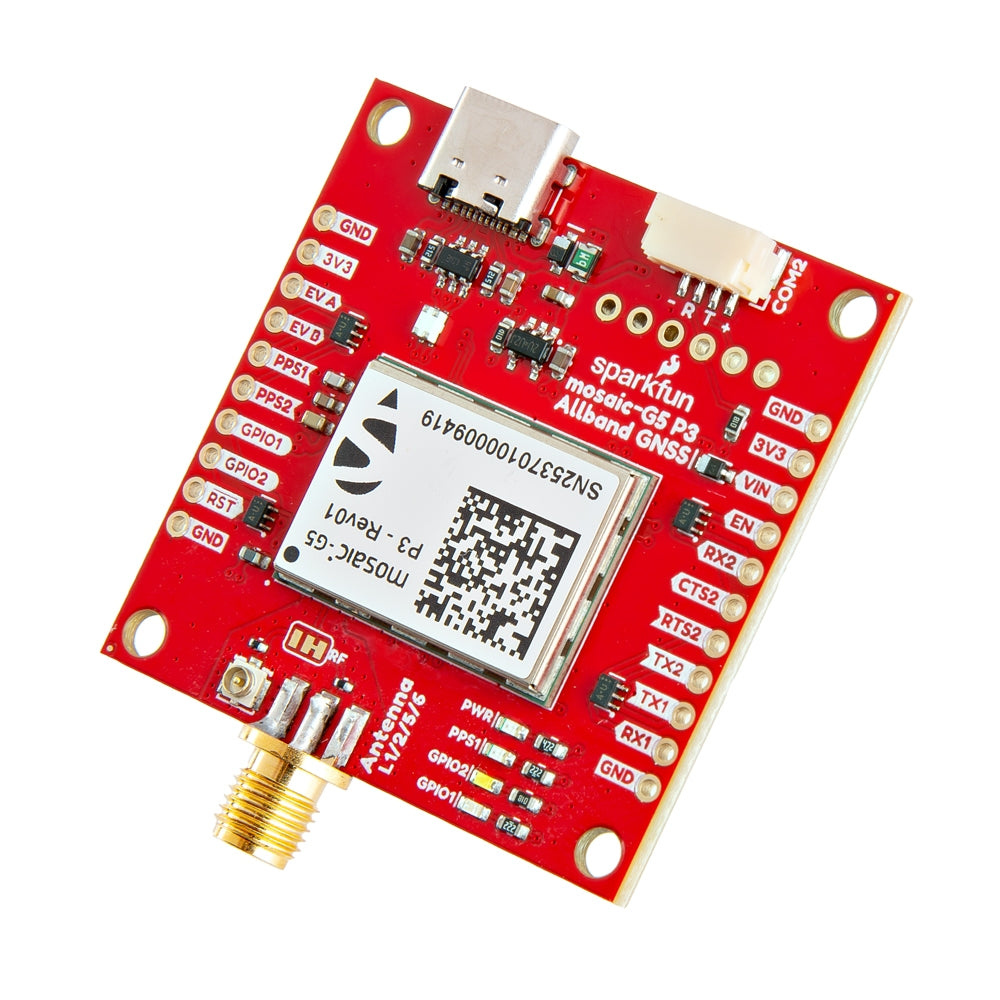

A compact, all-band RTK breakout board featuring the Septentrio mosaic-G5 for millimeter-level precision, ultra-low power consumption, and AIM+ anti-jamming.
Features & Specs
Allband GNSS RTK Breakout - mosaic-G5 P3:
- Septentrio mosaic-G5 P3 GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- SBAS / QZSS Support
- GNSS Constellations:
- USB-C Connector
- 4-pin JST-GH Connector
- Qwiic Connectors (x2)
- 4-pin JST-SH
- SMA Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna

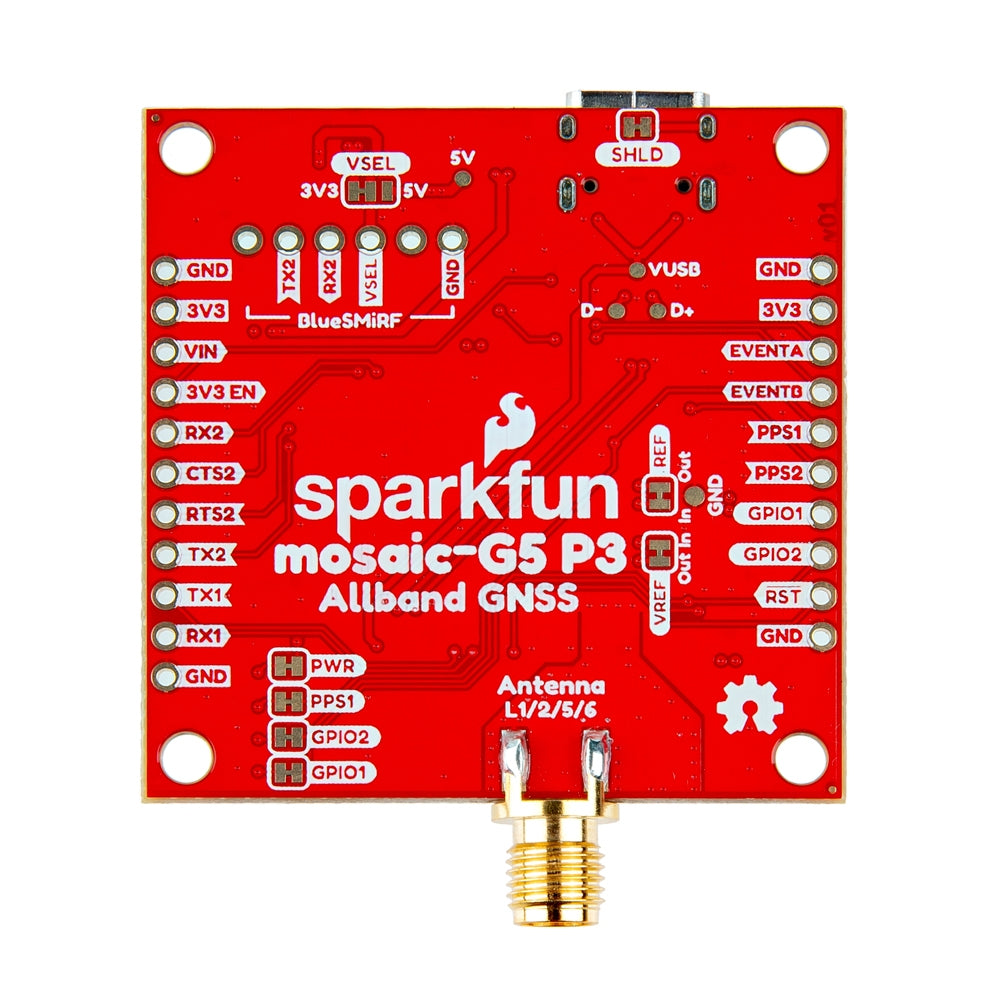

- Twenty-one 0.1"-pitch PTH pins
- VIN: 3.8V to 5.5V
- 3.3V (x2)
- 3.3V Enable
- UART (x2)
- PPS signal (x2)
- LED indicators (x2)
Event indicators (x2) - Reset
- GND (x4)

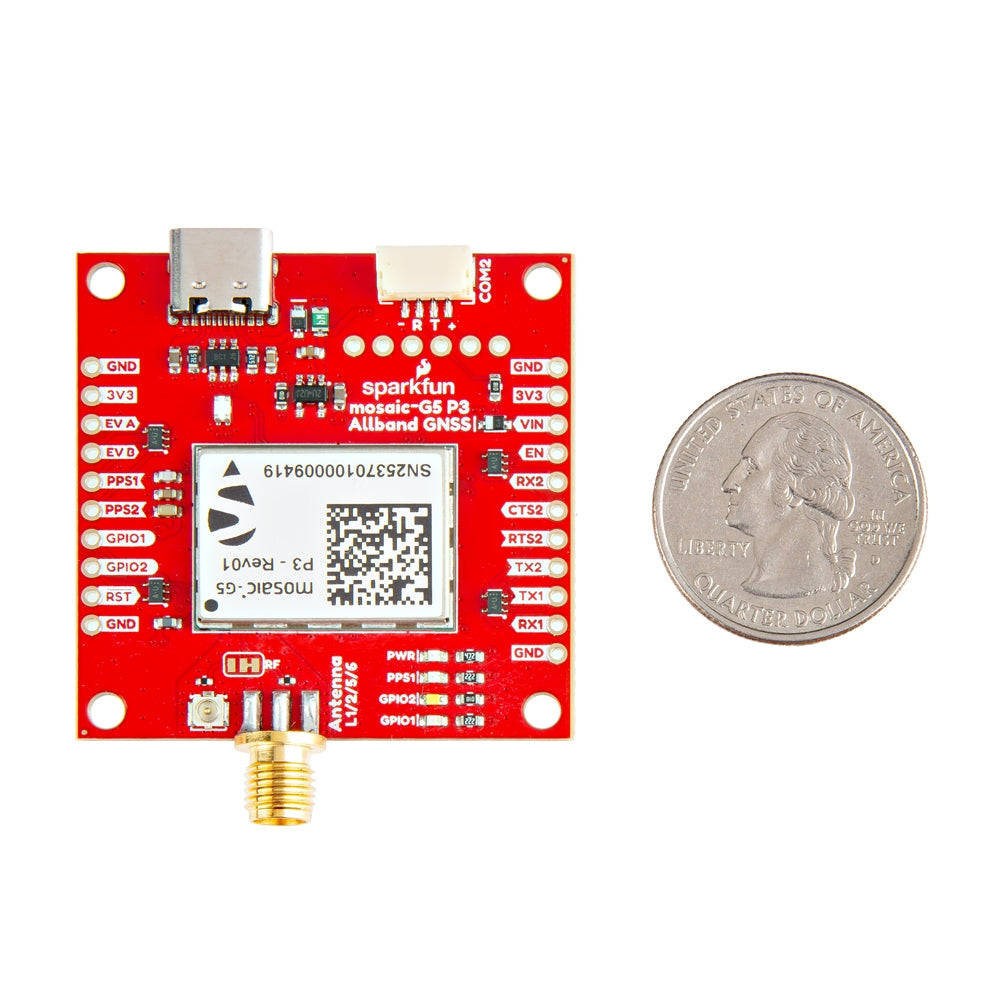

- Dimensions: 43.2mm x 43.2mm (Approx. 1.70" x 1.70")
- Four mounting holes:
- 4-40 screw compatible
- Weight: 11.15g
mosaic-G5 P3 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Typical power consumption: 0.44W
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 789 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS: L1C/A, L1C, L2C, L2PY, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3I
- Galileo: E1, E5a, E5b, E6
- QZSS: L1C/A, L1 C/B, L2C, L5, L6
- Time to Fix
- Cold Start: < 35s
- Warm: < 10s
- Reacquisition: 1s
- Event Accuracy: < 3ns
- Update Rate: 20Hz
- Latency: < 10ms
-
VANT Voltage: 3.3V
- Max current: 150mA
- Interfaces:
- UART (x2)
- USB device (2.0, HS)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out (x2)
- Protocols:
- Septentrio Binary Format (SBF)
- NMEA 0183, v2.3, v3.03, V4.0
- RTCM v3.x (MSM included)
- Package Size: 16.4mm x 22.8mm x 2.4mm
- Weight: 2.2g
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Features & Specs
Allband GNSS RTK Breakout - mosaic-G5 P3:
- Septentrio mosaic-G5 P3 GNSS Receiver
- GNSS Constellations:
- GPS (USA)
- GLONASS (Russia)
- Galileo (EU)
- BDS (China)
- QZSS (Japan)
- SBAS / QZSS Support
- GNSS Constellations:
- USB-C Connector
- 4-pin JST-GH Connector
- Qwiic Connectors (x2)
- 4-pin JST-SH
- SMA Connector:
- GNSS Antenna (Active, Multi-band)
- 3.3V power for an active antenna
- Twenty-one 0.1"-pitch PTH pins
- VIN: 3.8V to 5.5V
- 3.3V (x2)
- 3.3V Enable
- UART (x2)
- PPS signal (x2)
- LED indicators (x2)
Event indicators (x2) - Reset
- GND (x4)
- Dimensions: 43.2mm x 43.2mm (Approx. 1.70" x 1.70")
- Four mounting holes:
- 4-40 screw compatible
- Weight: 11.15g
mosaic-G5 P3 GNSS Receiver:
- Voltage Range: 3.135 to 3.465V
- Typical power consumption: 0.44W
- RTK Accuracy
- Horizontal: 0.6cm (±0.5ppm)
- Vertical: 1cm (±1ppm)
- Channels: 789 (simultaneous tracking)
- GNSS Frequency Bands:
- GPS: L1C/A, L1C, L2C, L2PY, L5
- GLONASS: L1CA, L2CA, L2P, L3 CDMA
- Beidou: B1I, B1C, B2a, B2b, B2I, B3I
- Galileo: E1, E5a, E5b, E6
- QZSS: L1C/A, L1 C/B, L2C, L5, L6
- Time to Fix
- Cold Start: < 35s
- Warm: < 10s
- Reacquisition: 1s
- Event Accuracy: < 3ns
- Update Rate: 20Hz
- Latency: < 10ms
-
VANT Voltage: 3.3V
- Max current: 150mA
- Interfaces:
- UART (x2)
- USB device (2.0, HS)
- GPIO user programmable (x2)
- Event markers (x2)
- Configurable PPS out (x2)
- Protocols:
- Septentrio Binary Format (SBF)
- NMEA 0183, v2.3, v3.03, V4.0
- RTCM v3.x (MSM included)
- Package Size: 16.4mm x 22.8mm x 2.4mm
- Weight: 2.2g
Shipping Restrictions
This product contains a module from Septentrio. Considering the dual-use nature of Septentrio products, such as the mosaic-X5 and mosaic-G5 GNSS receiver modules, and the increased risk of diversion in these countries, any direct or indirect sales, transfer, export, or re-export of Septentrio Items or Items sold by Septentrio, to the following countries is prohibited, except if specifically approved by Septentrio:
Afghanistan, Armenia, Azerbaijan, Bosnia & Herzegovina, Burundi, Central African Republic, China, Congo, Cyprus, Eritrea, Georgia, Guinea, Guinea-Bissau, Haiti, Hong Kong, India, Iraq, Israel, Kazakhstan, Kyrgyzstan, Lebanon, Libya, Malaysia, Mali, Malta, Mongolia, Moldavia, Myanmar(Burma), Nicaragua, Pakistan, Saudi Arabia, Serbia, Singapore, Somalia, South-Sudan, Sudan, Sri Lanka, Syria, Taiwan, Tajikistan, Tunisia, Turkey, Turkmenistan, Ukraine, United Arab Emirates, Uzbekistan, Venezuela, Yemen, Zimbabwe.
This list is in addition to, and separate from, the countries to which the sale, supply, transfer, export, re-export, directly or indirectly, is prohibited under applicable sanctions.
Documentation
- Design Files
-
Hookup Guide
- Software: RxTools
- Correction Service: Agnostic Corrections
- Component Documentation
- Building a GNSS System
- GitHub Hardware Repository
