Description

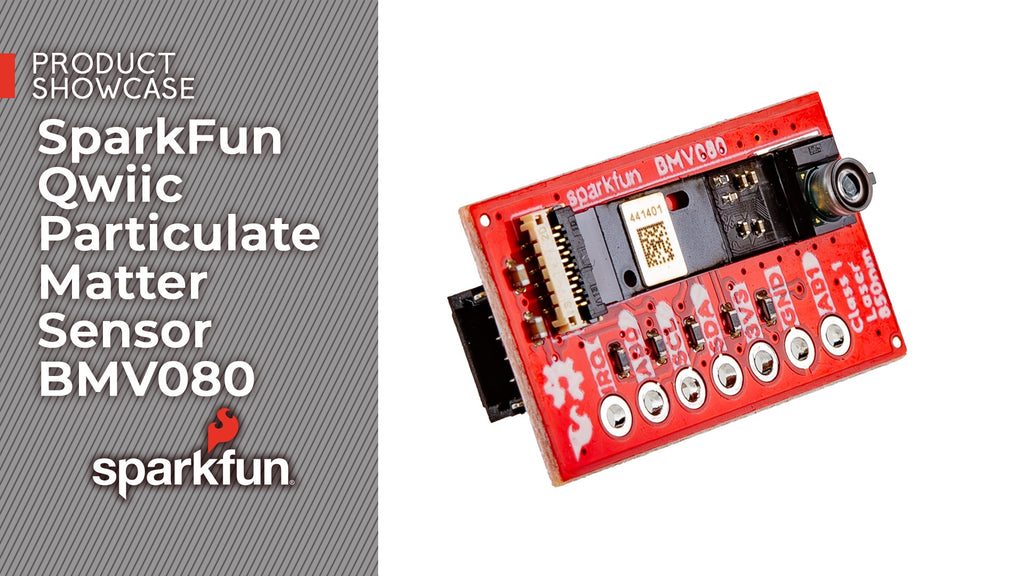

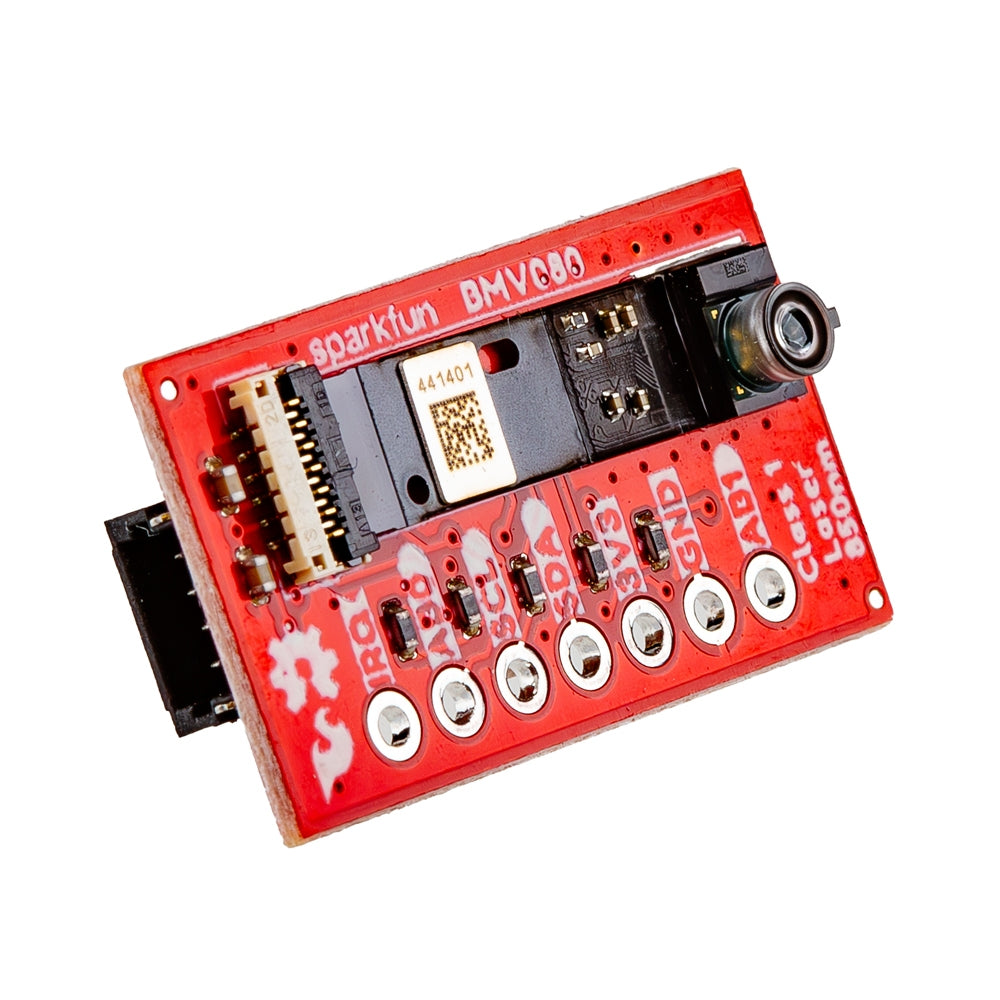

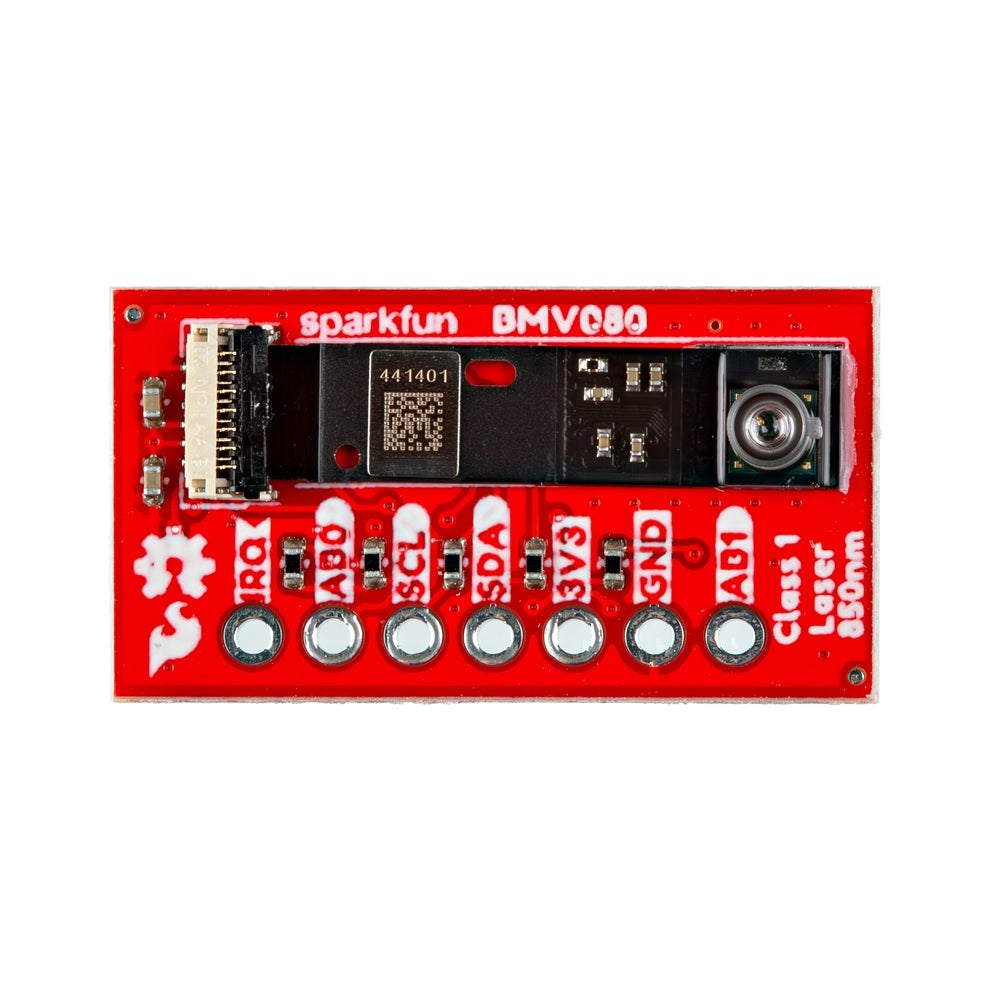

Measure air quality with unprecedented precision and size using the SparkFun Qwiic BMV080 sensor, the world's smallest PM1/PM2.5/PM10 detector.
Features & Specs
- Average totalVoltage Input
- Typically 3.3V via Qwiic Connector
- Current Consumption
- Average total current* at 0.97 Hz ODR <68µA
- *Note: During active measurement. For more details, please refer to the Bosch BMV080 datasheet.
- Sleep current <30µA
- Average total current* at 0.97 Hz ODR <68µA
- Bosch BMV080
- Sensor Dimensions (including flex PCB-based Connector)
- 4.2 x 3.1 x 20 mm3
- PM Mass Concentration
- Range: 0 to 1000 µg/m3
- Resolution: 1 µg/m3
- Precision (typically)
- ± 10µg/m3 @ 0 to 100 µg/m3
- ± 10% of measured value @ 101 to 1000 µg/m3
- Measurement Modes
- Continuous
- Duty cycling
- Maximum Output Data Rate (ODR)
- 0.97 Hz in Continuous Measurement Mode
- Lower ODR Rates configurable in duty cycling measurement mode
- Communication interface
- I2C (default)
- SPI
- Start-up time
- 1.2s
- Laser Class
- Class 1, according to IEC 60825-1
- Operating Temperature Range
- +15 to +65°C
- Storage Temperature Range
- -40 to +70°C
- Sensor Dimensions (including flex PCB-based Connector)
- FPC 13-pin 0.33mm Connector
- 2x 2.2kΩ Pull-Up Resistors
- 1x Vertical Qwiic Connector
- Adjustable I2C Address
- 0x54
- 0x55
- 0x56
- 0x57 (default)

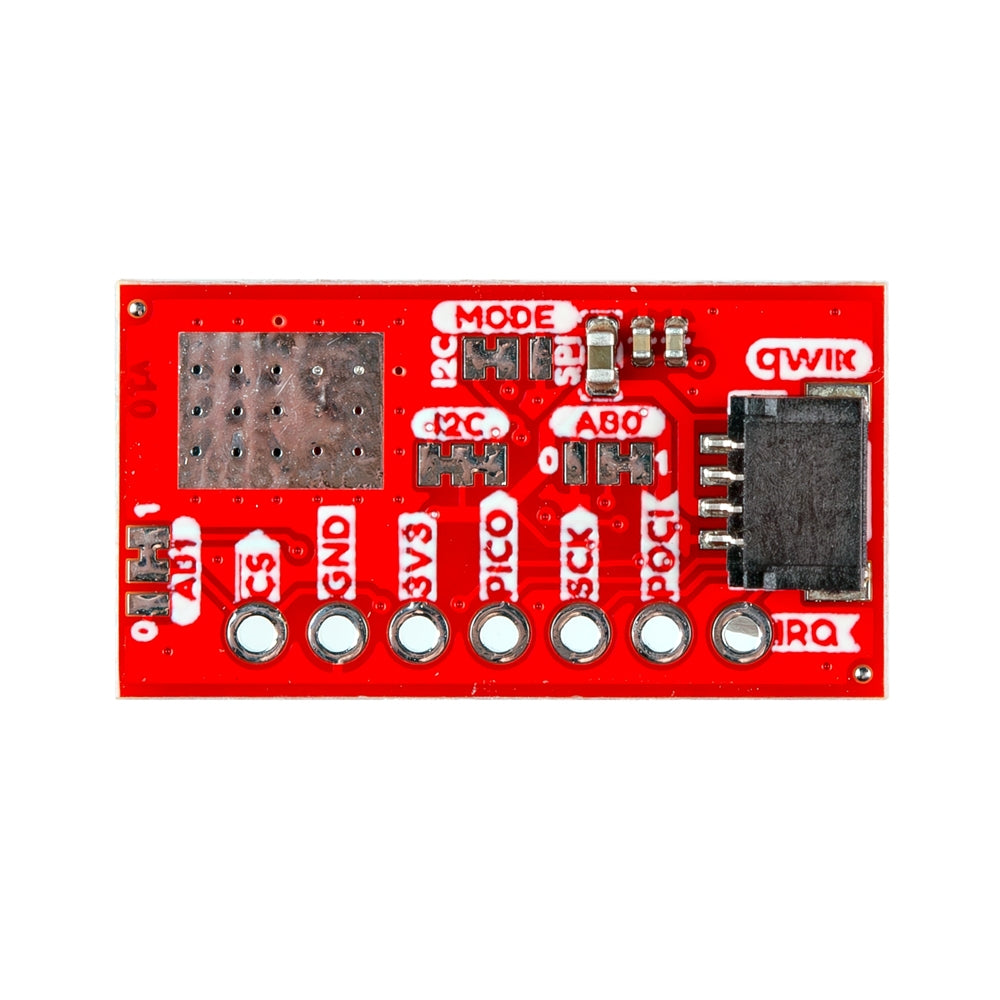

- Jumpers
- I2C
- I2C Address (AB0 & AB1)
- Communication Interface (SPI or I2C)
Features & Specs
- Average totalVoltage Input
- Typically 3.3V via Qwiic Connector
- Current Consumption
- Average total current* at 0.97 Hz ODR <68µA
- *Note: During active measurement. For more details, please refer to the Bosch BMV080 datasheet.
- Sleep current <30µA
- Average total current* at 0.97 Hz ODR <68µA
- Bosch BMV080
- Sensor Dimensions (including flex PCB-based Connector)
- 4.2 x 3.1 x 20 mm3
- PM Mass Concentration
- Range: 0 to 1000 µg/m3
- Resolution: 1 µg/m3
- Precision (typically)
- ± 10µg/m3 @ 0 to 100 µg/m3
- ± 10% of measured value @ 101 to 1000 µg/m3
- Measurement Modes
- Continuous
- Duty cycling
- Maximum Output Data Rate (ODR)
- 0.97 Hz in Continuous Measurement Mode
- Lower ODR Rates configurable in duty cycling measurement mode
- Communication interface
- I2C (default)
- SPI
- Start-up time
- 1.2s
- Laser Class
- Class 1, according to IEC 60825-1
- Operating Temperature Range
- +15 to +65°C
- Storage Temperature Range
- -40 to +70°C
- Sensor Dimensions (including flex PCB-based Connector)
- FPC 13-pin 0.33mm Connector
- 2x 2.2kΩ Pull-Up Resistors
- 1x Vertical Qwiic Connector
- Adjustable I2C Address
- 0x54
- 0x55
- 0x56
- 0x57 (default)
- Jumpers
- I2C
- I2C Address (AB0 & AB1)
- Communication Interface (SPI or I2C)
Documentation
- Schematic
- KiCad Files
- 3D Model
- Board Dimensions
- Hookup Guide
- Component Datasheets
- Arduino Library (Updated: July 2025)
- BMV080 SDK Request
- GitHub Hardware Repo
