Description

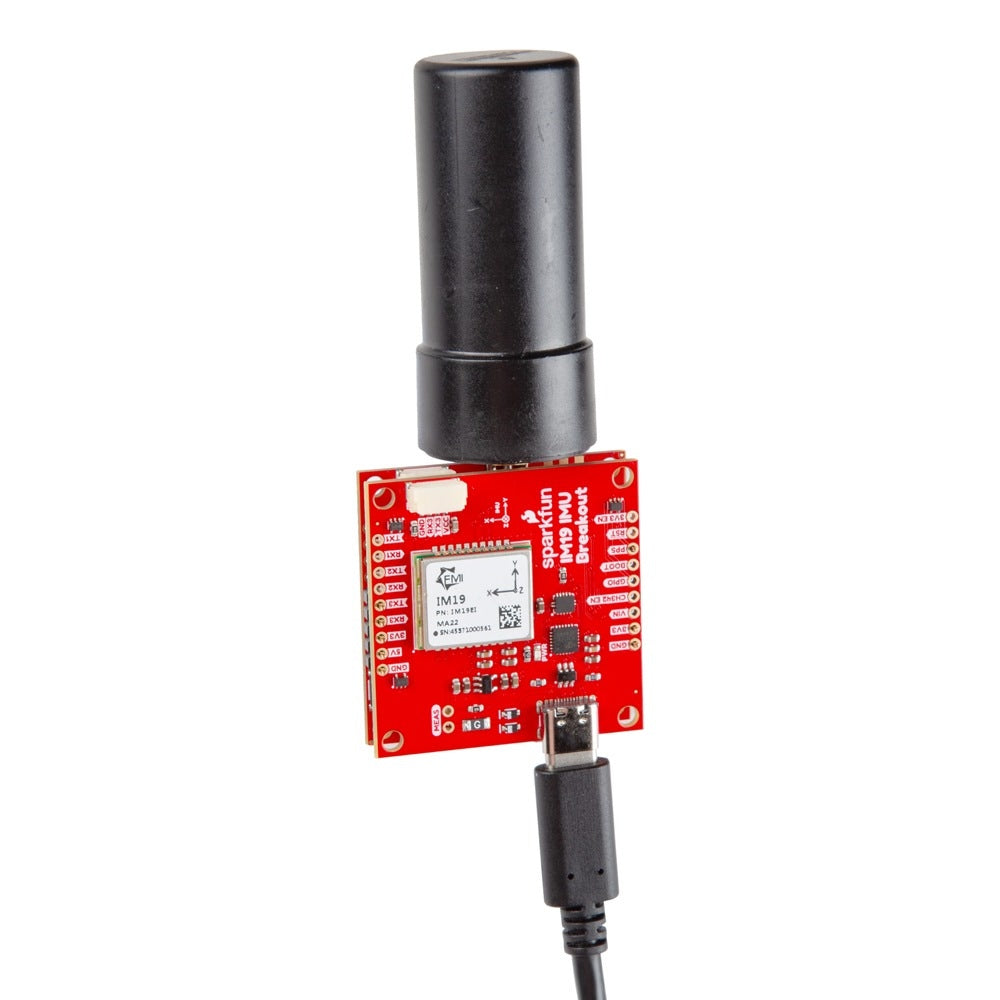

A high-precision IMU breakout featuring the Feyman IM19, designed exclusively for RTK receivers, for precise tilt compensation and PNT sensor fusion.
Features & Specs

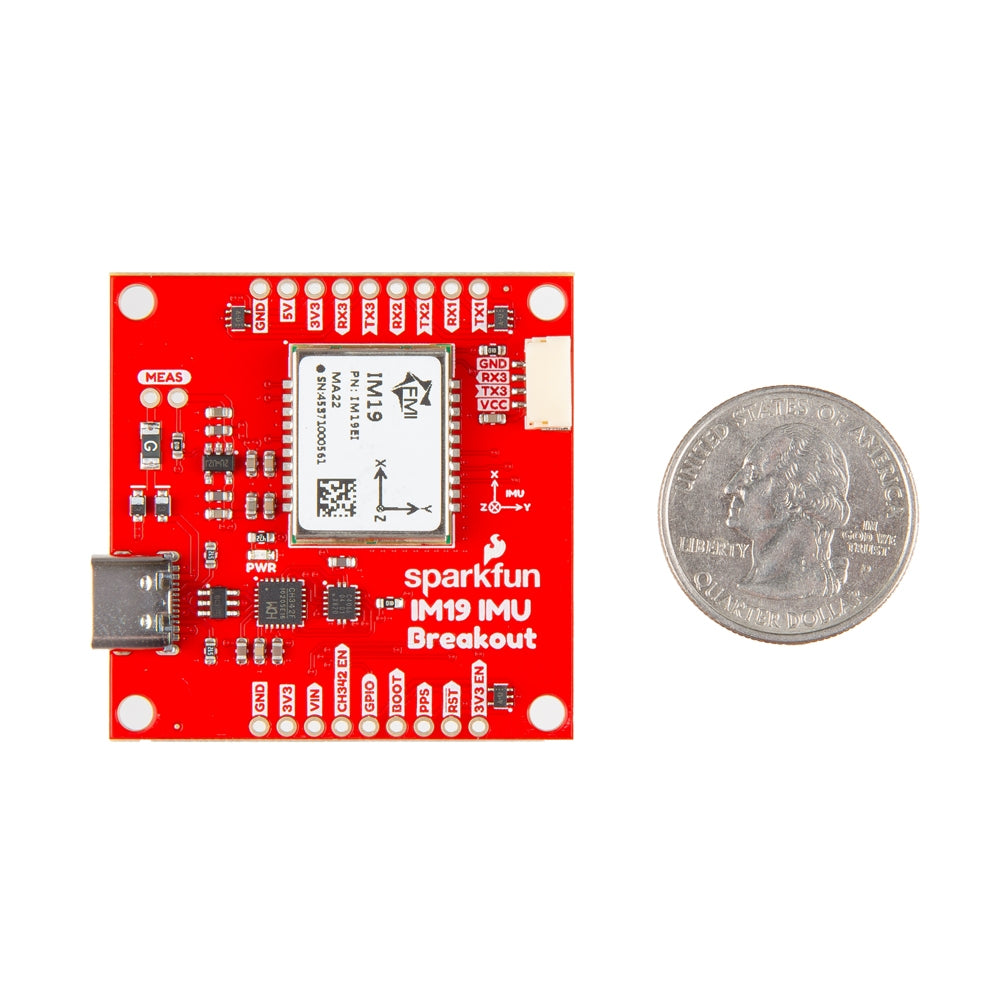

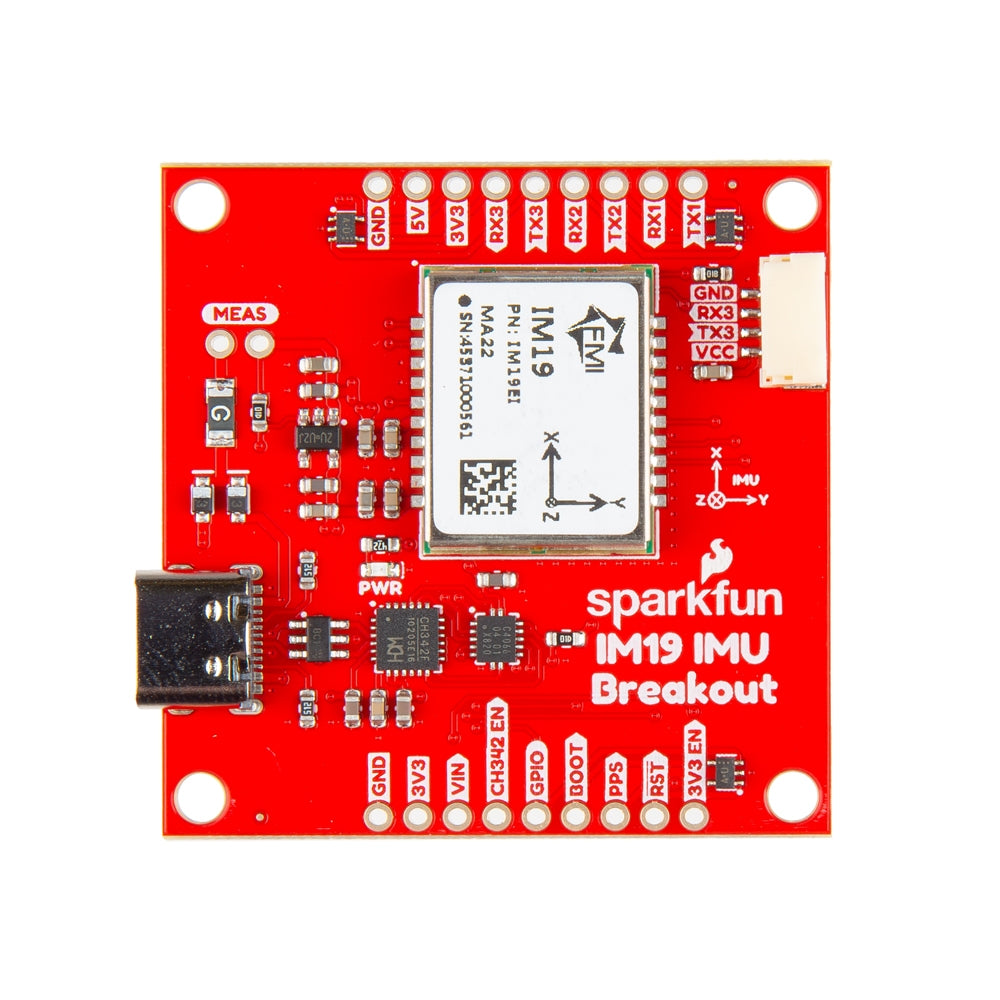

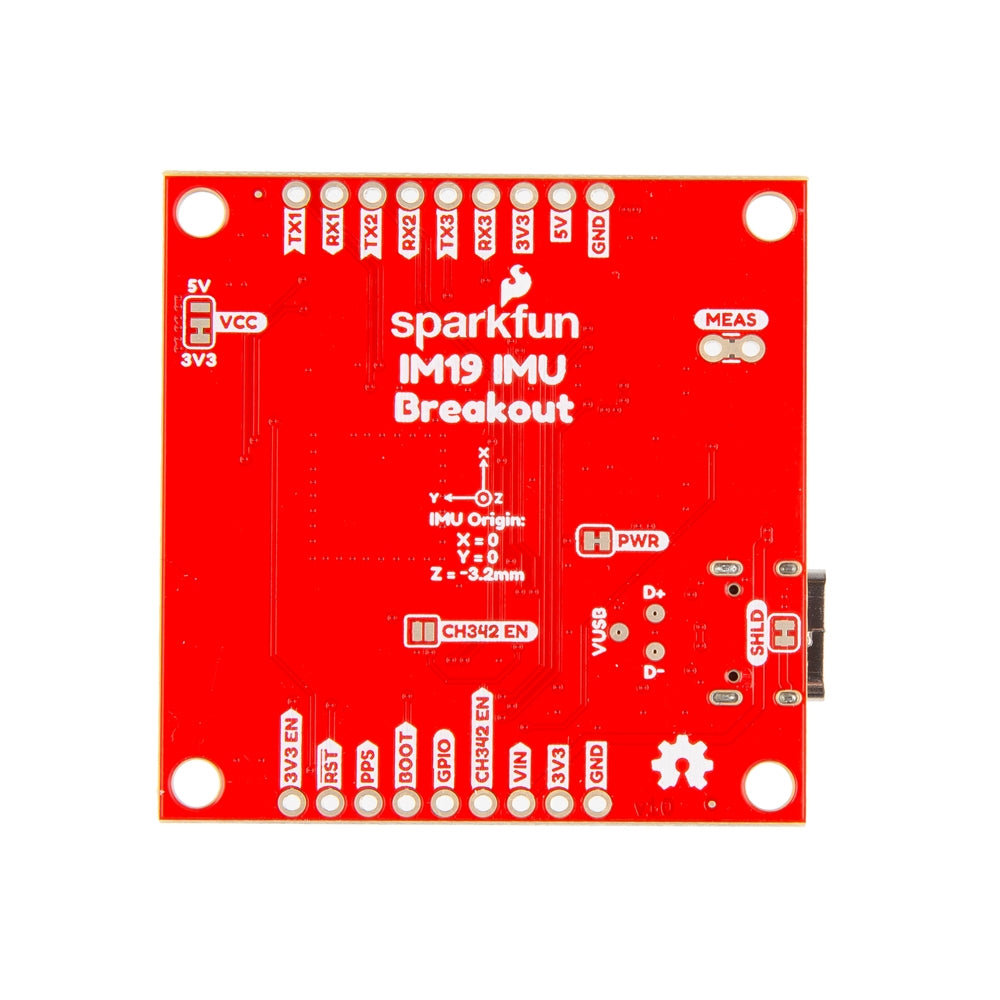

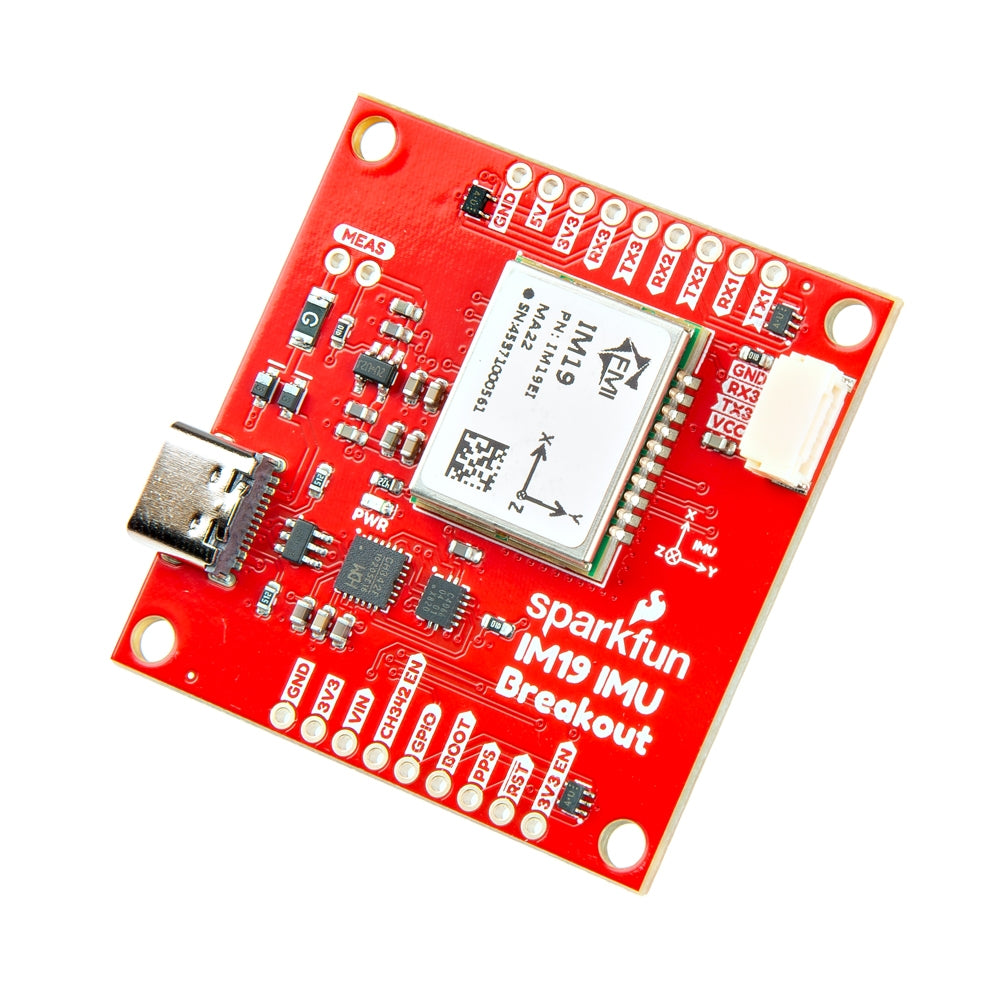

IM19 IMU Breakout
- IM19 Inertial Measurement Unit
- Supports three UART interfaces
- USB connectivity via a dual-channel CH342 interface (UART1 & 2)
- 4-pin locking JST connector (UART3)
- Power
- USB
- VIN (5V nominal)
- JST Pin 1 (default 3.3V; can be configured for 5V)
- 3.3V
- Full set of breadboard-compatible breakout pads:
- UART (x3)
- PPS signal input (required)
- BOOT (for firmware upgrade)
- RESET
- GPIO (for external beeper)
- CH342 EN (pull low to isolate the CH342)
- MEAS jumper for current measurement
- PWR LED indicator
- ESD protection
IM19 General Features
- Operating Range:
- Accelerometer: ±8g
- Gyroscope: ±1000°/s -Accuracy:
- Accelerometer Bias: ±5mg
- Gyroscope Bias Accuracy: ±0.2°/s
- Roll/Pitch: ±0.025° (1σ)
- Heading: ±0.25° (1σ)
- RTK: + 0.3mm/tilt°, with 200cm straight pole (1σ)
- Auto Steering Yaw: 0.25° (1σ)
- Initialization: ~1s
Features & Specs
IM19 IMU Breakout
- IM19 Inertial Measurement Unit
- Supports three UART interfaces
- USB connectivity via a dual-channel CH342 interface (UART1 & 2)
- 4-pin locking JST connector (UART3)
- Power
- USB
- VIN (5V nominal)
- JST Pin 1 (default 3.3V; can be configured for 5V)
- 3.3V
- Full set of breadboard-compatible breakout pads:
- UART (x3)
- PPS signal input (required)
- BOOT (for firmware upgrade)
- RESET
- GPIO (for external beeper)
- CH342 EN (pull low to isolate the CH342)
- MEAS jumper for current measurement
- PWR LED indicator
- ESD protection
IM19 General Features
- Operating Range:
- Accelerometer: ±8g
- Gyroscope: ±1000°/s -Accuracy:
- Accelerometer Bias: ±5mg
- Gyroscope Bias Accuracy: ±0.2°/s
- Roll/Pitch: ±0.025° (1σ)
- Heading: ±0.25° (1σ)
- RTK: + 0.3mm/tilt°, with 200cm straight pole (1σ)
- Auto Steering Yaw: 0.25° (1σ)
- Initialization: ~1s
